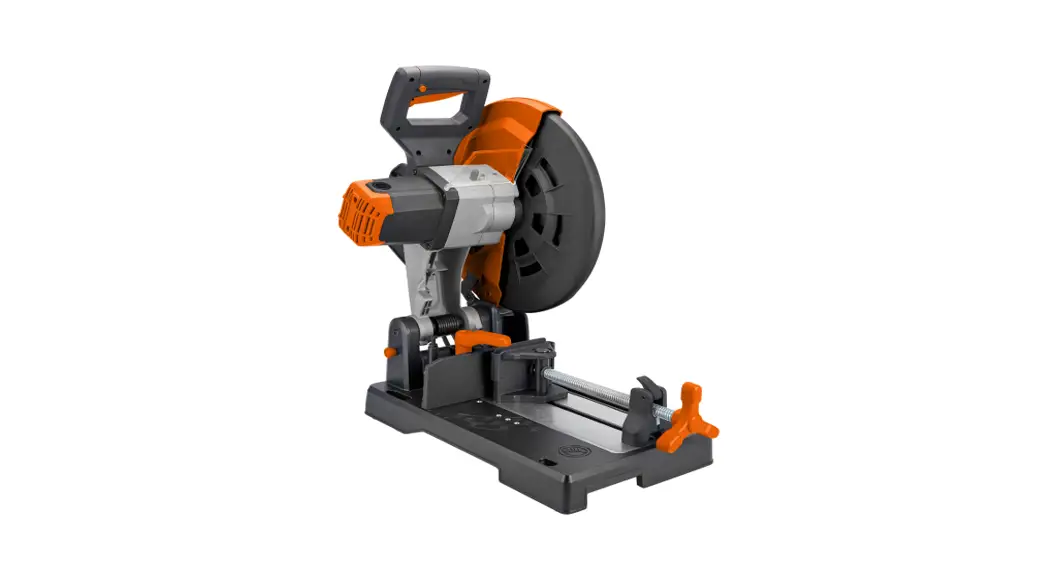

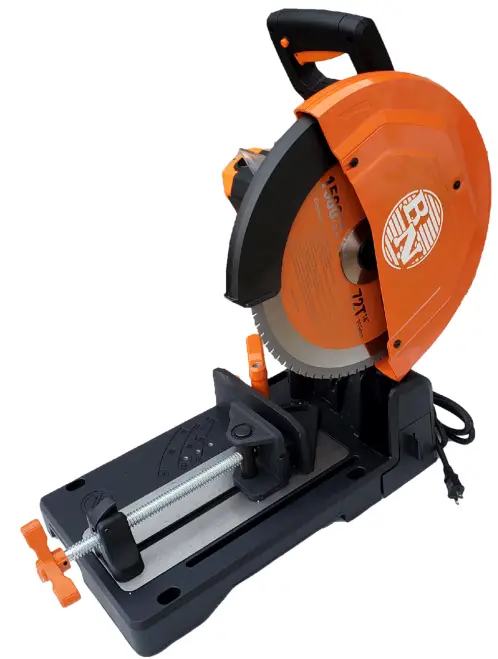

BNCE-130 14 Inch Chop Saw
User Manual
www.bnproducrs.con
BNCE-130
14” CHOP SAW
SPECIFICATIONS
| – Weight: | 53 lbs. / 24 kg |
| – Speed: | 1500 RPM |
| – Noise Level: | 108 dB(A) K=3 dB(A) |
| – Cutting Capacity (Rod & Tubing): | 5-1/8″ (130mm) |
| Round (90°) Square ((90°): | 4-3/4″ (120mm) |
| – Blade: Diameter: | 14″ / 355mm |
| Bore/Arbor: | 1″ / 25.4mm |
| Kerf: | 0.094″ / 2.4mm |

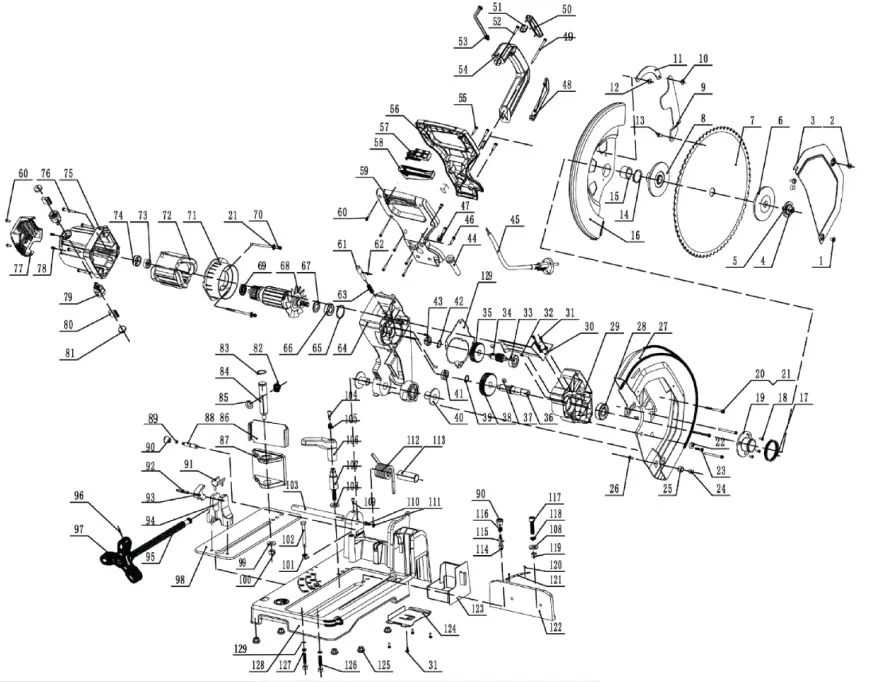

EXPLODED VIEW DRAWING
BNCE-130 | 14” CHOP SAW
Ref No. | Part No. | Parts Name | Qty |
| 1 | 101301 | Pan head screw With Step M6*8 | 1 |
| 2 | 101302 | Pan head screw M6*8 | 2 |
| 3 | 101303 | Side cover – blade guard | 1 |
| 4 | 101304 | Hexagon screw M10*25 | 1 |
| 5 | 101305 | Flange | 1 |
| 6 | 101306 | Blade flange – outer | 1 |
| 7 | RB-BNCE-130 | Standard replacement blade | 1 |
| 8 | 101308 | Blade flange – inner | 1 |
| 9 | 101309 | Main connecting rod | 1 |
| 10 | 101310 | Blade guard linkage screw (1) | 1 |
| 11 | 101311 | Small connecting rod | 1 |
| 12 | 101312 | Blade guard linkage screw (2) | 1 |
| 13 | 101313 | Blade guard linkage screw (3) | 1 |
| 14 | 101314 | Snap ring Φ38 | 1 |
| 15 | 101315 | Rotating blade guard sleeve | 1 |
| 16 | 101316 | Blade guard | 1 |
| 17 | 101317 | Reset spring | 1 |
| 18 | 101318 | Countersunk head screws M5*12 | 3 |
| 19 | 101319 | Spindle cap | 1 |
| 20 | 101320 | Pan head Screw M5*60 | 4 |
| 21 | 101321 | Spring washer φ5 | 4 |
| 22 | 101322 | Bearing 606 | 1 |
| 23 | 101323 | Pan head screw M6*16 | 1 |
| 24 | 101324 | Anti-vibration pillar bushing | 1 |
| 25 | 101325 | Anti-vibration pillar | 1 |
| 26 | 101326 | Pan head screw M5*12 | 1 |
| 27 | 101327 | Fixed Guard | 1 |
| 28 | 101328 | Bearing 6204 | 1 |
| 29 | 101329 | Gear housing | 1 |
| 30 | 101330 | Protective pin cover | 1 |
| 31 | 101331 | Pan head screw M4*12 | 2 |
| 32 | 101332 | Anti-vibration pin Φ5*8 | 3 |
| 33 | 101333 | Bearing 6200 | 1 |
| 34 | 101334 | Level 2 Small Gear | 1 |
| 35 | 101335 | Level 1 Big Gear | 1 |
| 36 | 101336 | Spindle | 1 |
| 37 | 101337 | Woodruff Key 4*13 | 2 |
| 38 | 101338 | Level 2 Big Gear | 1 |
| 39 | 101339 | Snap Ring Φ18 | 1 |
| 40 | 101340 | Bearing bush | 2 |
| 41 | 101341 | Bearing 6001 | 1 |
| 42 | 101342 | Snap Ring Φ16 | 1 |
| 43 | 101343 | Bearing 6000 | 1 |
| 44 | 101344 | Cord armor | 1 |
| 45 | 101345 | Control wire | 1 |
| 46 | 101346 | Pan head tapping screw St4*14 | 2 |
| 47 | 101347 | Cord clip | 1 |
| 48 | 101348 | Handle – side cover | 1 |
| 49 | 101349 | Pan head screw M5*80 | 1 |
| 50 | 101350 | Handle – top cover | 1 |
| 51 | 101351 | Rubber handle mount | 1 |
| 52 | 101352 | Pan head screw M5*25 | 1 |
| 53 | 101353 | Hex wrench | 1 |
| 54 | 101354 | Handle | 1 |
| 55 | 101355 | Pan head screw M5*25 | 4 |
| 56 | 101356 | Upper handle bracket | 1 |
| 57 | 101357 | Trigger switch | 1 |
| 58 | 101358 | Trigger button | 1 |
| 59 | 101359 | Lower handle bracket | 1 |
| 60 | 101360 | Pan head tapping screw St4.2*14 | 6 |
| 61 | 101361 | Locking pin | 1 |
| 62 | 101362 | Cylinder Pin Φ4 | 1 |
| 63 | 101363 | Reset spring – cylinder pin | 1 |
| 64 | 101364 | Control arm | 1 |
| 65 | 101365 | O Ring Φ35*1.5 | 1 |
| 66 | 101366 | Bearing 6202 | 1 |
| 67 | 101367 | Washer seal | 1 |
| 68 | 101368 | Armature | 1 |
| 69 | 101369 | Spacer Ring | 1 |
| 70 | 101370 | Pan head tapping screw St5*100 | 2 |
| 71 | 101371 | Baffle | 1 |
| 72 | 101372 | Stator | 1 |
| 73 | 101373 | Bearing 629 | 1 |
| 74 | 101374 | Bearing Sleeve 629 | 1 |
| 75 | 101375 | Housing | 1 |
| 76 | 101376 | Pan head screw M5*40 | 4 |
| 77 | 101377 | Rear cover | 1 |
| 78 | 101378 | Hexagon screw M5X8 | 2 |
| 79 | 101379 | Carbon Brush mount | 2 |
| 80 | 101380 | Carbon Brush | 2 |
| 81 | 101381 | Carbon Brush Cap | 2 |
| 82 | 101382 | Split Pin | 1 |
| 83 | 101383 | Snap Ring Φ22 | 1 |
| 84 | 101384 | Connecting rod pin | 1 |
| 85 | 101385 | Flat washer Φ25Φ12*3 | 2 |
| 86 | 101386 | V jaw | 1 |
| 87 | 101387 | Movable jaw | 1 |
| 88 | 101388 | Pin | 1 |
| 89 | 101389 | O Ring 5*1.5 | 1 |
| 90 | 101390 | Pin cap | 1 |
| 91 | 101391 | Rod washer | 1 |
| 92 | 101392 | Cylindrer Pin φ6*40 | 1 |
| 93 | 101393 | Quick release nut | 1 |
| 94 | 101394 | Rod support | 1 |
| 95 | 101395 | Rod | 1 |
| 96 | 101396 | Cylinder pin φ5*30 | 1 |
| 97 | 101397 | Rod handle | 1 |
| 98 | 101398 | Base plate | 1 |
| 99 | 101399 | Flat washer Φ25Φ10*1.5 | 1 |
| 100 | 101400 | Hexagon fixed screw M10 | 1 |
| 101 | 101401 | Hexagon screw M10 | 1 |
| 102 | 101402 | Outer hexagon screw M8X55 | 1 |
| 103 | 101403 | Main arm spindle | 1 |
| 104 | 101404 | Fixed screw | 1 |
| 105 | 101405 | Spring | 1 |
| 106 | 101406 | Quick release handle | 1 |
| 107 | 101407 | Base adjustment screw | 1 |
| 108 | 101408 | Washer Φ10 | 1 |
| 109 | 101409 | Hexagon screw M5*12 | 1 |
| 110 | 101410 | Hexagon screw M6*12 | 1 |
| 111 | 101411 | Spring washer φ6 | 1 |
| 112 | 101412 | Torsion spring | 1 |
| 113 | 101413 | Torsion spring sleeve | 1 |
| 114 | 101414 | Auxiliary pin | 1 |
| 115 | 101415 | Cylinder pinφ 4*22 | 1 |
| 116 | 101416 | Auxiliary pin pring | 1 |
| 117 | 101417 | Hexagon screw M10*40 | 1 |
| 118 | 101418 | Spring washer φ10 | 1 |
| 119 | 101419 | Angle plate sleeve | 1 |
| 120 | 101420 | Rivet | 2 |
| 121 | 101421 | Angle plate ruler | 1 |
| 122 | 101422 | Angle plate | 1 |
| 123 | 101423 | Dust collection chamber | 1 |
| 124 | 101424 | Dust collection bracket | 1 |
| 125 | 101425 | Rubber footing | 5 |
| 126 | 101426 | Hexagon screw M8*35 | 2 |
| 127 | 101427 | Spring washer φ8 | 2 |
| 128 | 101428 | Base plate | 1 |
| 129 | 101429 | Paper Washer | 2 |
PRODUCT PARTS GUIDE
PARTS GUIDEBN Products-USA
BN Products-USA™
3450 N Sabin Brown Road
Wickenburg, AZ 85390
(800) 992-3833
www.BNProducts.com
BNCE-130 Parts Guide 2022
REV: March 6, 2023
BN Products-USA, LLC - Professional Contractor Tools
