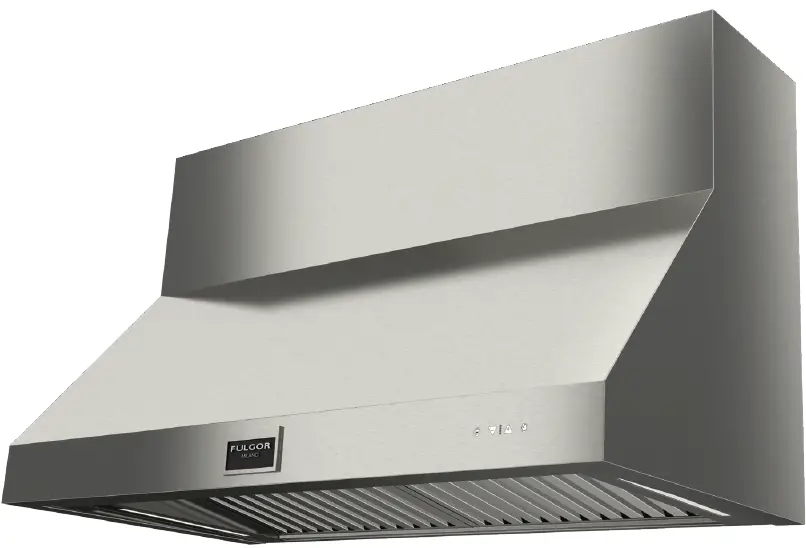

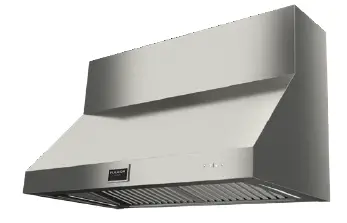

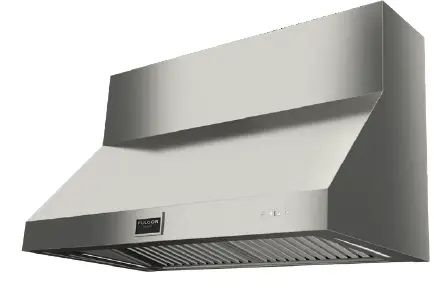

FULGOR MILANO 482 TC X 48 Inch Wall Hood
Symbols
Timer
Wall Hung Installation
Suction
Filtering
Timer Automatic Off
LED Lighting
Professional Filters
WALL HOOD 48
INCLUDED ACCESSORIES
Power cord and plug
OPTIONAL ACCESSORIES
- Chimney extension KIT: FPRHD 482.
- Set of 2 HP filters for filtering version: FHCF 22.
PERFORMANCE
- Suction power up to 1453 m³/h
- Sound power from 48 to 73 dBa
- 2 Motor
- 4 suction levels
- Auto-off
FEATURES
- Soft touch controls
- LED lighting
- Labyrinth stainless steel grease filters
- Nominal power 550 W
- Minimum air outlet Ø 200 mm
- Air non-return valve (suction)
STAINLESS STEEL FPRHD 482 TC X

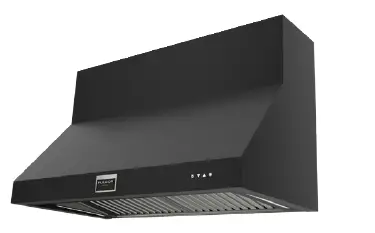

MATTE BLACK STEEL FPRHD 482 TC MBK
SOFIA HOOD

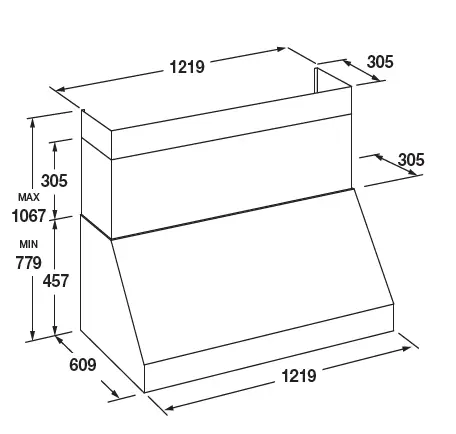

Dimensions
| FPRHD 482 TC | |
| Type | Wall hood 48” |
| Finishing | X Stainless steel MBK Matte black |
| FEATURES | |
| Energy efficiency class | B |
| Levels of aspiration | 4 |
| Auto shutdown | |
| Grease filter saturation indicator | |
| Type of grease filters / no. | Stainless steel Professional / 3 |
| HP filter replacement light | |
| Lighting n. and type | 2 x 1,2 W LED |
| Dishwasher safe filters | |
| Ø Air outlet | Ø 200 |
| Air flow non-return flap | |
| COMMANDS | |
| Touch control | |
| POWER RATING | |
| Suction power m3 / h max | 1453 m3/h |
| Noise dBA | 48 – 73 |
| Annual consumption kWH | 195 |
| Motor power W | 550 W |
| Rated power (W) | 320 W |
| Voltage /Frequency V – Hz | 220 – 240 / 50 – 60 |
| Power cable (m) | 2 |
| OPTIONAL ACCESSORIES | |
| Fireplace kit | |
| HP filter for filter version | FHCF 22 x 2 |
| DIMENSIONS | |
| Width mm | 1219 |
| Height min Max mm | 779 – 1067 |
| Depht mm | 609 |
