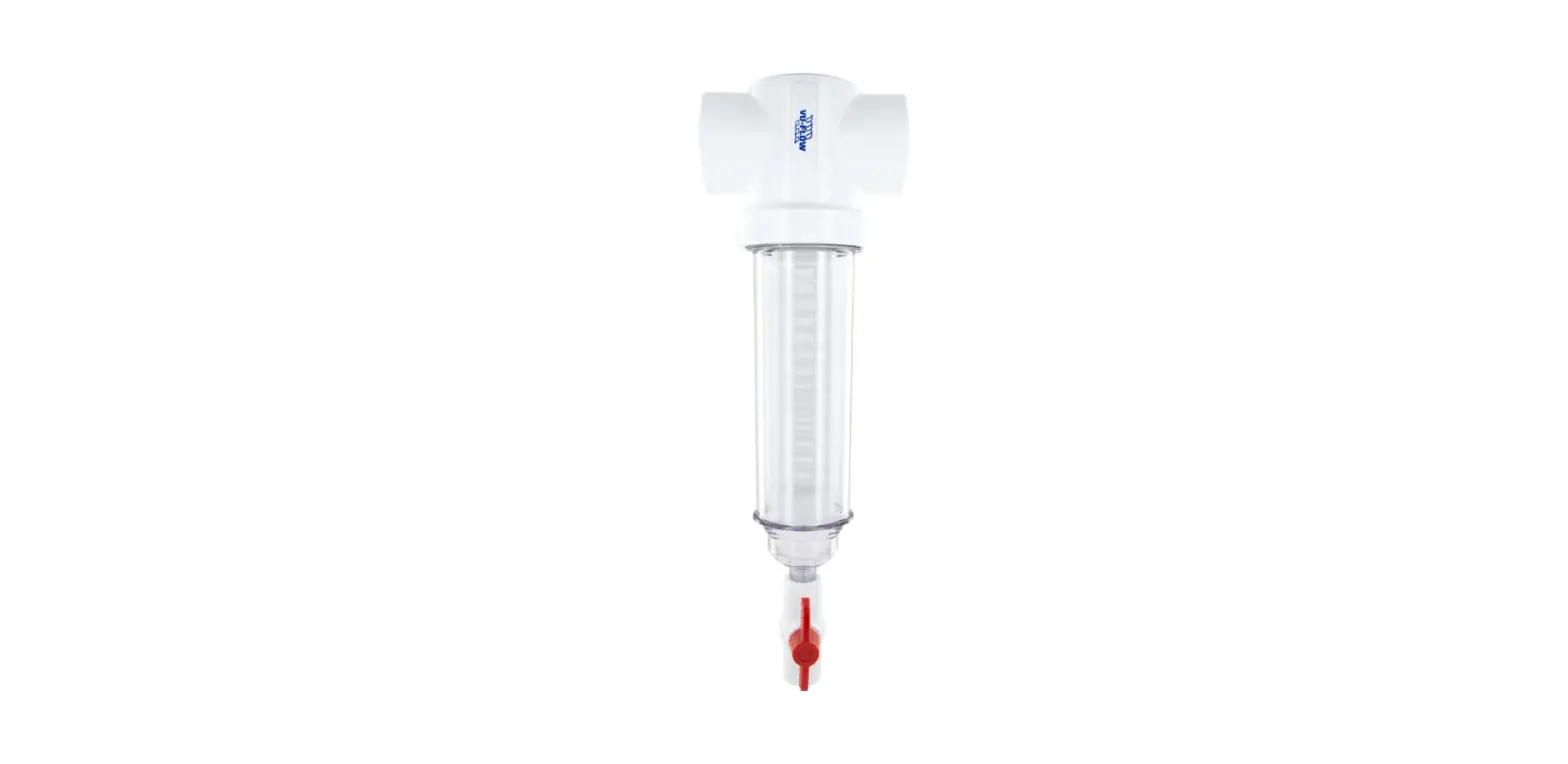

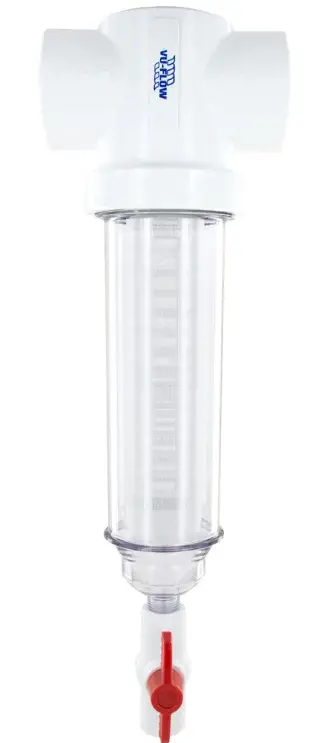

American Granby NT75-24P Vu-Flow Screen Filters
T Style Screen Filter Features:
- 180° in-line “T” style installation.
- 1-100 GPM models.
- 1/2” MPT cleanout with purge valve.
- Supplied with polyester filter screen.
- Also available with stainless steel screen as special order.
- WATER USE ONLY
| Part Number | Inlet/Outlet “P” | Mesh # & Size | Mesh Opening | Min*/Max Flow GPM | “L” | “W” | List Price |
| IPS x IPS NT75-24P | 3/4” x 3/4” | 24 (711 mic) | 0.028 | 1-25 | 11 3/8” | 5” | $ 110.11 |
| NT75-60P | 3/4” x 3/4” | 60 (254 mic) | 0.010 | 1-25 | 11 3/8” | 5” | 110.49 |
| NT75-100P | 3/4” x 3/4” | 100 (152 mic) | 0.006 | 1-25 | 11 3/8” | 5” | 110.49 |
| NT75-140P | 3/4” x 3/4” | 140 (104 mic) | 0.004 | 1-25 | 11 3/8” | 5” | 110.49 |
| NT75-250P | 3/4” x 3/4” | 250 (61 mic) | 0.0024 | 1-25 | 11 3/8” | 5” | 114.56 |
| NT75-500P | 3/4” x 3/4” | 500 (30 mic) | 0.0012 | 1-25 | 11 3/8” | 5” | 114.56 |
| NT75-1000P | 3/4” x 3/4” | 1000 (15 mic) | 0.0006 | 1-25 | 11 3/8” | 5” | 114.56 |
| Slip x Slip NT100-24P | 1” x 1” | 24 (711 mic) | 0.028 | 1-25 | 11 3/8” | 5” | 78.82 |
| NT100-30P | 1” x 1” | 30 (533 mic) | 0.021 | 1-25 | 11 3/8” | 5” | 78.82 |
| NT100-40P | 1” x 1” | 40 (381 mic) | 0.015 | 1-25 | 11 3/8” | 5” | 78.82 |
| NT100-60P | 1” x 1” | 60 (254 mic) | 0.01 | 1-25 | 11 3/8” | 5” | 78.82 |
| NT100-100P | 1” x 1” | 100 (152 mic) | 0.006 | 1-25 | 11 3/8” | 5” | 78.65 |
| NT100-140P | 1” x 1” | 140 (104 mic) | 0.004 | 1-25 | 11 3/8” | 5” | 81.14 |
| NT100-250P | 1”.x 1” | 250 (61 mic) | 0.0024 | 1-25 | 11 3/8” | 5” | 81.86 |
| NT100-500P | 1” x 1” | 500 (30 mic) | 0.0012 | 1-25 | 11 3/8” | 5” | 83.68 |
| NT100-1000P | 1” x 1” | 1000 (15 mic) | 0.0006 | 1-25 | 11 3/8” | 5” | 90.53 |
| Slip x Slip NT150-24P | 1-1/2” x 1-1/2” | 24 (711 mic) | 0.028 | 10-50 | 15 3/8” | 5 1/4” | 142.33 |
| NT150-30P | 1-1/2” x 1-1/2” | 30 (533 mic) | 0.021 | 10-50 | 15 3/8” | 5 1/4” | 142.33 |
| NT150-40P | 1-1/2” x 1-1/2” | 40 (384 mic) | 0.015 | 10-50 | 15 3/8” | 5 1/4” | 142.33 |
| NT150-60P | 1-1/2” x 1-1/2” | 60 (254 mic) | 0.010 | 10-50 | 15 3/8” | 5 1/4” | 145.99 |
| NT150-100P | 1-1/2” x 1-1/2” | 100 (152 mic) | 0.006 | 10-50 | 15 3/8” | 5 1/4” | 145.99 |
| NT150-140P | 1-1/2” x 1-1/2” | 140 (104 mic) | 0.004 | 10-50 | 15 3/8” | 5 1/4” | 145.99 |
| NT150-250P | 1-1/2” x 1-1/2” | 250 (61 mic) | 0.0024 | 10-50 | 15 3/8” | 5 1/4” | 152.16 |
| NT150-500P | 1-1/2” x 1-1/2” | 500 (30 mic) | 0.0012 | 10-50 | 15 3/8” | 5 1/4” | 155.12 |
| NT150-1000P | 1-1/2” x 1-1/2” | 1000 (15 mic) | 0.0006 | 10-50 | 15 3/8” | 5 1/4” | 155.12 |
| Slip x Slip NT200-24P | 2” x 2” | 24 (711 mic) | 0.028 | 18-100 | 17 7/8” | 5 1/2” | 224.10 |
| NT200-30P | 2” x 2” | 30 (533 mic) | 0.021 | 18-100 | 17 7/8” | 5 1/2” | 224.99 |
| NT200-40P | 2” x 2” | 40 (384 mic) | 0.015 | 18-100 | 17 7/8” | 5 1/2” | 224.99 |
| NT200-60P | 2” x 2” | 60 (254 mic) | 0.010 | 18-100 | 17 7/8” | 5 1/2” | 232.43 |
| NT200-100P | 2” x 2” | 100 (152 mic) | 0.006 | 18-100 | 17 7/8” | 5 1/2” | 232.43 |
| NT200-140P | 2” x 2” | 140 (104 mic) | 0.004 | 18-100 | 17 7/8” | 5 1/2” | 232.43 |
| NT200-250P | 2” x 2” | 250 (61 mic) | 0.0024 | 18-100 | 17 7/8” | 5 1/2” | 239.11 |
| NT200-500P | 2” x 2” | 500 (30 mic) | 0.0012 | 18-100 | 17 7/8” | 5 1/2” | 239.11 |
| NT200-1000P | 2” x 2” | 1000 (15 mic) | 0.0006 | 18-100 | 17 7/8” | 5 1/2” | 239.11 |

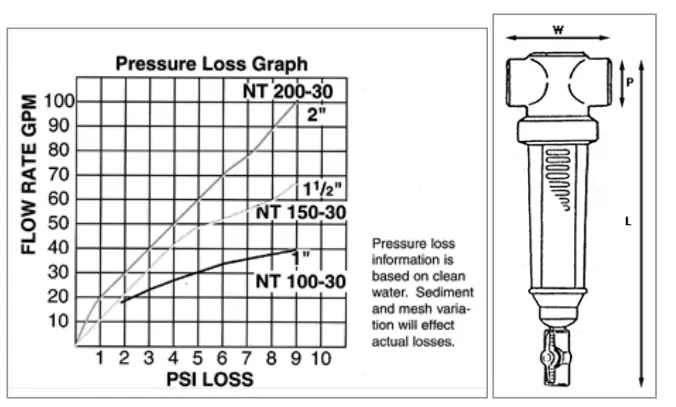

Minimum flow needed for “spin-out” action.
Do not install filters with purge valve on suction side of pump.
www.americangranby.com
Ph: 800-776-2266 Fax: 800-729-3299
American Granby - The Original Source of Vendor Consolidation
