Thermador PH36GWS 27 Inch Depth Wall Mount Ducted Hood

Product Information

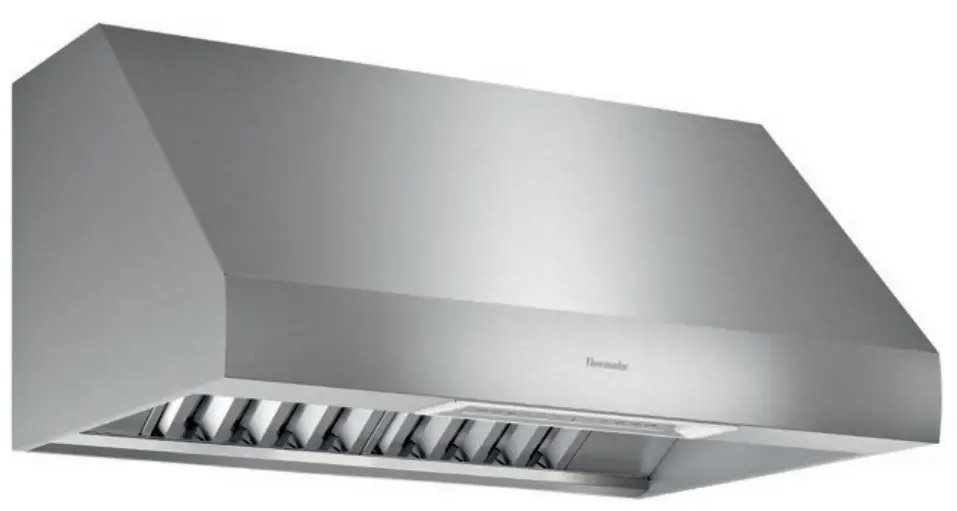

PH36GWS 27-Inch Depth Wall Hood (36-InchWidth)

The PH36GWS is a 27-inch depth wall hood with a 36-inch width. It features multi-level, vivid LED lights that provide beautiful illumination. The hood operates in ducted mode and has four-stage speed settings. The blower motor is sold separately and can be mounted on the roof, external wall, or integrated into the hood. The grease filter is made of washable stainless steel and is of commercial-style baffle type. The hood has a Check Filter Reminder Light and Delay Shut-Off feature. The appliance is Wi-Fi enabled and can be controlled through the Home ConnectTM app. The hood comes with a 2-year limited warranty on parts and labor.

Features & Benefits

• Multi-Level LED Lights with Fading Transitions
• Infrared Heat Lamps
• Automatic Mode
• Check Filter Reminder Light
• Delay Shut-Off

Technical Details

• Operating Mode: Ducted
• Number of Speed Settings: 4-Stage
• Motor Location: Blower (Sold Separately)
• Number of Lights: 2
• Bulb Type: LED
• Light Lumens: Total Power Of The Lamps (W) – 2.4
• Damper Included: Yes
• Grease Filter Material: Washable Stainless Steel
• Grease Filter Type: Stainless-Steel Commercial Style Baffle Filter
• Home ConnectTM (Wi-Fi Enabled): Yes
• Watts (W): See Chart on Page 3
• Current (A): See Chart on Page 3
• Volts (V): 120V, Frequency (Hz): 60 Hz, Plug Type: 120V-3 Prong
• Diameter of Air Duct (in) Top: 10
• Diameter of Air Duct (in) Back: 10
• Net Weight (lbs): 80 lbs

Optional Accessories

• 25 ft. Blower Connector Cable – EXTNCB25W

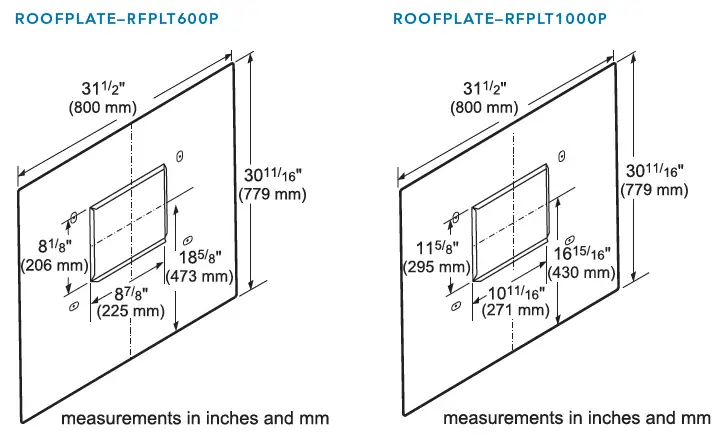

• Roofplates:
  • RFPLT600P – For use with 600 CFM remote blower VTR630W
  • RFPLT1000P – For use with 1000 CFM remote blower VTR1030W and
    1300 CFM blower VTR1330W
• 6 Tall Duct Cover, 36 Wide – DC366W
• 8′ – 9′ Ceiling Telescoping Duct Cover, 36 Wide – DC3689W
• 10′ – 12′ Ceiling Telescoping Duct Cover, 36 Wide – DC361012W
• Built-In Remote Control Panel – REMCPW

Blower Options

• Remote Blower (Mounted to Roof or External Wall):
  • VTR630W – 600 CFM
  • VTR1030W – 1000 CFM
  • VTR1330W – 1300 CFM
• Inline Blower (Mounted Between Kitchen and External Wall):
  • VTI610W – 600 CFM
  • VTI1010W – 1000 CFM
• Integrated Blower (Mounted in Hood):
  • VTN630W – 600 CFM
  • VTN1090R – 1000 CFM

Product Usage Instructions

• The PH36GWS hood works in ducted mode and requires a blower motor that must be purchased separately. The blower can be mounted on the roof, external wall, or integrated into the hood. The hood has four-stage speed settings, and the fan speed can be adjusted as per the cooking requirements. The grease filter is made of washable stainless steel and must be cleaned periodically to ensure proper performance.
• The hood comes with a Check Filter Reminder Light that indicates when it’s time to clean the filter. The hood also has a Delay Shut-Off feature that keeps the fan running for a few minutes after cooking to remove any residual odor and smoke from the kitchen. The hood is Wi-Fi enabled and can be controlled through the Home ConnectTM app.
• The hood requires a minimum distance of 30 inches above the gas or electric cooking surface. The diameter of the air duct at the top and back is 10 inches. The hood comes with a 2-year limited warranty on parts and labor.

FEATURES & BENEFITS

• 27″ in depth, a perfect companion to Pro Grand® Professional Ranges
• Equipped with the Thermador Connected Experience by Home Connect™
• Powerfully Quiet® system accepts integral, inline, and remote blowers
• Keep food warm until it’s ready to be served with two independently controlled infrared heat lamps
• Beautiful illumination with multi-level, vivid LED lights

ACCESSORIES (OPTIONAL)

• 25 ft. Blower Connector Cable – EXTNCB25W
• EXTNCB25W – For use with the following inline and remote blowers: VTR630W, VTR1030W, VTR1330W, VTI610W, VTI1010W Roofplates
• RFPLT600P – For use with 600 CFM remote blower VTR630W
• RFPLT1000P – For use with 1000 CFM remote blower VTR1030W and 1300 CFM blower VTR1330W
• 6″ Tall Duct Cover, 36″ Wide DC366W
• 8′ – 9′ Ceiling Telescoping Duct Cover, 36″ Wide DC3689W
• 10′ – 12′ Ceiling Telescoping Duct Cover, 36″ Wide DC361012W
• Built-In Remote Control Panel
• REMCPW – Ability to vertically install on cabinetry or wall to control hood in a convenient location

GENERAL PROPERTIES

Features
Multi-Level LED Lights with Fading Transitions, Infrared Heat Lamps, Automatic Mode, Check Filter Reminder Light, Delay Shut-Off

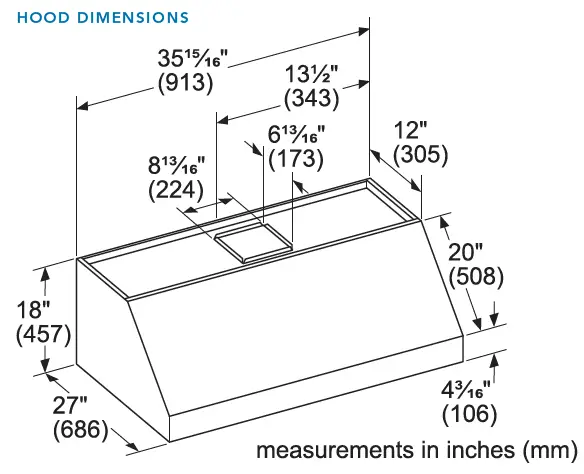

Dimension

PROFESSIONAL® SERIES

OPTIONAL ACCESSORIES

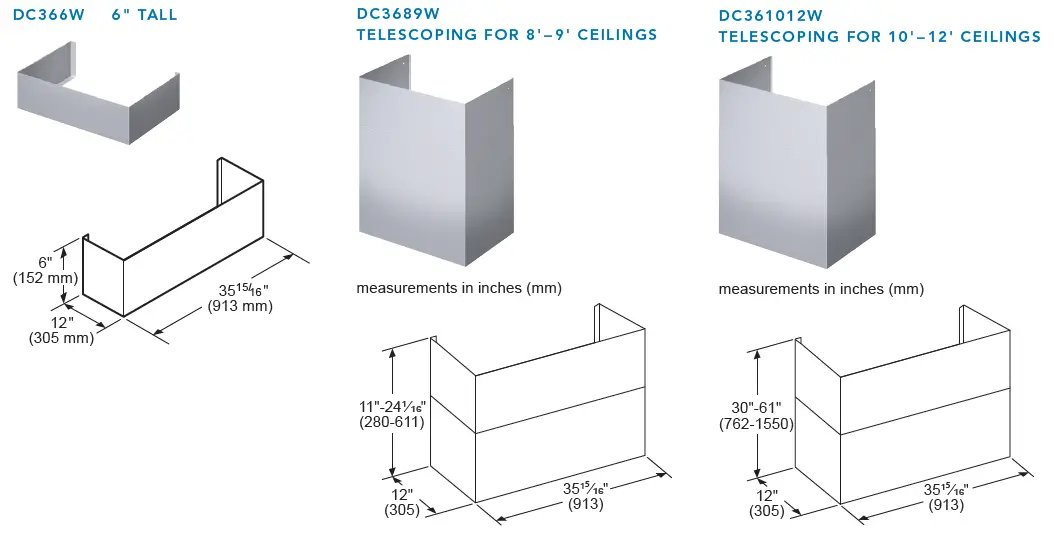

36″ WIDE DUCT COVER

• Stainless steel duct cover for wall hood applications

REMOTE CONTROL PANEL REMCPW

• Convenience at your fingertips: The remote control accessory offers the freedom to extend your hood controls to a more reachable spot

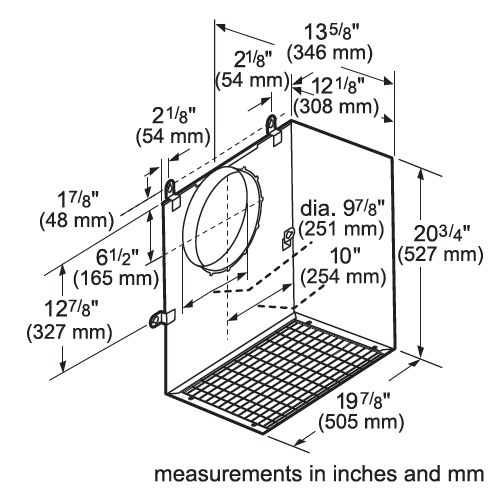

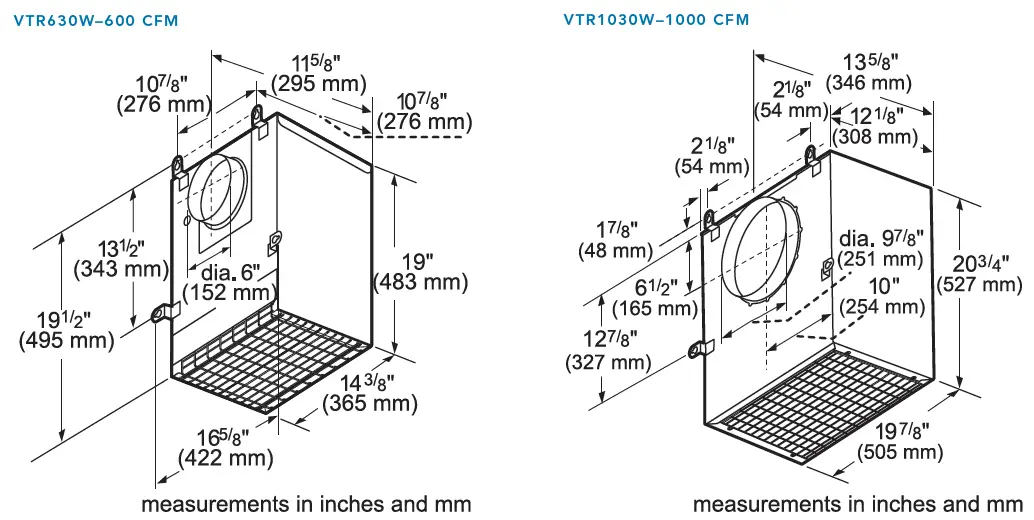

REMOTE BLOWERS (MOUNTED TO ROOF OR EXTERNAL WALL)

VTR1330W–1300 CFM

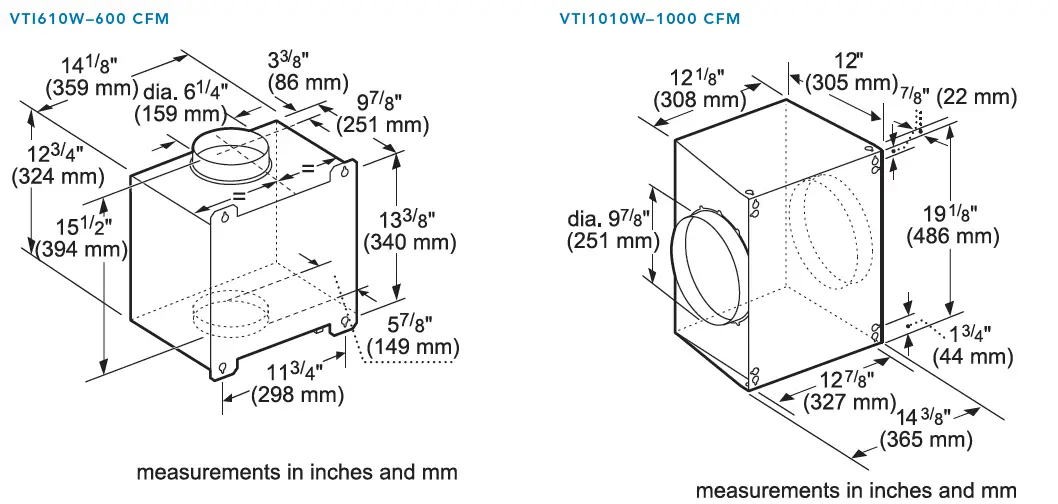

INLINE BLOWERS (MOUNTED BETWEEN KITCHEN AND EXTERNAL WALL)

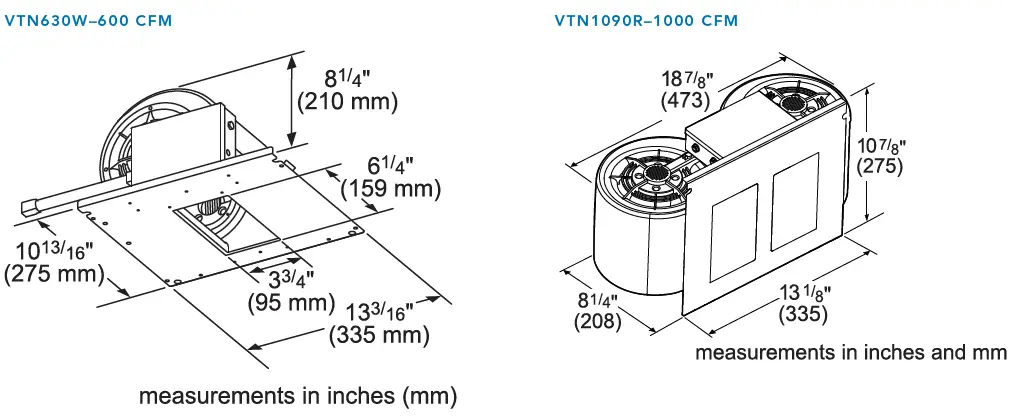

INTEGRATED BLOWERS (MOUNTED IN HOOD)

REMOTE BLOWER ACCESSORIES

EXTNCB25W

• For use with the following Inline and
• Remote Blowers: VTR630W, VTR1030W, VTR1330W, VTI610W, VTI1010W
• These warranties give you specific legal rights and you may have other rights that vary from state to state. Limited warranty from date of purchase. For complete warranty details, refer to your
• Use & Care manual, or ask your dealer.
• Specifications are for planning purposes only. Refer to installation instructions and consult your countertop supplier prior to making counter opening. Consult with a heating and ventilation engineer for your specific ventilation requirements. For the most detailed information, refer to installation instructions accompanying product or write to Thermador indicating the model number. Specifications are correct at time of printing. Thermador reserves the right to change product specifications or design without notice. Some models are certified for use in Canada.
• Thermador is not responsible for products that are transported from the U.S. for use in Canada.
• 1 800 735 4328
• USA THERMADOR.COM
• CANADA THERMADOR.CA
• ©2021 BSH HOME APPLIANCES CORPORATION. ALL RIGHTS RESERVED
