socket mobile DuraScan 600 Series D600 NFC Reader/Writers
Battery Replacement Instructions

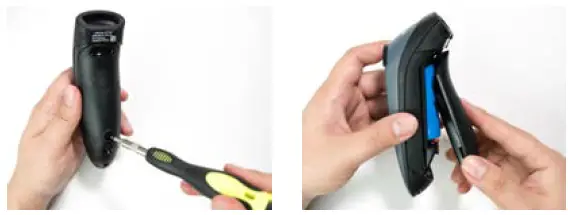

Step 1: Remove Battery Door
Use screw driver to loosen screw and remove battery door.

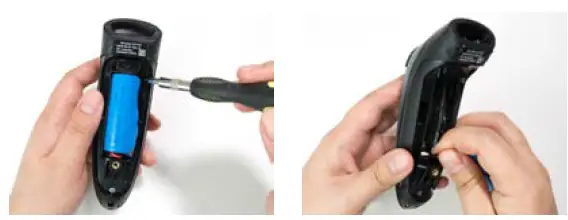

Step 2: Remove Battery
Use a flat head screw driver and place in the top right corner to gently push the battery out. Then, pull the connector to remove.
Step 3: Insert New Battery
Plug the connector on the new battery

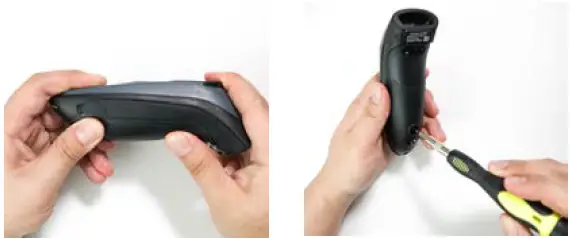

Step 4: Secure Battery Door
Ensure the battery door is properly placed, then screw the battery door back on.
Step 5: Use a wall charger to charge battery until the battery light turns solid green (up to 8 hours)
Charging Requirements: Min 5.0 VDC, 1 AMP Max 5 5 VDC, 3 AMPs
