mobile DuraScan 600/700 NFC and RFID Contactless Reader/Writer
Instruction Manual

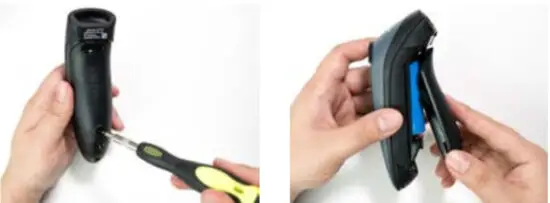

Step 1: Remove Battery Door
Use a screwdriver to loosen the screw and remove the battery door.

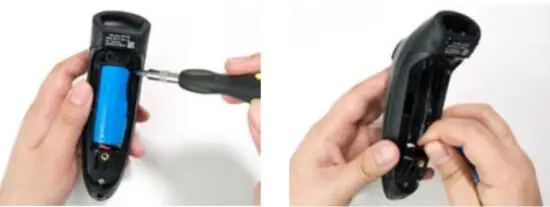

Step 2: Remove Battery
Use a flat head screwdriver and place it in the top right corner to gently push the battery out. Then, pull the connector to remove it.

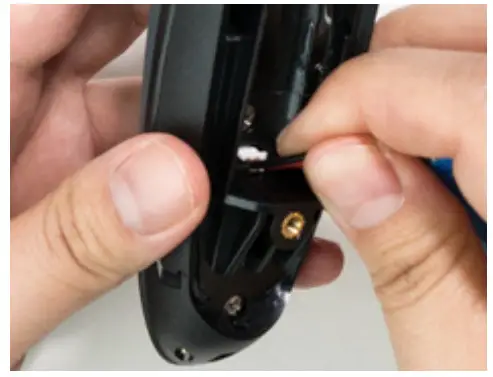

Step 3: Insert New Battery
Plug the connector on the new battery.

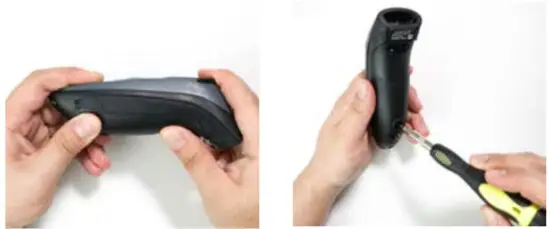

Step 4: Secure Battery Door
Ensure the battery door is properly placed, then screw the battery door back on.
Step 5: Use a wall charger to charge the battery until the battery light turns solid green (up to 8 hours)
Charging Requirements: Min 5.0 VDC, 1 AMP, Max 5.5 VDC, 3 AMPs
04/2022
6430-00407B
