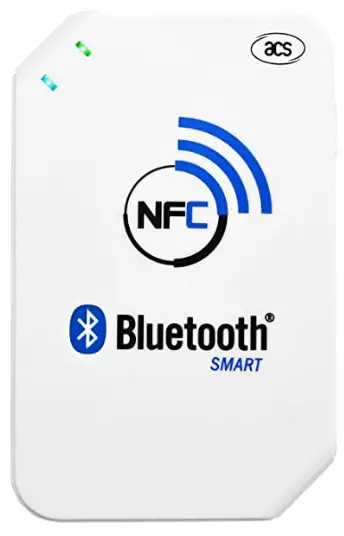

ETS ACR1255U-J1 Bluetooth NFC Reader
Introduction
The ACR1255U-J1 ACS Secure Bluetooth® NFC Reader combines the latest 13.56 MHz contactless technology with Bluetooth® connectivity for on-the-go smart card and NFC applications.
Smart Card Reader
The ACR1255U-J1 supports ISO 14443 Type A and B smart cards, MIFARE®, FeliCa, and most NFC tags and devices compliant with ISO 18092 standard. This makes it the ideal device for a broad range of solutions, such as hands-free verification for physical and logical access control, and inventory tracking. The ACR1255U-J1 has both Bluetooth 4.0 interface for pairing with mobile devices and USB Full Speed for PC-linked operation. Additionally, it can read/write at speeds of up to 424 Kbps for contactless smart card and NFC device access.
Compact Design
With a compact design and a rechargeable Lithiumion battery for power, the ACR1255U-J1 is extremely portable and convenient for use anytime, anywhere with most Bluetooth-enabled smartphones and tablets in the market.
Firmware Upgradeable Feature
To save valuable cost and time, the firmware of the ACR1255U-J1 could conveniently be upgraded infield to let users cope with the fast-changing technology for their applications to suit different scenarios.
Secure Bluetooth Connectivity
With Bluetooth technology and AES-128 encryption (CBC ciphering mode), the ACR1255U-J1 can connect securely and wirelessly with ease to any device running on Android™ version 4.3 and later, iOS 5.0 and later, Windows® 7 and later, and Mac OS® 10.7 and later.
Ease of Integration
The ACR1255U-J1 can easily be installed for use with any personal computer running on Windows® operating system because it is PC/SC and CCID-compliant. Its drivers are also compatible with Linux® and Mac OS®. With its numerous features, the ACR1255U-J1 is the perfect reader for your smart card solution.
Key Features
- USB Full Speed Interface
- Bluetooth Interface
- Plug and Play – CCID support brings utmost mobility
- Smart Card Reader:
- Contactless Interface:
- Read/Write speed of up to 424 Kbps
- Built-in antenna for contactless tag access, with reading distance of up to 50 mm (depending on tag type)
- Supports ISO 14443 Part 4 Type A and B cards, MIFARE, FeliCa, and all 4 types of NFC (ISO/IEC 18092) tags
- Built-in anti-collision feature (only one tag is accessed at any time)
- Supports AES-128 encryption algorithm (CBC ciphering mode)
- NFC Mode Supported:
Card reader/
- Application Programming
- Supports PC/SC
- Supports CT-API (through wrapper on top of PC/SC)
- Built-in Peripherals
- Two user-controllable bi-color LEDs
- User-controllable buzzer
- USB Firmware Upgradeabilityl
- Supports android 4.3 and later2
- Supports iOS 8.0 and later3
- Compliant with the following standards:
EN 60950/IEC 60950, ISO 14443, ISO 18092, Bluetooth,PC/SC,CCID, CE,FCC, RoHS 3, REACH,VCCI (Japan) TELEC (Japan), Micr
Specification
| Physical Characteristics | |
| Dimensions | 85 mm (L) 54 mm (W) 10 mm (H) |
| Weight | 37.5 g (74.1 g with cable ± 5 g tolerance) |
| Color | White |
| Bluetooth Interface | |
| Protocol | Bluetooth (Bluetooth Low Energy/Bluetooth 4.0) |
| Power Source | Rechargeable Lithium-ion Battery (charging through USB) |
| Speed | 1 Mbps |
| USB Host Interface | |
| Protocol | USB CCID |
| Connector Type | USB Mini-B |
| Power Source | From USB port |
| Speed | USB Full Speed (12 Mbps) |
| Supply Voltage | 5 V |
| Supply Current | Max. 500 mA |
| Cable Length | 1 m, Detachable |
| Contactless Smart Card Interface | |
| Standard | ISO/IEC 18092 NFC, ISO 14443 Type A & B, MIFARE, FeliCa |
| Protocol | ISO 14443 T=CL for ISO 14443-4–compliant cards |
| T=CL Emulation for MIFARE Classic, ISO 18092, FeliCa and NFC tags | |
| Operating Frequency | 13.56 MHz |
| Operating Distance | Up to 50 mm (depending on tag type) |
| Smart Card Read/Write Speed | 106 Kbps, 212 Kbps, 424 Kbps |
| Antenna Size | 45.60 mm 42.00 mm |
| Built-in Peripherals | |
| LED | 2 bi-color: Red and Blue, Red and Green |
| Buzzer | Monotone |
| Other Features | |
| Encryption | In-device AES-128 Encryption Algorithm (CBC Ciphering Mode) |
| Firmware Upgrade | Supported (upgradeable through USB Interface) |
| Application Programming Interface | |
| PC-linked Mode | PC/SC CT-API (through wrapper on top of PC/SC) |
| Operating Conditions | |
| Temperature | 0 °C – 60 °C4 |
| Humidity | Max. 85% (non-condensing) |
| MTBF | 400,000 hrs |
Certifications/Compliance
EN 60950/IEC 60950, ISO 14443, ISO 18092, USB Full Speed, Bluetooth, PC/SC, CCID, CE, FCC RoHS 3, REACH VCCI (Japan), TELEC (Japan), Microsoft® WHQL
Device Driver Operating System Support
Windows® XP, Windows® Vista™, Windows® 7, Windows® 8, Windows® 8.1, Windows® 10 Windows® Server 2003, Windows® Server 2008, Windows® Server 2008 R2, Windows® Server 2012, Windows® Server 2012 R2, Windows® Server 2016 5 6 Linux®, Mac OS®, Android™ , iOS
APPLICATION AREAS

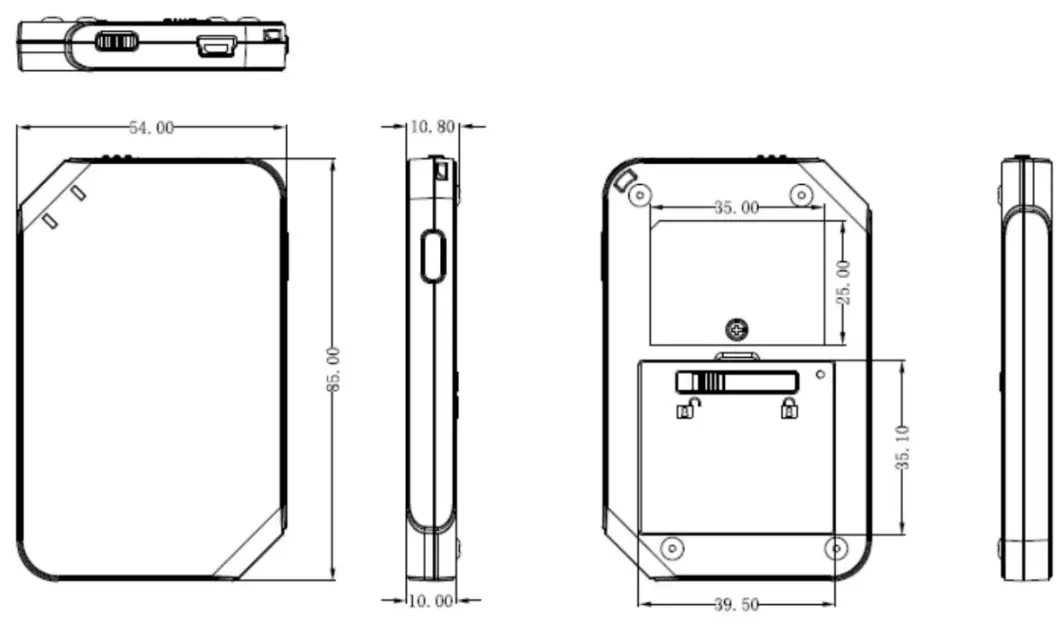

DIMENSION
Notice: Product specifications are subject to change without prior notice. / Model: ACR1255U-J1 / Update Date : 05/05/2022
