EXTECH AN300 Airflow Cone and Funnel Adapter Kit
INTRODUCTION

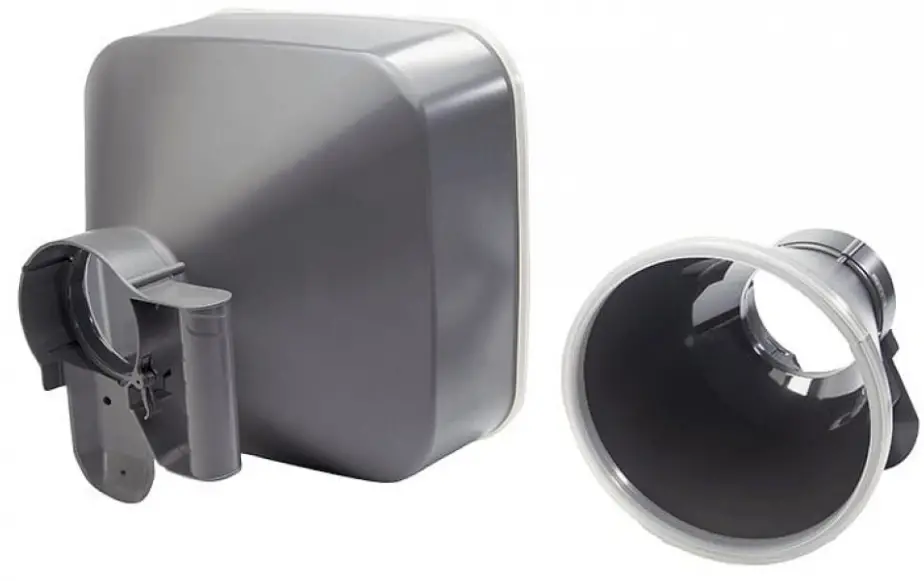

The AN300-C Cone Adaptor Kit is intended for use with the Extech AN300 series Anemometers only (AN300, AN310, and AN320). The AN300-C kit includes a round and a square adaptor. For instructions on the AN300 Series meter, please refer to the manual included with the product or visit www.extech.com.
OPERATION
- Attach the round or the square adaptor to the AN300 series meter. Ensure that the adaptor is well mounted and locked before continuing
- The meter will automatically recognize the adaptor (the adaptor icon will appear).
- The meter’s AREA setting will now default to the dimensions of the vane opening.
- Connect the adaptor to the air duct or vent and measure Air Volume as described in the AN300 series user manual.
DIMENSIONS
- Round Adaptor area dimensions: 210mm (8.3″) diameter
- Square Adaptor area dimensions: 346 x 346mm (13.6″× 13.6″)
- Material: ABS plastic
Contact Customer Support
- Customer Support Telephone List: https://support.flir.com/contact
- Calibration, Repair, and Returns: [email protected]
- Technical Support: https://support.flir.com
