EXTECH AN300-C Air Flow Adaptor Kit
INTRODUCTION

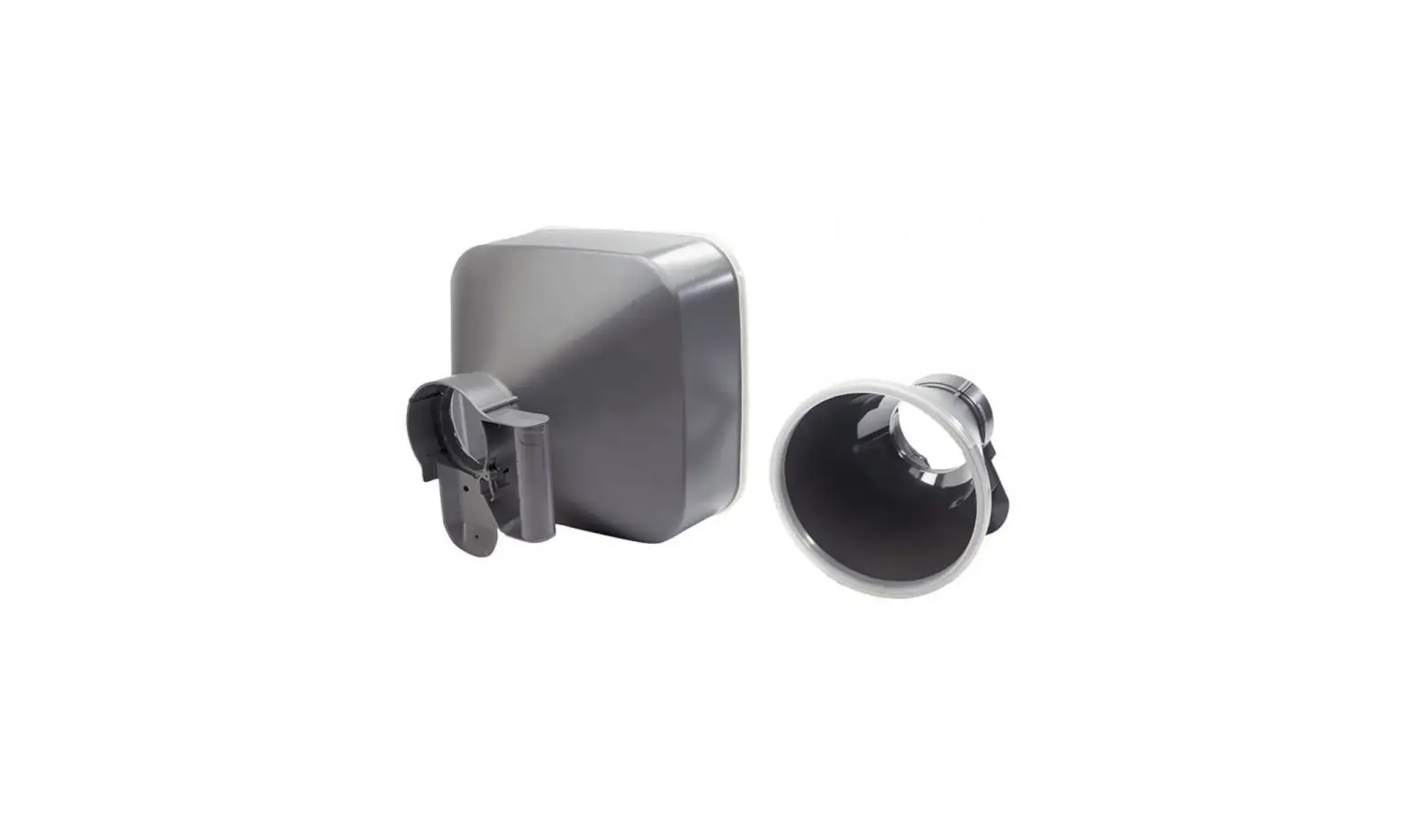

The AN300-C Cone Adaptor Kit is intended for use with the Extech AN300 series Anemometers only (AN300, AN310, and AN320). The AN300-C kit includes a round and a square adaptor. For instructions on the AN300 Series meter, please refer to the manual included with the product or visit www.extech.com.
OPERATION
- Attach the round or the square adaptor to the AN300 series meter. Ensure that the adaptor is well mounted and locked before continuing
- The meter will automatically recognize the adaptor (the adaptor icon will appear).
- The meter’s AREA setting will now default to the dimensions of the vane opening.
- Connect the adaptor to the air duct or vent and measure Air Volume as described in the AN300 series user manual.
DIMENSIONS
- Round Adaptor area dimensions: 210mm (8.3”) diameter
- Square Adaptor area dimensions: 346 x 346mm (13.6“x 13.6”)
- Material: ABS plastic
