CON-Line® T1 Dual | Art.-Nr.: 1956
Installation Guide

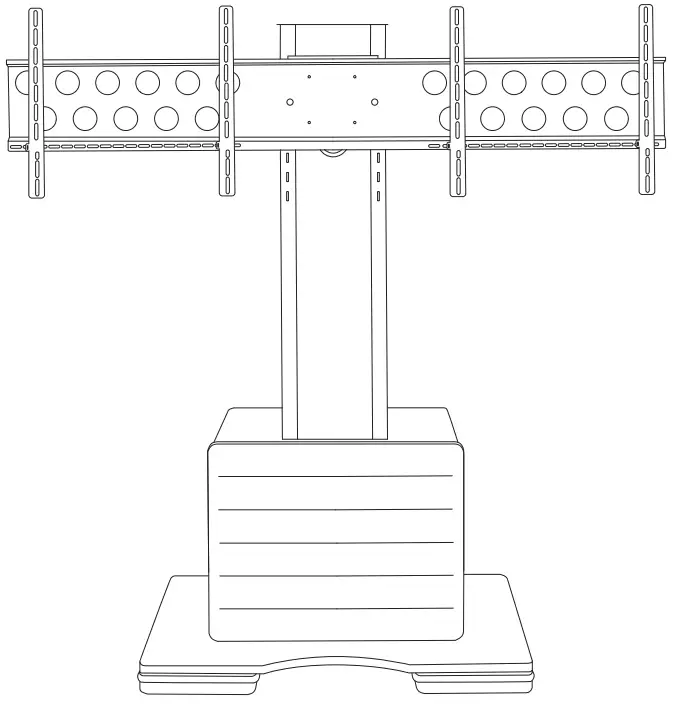

1956 CON-Line T1 Dual
Caution!
Technical devices are of considerable value. You should therefore handle the components carefully during installation and protect them if necessary.
If necessary, the installation area should also be secured. Falling parts can cause injuries and material damage.
The materials included in the scope of delivery may not be suitable for the special conditions at the installation site. Please check this in advance and replace it with suitable materials if necessary.
If you are unsure about the installation of the product or have any questions, please contact us or other trained specialists.

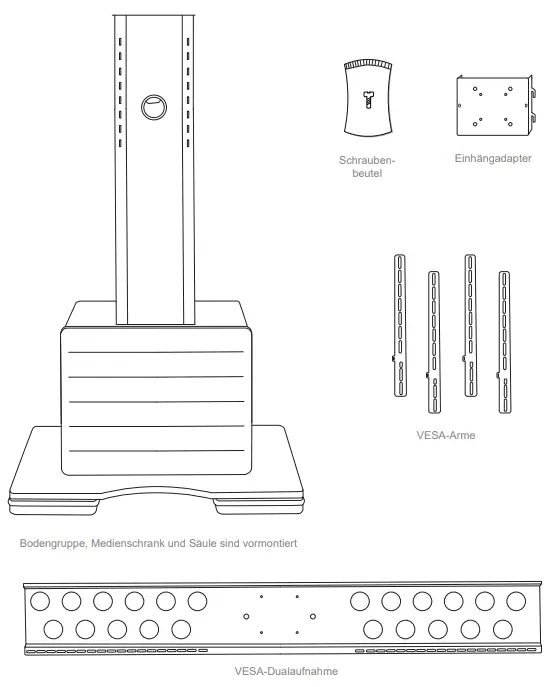

Scope of delivery

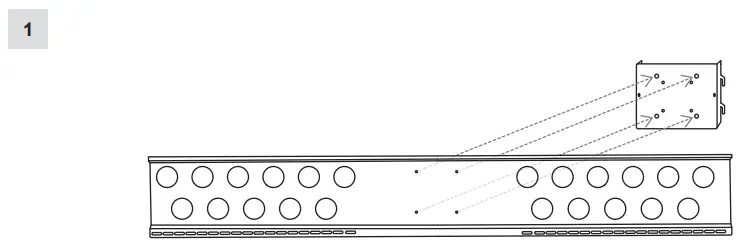

Screw the VESA mount to the VESA mounting plate.

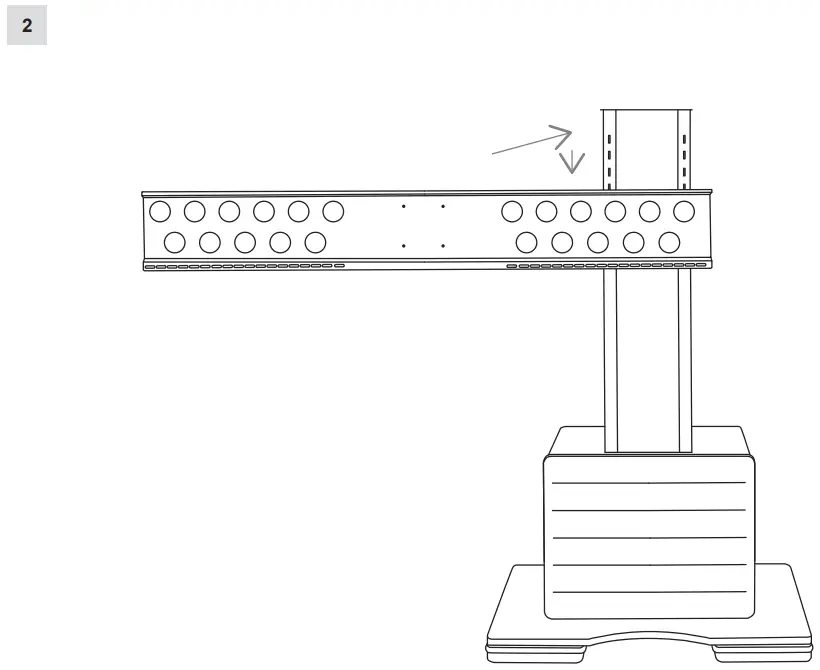

Hang the VESA mount /VESA mounting plate in the desired Height in the rest steps of the column.
Mount the VESA arms to the back of the screens. Please screw in the screws carefully and dress around damage to avoid.
Use suitable screws from the supplied TV Screw Bag.

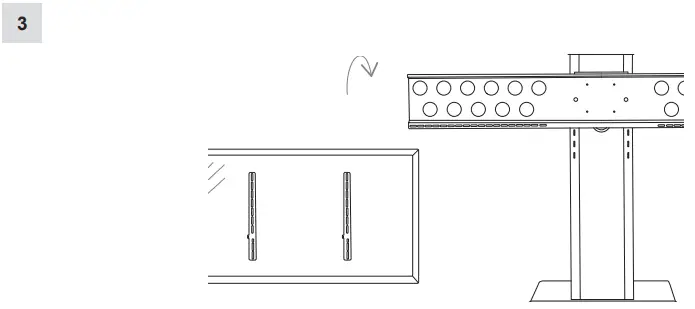

Now attach the first screen the VESA arms into the VESA mount.

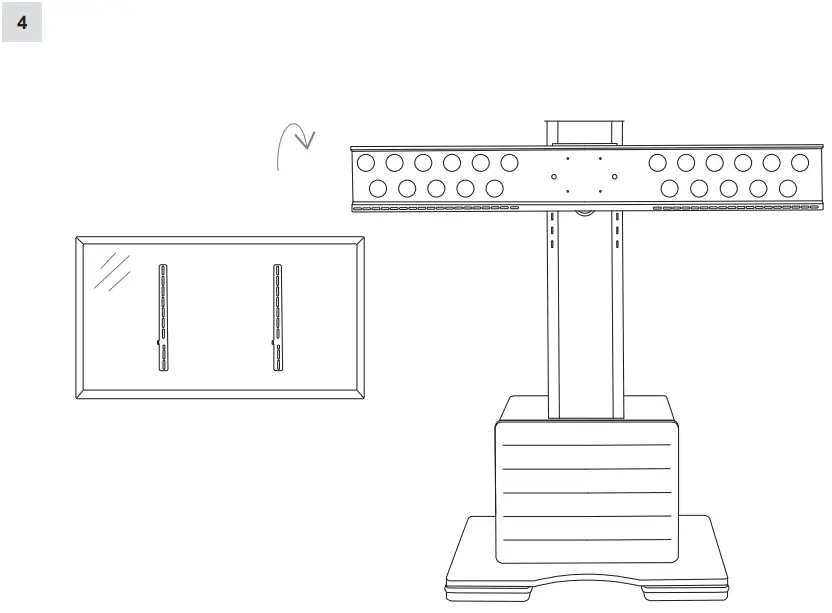

Hang the second screen in the VESA mount using the VESA arms and align both screens.

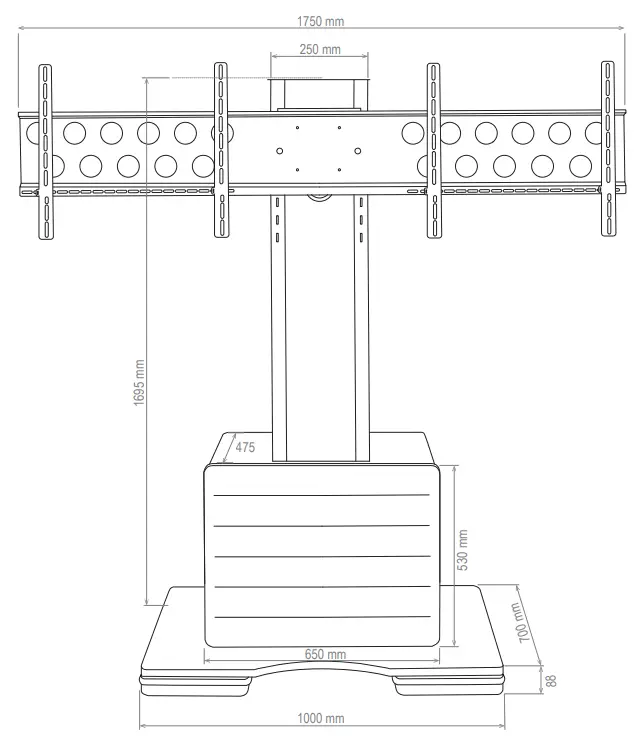

Dimensions
