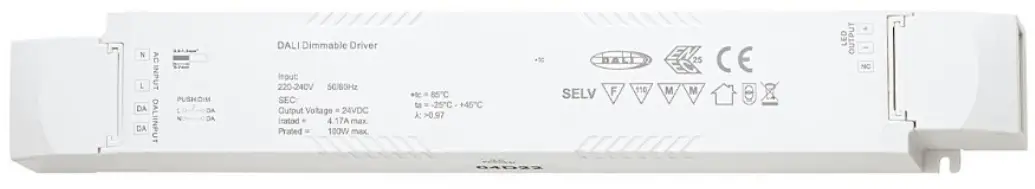

SIGOR 9057801 LED Power Supply Unit DALI RGB 100W

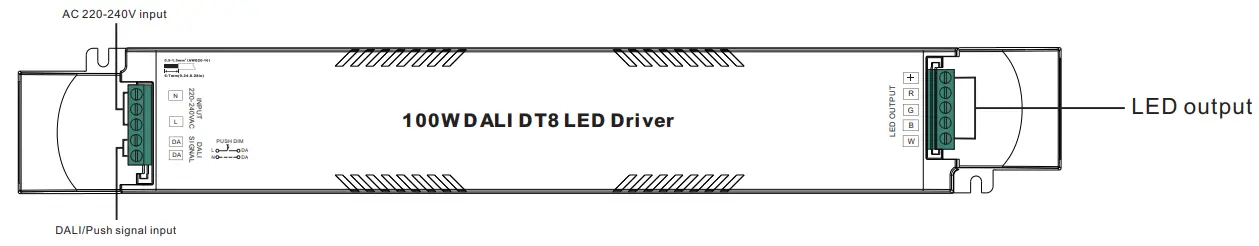

Function introduction
Product Data
|
Output | LED Channel | 4 Channel |
| DC Voltage | 24V DC | |
| Max. Current | Max. 4.17A（CH1+CH2+CH3+CH4≤4.17A） | |
| Voltage Tolerance | ±3% | |
| Rated Power | Max. 100W | |
|
Input | Voltage Range | 220-240V AC |
| Frequency Range | 50/60Hz | |
| Power Factor (Typ.) | > 0.97 @ 230VAC | |
| Total Harmonic Distortion | THD ≤ 9% (@ full load / 230VAC) | |
| Efficiency (Typ.) | 93% @ 230VAC full load | |
| AC Current (Typ.) | 0.47A @ 230VAC | |
| Inrush Current (Typ.) | COLD START Max. 32A @ 230VAC | |
| Leakage Current | < 0.5mA /230VAC | |
| Standby Power Consumption | < 0.5W | |
| Anti Surge | L-N:2KV | |
|
Control | Dimming Interface | DALI DT8 (DALI consumption<2mA) / Push |
| Dimming Range | 0.1%-100% | |
| Dimming Method | Pulse Width Modulation | |
| Dimming Curve | Linear/Logarithmic optional | |
|
Protection | Over Voltage | Yes, recovers automatically after fault condition is removed |
| Over Load | Yes, recovers automatically after fault condition is removed | |
| Short Circuit | Yes, recovers automatically after fault condition is removed | |
| Over temperature | Yes, recovers automatically after temperature drop |
|
Environment | Working Temp. | -25℃ ~ +45℃ |
| Max. Case Temp. | 85℃ (Ta=”45℃”) | |
| Working Humidity | 10% ~ 95% RH non-condensing | |
| Storage Temp. & Humidity | -40℃ ~ +80℃, 10% ~ 95% RH | |
|
Safety & EMC | Safety Standards | IEC/EN61347-1, IEC/EN61347-2-13 |
| Withstand Voltage | I/P-O/P: 3.75KVAC | |
| Isolation Resistance | I/P-O/P: 100M Ohms / 500VDC / 25℃ / 70% RH | |
| EMC Emission | En55015, EN61000-3-2 Class C, EN61000-3-3 | |
| EMC Immunity | EN61000-4-2,3,4,5,6,8,11, EN614547 | |
|
Others | MTBF | 191500H, MIL-HDBK-217F @ 230VAC full load and 25°C ambient temperature |
| Dimension | 306.6*43*30mm (L*W*H) | |
| Warranty | 5 Years |
- Dimmable LED driver, max. output power 100W total
- In compliance with IEC 62386-101:2014, IEC 62386-102:2014, IEC 62386-207 Ed2, IEC 62386-209:2011
- Built-in DALI-2 interface, DALI DT8 device
- 4 channels DC 24V constant voltage output
- High power factor and efficiency
- Built-in DALI interface, DALI DT8 device, each device is controlled via a single DALI address
- PWM dimming.smooth and deep dimming to 0.1%
- Compatible with universal DALI masters that support DT8 commands
- Error report function, support DALI DT8 Tc type
- IP20 rating, suitable for indoor LED lighting applications
- 5 years warranty
Safety & Warnings
- DO NOT install with power applied to the device.
- DO NOT expose the device to moisture.
Operation
- DALI Address
DALI address for 4 channels output are assigned by DALI Master controller automatically, please refer to user manuals of compatible DALI Masters for specific operations. - PUSH Dimmer Mode
While connected with a AC PUSH, the driver will be in Push Dimmer Mode, operations under Push Dimmer Mode
are as follows:- Click the button to switch ON/OFF repeat the operation to adjust light intensity to opposite direction. The dimming range is from 0.1% to 100%.
- Press and hold down the button to increase or decrease light intensity to desired level and release it, then
- Memory function after power off or power failure enables the device to memorize the status before power off while power on again.
Wiring diagram

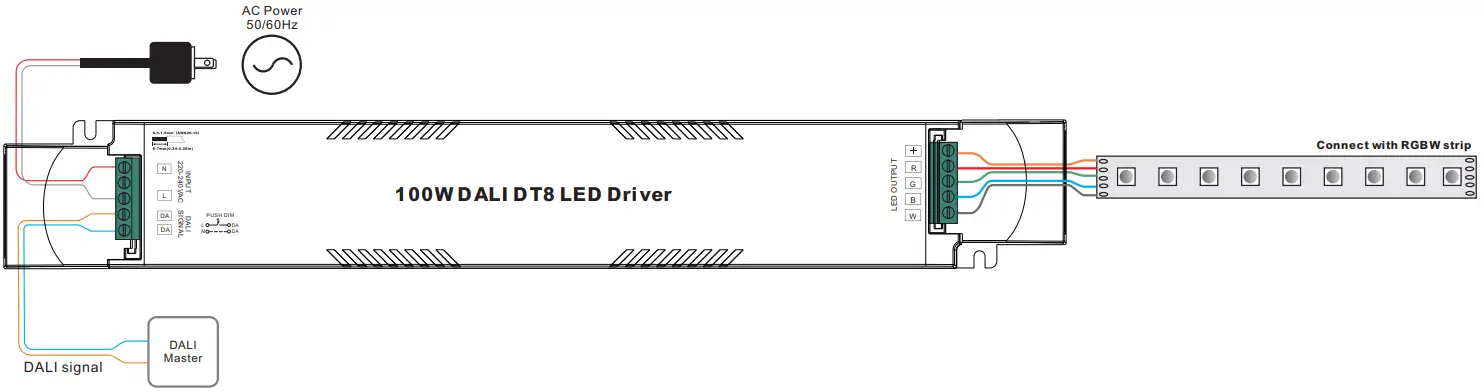

- With DALI Bus

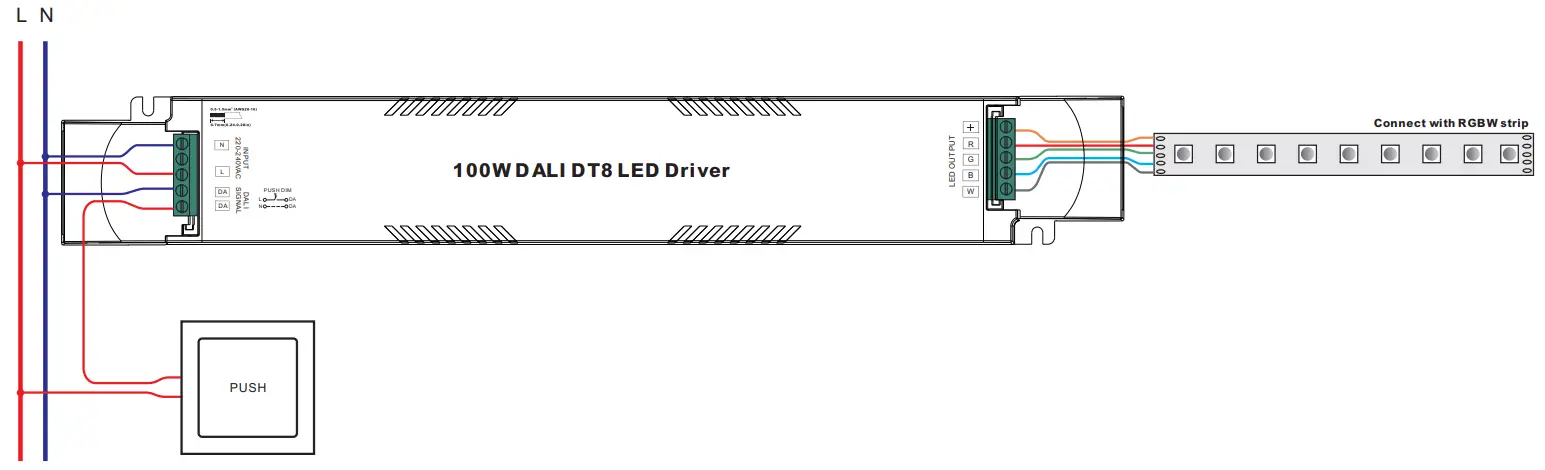

- With Push Dim
Product Dimension
