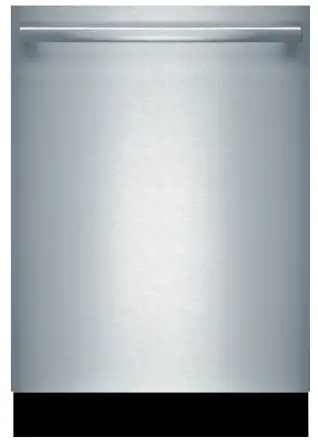

BOSCH SHX78B75UC 24 Inch Bar Handle Dishwasher
24″ Bar Handle Dishwasher
800 Series – Stainless Steel SHX78B75UC
Patented CrystalDry™ technology transforms moisture into heat to get dishes, including plastics, 60% drier.1
Features & Benefits
- 42 dBA: dishwasher runs quietly so your kitchen conversations aren’t interrupted.
- The Flexible 3rd Rack with fold down sides adds 30% more2 loading area, perfect for utensils and ramekins.
- Connect to WiFi and enable Home Connect™ to reorder dish tabs via Amazon3, plus get alerts when dishes are done.
- The Favorite button allows you to easily access your preferred cycle/option combination with 1 touch.
- The AquaStop® leak protection system contains leaks through a precisely engineered system, giving you the ultimate peace of mind whether you are away or at home.
| General Properties | |
| Number of wash cycles | 7 |
| Number of options | 7 |
| dBA | 42 |
| Drying system | CrystalDry™ option |
| Third rack | Flexible 3rd Rack |
| Rack adjustability | Rackmatic® |
| Tub material | Stainless Steel |
| Control type | Touch Control |
| Concealed water heating element | Yes |
| Leak protection system | 24/7 AquaStop® Plus |
| Sanitize option | Yes |
| Water softener | Yes |
| Five-level wash | Yes |
| ChildLock | No |
| Home Connect™ (WiFi enabled) | Yes |
| Special features | InfoLight® |
Efficiency
| Water usage per cycle | 3.5 |
| Energy efficiency class | Tier 1 |
| ENERGY STAR® qualified | Yes |
| Total annual energy consumption | 269 kWh |
| Total annual water consumption | 623.5 g |
| Capacity | |
| Number of place settings | 15 |
| Technical Details | |
| Watts | 1440 W |
| Current | 12 A |
| Volts | 120 V |
| Frequency | 60 Hz |
| Power cord full length | 67″ |
| Power cord install length from edge of unit when facing the door | Left – 47 1/4″ Right – 47 1/4″
14 lb/sin |
| Minimum water pressure | |
| Length outlet hose | 74 3/4″ |

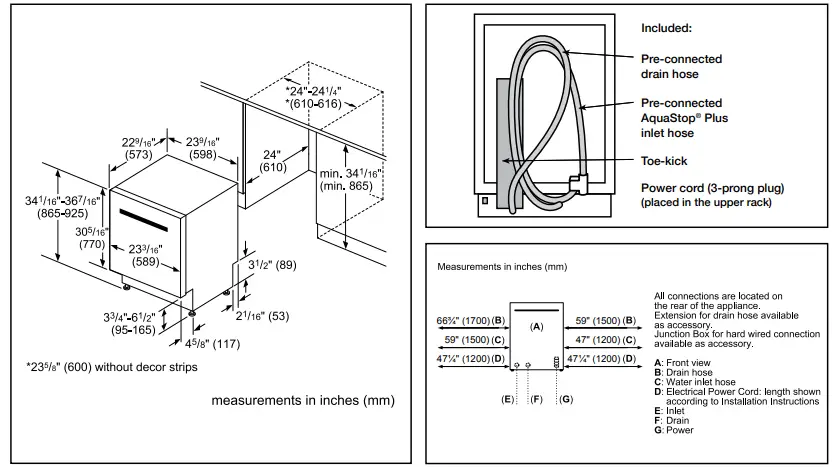

Dimensions & Weight
| Overall appliance dimensions (HxWxD) | 34 1/16″ x 23 9/16″ x 22 9/16″ |
| Required cutout size (HxWxD) | 34 1/16″ x 24″ x 24″ |
| Adjustable feet | Yes |
| Net weight | 106 lbs |
| Accessories—Optional | |
| Junction Box | SMZPCJB1UC |
| Drain Hose Extension Kit | SGZ1010UC |
| Dishwasher Accessory Kit | SMZ5000 |
| Anti-Tarnish Silverware Cassette | SMZ5002UC |
| Edge Protector + Power Cord Clip Install Kit | SMZEPCC1UC |

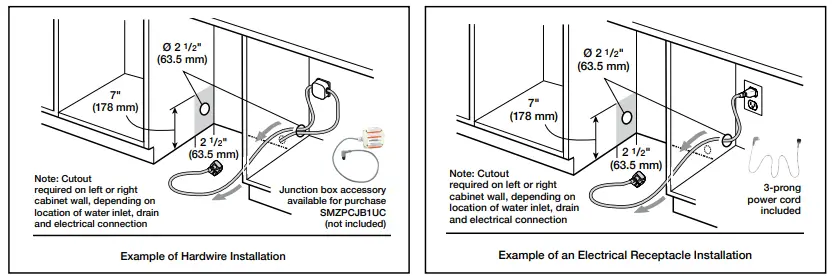

Installation Details
- Note: Plumbing installations will vary – refer to local codes. Drain hose included is 79″ (201 cm) and can be extended to a maximum of 155 3/4″ (396 cm).
- Always use the approved drain hose extension kit (SGZ1010UC).

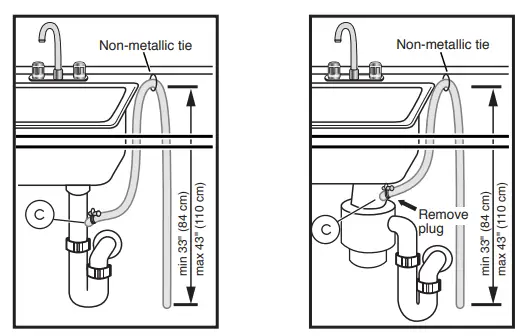

- Ensure a portion of the drain hose is raised between min. 33″ (84 cm) and max. 43″ (110 cm) above the cabinet floor.
- Based on aggregate average drying performance of Bosch Dishwashers with CrystalDry on combined household load including plastics, glass, steel, and porcelain as compared to Bosch Dishwashers with PureDry®. Drying performance may vary by dish type.
- Compared to a Bosch dishwasher with 2 racks.
- Smart reordering via the Amazon Alexa app. Only available in participating countries.
Accessories: To purchase Bosch accessories, cleaners & parts please visit www.bosch-home.com/us/store or call 1-800-944-2904 (Mon to Fri 5 am to 6 pm PST, Sat 6 am to 3 pm PST).
Notes: All height, width and depth dimensions are shown in inches. BSH reserves the absolute and unrestricted right to change product materials and specifications, at any time, without notice. Consult the product’s installation instructions for final dimensional data and other details prior to making cutout.
Warranty
Warranties: Please see Use & Care manual or Bosch website for statement of limited warranty.
