Bosch Shx78cm2n 24 Inch Bar Handle Dishwasher Owner's Manual

SHX78CM2N 24 Inch Bar Handle Dishwasher

Product Information: 24 Bar Handle Dishwasher

General Properties

• Model: SHX78CM2N White
• Also available in:
  • Stainless Steel SHX78CM5N
  • Black SHX78CM6N
  • Black Stainless SHX78CM4N

Technical Details

• Number of options: 5
• dBA: 42
• Wash system: Five-level wash
• Drying system: CrystalDryTM
• Third rack: Flexible 3rd Rack
• Rack adjustability: Yes
• Tub material: Stainless Steel
• Control type: Touch Controls (WiFi enabled)
• Concealed water heating element: Yes
• Water softener: No
• Child Lock button: No
• Suspension: Anti-Fingerprint Finish N/A
• Efficiency:
  • Water usage per cycle: 3.2
  • Energy efficiency class Tier 1
  • Total annual energy consumption: 239 kWh
• Capacity:
  • Number of place settings: 16
• Watts: 1440 W
• Current: 12 Amps
• Volts: 120 V
• Frequency: 60 Hz
• Power cord full length: 67
• Minimum water pressure: 14 lb/sin
• Length outlet hose: 79

Features & Benefits

• Patented CrystalDryTM technology transforms moisture into heat to get dishes, including plastics, 60% drier.
• The Flexible 3rd Rack with fold down sides adds 30% more* loading area, perfect for utensils and ramekins.
• PowerControlTM spray arm targets your dirtiest dishes with a deeper clean, no matter where you load them on the bottom rack.

Dimensions & Weight

• Overall appliance dimensions (HxWxD): 33 7/8 x 23 9/16 x 23 3/4
• Required cutout size (HxWxD): 33 7/8 x 24 x 24
• Adjustable feet: Yes
• Net weight: 96 lbs

Accessories–Optional

• Junction Box SMZPCJB1UC
• Junction Box + Supply SMZ3IN1UC Hose Kit
• Bosch Dishwasher Water SMZSH002UC Supply Hose
• Drain Hose Extension Kit SGZ1010UC
• Dishwasher Accessory SMZ5000 Kit
• Anti-Tarnish Silverware SMZ5002UC Cassette
• Edge Protector + Power SMZEPCC1UC Cord Clip Install Kit

Installation Details
The dishwasher comes with a pre-connected drain hose, toe-kick, and power cord (3-prong plug). All connections are at the rear of the appliance. A junction box for hard-wired connection and an extension for drain hose are available as accessories.

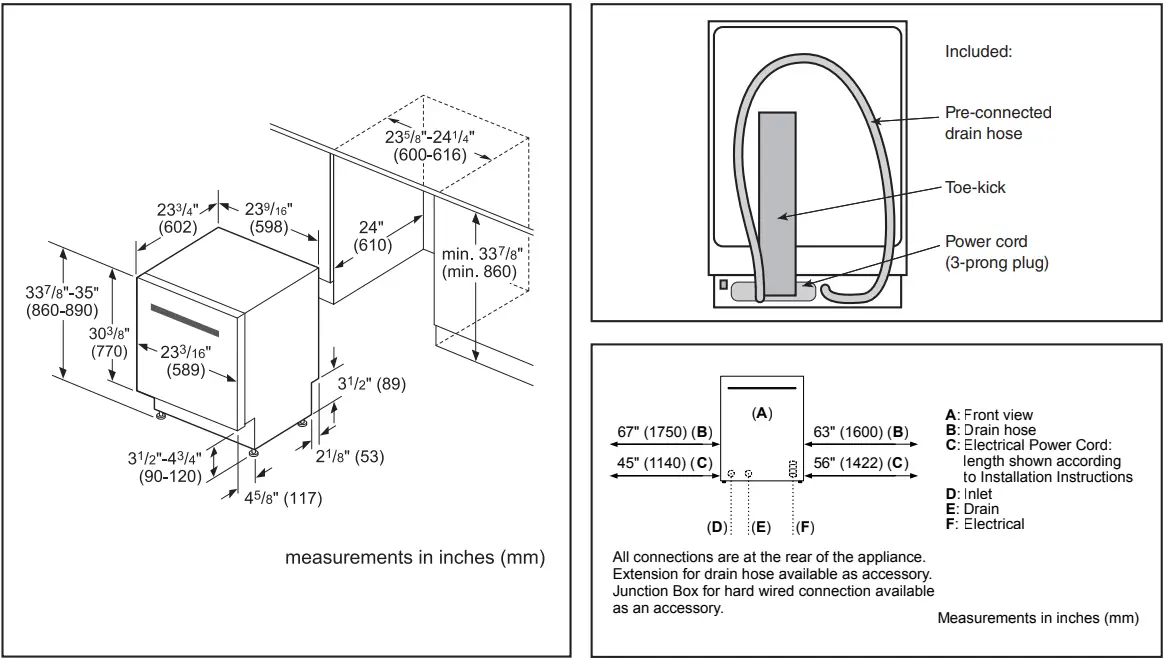

Installation Measurements

• A: Front view – 67 (1750) (B)
• B: Drain hose – 63 (1600) (B)
• C: Electrical Power Cord: length shown according to Installation Instructions – 45 (1140) (C)
• D: Inlet – 56 (1422) (C)
• E: Drain – (D)
• F: Electrical – (C)

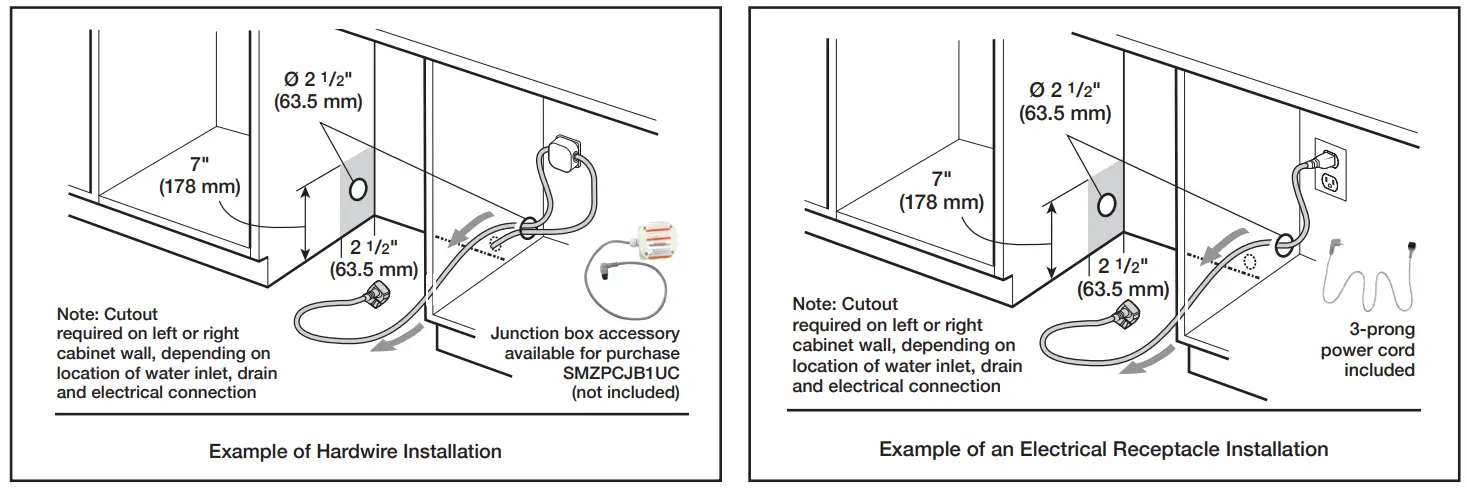

Note: Cutout required on left or right cabinet wall, depending on the location of water inlet, drain, and electrical connection.

*Compared to a Bosch dishwasher with 2 racks. **Certification to NSF/ANSI Standard 184 for residential dishwashers.

For more information on purchasing Bosch accessories, cleaners & parts, please visit www.bosch-home.com/us/store or call 1-800-944-2904 (Mon to Fri 5 am to 6 pm PST, Sat 6 am to 3 pm PST).

Product Usage Instructions

Before using the dishwasher, make sure it is properly installed according to the installation instructions provided in the user manual. The dishwasher should be connected to a power source, water supply, and drain outlet.

To use the dishwasher, follow these steps:

1. Load dishes into the dishwasher, making sure to place them in the correct position and not blocking the spray arm or detergent dispenser.
2. Add detergent to the detergent dispenser according to the manufacturer’s instructions.
3. Select the desired wash cycle and options using the touch controls on the front of the dishwasher. The dishwasher offers five wash options to choose from.
4. Press the start button to begin the wash cycle.
5. After the wash cycle is complete, open the dishwasher and remove the dishes. If necessary, wipe them dry with a towel.
6. Close the dishwasher and press the power button to turn it off.

The dishwasher features CrystalDryTM technology that transforms moisture into heat to get dishes, including plastics, 60% drier. The Flexible 3rd Rack with fold down sides adds 30% more* loading area, perfect for utensils and ramekins. The PowerControlTM spray arm targets your dirtiest dishes with a deeper clean, no matter where you load them on the bottom rack.

Note: All height, width, and depth dimensions are shown in inches. BSH reserves the absolute and unrestricted right to change product materials and specifications at any time without notice. Consult the product’s installation instructions for final dimensional data and other details prior to making a cutout.

For more information on our entire line of products, go to www.bosch-home.com/us or call 1-800-944-2904.

Also available in:

• Stainless Steel SHX78CM5N
• Black SHX78CM6N
• Black
• Stainless
• SHX78CM4N

PowerControl™ spray arm targets your dirtiest dishes with a deeper clean, no matter where you load them on the bottom rack.

Features & Benefits

Patented CrystalDry™ technology transforms moisture into heat to get dishes, including plastics, 60% drier.†

The Flexible 3rd Rack with fold down sides adds 30% more* loading area, perfect for utensils and ramekins.

Enhance your cleaning experience with Wi-Fi enabled Home Connect®. Access additional wash cycles and options or choose the right one for your needs using Smart Cycle.

So quiet at 42 dBA, InfoLight® shines on the floor so you know the dishwasher is running.

Efficiency

Capacity
Number of place settings 16

Dimensions & Weight

† Based on aggregate average drying performance of Bosch Dishwashers with CrystalDry™ on combined household load including plastics, glass, steel, and porcelain as compared to Bosch Dishwashers with PureDry®. Drying performance may vary by dish type.

• *Compared to a Bosch dishwasher with 2 racks.
• **Certification to NSF/ANSI Standard 184 for residential dishwashers.

24″ Bar Handle Dishwasher

800 Series – White SHX78CM2N

Installation Details

Note: Plumbing installations will vary – refer to local codes. Drain hose included is 79″ (201 cm) and can be extended to a maximum of 155 3/4″ (396 cm).

Always use the approved drain hose extension kit (SGZ1010UC).

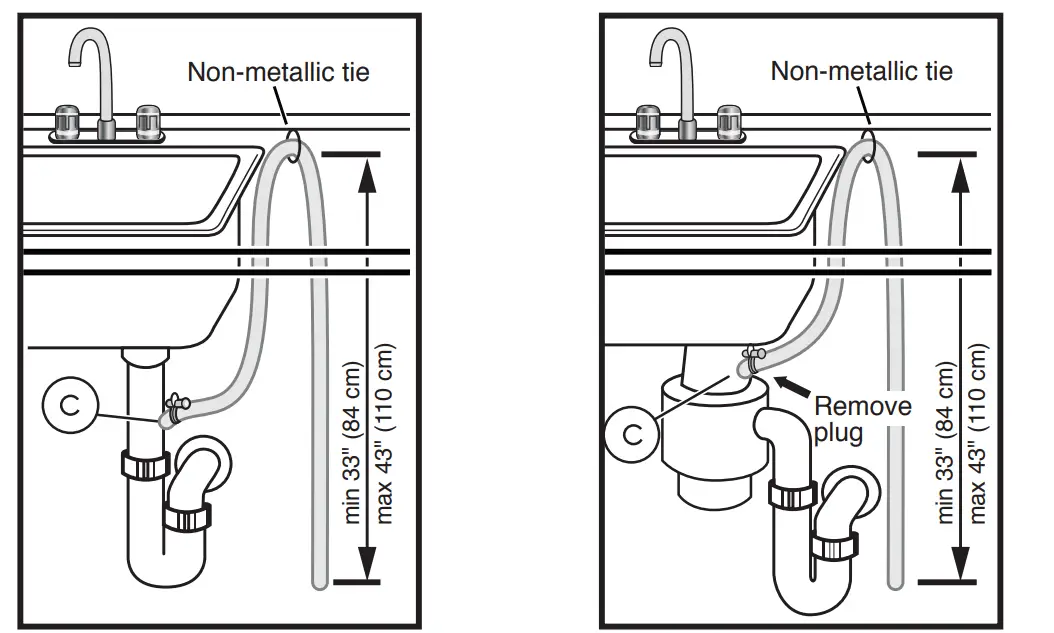

Ensure a portion of the drain hose is raised between min. 33″ (84 cm) and max. 43″ (110 cm) above the cabinet floor.

Accessories: To purchase Bosch accessories, cleaners & parts please visit www.bosch-home.com/us/store or call 1-800-944-2904 (Mon to Fri 5 am to 6 pm PST, Sat 6 am to 3 pm PST).
Notes: All height, width and depth dimensions are shown in inches. BSH reserves the absolute and unrestricted right to change product materials and specifications, at any time, without notice. Consult the product’s installation instructions for final dimensional data and other details prior to making cutout.
Warranties: Please see Use & Care manual or Bosch website for statement of limited warranty.
For more information on our entire line of products, go to www.bosch-home.com/us or call 1-800-944-2904
