Bosch Shx53cm5n 24 Inch Bar Handle Dishwasher Owner's Manual

BOSCH SHX53CM5N 24 Inch Bar Handle Dishwasher

Product Information

• Model: SHX53CM5N
• Material: Stainless Steel

The Bosch 24 Bar Handle Dishwasher (model SHX53CM5N) is a high-quality dishwasher designed to provide efficient and effective cleaning for your dishes. It features a 3rd rack that provides the perfect space for silverware and large utensils, while its V shape leaves room below for taller items. This dishwasher comes with a range of features and benefits to enhance your dishwashing experience.

Features & Benefits

• Number of options: Multiple options for customized cleaning
• dBA: Noise level of 46 for quiet operation
• Wash system: Ensures thorough cleaning
• Drying system: Efficiently dries your dishes
• Third rack: Standard 3rd rack for silverware and large utensils
• Rack adjustability: Adjustable racks for flexible loading
• Tub material: Stainless Steel for durability
• Control type: Touch Controls for easy operation
• Concealed water heating element: Ensures optimal water temperature
• Water softener: Not available
• Five-level wash suspension: Provides thorough cleaning
• Child Lock button: Not available
• Anti-Fingerprint Finish: Resists fingerprints for a clean look
• Efficiency: Water usage per cycle is 3.5 gallons
• Total annual energy consumption: 269 kWh
• Capacity: Can accommodate up to 16 place settings

Technical Details

• Watts: 1440 W
• Current: 12 Amps
• Volts: 120 V
• Frequency: 60 Hz
• Power cord full length: 67 inches
• Minimum water pressure: 14 lb/sin
• Length outlet hose: 78 3/4 inches
• Overall appliance dimensions (HxWxD): 33 7/8 x 23 9/16 x 23 3/4 inches
• Required cutout size (HxWxD): 33 7/8 x 24 x 24 inches
• Net weight: 81 lbs

Accessories (Optional)

• Junction Box: SMZPCJB1UC
• Junction Box + Supply Hose Kit: SMZ3IN1UC
• Bosch Dishwasher Water Supply Hose: SMZSH1ABUC
• Drain Hose Extension Kit: SGZ1010UC
• Silverware Basket: SMZ4000UC
• Dishwasher Accessory Kit: SMZ5000
• Anti-Tarnish Silverware Cassette: SMZ5002UC
• Edge Protector + Power Cord Clip Install Kit: SMZEPCC1UC

*Certification to NSF/ANSI Standard 184 for residential dishwashers

Warranty

Please see the Use & Care manual or Bosch website for the statement of limited warranty.

For More Information

For more information on our entire line of products, visit www.bosch-home.com/us or call 1-800-944-2904.

Product Usage Instructions

1. Ensure that the dishwasher is properly installed according to the provided installation instructions.
2. Load the dishwasher with your dishes, making sure not to overload or block the spray arms.
3. Add the appropriate amount of dishwasher detergent to the dispenser.
4. Select the desired wash cycle and any additional options using the touch controls.
5. Close the dishwasher door and press the Start button to begin the wash cycle.
6. Once the wash cycle is complete, open the dishwasher door and remove the clean dishes.
7. If needed, use a dish towel to dry any remaining moisture on the dishes or dishwasher interior.
8. Clean the dishwasher regularly by wiping down the interior and removing any debris from the filter.
9. Refer to the user manual for more detailed instructions on specific features and maintenance.

Note: Always follow safety precautions and guidelines provided in the user manual when operating the dishwasher.

Accessories

To purchase Bosch accessories, cleaners, and parts, please visit www.bosch-home.com/us/store or call 1-800-944-2904 (Mon to Fri 5 am to 6 pm PST, Sat 6 am to 3 pm PST).

Disclaimer: BSH reserves the absolute and unrestricted right to change product materials and specifications at any time without notice. Consult the product’s installation instructions for final dimensional data and other details prior to making a cutout.

The 3rd rack provides the perfect space for silverware and large utensils while its V shape leaves room below for taller items.

Features & Benefits

• So quiet at 46 dBA, InfoLight® shines on the floor so you know the dishwasher is running. With PrecisionWash®, intelligent sensors and precision spray arms target every item of every load, so dishes come out sparkling clean every time.
• Enhance your cleaning experience with Wi-Fi enabled Home Connect®. Access additional wash cycles and options or choose the right one for your needs using Smart Cycle.
• The AquaStop® leak protection system contains leaks through a precisely engineered system. If a leak occurs, the system contains it by shutting down operation and pumping out water. So you have the ultimate peace of mind whether you are away or at home.

Installation Details

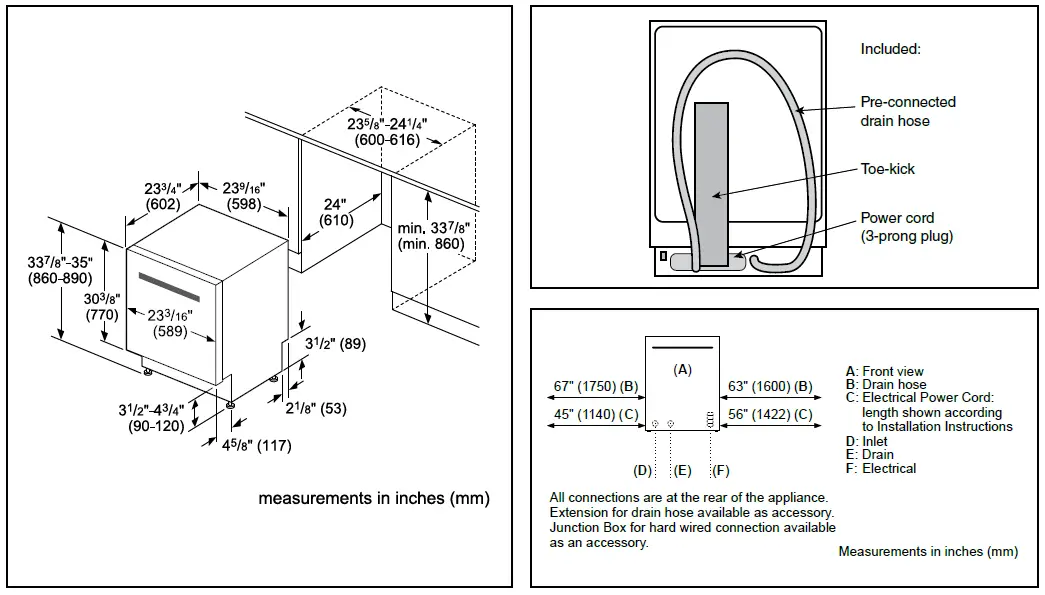

All connections are at the rear of the appliance. ory. Extension for drain hose available as access Junction Box for hard wired connection available as an accessory.

• A: Front view
• B: Drain hose
• C: Electrical Power Cord: length shown according to Installation Instructions
• D: Inlet
• E: Drain
• F: Electrical

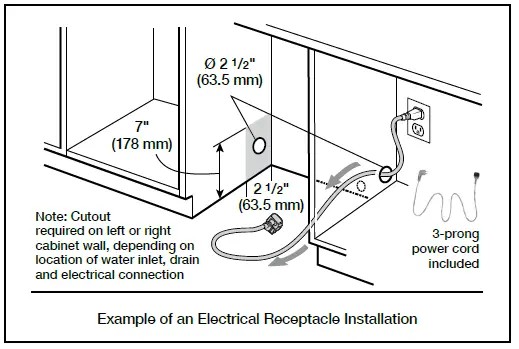

Note: Cutout required on left or right cabinet wall, depending on location of water inlet, drain and electrical connection

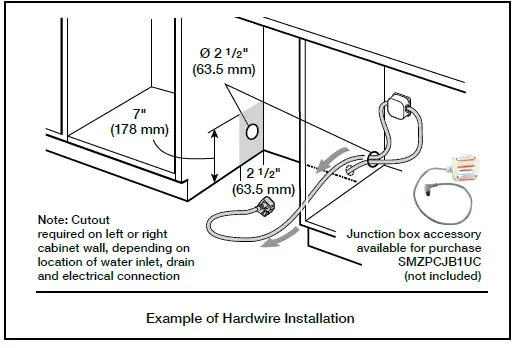

Note: Cutout required on left or right cabinet wall, depending on location of water inlet, drain and electrical connection

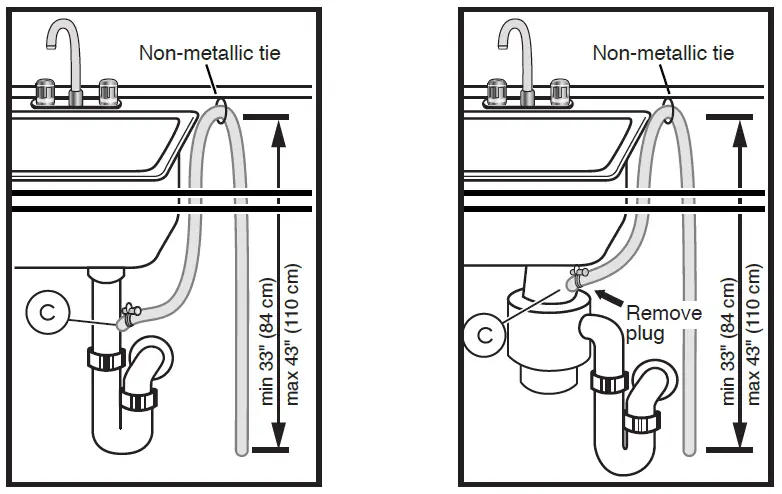

Note: Plumbing installations will vary – refer to local codes. Drain hose included is 79″ (201 cm) and can be extended to a maximum of 155 3/4″ (396 cm).
Always use the approved drain hose extension kit (SGZ1010UC).
Ensure a portion of the drain hose is raised between min. 33″ (84 cm) and max. 43″ (110 cm) above the cabinet floor.

Accessories: To purchase Bosch accessories, cleaners & parts please visit www.bosch-home.com/us/store or call 1-800-944-2904 (Mon to Fri 5 am to 6 pm PST, Sat 6 am to 3 pm PST).
Notes: All height, width and depth dimensions are shown in inches. BSH reserves the absolute and unrestricted right to change product materials and specifications, at any time, without notice. Consult the product’s installation instructions for final dimensional data and other details prior to making cutout.
Warranties: Please see Use & Care manual or Bosch website for statement of limited warranty.
For more information on our entire line of products, go to www.bosch-home.com/us or call 1-800-944-2904
© BSH Home Appliances Corporation. All rights reserved. Bosch is a registered trademark of Robert Bosch GmbH.
