Bosch Shv78b73 800 Series 24 Inchcustom Panel Dishwasher User Manual

Invented for life

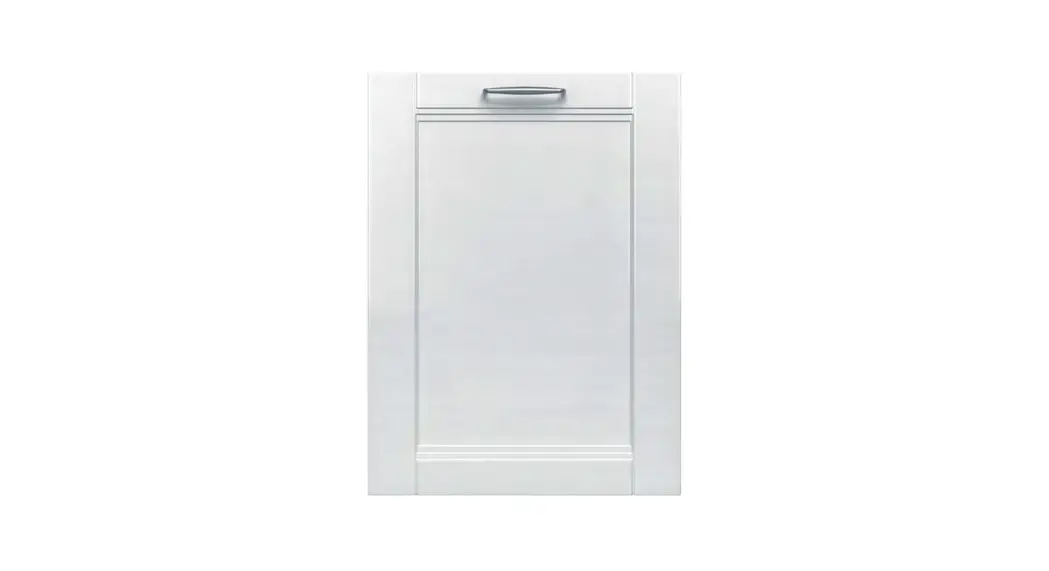

24″ Custom Panel Dishwasher
800 Series – Custom Panel SHV78B73UC
User Manual

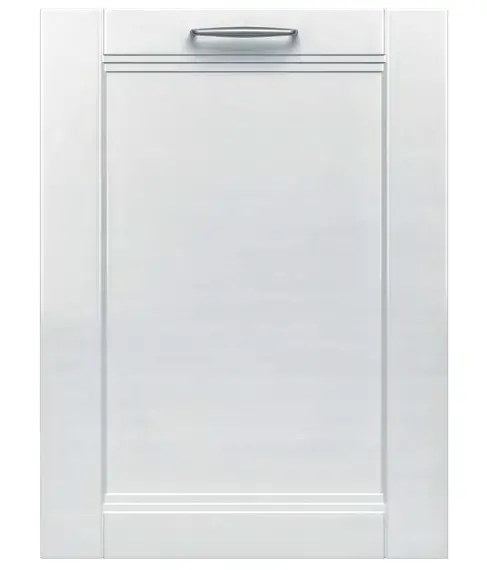

SHV78B73 800 Series 24 InchCustom Panel Dishwasher

Patented CrystalDry™ technology transforms moisture into heat to get dishes, including plastics,60% drier.¹

Features & Benefits

42 dBA: dishwasher runs quietly so your kitchen conversations aren’t interrupted.
The Flexible 3rd Rack with fold down sides adds 30% more² loading area, perfect for utensils and ramekins.
Connect to WiFi and enable Home Connect™ to reorder dish tabs via Amazon³, plus get alerts when dishes are done.
The Favorite button allows you to easily access your preferred cycle/option combination with 1 touch.
The AquaStop® leak protection system contains leaks through a precisely engineered system, giving you the ultimate peace of mind whether you are away or at home.

General Properties

Efficiency

Capacity
Number of place settings 15
Technical Details

Dimensions & Weight

Accessories—Optional

1. Based on aggregate average drying performance of Bosch Dishwashers with CrystalDry on combined household load including plastics, glass, steel, and porcelain as compared to Bosch Dishwashers with PureDry®. Drying performance may vary by dish type.
2. Compared to a Bosch dishwasher with 2 racks.
3. Smart reordering via the Amazon Alexa app. Only available in participating countries.

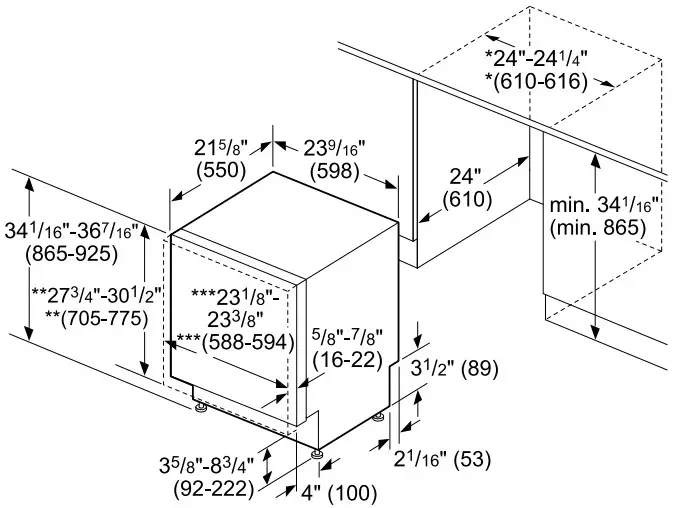

Installation Details

* 235/8″ (600 mm) without decor strips
** measured from the bottom edge of the countertop panel thickness recommended 3/4″ (20 mm), panel weight 7-22 lbs (3-10 kg)
*** 24″ (610 mm) wide panel may be used depending on cabinet design measurements in inches (mm) Measurements in inches (mm)
All connections are located on the rear of the appliance.
Extension for drain hose available as accessory. Junction Box for hard wired connection available as accessory.
A: Front view
B: Drain hose
C: Water inlet hose
D: Electrical Power Cord: length shown according to Installation Instructions
E: Inlet
F: Drain
G: PowerNote: Cutout required on left or right cabinet wall, depending on location of water inlet, drain and electrical connection

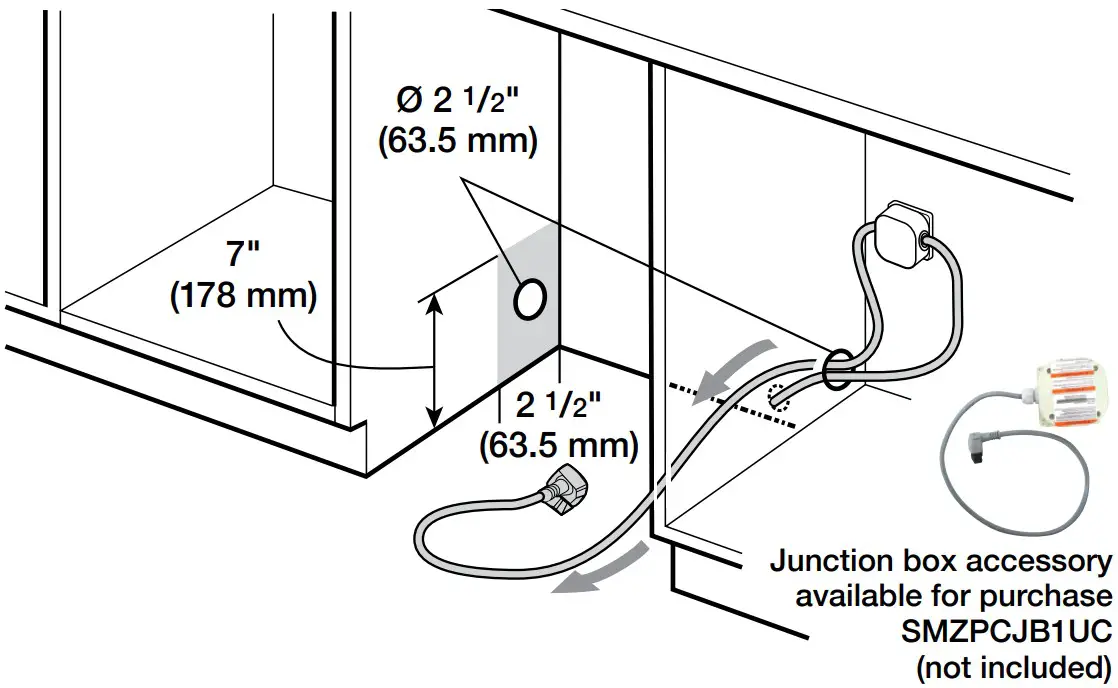

Example of Hardwire InstallationNote: Cutout required on left or right cabinet wall, depending on location of water inlet, drain and electrical connection

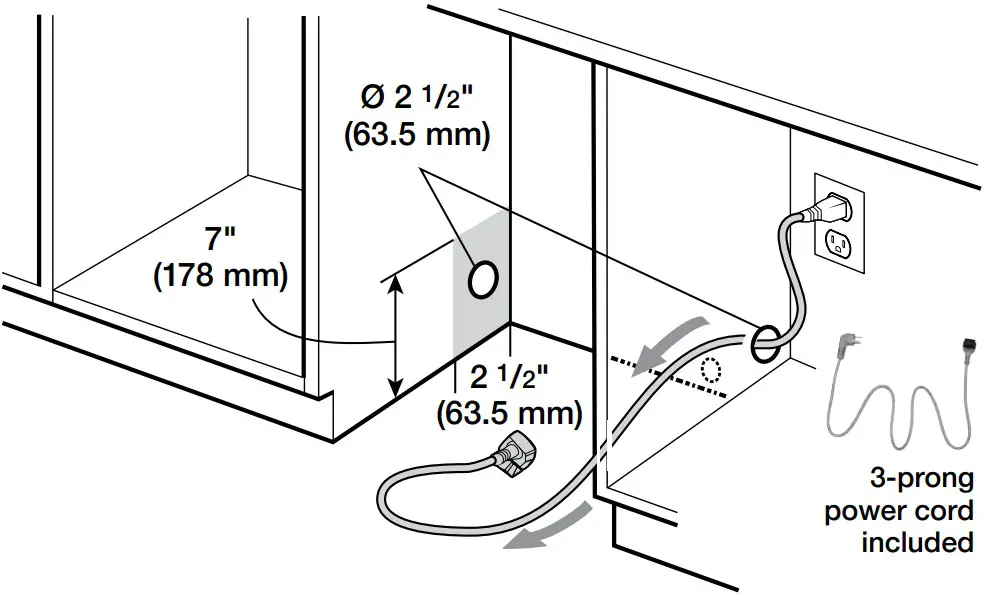

Example of an Electrical Receptacle InstallationNote: Plumbing installations will vary – refer to local codes.
Drain hose included is 79″ (201 cm) and can be extended to a maximum of 155 3/4″ (396 cm).
Always use the approved drain hose extension kit (SGZ1010UC).

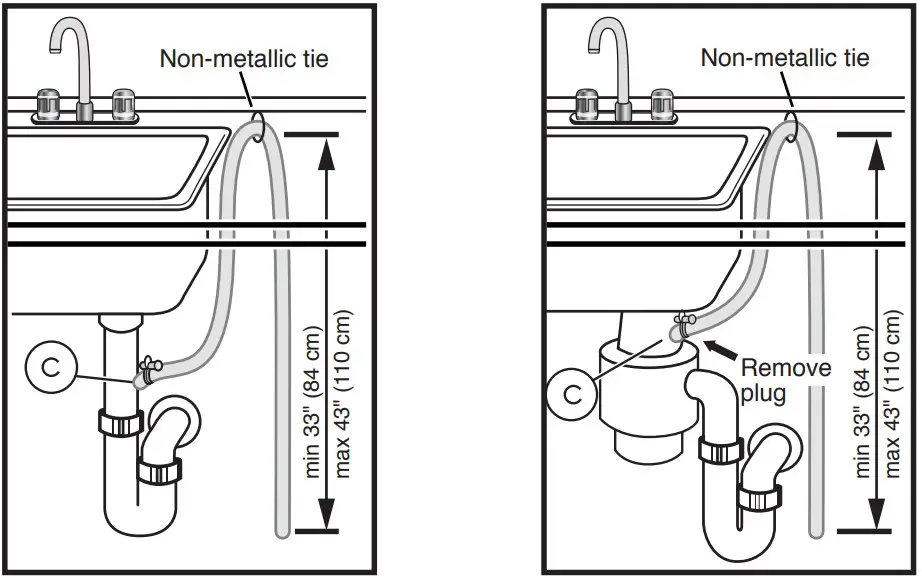

Ensure a portion of the drain hose is raised between min.
33″ (84 cm) and max. 43″ (110 cm) above the cabinet floor.
Accessories: To purchase Bosch accessories, cleaners & parts please visit www.bosch-home.com/us/store or call 1-800-944-2904 (Mon to Fri 5 am to 6 pm PST, Sat 6 am to 3 pm PST).
Notes: All height, width and depth dimensions are shown in inches. BSH reserves the absolute and unrestricted right to change product materials and specifications, at any time, withoutnotice. Consult the product’s installation instructions for final dimensional data and other details prior to making cutout.
Warranties: Please see Use & Care manual or Bosch website for statement of limited warranty.
