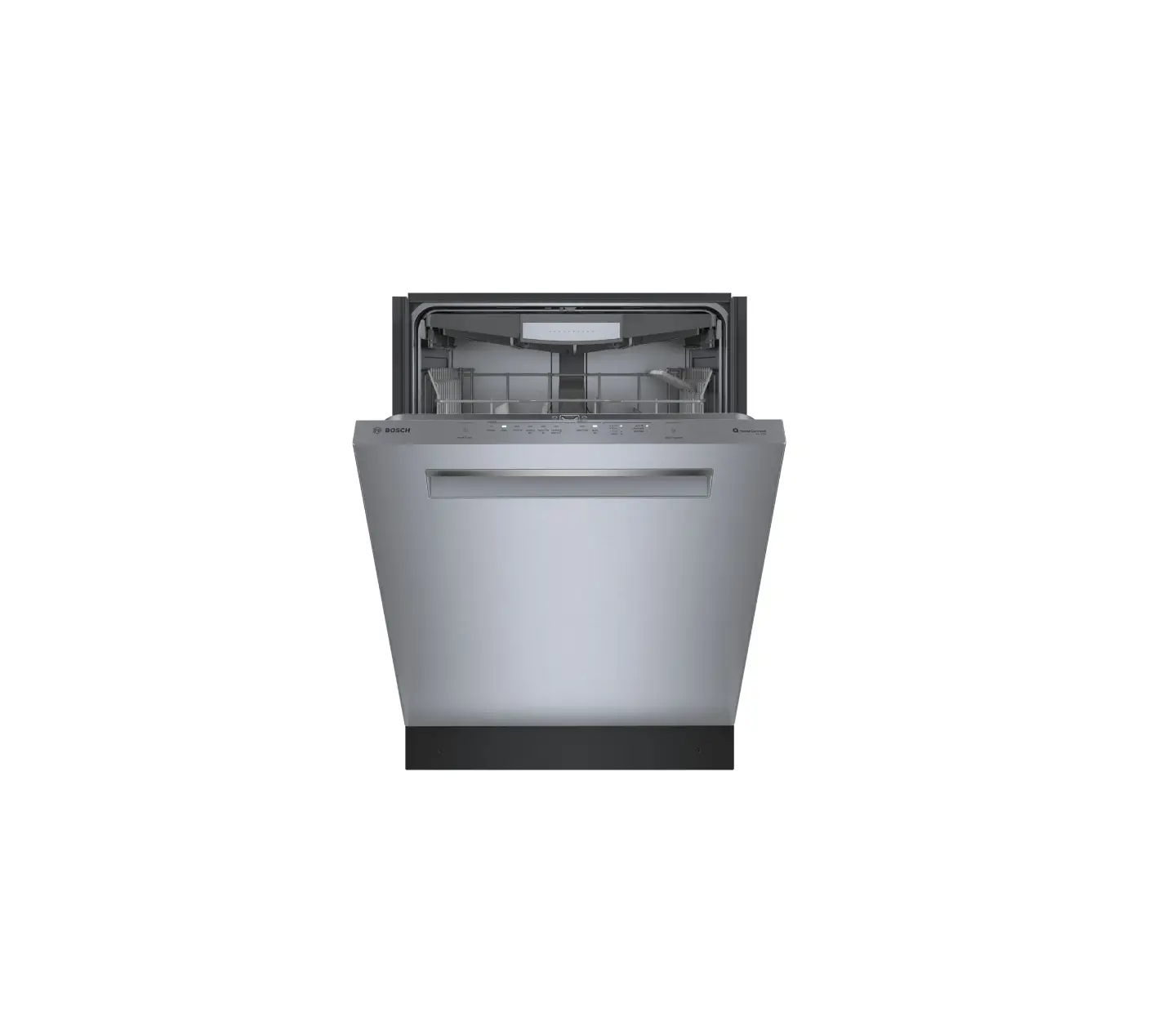

SHX78CM4N Built-In Dishwasher

Product Information: 24 Bar Handle Dishwasher

General Properties:

Brand: Bosch
Model: SHX78CM4N Black Stainless
Other available colors: Stainless Steel (SHX78CM5N), White
(SHX78CM2N), Black (SHX78CM6N)
Dimensions (HxWxD): 33 7/8 x 23 9/16 x 23 3/4 inches
Weight: 96 lbs

Technical Details:

Number of place settings: 16
Watts: 1440 W
Current: 12 Amps
Volts: 120 V
Frequency: 60 Hz
Water usage per cycle: 3.2 gallons
Noise level (dBA): 42

Features & Benefits:

PowerControlTM spray arm for deeper cleaning of dirtiest dishes
on the bottom rack
Patented CrystalDryTM technology for 60% drier dishes,
including plastics
Flexible 3rd Rack with fold down sides for 30% more loading
area, perfect for utensils and ramekins
Five-level wash system for efficient cleaning
Touch controls with concealed water heating element
Anti-Fingerprint Finish for easy maintenance
Tier 1 energy efficiency class with total annual energy
consumption of 239 kWh

Installation Details:

Included: Pre-connected drain hose, Toe-kick, Power cord
(3-prong plug)
All connections are at the rear of the appliance
Extension for drain hose available as accessory
Junction Box for hard wired connection available as an
accessory (SMZPCJB1UC)

Accessories – Optional:

Junction Box (SMZPCJB1UC)
Junction Box + Supply Hose Kit (SMZ3IN1UC)
Bosch Dishwasher Water Supply Hose (SMZSH002UC)
Drain Hose Extension Kit (SGZ1010UC)
Dishwasher Accessory Kit (SMZ5000)
Anti-Tarnish Silverware Cassette (SMZ5002UC)
Edge Protector + Power Cord Clip Install Kit (SMZEPCC1UC)

Product Usage Instructions:

Ensure that all connections at the rear of the appliance are
properly secured.
Place dishes, including plastics, in the dishwasher and load
them on the bottom rack. The PowerControlTM spray arm will target
the dirtiest dishes for a deeper clean.
Use the Flexible 3rd Rack with fold down sides to add 30% more
loading area, perfect for utensils and ramekins.
Select desired wash options using the touch controls with
concealed water heating element.
Patented CrystalDryTM technology will transform moisture into
heat to get dishes 60% drier.
After use, clean and maintain the dishwasher with Bosch
accessories, cleaners & parts available at
www.bosch-home.com/us/store or call 1-800-944-2904 (Mon to Fri 5 am
to 6 pm PST, Sat 6 am to 3 pm PST).

Note: For final dimensional data and other details prior to making
cutout, consult the product’s installation instructions. See Use
& Care manual or Bosch website for statement of limited
warranty.

View Fullscreen

24″ Bar Handle Dishwasher
800 Series Black Stainless SHX78CM4N

General Properties

Technical Details

SHX78CM4N Black Stainless

Also available in:

Stainless Steel

SHX78CM5N

White

SHX78CM2N

Black

SHX78CM6N

PowerControlTM spray arm targets your dirtiest dishes with a deeper clean, no matter where you load them on the bottom rack.

Features & Benefits
Patented CrystalDryTM technology transforms moisture into heat to get dishes, including plastics, 60% drier.
The Flexible 3rd Rack with fold down sides adds 30% more* loading area, perfect for utensils and ramekins.
Enhance your cleaning experience with Wi-Fi enabled Home Connect®. Access additional wash cycles and options or choose the right one for your needs using Smart Cycle.

Number of wash cycles 5 + 3 additional in Home Connect®

Number of options

4 + 2 additional in Home Connect®

dBA

Wash system

PowerControlTM with PrecisionWash®

Drying system

CrystalDryTM

Third rack

Flexible 3rd Rack

Rack adjustability

Rackmatic®

Tub material

Stainless Steel

Control type

Touch Controls

Concealed water

Yes

heating element

Leak protection system 24/7 AquaStop®

Home Connect®

Yes

(WiFi enabled)

NSF®-certified** sanitize Yes option

Water softener

Five-level wash

Yes

Child Lock button

suspension

Anti-Fingerprint Finish Yes

Special features

CrystalDryTM Option, InfoLight®

Efficiency

Water usage per cycle 3.2

Energy efficiency class Tier 1

ENERGY STAR® qualified Yes

Total annual energy consumption

239 kWh

Capacity

Number of place settings 16

Watts

1440 W

Current

12 Amps

Volts

120 V

Frequency

60 Hz

Power cord full length 67″

Power cord install length Left 45″ from edge of unit when Right 56″ facing the door

Minimum water pressure 14 lb/sin

Length outlet hose

79″

Dimensions & Weight

Overall appliance dimensions (HxWxD)

33 7/8″ x 23 9/16″ x 23 3/4″

Required cutout size (HxWxD)

33 7/8″ x 24″ x 24″

Adjustable feet

Yes

Net weight

96 lbs

Accessories–Optional

Junction Box

SMZPCJB1UC

Junction Box + Supply SMZ3IN1UC Hose Kit

Bosch Dishwasher Water SMZSH002UC Supply Hose

Drain Hose Extension Kit SGZ1010UC

Dishwasher Accessory SMZ5000 Kit

Anti-Tarnish Silverware SMZ5002UC Cassette

Edge Protector + Power SMZEPCC1UC Cord Clip Install Kit

So quiet at 42 dBA, InfoLight® shines on the floor so you know the dishwasher is running.

Based on aggregate average drying performance of Bosch Dishwashers with CrystalDryTM on combined household load including plastics, glass, steel, and porcelain as compared to Bosch Dishwashers with PureDry®. Drying performance may vary by dish type.
*Compared to a Bosch dishwasher with 2 racks. **Certification to NSF/ANSI Standard 184 for residential dishwashers.

Accessories: To purchase Bosch accessories, cleaners & parts please visit www.bosch-home.com/us/store or call 1-800-944-2904 (Mon to Fri 5 am to 6 pm PST, Sat 6 am to 3 pm PST).

Notes: All height, width and depth dimensions are shown in inches. BSH reserves the absolute and unrestricted right to change product materials and specifications, at any time, without notice. Consult the product’s installation instructions for final dimensional data and other details prior to making cutout.

Warranties: Please see Use & Care manual or Bosch website for statement of limited warranty.

For more information on our entire line of products, go to www.bosch-home.com/us or call 1-800-944-2904

7/22

24″ Bar Handle Dishwasher
800 Series Black Stainless SHX78CM4N
Installation Details

Included:
Pre-connected drain hose
Toe-kick
Power cord (3-prong plug)

(A)

67″ (1750) (B)

63″ (1600) (B)

45″ (1140) (C)

56″ (1422) (C)

(D) (E) (F)

A: Front view B: Drain hose C: Electrical Power Cord:
length shown according
to Installation Instructions
D: Inlet E: Drain F: Electrical

All connections are at the rear of the appliance.

Extension for drain hose available as accessory.

Junction Box for hard wired connection available

as an accessory.

Measurements in inches (mm)

Ø 2 1/2″ (63.5 mm)

7″ (178 mm)

Note: Cutout required on left or right cabinet wall, depending on location of water inlet, drain and electrical connection

2 1/2″ (63.5 mm)

Junction box accessory available for purchase SMZPCJB1UC (not included)

Example of Hardwire Installation

Ø 2 1/2″ (63.5 mm)

7″ (178 mm)

Note: Cutout required on left or right cabinet wall, depending on location of water inlet, drain and electrical connection

2 1/2″ (63.5 mm)

3-prong power cord
included

Example of an Electrical Receptacle Installation

Accessories: To purchase Bosch accessories, cleaners & parts please visit www.bosch-home.com/us/store or call 1-800-944-2904 (Mon to Fri 5 am to 6 pm PST, Sat 6 am to 3 pm PST).

Warranties: Please see Use & Care manual or Bosch website for statement of limited warranty.

For more information on our entire line of products, go to www.bosch-home.com/us or call 1-800-944-2904

7/22

24″ Bar Handle Dishwasher
800 Series Black Stainless SHX78CM4N

Installation Details
Non-metallic tie

Non-metallic tie
Remove plug

Note: Plumbing installations will vary – refer to local codes. Drain hose included is 79″ (201 cm) and can be extended to a maximum of 155 3/4″ (396 cm).
Always use the approved drain hose extension kit (SGZ1010UC).
Ensure a portion of the drain hose is raised between min. 33″ (84 cm) and max. 43″ (110 cm) above the cabinet floor.

min 33″ (84 cm) max 43″ (110 cm) min 33″ (84 cm) max 43″ (110 cm)
