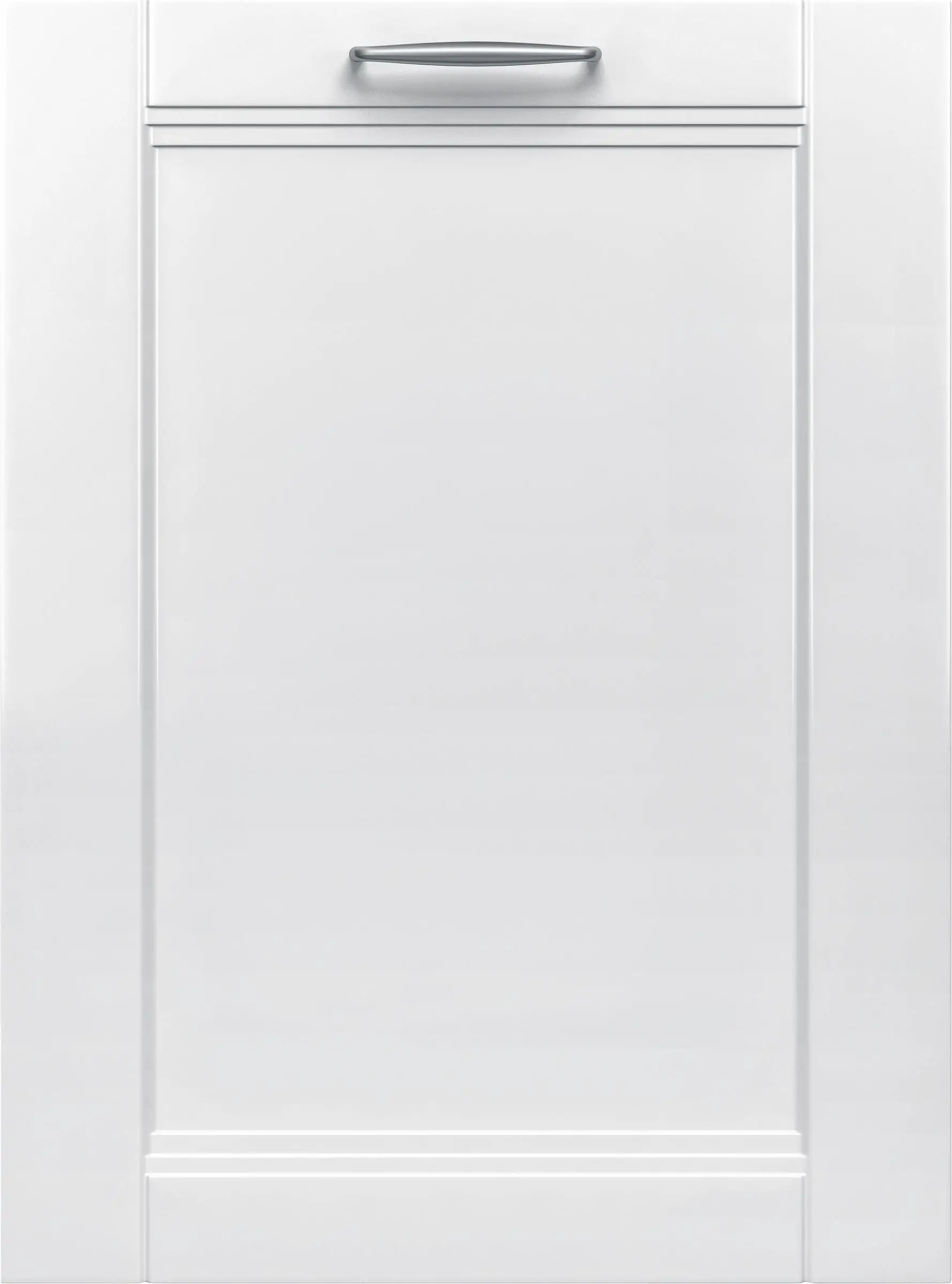

BOSCH SHV53CM3N Built-In Dishwasher
Product Information
- Model: SHV53CM3N Custom Panel
- Number of place settings: 16
- Wash system: Five-level wash
- Drying system: Standard drying with concealed water heating element
- Third rack: Standard 3rd Rack with V-shape for silverware and large utensils
- Tub material: Stainless Steel
- Control type: Touch Controls
- Efficiency: Energy efficiency class Tier 1
- Water usage per cycle: 3.5 gallons
- Total annual energy consumption: 269 kWh
- Noise level: 46 dBA
- Dimensions (HxWxD): 33 7/8 x 23 9/16 x 23 1/16 inches
- Net weight: 78 lbs
Product Usage Instructions
- Before using the dishwasher, ensure that the custom panel door weight is between 7 to 18 lbs. If you plan on using a door panel that is not within this range, please contact customer service at (800) 944-2904.
- Ensure that the dishwasher is properly installed according to the installation instructions and that all connections (inlet, drain, and electrical) are at the rear of the appliance.
- Load the dishwasher with dishes, making sure that they are properly arranged to allow for efficient cleaning.
- Add dishwasher detergent to the detergent dispenser according to the manufacturer’s instructions and close the dispenser lid.
- Select the desired wash cycle and options using the touch controls.
- Press the Start button to begin the wash cycle.
- Once the cycle is complete, open the dishwasher and remove the dishes.
Note:
For more information on accessories, cleaners, parts, warranties, and other product details, please visit www.bosch-home.com/us or call 1-800-944-2904 (Mon to Fri 5 am to 6 pm PST, Sat 6 am to 3 pm PST).
The 3rd rack provides the perfect space for silverware and large utensils while its V shape leaves room below for taller items.
Specification
| Features & Benefits |
| So quiet at 46 dBA, InfoLight® shines on the floor so you know the dishwasher is running. |
| With PrecisionWash®, intelligent sensors and precision spray arms target every item of every load, so dishes come out sparkling clean every time. |
| Enhance your cleaning experience with Wi-Fi enabled Home Connect®. Access additional wash cycles and options or choose the right one for your needs using Smart Cycle. |
| The AquaStop® leak protection system contains leaks through a precisely engineered system. If a leak occurs, the system contains it by shutting down operation and pumping out water. So you have the ultimate peace of mind whether you are away or at home. |
| General Properties | Technical Details | ||||
| Number of wash cycles | 5 + 3 additional in Home Connect® | Watts | 1440 W | ||
| Current | 12 Amps | ||||
| Number of options | 3 + 2 additional in Home Connect® | ||||
| Volts | 120 V | ||||
| Frequency | 60 Hz | ||||
| dBA | 46 | ||||
| Power cord full length | 67″ | ||||
| Wash system | PrecisionWash® | ||||
| Power cord install length from edge of unit when facing the door | Left – 45″ Right – 56″ | ||||
| Drying system | PureDry® | ||||
| Third rack | Standard 3rd Rack | ||||
| Rack adjustability | Rackmatic® | Minimum water pressure | 14 lb/sin | ||
| Tub material | Stainless Steel | Length outlet hose | 78 3/4″ | ||
| Control type | Touch Controls | Dimensions & Weight | |||
| Concealed water heating element | Yes | Overall appliance dimensions (HxWxD) | 33 7/8″ x 23 9/16″ x 23 1/16″ | ||
| Leak protection system | 24/7 AquaStop® | Required cutout size (HxWxD) | 33 7/8″ x 24″ x 24″ | ||
| Home Connect® (WiFi enabled) | Yes | ||||
| Adjustable feet | Yes | ||||
| NSF®-certified* sanitize option | Yes | Net weight | 78 lbs | ||
| Accessories—Optional | |||||
| Water softener | No | ||||
| Junction Box | SMZPCJB1UC | ||||
| Five-level wash | Yes | ||||
| Junction Box + Supply Hose Kit | SMZ3IN1UC | ||||
| Child Lock button suspension | No | ||||
| Bosch Dishwasher Water Supply Hose | SMZSH002UC | ||||
| Special features | InfoLight®, Extra Dry Option | ||||
| Drain Hose Extension Kit | SGZ1010UC | ||||
| Efficiency | |||||
| Dishwasher Accessory Kit | SMZ5000 | ||||
| Water usage per cycle | 3.5 | ||||
| Energy efficiency class | Tier 1 | Anti-Tarnish Silverware Cassette | SMZ5002UC | ||
| ENERGY STAR® qualified | No | ||||
| Edge Protector + Power Cord Clip Install Kit | SMZEPCC1UC | ||||
| Total annual energy consumption | 269 kWh | ||||
| Capacity | |||||
| Number of place settings | 16 | ||||
Certification to NSF/ANSI Standard 184 for residential dishwashers
Installation Details

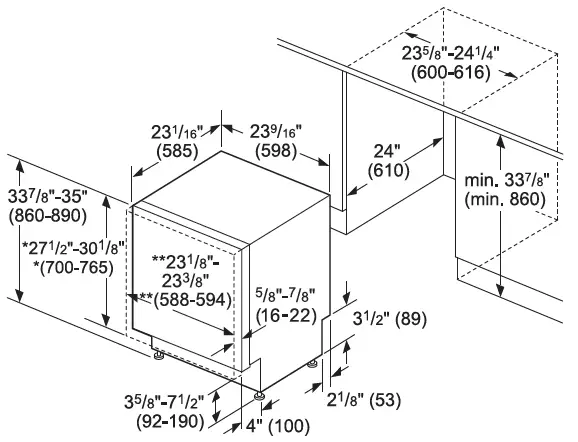

- Measured from the bottom edge of the countertop panel thickness recommended 3/4″ (20 mm). This dishwasher can accept custom door panel weights ranging from 7 to 24 lbs; however, the dishwasher comes from the factory ready for custom panel door weights from 7 to 18 lbs. If you plan on using a door panel that is not 7 to 18 lbs. please contact customer service at (800) 944-2904.
- 24″ (610 mm) wide panel may be used depending on cabinet design
Note: Refer to installation template for mounting hardware locations measurements in inches (mm)

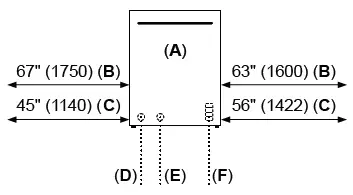

- A: Front view
- B: Drain hose
- C: Electrical Power Cord: length shown according to Installation Instructions
- D: Inlet
- E: Drain
- F: Electrical

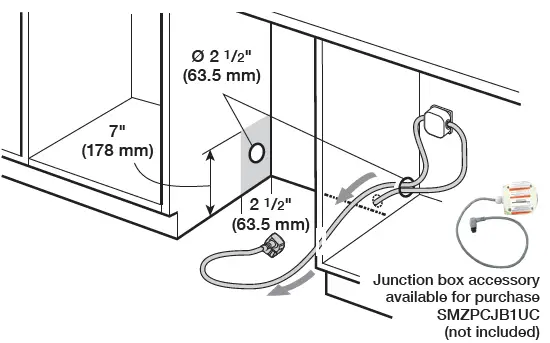

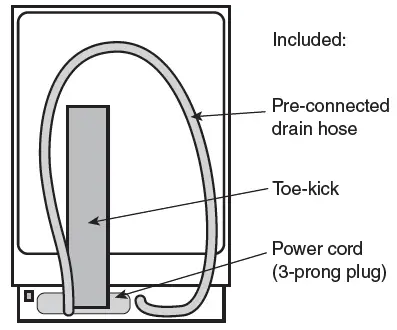

All connections are at the rear of the appliance. Extension for drain hose available as accessory. Junction Box for hard wired connection available as an accessory.
- Measurements in inches (mm)
Note:
Cutout required on left or right cabinet wall, depending on location of water inlet, drain and electrical connection
Note:
Cutout required on left or right cabinet wall, depending on location of water inlet, drain and electrical connection

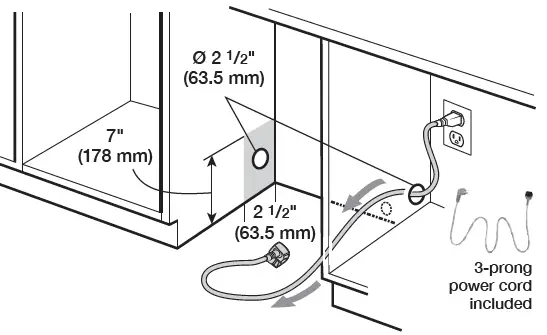

Example of an Electrical Receptacle Installation

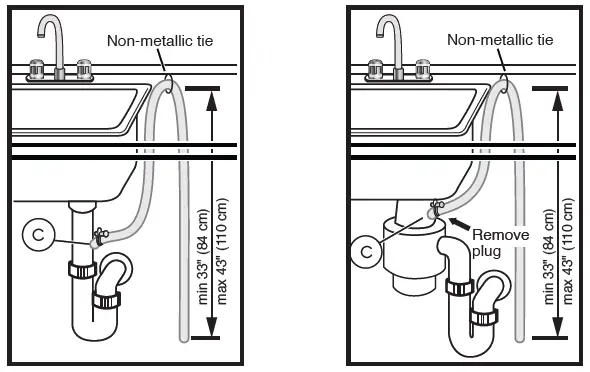

- Note: Plumbing installations will vary – refer to local codes. Drain hose included is 79″ (201 cm) and can be extended to a maximum of 155 3/4″ (396 cm).
- Always use the approved drain hose extension kit (SGZ1010UC).
- Ensure a portion of the drain hose is raised between min. 33″ (84 cm) and max. 43″ (110 cm) above the cabinet floor.
Accessories
To purchase Bosch accessories, cleaners & parts please visit www.bosch-home.com/us/store or call 1-800-944-2904 (Mon to Fri 5 am to 6 pm PST, Sat 6 am to 3 pm PST).
Notes:
All height, width, and depth dimensions are shown in inches. BSH reserves the absolute and unrestricted right to change product materials and specifications, at any time, without notice. Consult the product’s installation instructions for final dimensional data and other details prior to making the cutout.
Warranties
Please see Use & Care manual or Bosch website for a statement of limited warranty.
