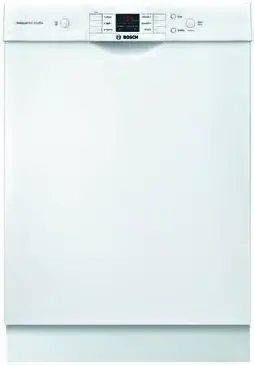

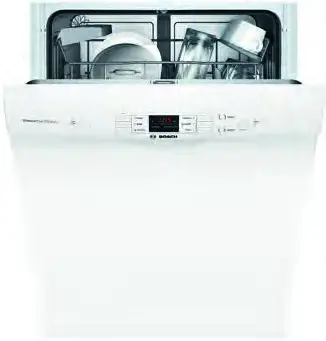

24″ Recessed Handle Dishwasher
100 Series – White SHEM3AY52N
SHEM3AY52N – White
Also available in:
Stainless Steel – SHEM3AY55N
Black – SHEM3AY56N
Bosch Dishwashers are engineered to the highest standards, passing 485 stringent quality checks resulting in exceptional workmanship and reliable performance.
Features & Benefits
50 dBA: Quietest dishwasher brand in North America.*
Utility Rack – A place for those “hard to place” items while providing safe and effective cleaning.”
Specially engineered Detergent Tray optimizes detergent dissolving for perfect results.
Stainless steel tall tub with polypropylene bottom delivers durability.
24/7 Overflow Protection System® helps prevent water leaks, even when your dishwasher is off.
General Properties
Number of wash cycles – 6
Number of options – 2
dBA – 50
Third rack – Yes (Utility rack)
Rack adjustability – Manual
Tub material – Stainless steel/polypropylene
Control type – Buttons
Concealed heating element – Yes
Leak protection system – 24/7 Overflow Protection
Water softener – No
Five-level wash – Yes
ChildLock – Yes
Special features – Detergent tray
Efficiency
Water usage per cycle – 3.2
Energy efficiency class – Tier 1
ENERGY STAR® qualified – Yes
Total annual energy consumption (kWh) – 269
Total annual water consumption (g) – 688
Capacity
Number of place settings – 14
Technical Details
Watts (W) – 1440 W
Current (A) – 12 Amps
Volts (V) – 120 V
Frequency (Hz) – 60 Hz
Power cord length – N/A
Minimum water pressure (lb/sin) – 15
Length outlet hose (in) – 90 1/2″
Dimensions & Weight

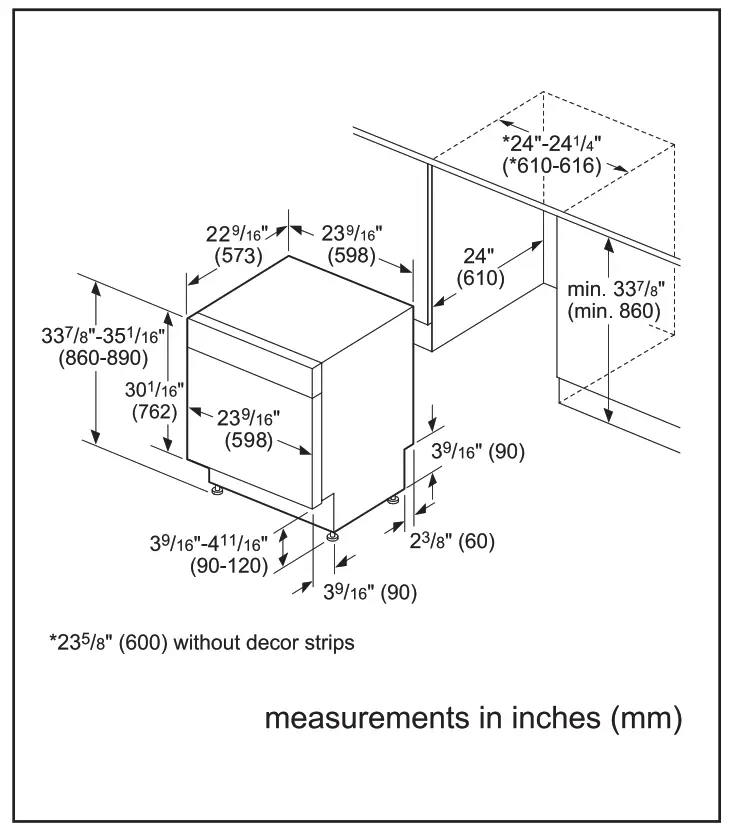

Overall appliance dimensions (HxWxD) (in) – 33 7/8″ x 23 9/16″ x 22 9/16″
Required cutout size (HxWxD) (in) – 33 7/8″ x 24″ x 24″
Adjustable feet – Yes
Net weight (lbs) – 76 lbs
Accessories—Optional
Dishwasher Drain Hose Extension 76 3/4″ – SGZ1010UC

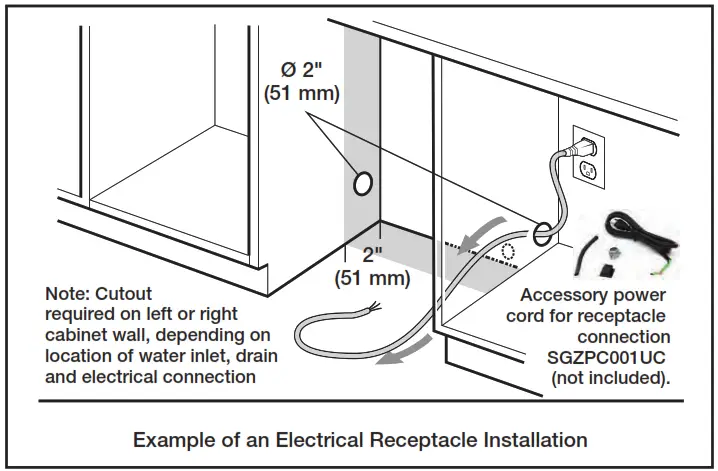

Dishwasher 3-Prong Power Cord 55 1/4″ – SGZPC001UC
Dishwasher Accessory Kit – SGZ1052UC
DoubleFlex Silverware Basket – SMZ4000UC
Installation Details
Note: Plumbing installations will vary – refer to local codes.

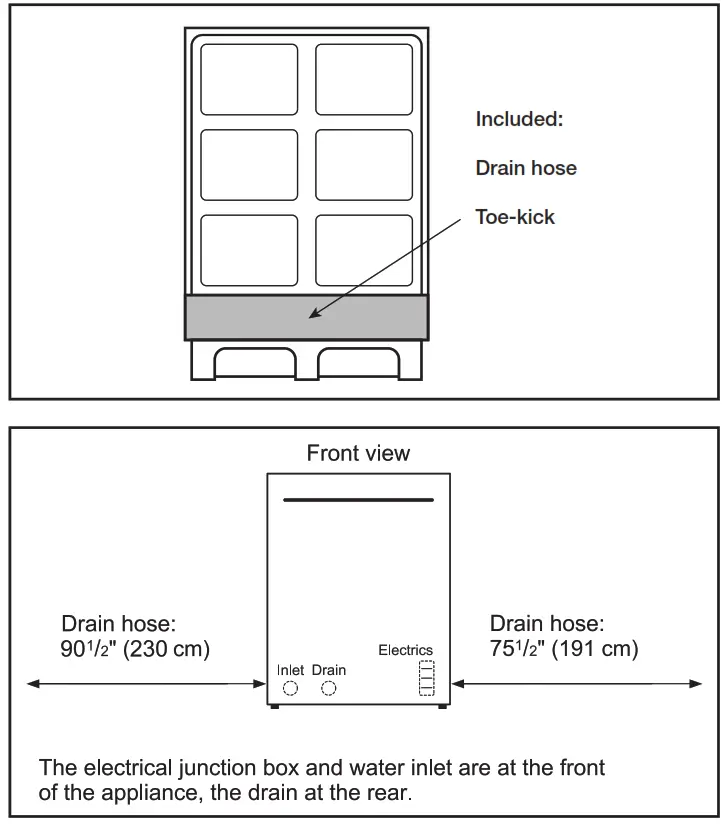

The drain hose included is 90 1/2″ (230 cm) and can be extended to a maximum of 168 1/2″ (428 cm).
Always use the approved drain hose extension kit (SGZ1010UC).

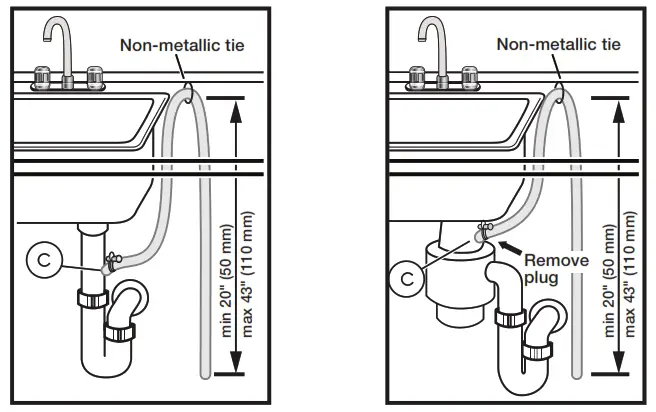

Ensure a portion of the drain hose is raised between min. 20″ (50 cm) and max. 43″ (110 cm) above the cabinet floor.
For help and assistance with Bosch accessories please visit: www.bosch-eshop.com/eshop/bosch/us or call 1-800-944-2904 Mon-Fri 5am to 6pm PST Sat 6am to 3pm PST
Notes: All height, width and depth dimensions are shown in inches. BSH reserves the absolute and unrestricted right to change product materials and specifications, at any time, without notice. Consult the product’s installation instructions for final dimensional data and other details prior to making cutout. The applicable product warranty can be found in the accompanying product literature or you may contact your account manager for further details.
Warranties: Bosch warrants that the Product is free from defects in materials and workmanship for a period of three hundred and sixty-five (365) days from the date of purchase. The foregoing timeline begins to run upon the date of purchase, and shall not be stalled, tolled, extended, or suspended, for any reason whatsoever. This Product is also warranted to be free from cosmetic defects in material and workmanship (such as scratches of stainless steel, paint/porcelain blemishes, chip, dents, or other damage) to the finish of the Product, for a period of thirty (30) days from the date of purchase or closing date for new construction. This cosmetic warranty excludes slight color variations due to inherent differences in painted and porcelain parts, as well as differences caused by kitchen lighting, product location, or other similar factors. This cosmetic warranty specifically excludes any display, floor, “As Is”, or “B” stock appliances.
