Instruction Manual
EAN CODE 3276000342656
EAN CODE 3276007369151
REDONDO W/O
Assembly – Use – Maintenance Manual

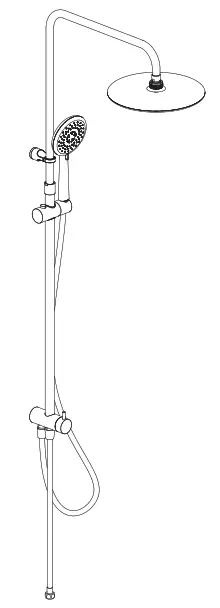

Redondo WO Thermostatic Shower Column
Thank you for purchasing this product. We recommend that you read the installation, user, and maintenance instructions carefully. We have designed this product to ensure your complete satisfaction. If you require assistance, the team at your retailer is on hand to help you.

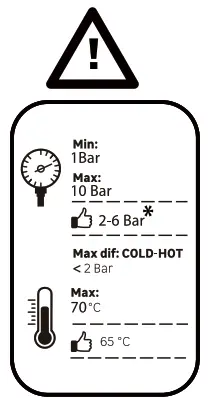

- If the pressure is over 5 bars, a pressure-reducing valve must be added.
Caution danger
Correct
Incorrect

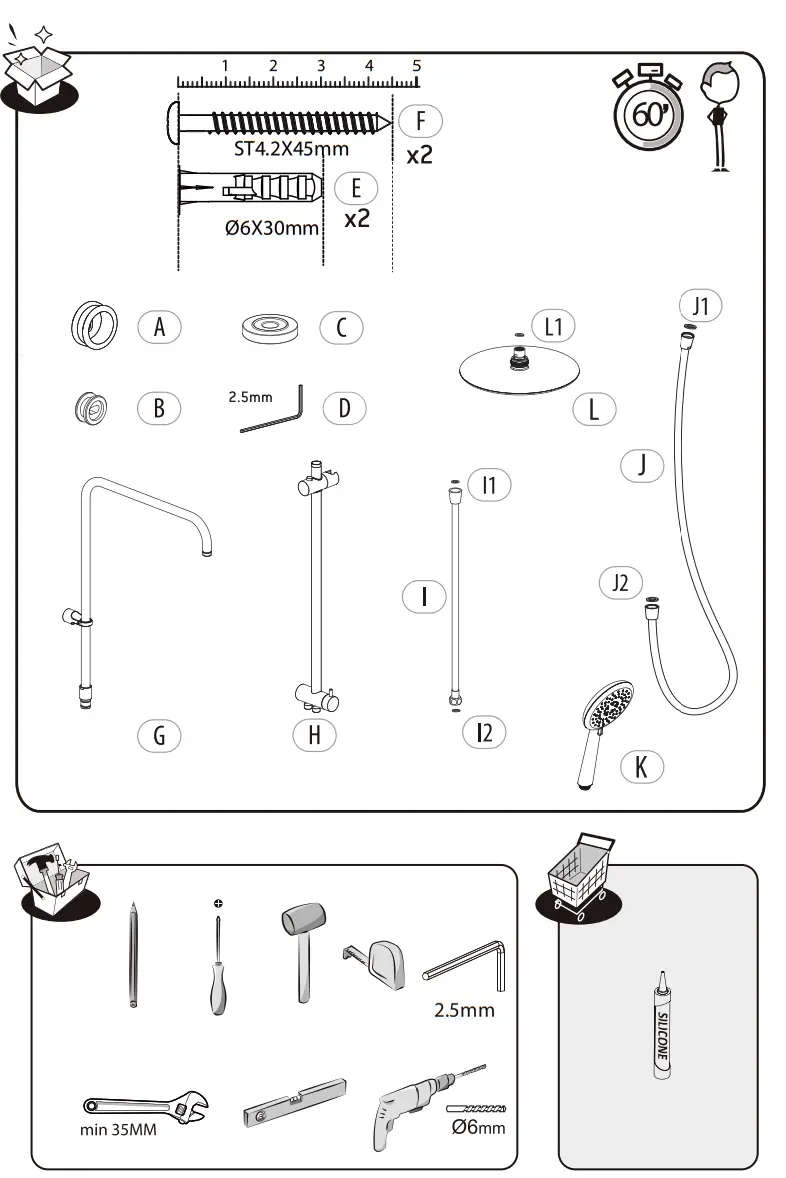

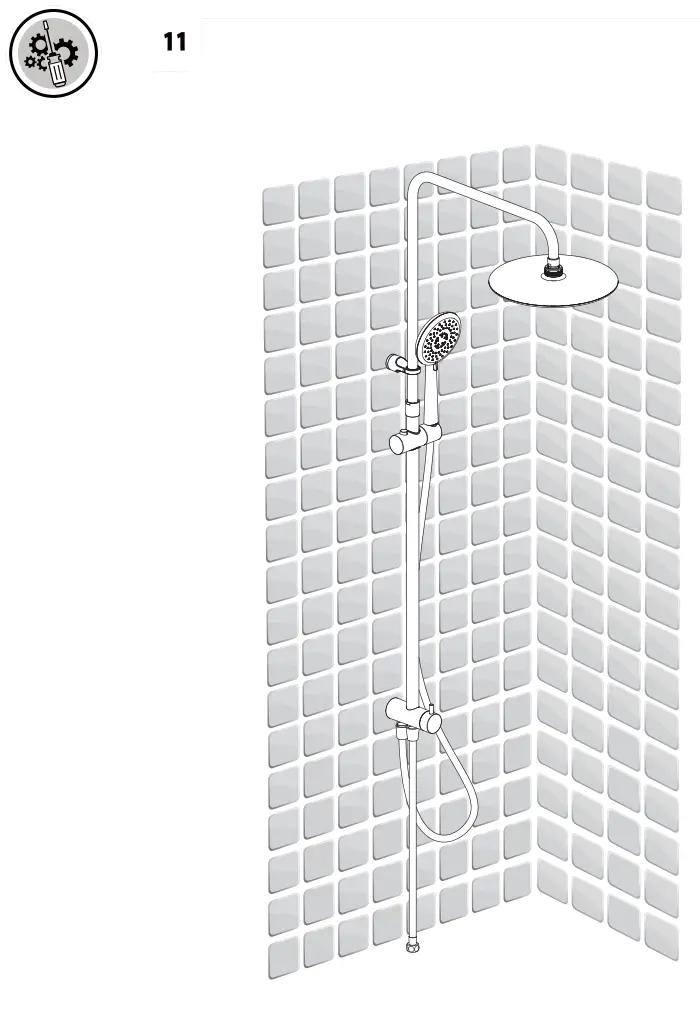

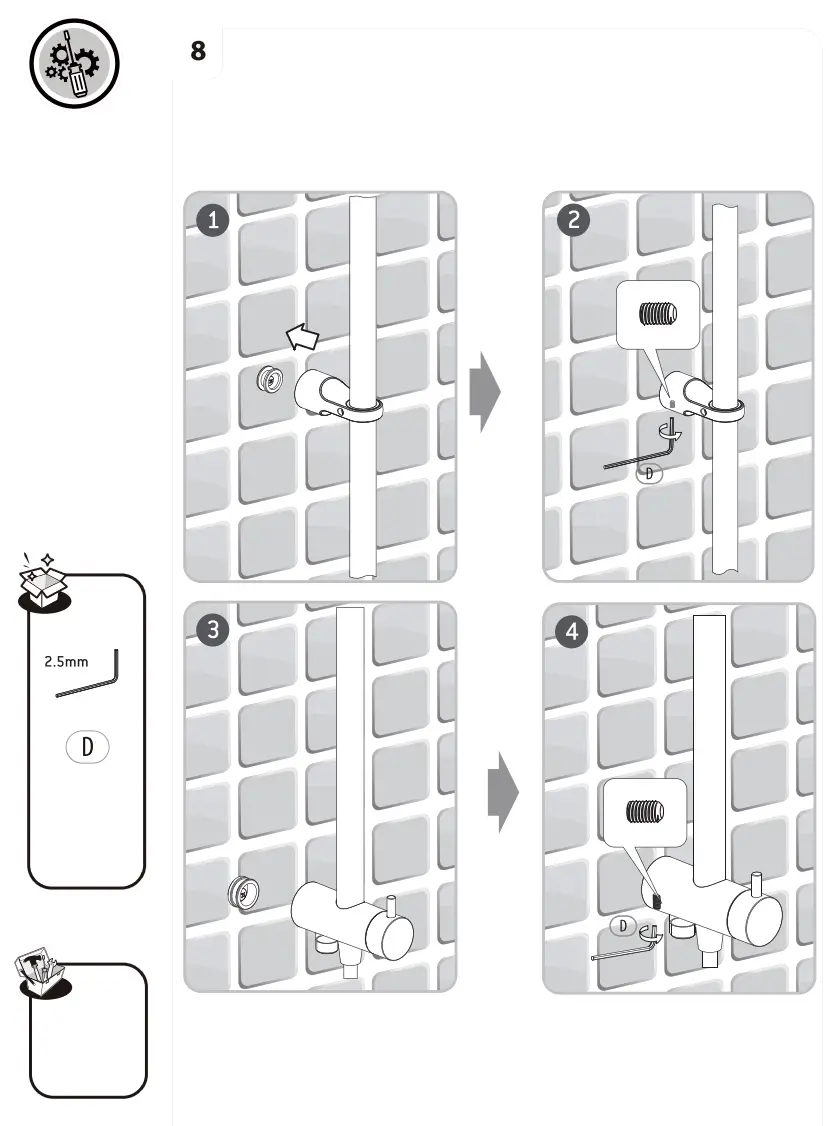

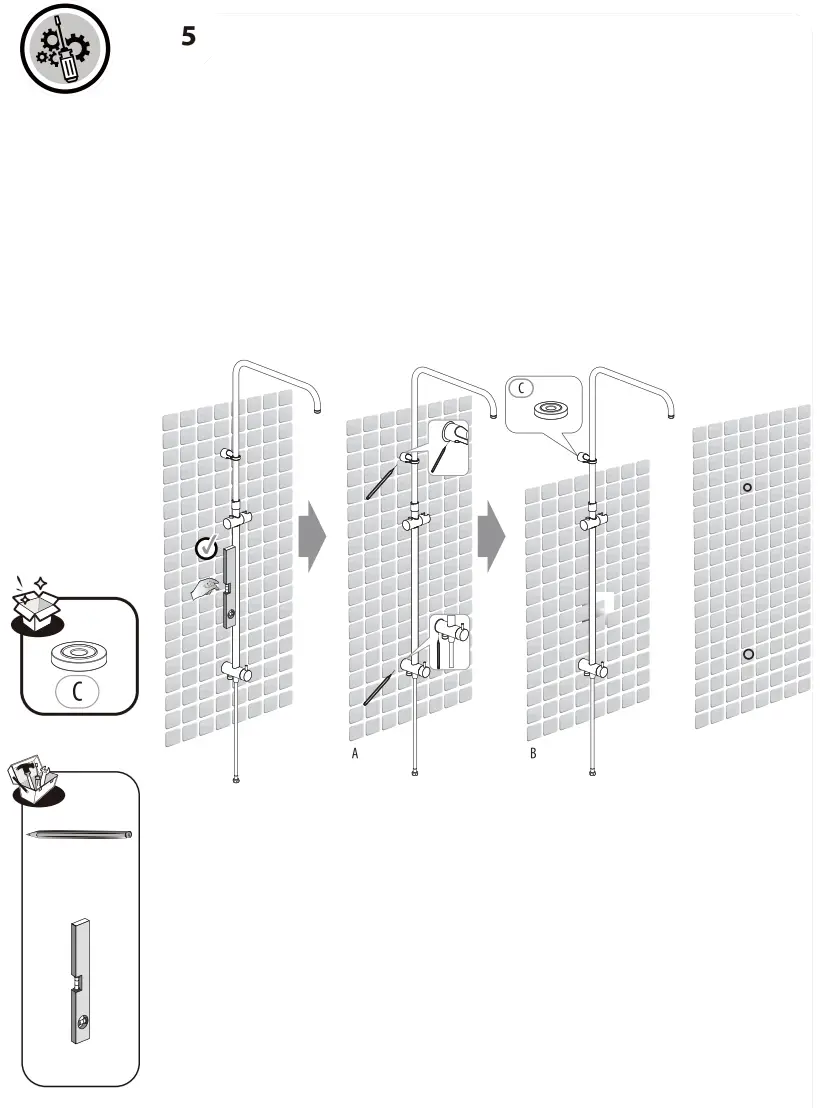

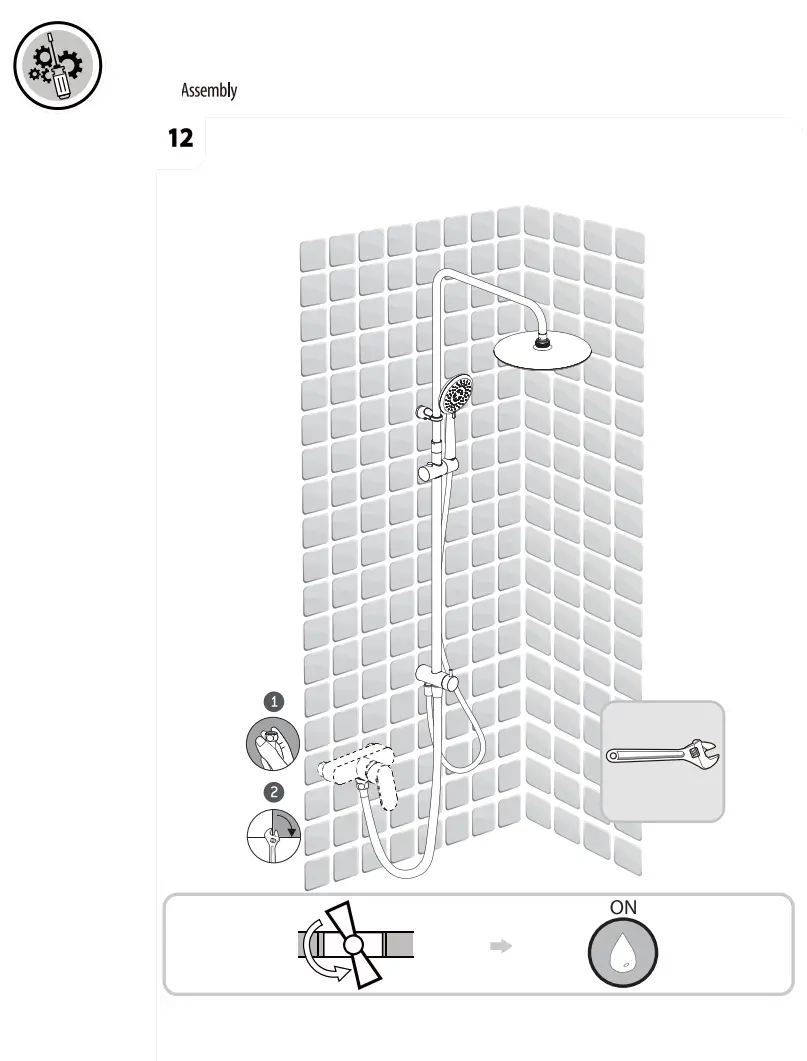

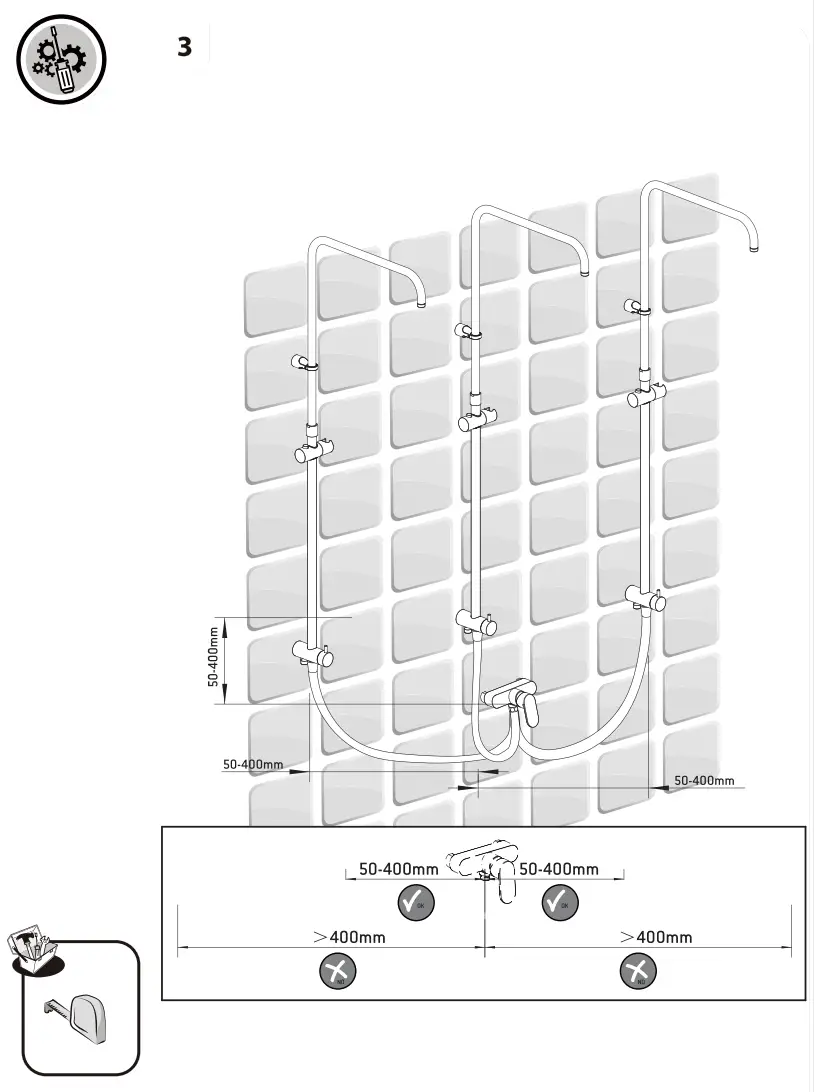

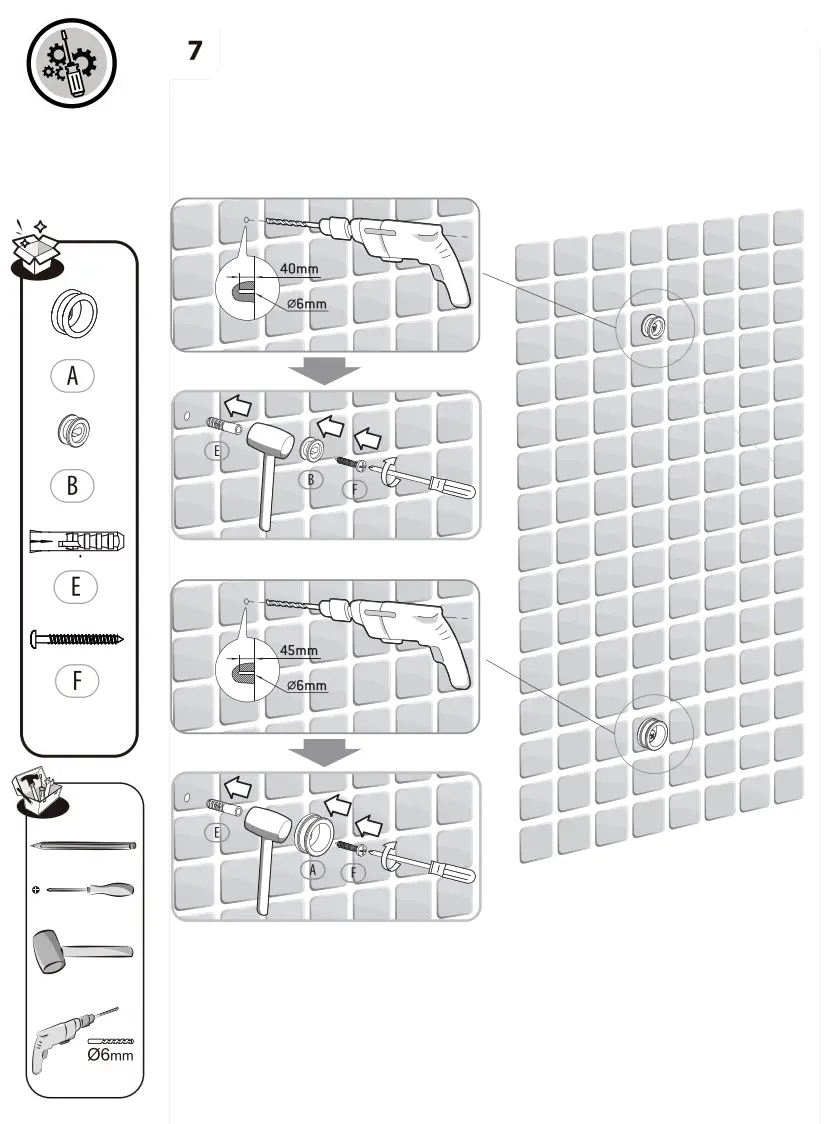

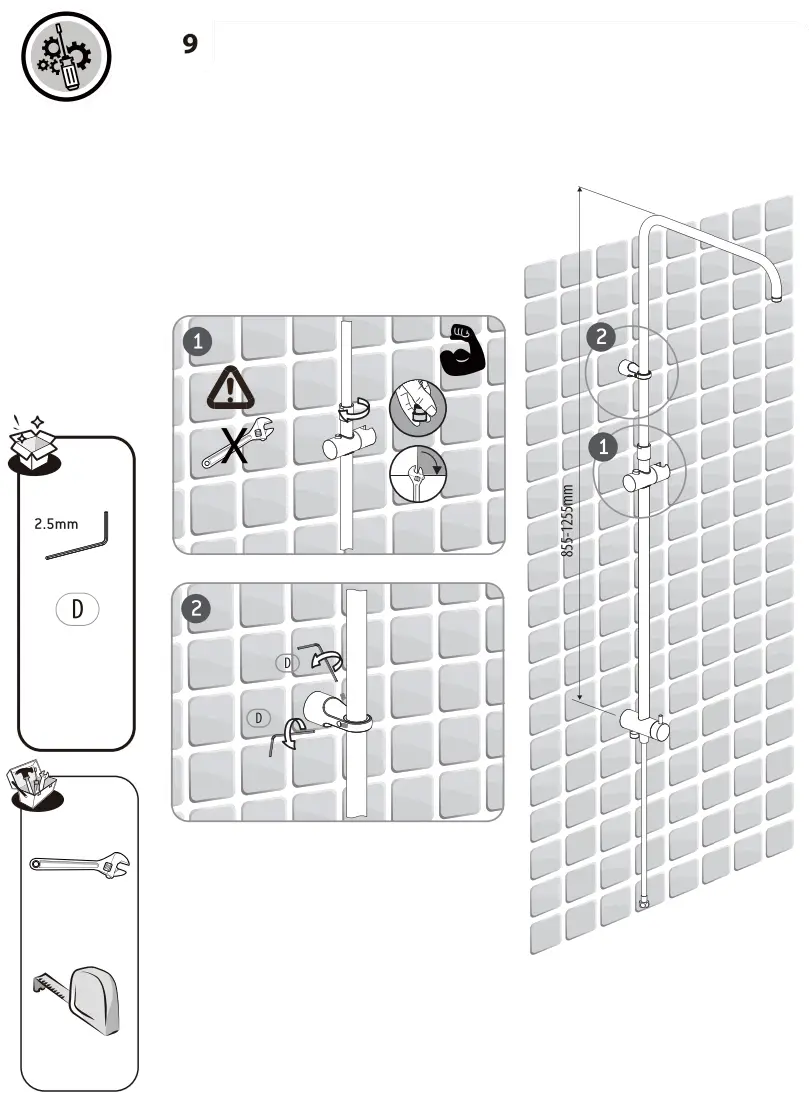

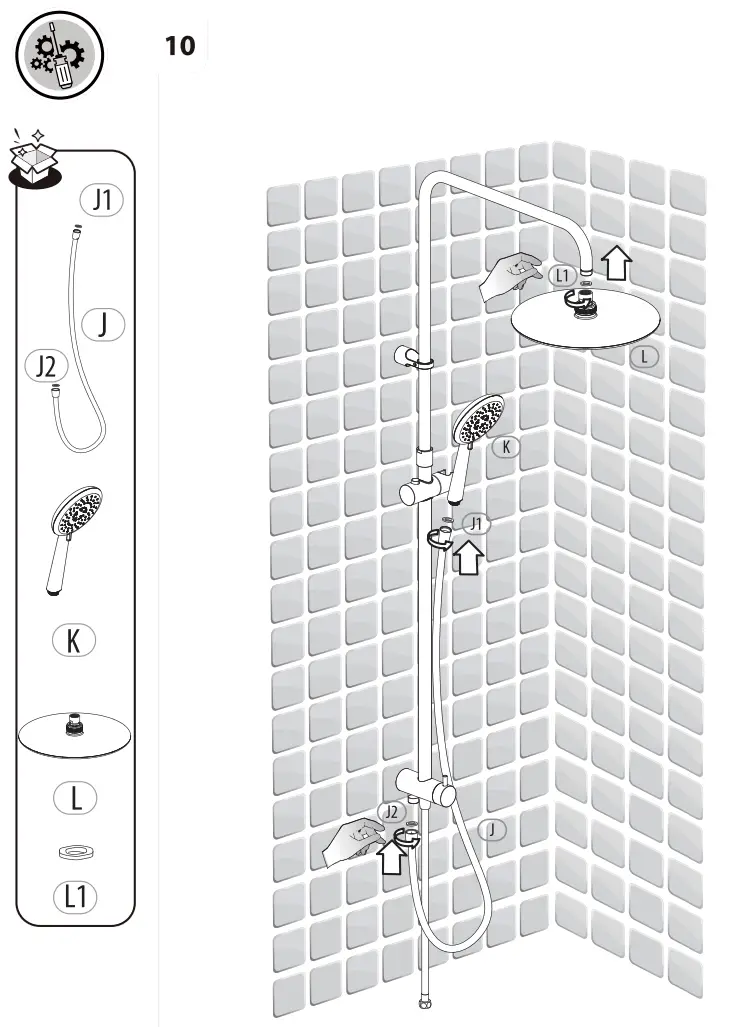

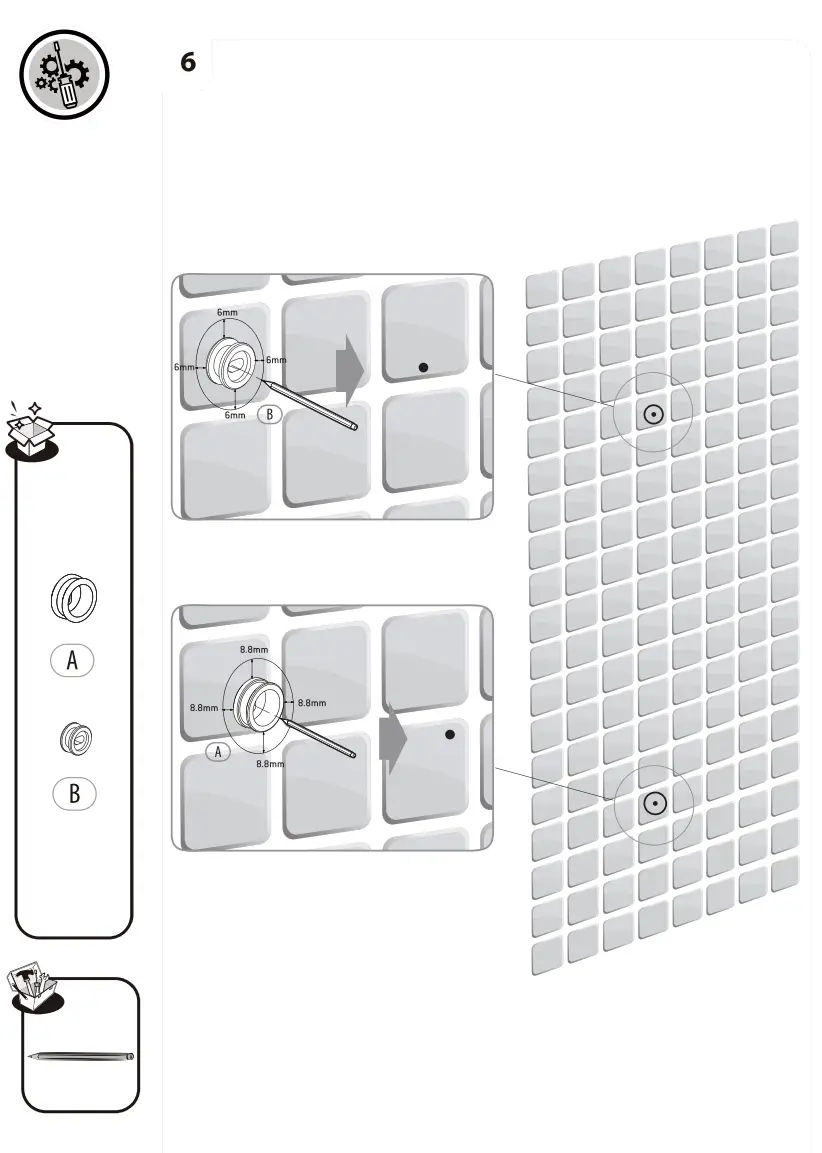

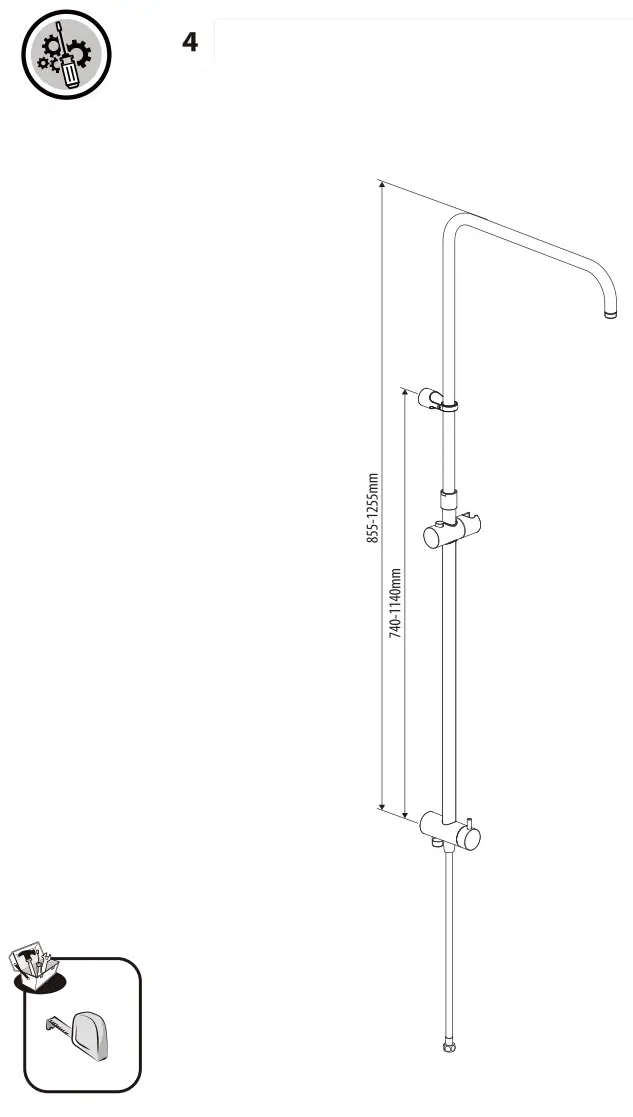

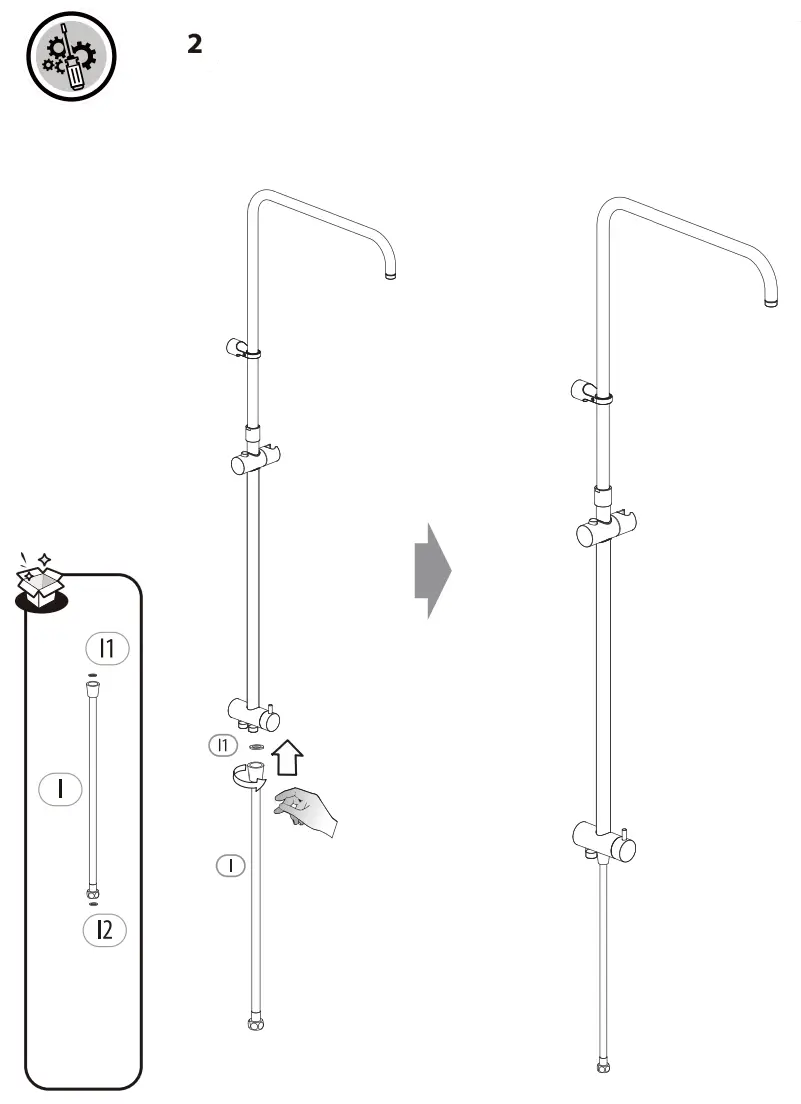

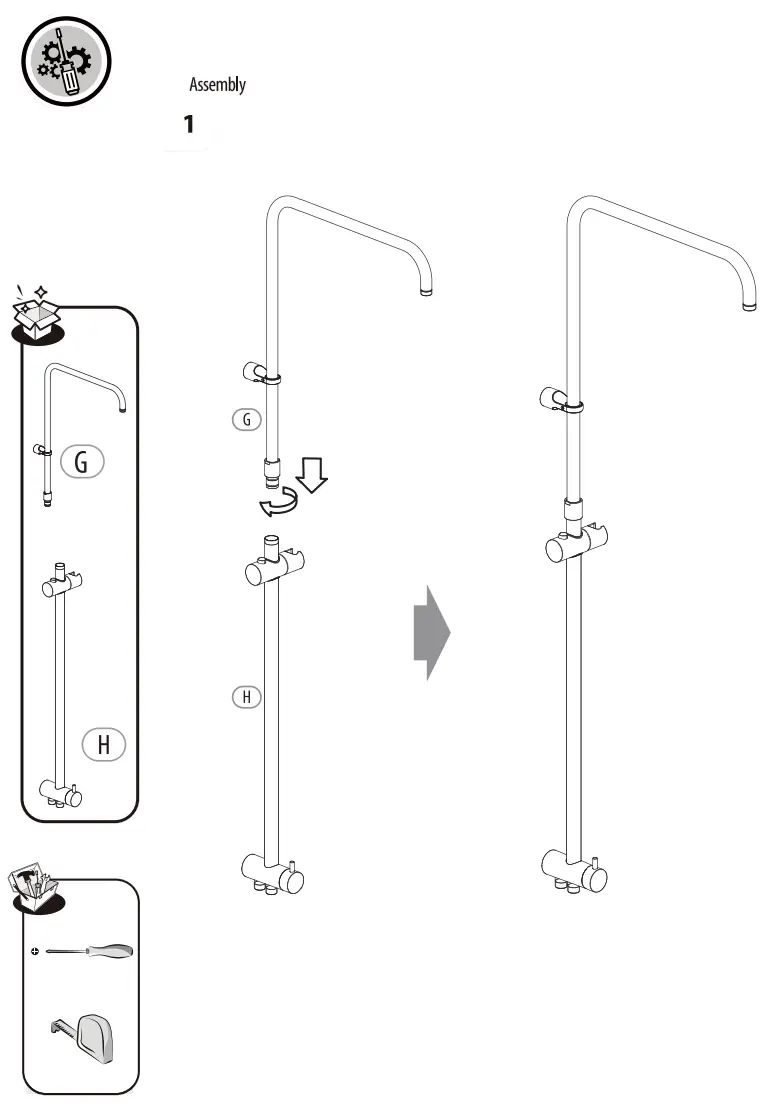

Assembly

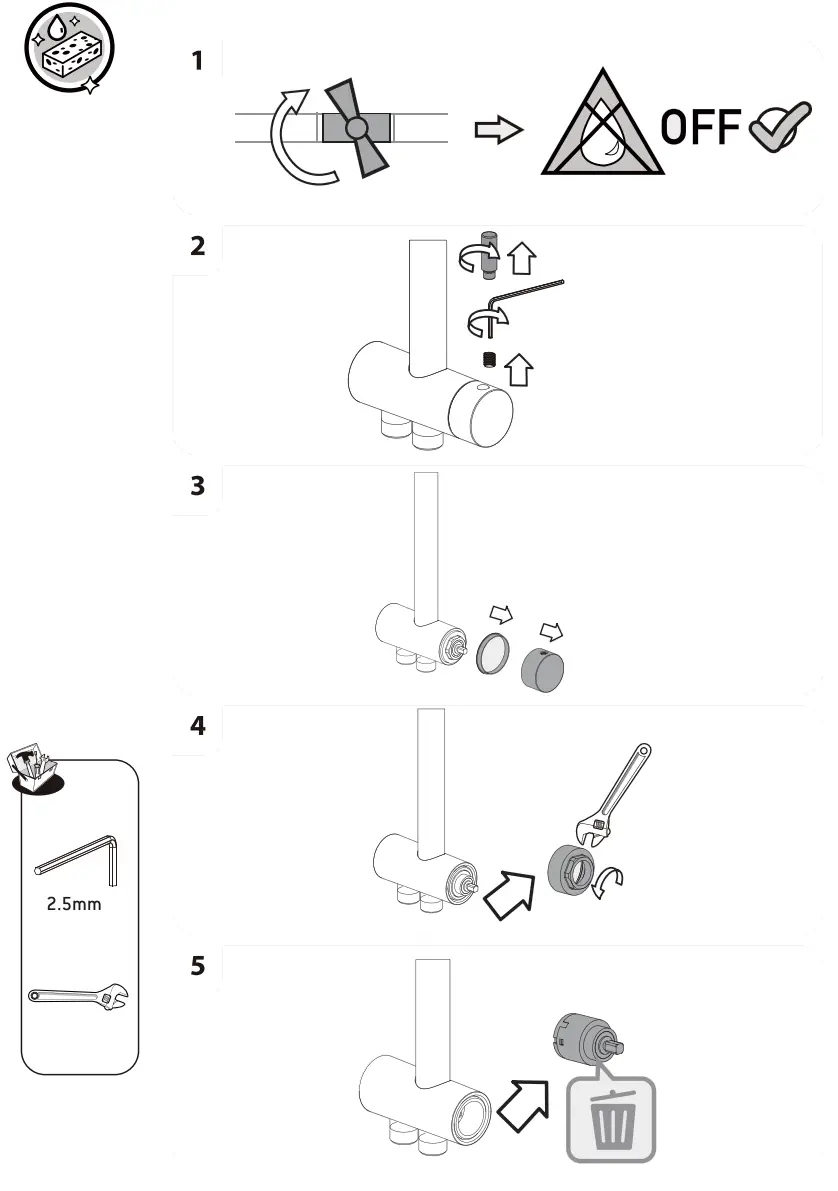

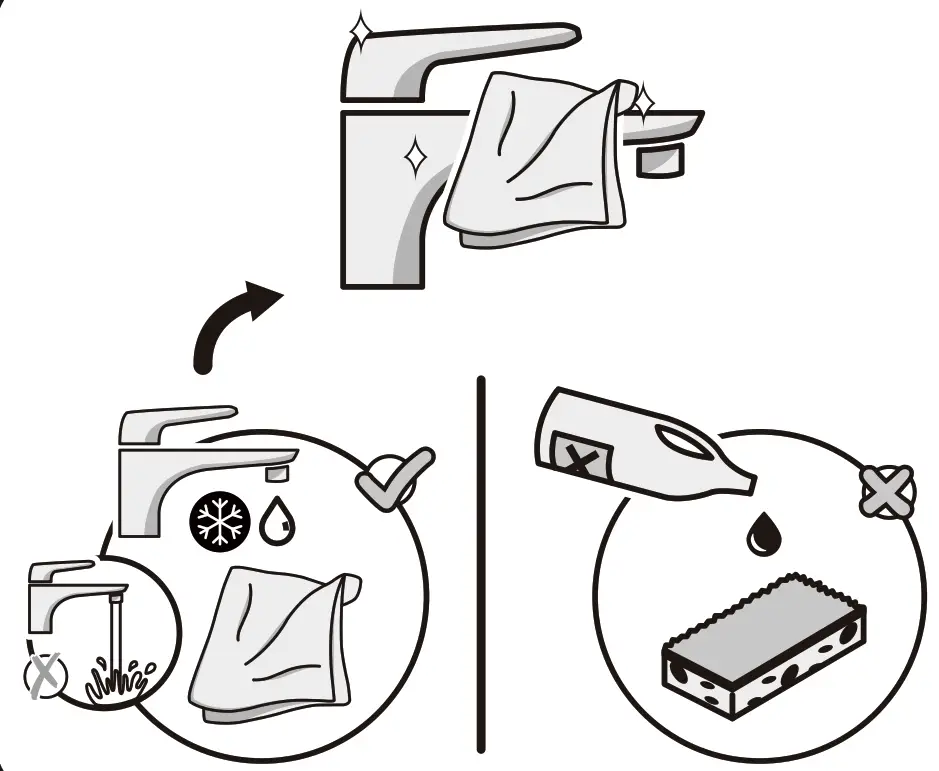

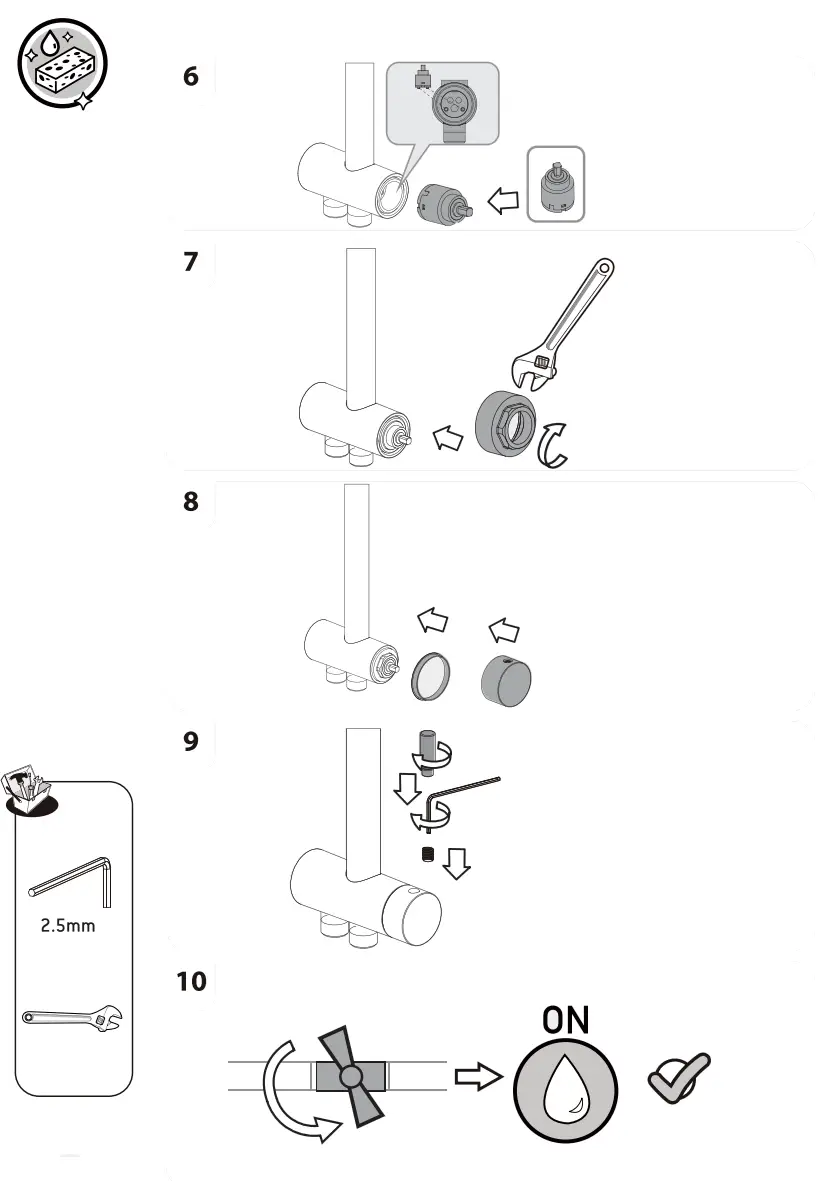

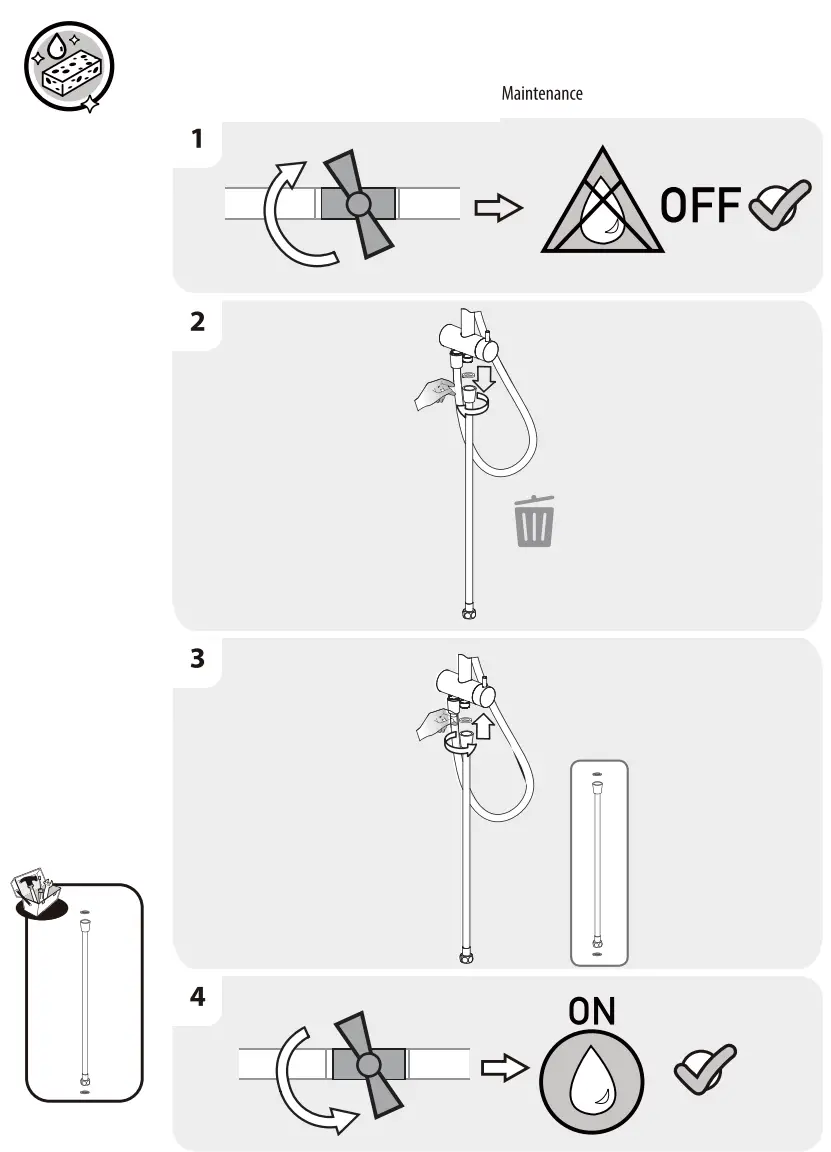

Maintenance
 |  |
 |  |
 |  |
 |  |
 |  |
 |  |
 |  |

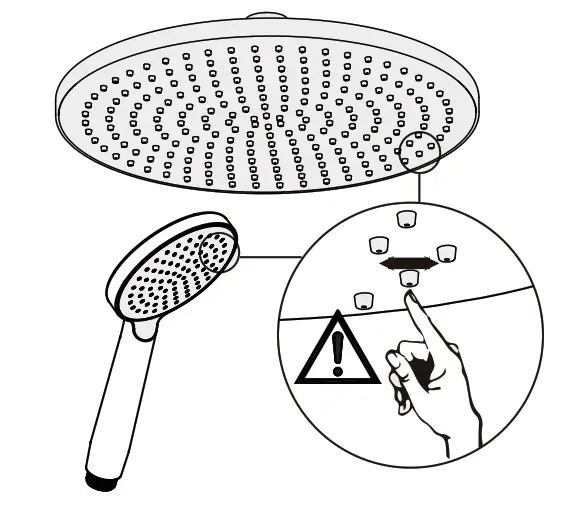

 | Minimum Dynamic Pressure Suggested 1 bar. Clean the nozzles periodically. |
Clean water
Solvent-free
Refer to the warranty booklet for more information

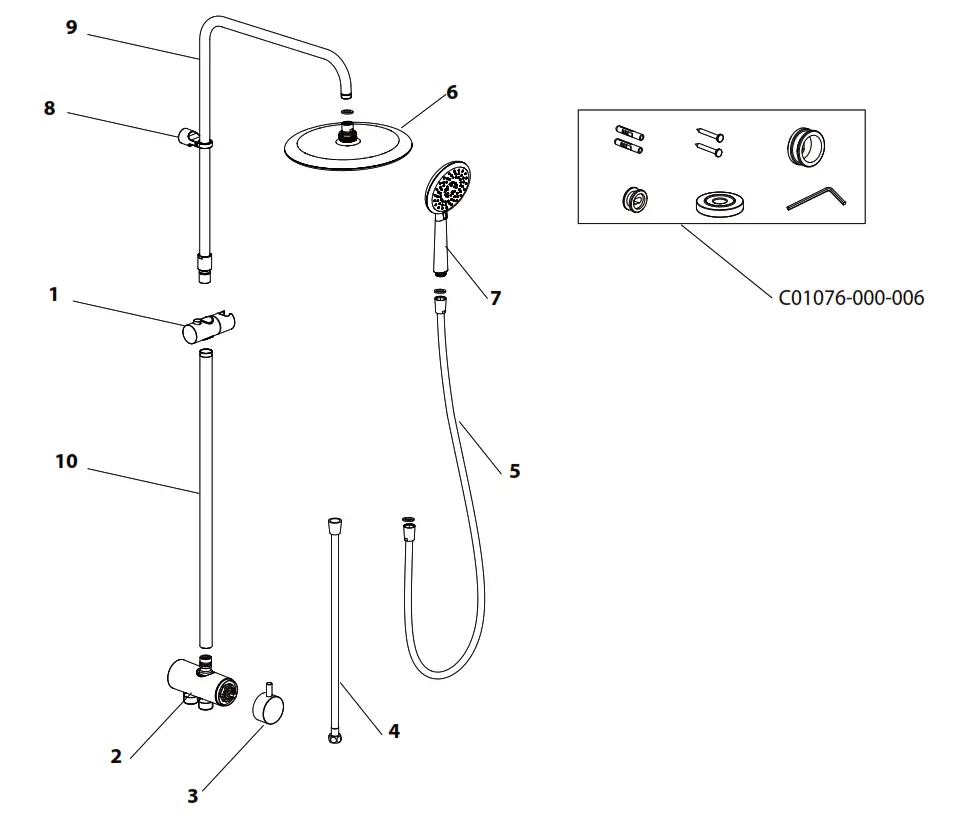

| No. | IAN | QTY | Year warranty | |
| 3276007369151 | ||||
| C01076-B LA | ||||
| 1 | M50020-016 | 1 | 5 | 5 z black |
| 2 | C01076-000-004 | 1 | 5 | 5 black |
| 3 | C00010-013 | 1 | 5 | 5″ black |
| 4 | H11020 | 1 | 5 | 5* black |
| 5 | H21307 | 1 | 5 | 5* black |
| 6 | P29900 | 1 | 5 | 5″ black |
| 7 | P71800 | 1 | 5 | 5* black |
| 8 | C01076-002 | 1 | 5 | 5 black |
| 9 | B36264-003 | 1 | 5 | 5 x black |
| 10 | C01076-001 | 1 | 5 | 5 x black |
Refer to the warranty booklet for more information
The presence of one or more anti-return valve(s) on this tap is required for the proper operation of your water setup.
Please do not attempt to remove it/them.
Declaration of sanitary conformity.
Made in China
5- year guarantee
ADEO Services – 135 Rue Sadi Car not – CS 00001
59790 RONCHIN – France
Imported by Adeo South Africa (PTY) LTD T/A Leroy Merlin,
Hosted in Leroy Merlin Fourways Store 35 Roos Street,
Witkoppen Ext 97, Sandton, 2191 Johannesburg,
Gauteng, South Africa
Tel: +27 10 493 8000
Email: contacteleroymerlin.co.za
