Rubineta Shower Column Set River+thermo Instruction Manual

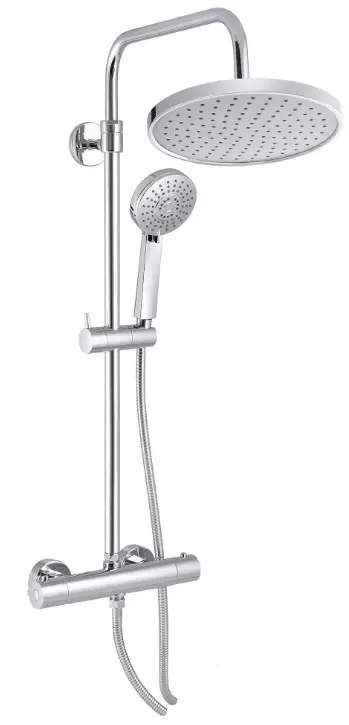

RUBINETA Shower Column Set River+Thermo

INSTALLTION

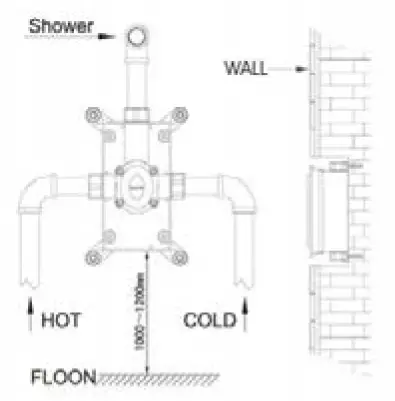

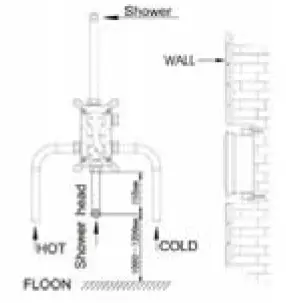

1. Provide the height of the in wall pipe and the mixer body. The depth of the in wall box should be not less than 53.5mm.
   The in wall box should be under the wall after installation.

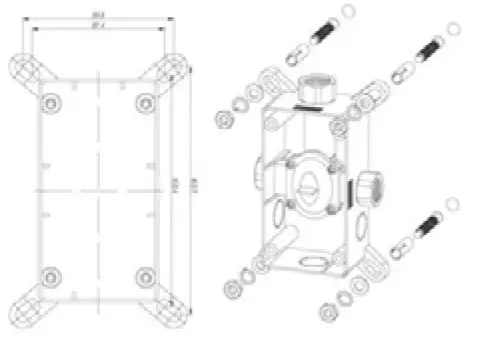

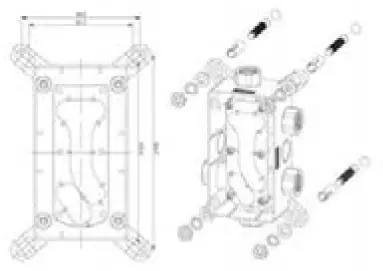

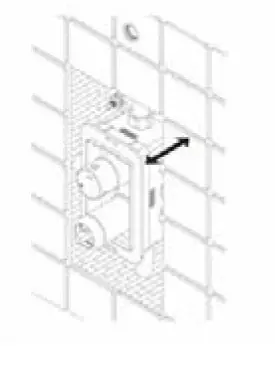

2. Provide the dimension of the in wall box for drilling. Fixed the in wall box by exploded screw.

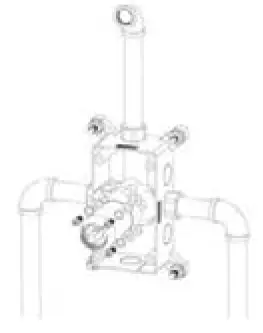

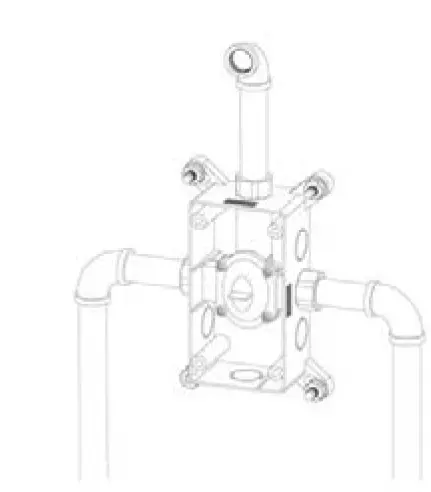

3. Connect the hot, cold and outlet pipe. Open water switch to check if each joint is tight, no leakage and no crack. After using proper pull and push, the wall could be cover ed with tile.
4. Close water switch, remove the plastic cover of the in-wall box.

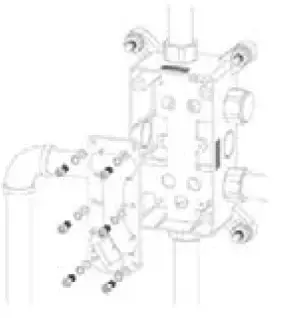

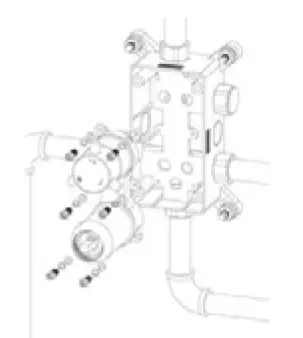

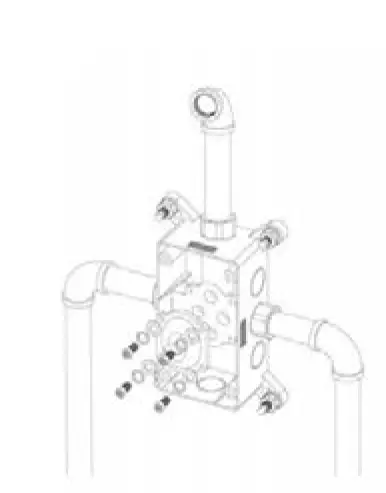

5. Install the body. After finished installation, open water switch to check if each joint is tight and no leakage.

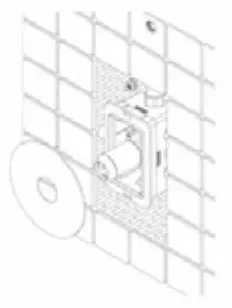

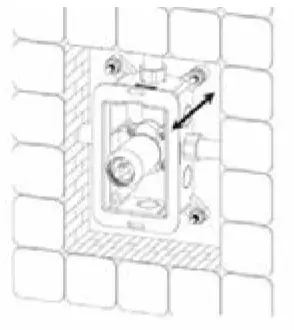

6. Remove diverter handle pole, fix the adjuster cover. The adjusted cover can be adjusted according to the height of the wall (Max. height 12.5mm). The biggest surface should be the same level as the tile.

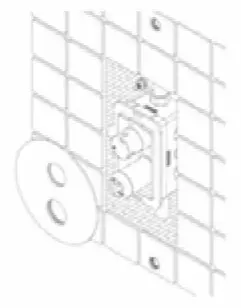

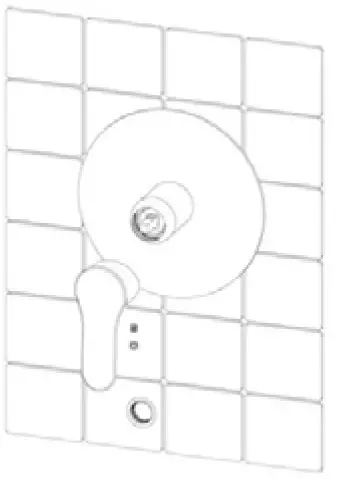

7. Install the decorative plate.

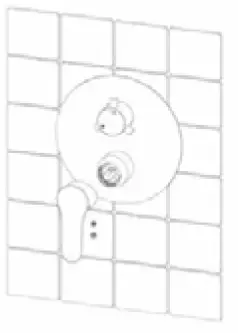

8. Install the handle.

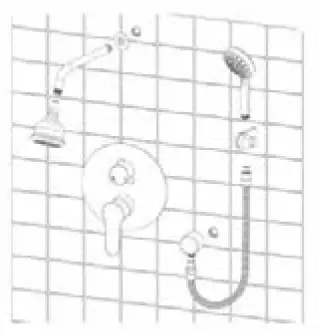

9. Install shower head and hand shower.

INSTRUCTION

1. Provide the height of the in wall pipe and the mixer body. The depth of the in wall box should be not less than 53.5mm. The in wall box should be under the wall after installation.
2. Provide the dimension of the in wall box for drilling. Fixed the in wall box by exploded screw.
3. Connect the hot, cold and outlet pipe. Open water switch to check if each joint is tight, no leakage and no crack. Af ter using proper pull and push, the wall could be cover ed with tile.
4. Close water switch, remove the plastic cover of the in wall box.
5. Install the body. After finished installation, open water switch to check if each joint is tight and no leakage.
6. Remove diverter handle pole, fix the adjuster cover. The adjusted cover can be adjusted according to the height of the wall (Max. height 12.5mm). The biggest surface should be the same level as the tile.
7. Install the decorative plate.
8. Install the handle.

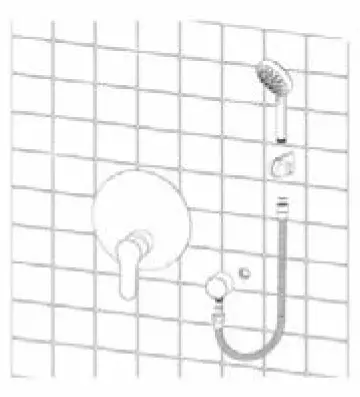

9. Install shower head.
