RoyPow S1212 Lithium Iron Phosphate Battery
USE YOUR S1212
RECHARGE THE S1212
Charger Not Included
WARNING
- Due to the transportation restrictions, the RoyPow battery will be charged to about 30% SOC before delivery. Recharge it fully before the first time use.
- To preserve battery lifespan, use and recharge at least once every 3 months!
- The lithium battery charger is highly recommended, although the universal SLA battery charger is also applicable.
- Suggest charging the RoyPow battery periodically to the regular battery storage voltage (12.8V-13.24V, 30 50% SOC to avoid over-discharqe.
SPECIFICATIONS
| # | Item | Parameter |
| Nominal Output Voltage I Nennau sgangs Spannung I Tension de Sortie Nominale I Tensione di Uscita Nominale I Voltaje de Salida Nominal I li’ t!H:l:l:/:J ‘lli:ff I /iJlli’ lotr t:l:l ff l fillil’Eij:jt:l:l:!it |
12.8V | |
| 2 | Nominal Capacity I Nominale Kapazitiit I Capacite Nominale l Capacita Nominale l Capacidad Nominal I l’Etll@ll l 1illl’E@ A I mili’@ :11 |
12Ah@ 0.2C |
| 3 | Actual Capacity I Tatsii ch liche Kapazitiit I Capacite Reelle ICapacita Effettiva I Capacidad Actual I llelli1.@:II I gl;iij;@I!; I Wlli1.@A | 2,: 12Ah@ 0.2C |
| 4 | Internal Resistance I lnterner Widerstand I Resistance lnterne I Resistenza lnterna I Resistencia lnterna I p;ifllll!);!fi: I P’illll. I f”.11.E! | :520m0 |
| 5 | Charging Voltage I Ladespannung I Ten sion de Charge I Tensione di Carica I Voltaje de Carga I 3’t:!lt ff I ft ff I 3’t:!lt:!lt | 14.4V |
| 6 | Max Charging Voltage ! Maxima le Lade spannung Tension de Charge Maxima leI Tensione di Carica Massima I Voltaje de Carga Maximo I m * n m m ff l * n ff l * n m l!! | 14.6V |
| 7 | Discharge Cut-off Voltage I Entl adungs – Abschaltspannung I Tension de Coupure de oecharge I Tensione di lnterruzione di Scarica I Voltaje de Corte de Descarga I nl!:tll:i!fltlliiltff 1 nl!: tnt11r ff Inl!:mtnl!liml!! |
9.2V |
| 8 | Self Discharge Rate (Per Month) I Selbstent ladungsrate (pro Monat) I Taux d ‘Au to-De charge (Par Mois) I Tasso di Autoscarica (al mese} I Tasa de Auto-descarga (Par Mes} I El cnl1 ¥ (lij,Ej) I l”Jnl1Eg$ (EJF.il I l”lnlrli¥ <&F.ll | 3% (25°C) |
| 9 | Continuous Charge CurrentlDauerladestrom I Courant de Charge ContinuI Corrente di Carica Continua I Corriente de Carga Continua I il!-b’onmm;m I Witn ;m 1 1 !i n m m ;m | 11A |
| 10 | Continuous Discharge Current lKontinuierli ch er Entladestrom I Courant de Decharge Continue I Corrente di Scarica Continua I Corriente de Descarga Continua I ili-b’onl!:!a:!l!:;m I mtl;nl!: ;m I m• nl!: ;m | 12A |
| 11 | Charging Protection Temperature I Ladeschutztemperatur I Temperature de Protection de Charge I Temperatura di protezione in carica I Temperatura de Protecci6n de Carga I 3t!ltf* l!lilil.li I :JtEgf*lf’llil.li I 3tlif*l!Ulll.li | :;;;0 °C(± S°C) / 32°F(±9°F) |
|
12 |
Operating Temperature I Betriebstemperatur I Temperature de Fonctionnement l Temperatura di Esercizio I Temperatura de Operaci6n f’Htllil.li I Hfllil.li I Ii’Filil.li | Charge I Aufladen I Recharger I Caricare I Recarga I 3t!lt I :JtEg I :Jt!l 32 ~ 122′ F / o ~ 50’C / 45 ~ 85% RH Discharge I Entladen I Decharger I Scaricare I Descarga I nlr!li: I nl(Eg l !li:ll 14 ~ 167′ F/ -10 ~ 75′( / 45 ~ 85% RH |
|
13 |
Storage Temperature I Lagertemperatur I Temperature de Stockage I Temperatura di Esercizio I Temperatura de Almacenamiento I fliH¥;lil/i I ffnlrllil.li I ffnlrllil.li | 1 Month I 1Monat 1 1 Mais I 1 Mese I 1 Mes I H-Fl I 11’/’l I lil!l,El -4 ~ 113’F / -20 ~ 45′( / 45 ~ 85% RH 1 Year 1 1 Jahr I 1 An 1 1 Anno I 1 Aiiol I 1$ I 1$ I 1$-4~77’F I -20 ~ 25’C / 45 ~ 8 |
| 5%RH | ||
| 14 | Size (MM/ IN} I GroBe (MM/ IN} I Taille (MM/ IN) Dimensioni (MM / IN} I Tamaiio (MM/ IN} I 1H X I Rs:t(MM/IN) I Rs:t(MM/IN) | 151 x 98.5 x 96.5 MM / 6 x 3.9 x 3.8 IN |
| 15 | Weight (KG/ LB} I Gewicht (KG/ LB} I Poids (KG/ LB} I Peso (KG/ LB} I Peso (KG/ LB} m a I !l!ffl (KG/ LB) I 11!:I: (KG/ LB) |
1.5KG / 3.3LB |
APPLICATIONS
Wiring Diagram ( Series & Parallel)

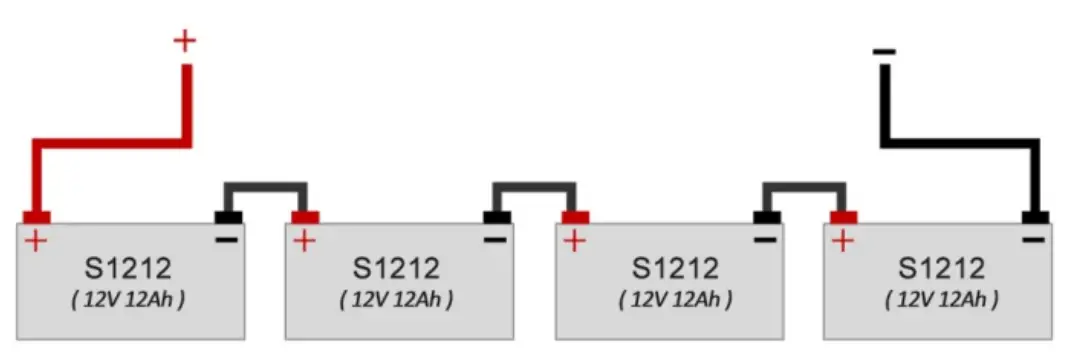

- Series Connection (48V 12Ah)

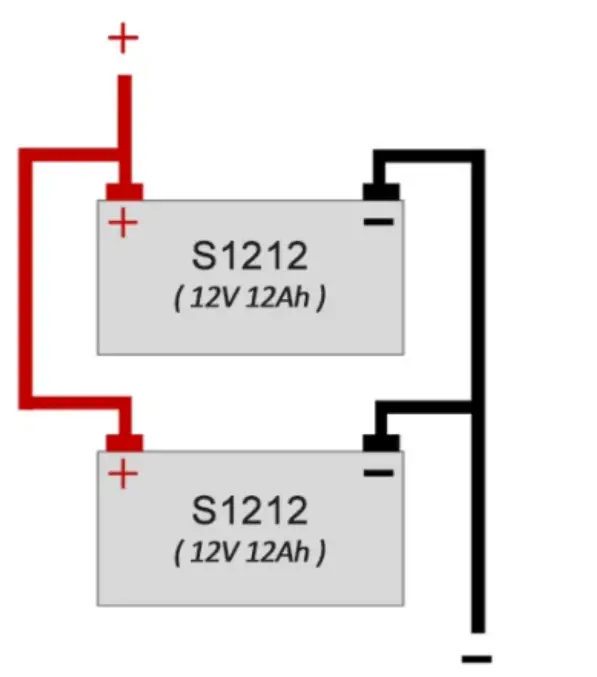

- Parallel Connection (12V 24Ah)
- Series & Parallel Connection (24V 24Ah)
- Series Connection (48V 12Ah)
WARNING
- All RoyPow batteries must be separately recharged fuly before being connected in series or parallel.
- lf connected in both of series and parallel, make sure connect the RoyPow S1212 batteries in parallel first, then connect the parallel RoyPow S1212 batteries in series
- For series connection, all batteries must be charged or discharged at the same time for proper functionality.
- Do not connect more than four RoyPow S1212 in series.
- Do not recommend connecting more than two RoyPow S1212 batteries in parallel.
- lf connected in both of series and parallel, recommend connecting the maximum four RoyPow S1212 batteries in series and two RoyPow S1212 batteries in parallel (Max 4S2P).
- Do not connect the RoyPow S1212 with the Roy Pow batteries in different models or the batteries from other manufacturers.
Attention
Use certified lithium battery charger or SLA battery charger to recharge.
Do not expose to liquids
Do not disassemble
Avoid dropping
Automatically stop charging under 0°C/32°’F (Low- temperature Protection)
To maximize the life span of the battery cells,suggest using the RoyPow battery within 70% DOD,constant charge and discharge rate should not exceed 0.2C.
Use certified lithium battery charger or SLA battery charger to recharge.
Do not expose to liquids
Do not disassemble
Avoid dropping
Automatically stop charging under 0°C/32°’F (Low- temperature Protection)
To maximize the life span of the battery cells,suggest using the RoyPow battery within 70% DOD,constant charge and discharge rate should not exceed 0.2C.
