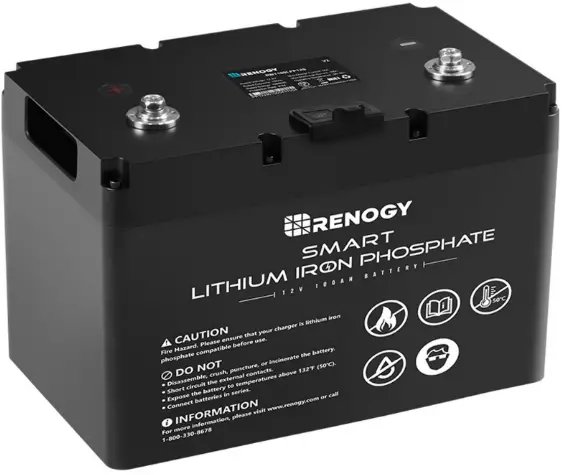

RENOGY RBT100LFP12S-US Lithium Iron Phosphate Battery
USER GUIDELINE
RENOGY RBT100LFP12S-US Lithium Iron Phosphate Battery
USER GUIDELINELITHIUM IRON PHOSPHATE BATTERY
Safety Precautions
- Please use circuit breakers, fuses, or disconnects that are appropriately sized by certified electricians, licensed installers, or regional code authorities to protect all the electrical equipment in your system. The battery contains a battery management system (BMS) that protects the battery cells from over-charge, over-discharge, and over-current, however this alone will not protect your system from severe electrical conditions.
- Please verify the polarity before connecting wiring. Reverse polarity can and will destroy the battery.
- DO NOT short-circuit the battery terminals. Doing so can cause bursts in amperage and lead to irreversible damage to the system and the battery (and possibly cause an explosion).
- Please wear proper personal protective equipment when working on the battery.
- DO NOT string batteries in series. Doing so can cause catastrophic failure.
- Please ONLY connect identical batteries in parallel to ensure the best battery performance.
- If the battery shuts off due to low state of charge, please disconnect the battery from your equipment to eliminate parasitic loads and charge the battery as soon as possible.
- It is highly recommended to pair the battery with low voltage disconnect devices in the system setup.
Battery Installation
Safe and reliable installation requires trained and certified technicians. This section can only serve as a guideline as all scenarios cannot be covered.
- Wear protective clothing and eyeglasses
- Size the battery cables appropriately
- Use high stranded copper and heavy gauge cables to handle possible loads from the battery. Make sure to maintain identical cable lengths.
- Verify correctpolarity
- Reverse polarity can and will destroy the battery. Use a multimeter to determine proper polarity.
- Tighten the cable connections
- Over-tightening cable connections can cause terminal breakage and loose cable connections can cause terminal meltdown or fire.
- Place the battery in a well-ventilated area
Battery Operation
- Depending on shipping times and the time since manufacture, the battery may be received at a partial state of charge. Please fully charge the battery prior to the first use.
- Standard charging consists of charging at 0.2C constant current until the battery reaches 29.0V. The battery is then charged at a constant voltage of 29.0V while tapering the charging current. Charging is considered complete when the charging current has tapered to 0.05C. Safe charging requires temperatures between 0 and 55 （32 and 131 ) and takes approximately 5.5 hours.
- For standard discharging, the battery is discharged at 0.2C constant current until the battery reaches 20V. Safe discharging requires temperatures between-20 and 60 (-4 and 131 ).
Battery Storage
- Please charge the battery to 30%~50% and store the battery in an open, well-ventilated, dry, clean area with temperatures of around 23 (73.4 ).
- Long periods of storage can deteriorate the battery performance. It is recommended to charge the battery at least once every three months to prevent over-discharge.
Battery Management System (BMS)
The BMS will protect and shut the battery down when it is over-discharged or short circuited. In these rare cases, the battery will show 0V voltage. Please activate the battery using an external charging source that has lithium battery activation function. Please contact our Tech Support team at (909)287-7111 for more information about the BMS.
Battery Specifications
| Model | RBT2450LFP | ||
|
Electric Characteristics | Nominal Voltage | 25.6V | |
| Rated Capacity（0.2C） | 50Ah | ||
| Energy | 1280Wh | ||
| Specific Energy | 100.78Wh/kg | ||
| Internal Resistance | ≤20mΩ | ||
| Cycle Life | ＞3500 Cycles (25 ，0.2C，DOD 80%，EOL 80%) | ||
| Charging Parameters | Charge Voltage | 29±0.2V | |
| Maximum Continuous Charge Current | 50A | ||
| Charge Cut-off voltage | 29.2V | ||
| Discharging Parameters | Maximum Continuous Discharge Current | 50A | |
| Discharge Cut-off Voltage | 20V | ||
|
Temperature Parameters | Operation Temperature Range (60±25% R.H.) | Charge | 0~55 /32~131 |
| Discharge | -20~60 /-4~140 | ||
| Recommended | 23±5 /73.4±9 | ||
| Storage Temperature Range (60±25% R.H.) | -25~65 /-13~149 | ||
|
Mechanical Properties | Dimensions | Length | 330mm/13.0inch |
| Width | 172mm/6.8inch | ||
| Height | 214mm/8.4inch | ||
| Weight | 12.7kg/28.0lbs | ||
| Housing Material | ABS (Flame Retardant Plastic) | ||
| Terminal Model | M8 x 1.25 x 15mm | ||
| Assembly Method | 8S1P | ||
Protection Circuit Module (PCM) Specifications
| Battery Operation Status | Condition | ||
| Battery Overvoltage | Protection | Trigger | Battery Voltage≥29.2V |
| Recover | Battery Voltage≤27.6V / Discharge current≥1A | ||
| Battery Cell Overvoltage | Protection | Trigger | Battery Cell Voltage≥3.65V |
| Recover | Battery Cell Voltage≤3.45V / Discharge current≥1A | ||
| Battery Undervoltage | Protection | Trigger | Battery Voltage≤20V |
| Recover | Battery Voltage≥22.4V / Charge current≥1A | ||
| Battery Cell Undervoltage | Protection | Trigger | Battery Cell Voltage≤2.5V |
| Recover | Battery Cell Voltage≥2.8V / Charge current≥1A | ||
| Charge High Temperature | Protection | Trigger | Battery Temperature≥131 (55 ) |
| Recover | Battery Temperature≤113 (45 ) | ||
| Disharge High Temperature | Protection | Trigger | Battery Temperature≥140 (60 ) |
| Recover | Battery Temperature≤122 (50 ) | ||
| Charge Low Temperature | Protection | Trigger | Battery Temperature≤32 (0 ) |
| Recover | Battery Temperature≥41 (5 ) | ||
| Discharge Low Temperature | Protection | Trigger | Battery Temperature≤-4 (-20 ) |
| Recover | Battery Temperature≥-5 (-15 ) | ||
| Charge Overcurrent | Protection | Trigger | Charge Current≥55A (Delay 15s) |
| Recover | (Delay 1min) | ||
|
Discharge Overcurrent | Primary Protection | Trigger | Disharge Current≥55A (Delay 15s) |
| Recover | (Delay 1min) | ||
| Secondary Protection | Trigger | Disharge Current≥60A (Delay 250ms) | |
| Recover | (Delay 1min) | ||
| Short circuit | Protection | Trigger | Disharge Current≥1000A |
| Recover | Remove Short Circuit (300μs) | ||
