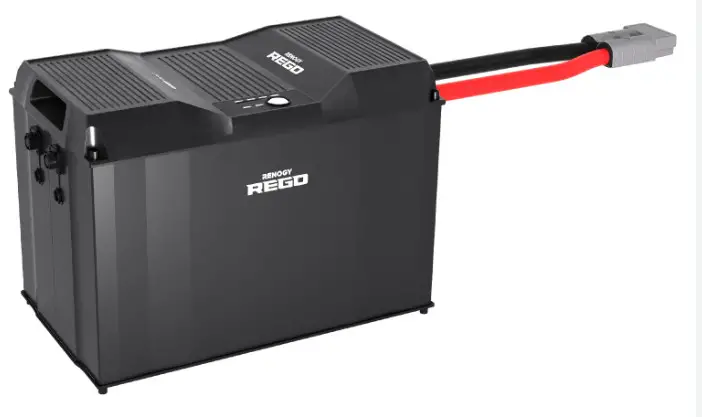

RENOGY REGO 12V 400Ah
Lithium Iron Phosphate Battery
RBT12400LFPL-SHBT REGO 12V 400Ah Lithium Iron Phosphate Battery
Time to meet the latest Renogy REGO 12V 400A Lithium Iron Phosphate Battery, 5.12kWh massive capacity able for expansion, provide more power than ever before. Manufactured with top-grade cells, the battery provides an exceptional lifespan of more than 3800 cycles. Advanced BMS provides unprecedented over 60 types of full protections in the market, ensures ultra-reliability and safety, and leads smart batteries to the next era. With built-in intelligent self-healing, keep the stable charging performance of the battery in cold environments effortlessly. Upgrade your off-grid adventures with this powerful and smart battery.
Key Feature
More Power, Less Installation Space
Advanced BMS, Ensure Unprecedented Reliability and Safety
Intelligent Self-Heating Function, More Stable Performance
Specially Design for Vehicle Use
Guaranteed Quality, Certified Performance
Product Specification
GENERAL DATA
| Model | RBT12400LFPL-SHBT |
| Battery Type | Lithium Iron Phosphate |
| Peukert Exponent | 1.01 |
| Connection Method | Parallel (Up to 8) |
| Communication Protocol | RV-C (CAN Communication Ports), MODBUS (Bluetooth Module) |
| Input/Output Connector | Anderson 350 Connector |
| Housing Material | Aluminum |
| Certifications | MSDS 、UN38.3 、FCC |
| Protection Rating | IP65 |
| Dimensions | 18.0 x 13.0 x 10.5 inch /457 x 329 x 267.2 mm |
| Weight | 112.4 lbs/51 kg |
CHARGER DATA
| Nominal Voltage | 12.8V |
| Rated Capacity | 400Ah (0.2C, 25 C) |
| Boost Voltage | 14.4V |
| Float Voltage | N/A |
| Equalization Voltage | N/A |
| Maximum Charge Current | 5A (-20 O C~0 O C) 200A (0 O C~15 O C/50 O C~55 O C) 300A (15 O C~50 O C) |
| Maximum Discharge Current | 350A (-20°C~60°C) |
| Cycle Life | >3800 Cycles (0.2C, 25°C, 80% DOD, 80% EOL) |
| Charge Temperature Range | 32°F~131°F (0°C~55°C) |
| Discharge Temperature Range | —4°F~140°F (-20°C~60°C ） |
| Storage Temperature Range | Less Than 1 Week: -22°F~140°F (-30°C~60°C) Less Than 6 Months: -4°F~113°F (-20°C~45°C) |
| Operation Relative Humidity | 5%~95% |
| Self-Discharge Rate | ≤1.5%/Month (Shelf Mode) |
| Internal Resistance | <10mΩ |
| Tail Current | 20A |
Compatible Accessories
| Sensors | Battery Temperature Sensor (Model: RTSCC) Battery Voltage Sensor (Model: RVSCC) |
