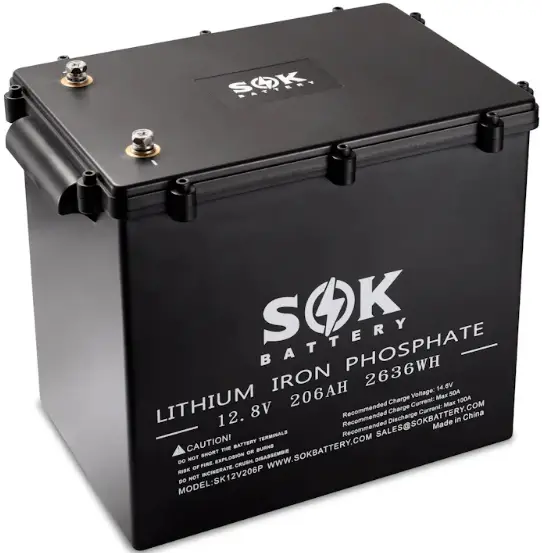

SOK BATTERIES SK12V206P Lithium Iron Phosphate Battery User Guide
Specifications
ELECTRICAL PERFORMANCE | |
| Nominal Voltage | 12.8V |
Nominal Capacity | 206AH |
| Capacity @ 20A | 494 Min |
Energy | 2636 Wh |
| Resistance | 5.28mΩ @ 50% SOC |
Self Discharge | <3% / Month |
| Cell | 3.2V 206Ah Cell |
CHARGE PERFORMANCE | |
| Recommended Charge Current | 40A |
Maximum Charge Current | 50A |
| Recommended Charge Voltage | 14.6 V |
BMS Charge Cut-Off Voltage | <14.6V (3.65V/Cell) |
| Reconnect Voltage | >14.4V (3.6V/Cell) |
Balancing Voltage | <14.4 V (3.6V/Cell) |
| Maximum Batteries in Series | 4 |
DISCHARGE PERFORMANCE
- Maximum Continuous Discharge Current: 100 A
- Peak Discharge Current: 200 A (3s)
- BMS Discharge Cut-Off Current: 330 A ±10 A (6 -16 ms)
- Recommended Low Voltage Disconnect: 11.2V
- BMS Discharge Cut-Off Voltage:>10.4 V (50 – 150 ms) (2.6V/Cell)
- Reconnect Voltage: >11.6 V (2.9V/Cell)
- Short Circuit Protection: 200 ∼ 500 ps
TEMPERATURE PERFORMANCE
- Discharge Temperature: -4 — 140 °F (-20 — 60 °C)
- Charge Temperature: 32 — 113 °F (0 — 45 °C)
- Storage Temperature: 23 — 95 °F (-5 — 35 °C)
- BMS High Temperature Cut-Off: 149 °F (65 °C)
- Reconnect Temperature: 131 °F (55 °C)
COMPLIANCE
- Certifications: UL1642 & IEC62133 (cells)
MECHANICAL PERFORMANCE
- Dimension (L x W x H): 13.39*9.06*10.24inches
- Approx. Weight: 47.6 lbs
- Terminal Type: M8
- Terminal Torque: 80 ∼ 100 in-lbs (9 ∼ 11 N-m)
- Case Material: Black Paint Plastic Case
- Enclosure Protection: IP50

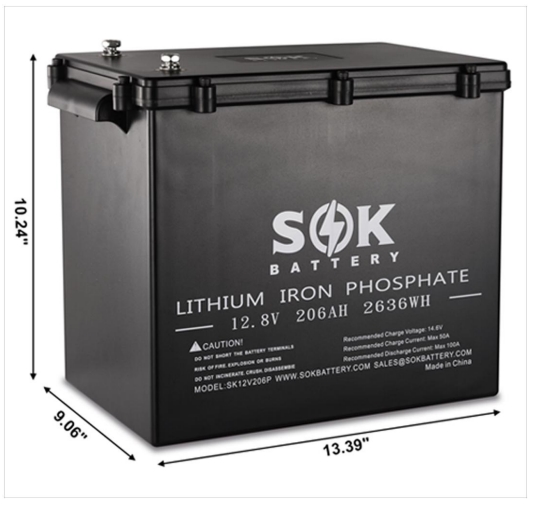

Product Dimension
Performance may vary depending on application. All specifications are subject to change without prior notice to the user. This data is for evaluation purposes only. No guarantee is intended or implied by this data. For clarification and updated information, please contact us.
