H Series – NEW ARRIVAL

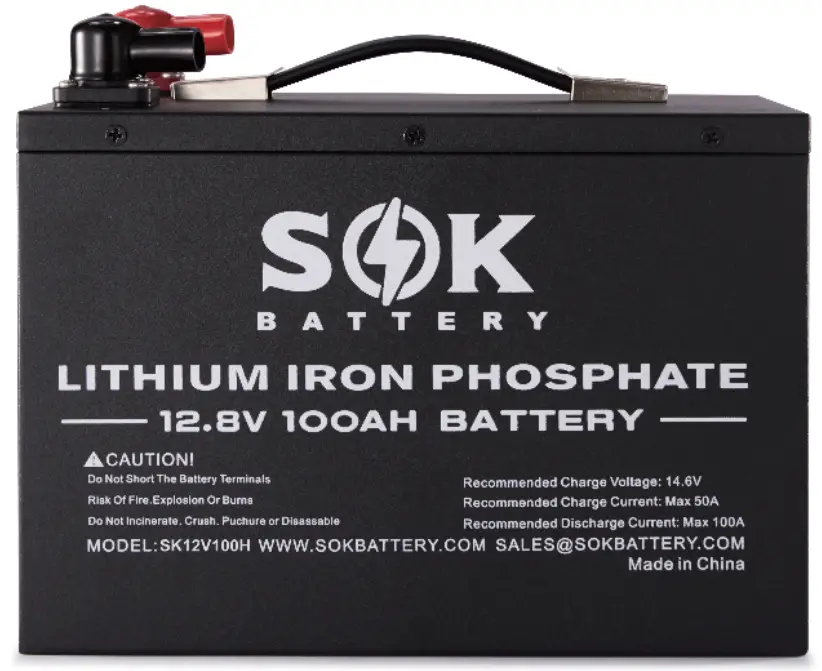

SK12V100H H Series Heated LiFePO4 Lithium Battery
- 7 year warranty and maintenance free with a 4000-8000 cycles life span.
- Detachable cover with replaceable BMS and cells.
- Built-in heater pad for using in down to -4°F,Recover charging when temperature is up to 41°F.
- Bluetooth4.0 , supprot iPhone or Android smartphone.
- NOT support connect in series for 24V/36V/48V system, but SUPPORT connect in parallel,ONLY 12V system.
- Built-in smart Battery Management System (BMS).
- Low temperature charging cut-off.
| Mechanical Properties SK12V100H SK12V206H | ||
| Weight | 12.8kg128.2Ibs) | 21.6kg(47.6Ibs) |
| Housing Material | Block Point Metal | Block Paint Metal |
| Terminal Model | tv18 | fv18 |
| Electrical Characteristics | ||
| Nominal Voltage | 12.8V | 12.8V |
| Rated Capacity10.2C) | 100Ah | 206Ah |
| Energy | 1280Wh | 2636.8Wh |
| Heating Pod Power | 60W | 90W |
| Heating Current | 4A | 6.5A |
| Charging Parameters | ||
| Recommended Charge Current | 20A | I 40A |
| Moximun Charge Current | 50A | |
| Recommended Chorge Voltage | 14.4V-14.6V | |
| BMS Charge Voltage Cut-off | <14.6V | |
| Reconnect Voltage | >14.4V | |
| Balancing Voltage | <14.4V | |
| Discharging Parameters | ||
| tocodmum Continuous Discharge Current | 100A | |
| Peak Discharge Current | 200A13S) | |
| BMS Discharge Current Cut-off | 330A | |
| BMS Discharge Voltage Cut-off | >10.4V | |
| Reconnect Voltage | >11.6V | |
| Recommended Low Voltage Disconnect | 10.4V | |
| Operation & Storage Temperature Range | ||
| Discharge Temperature | -4 to 140°F 1-20 to 60°C) | |
| Chorge Temperature | -4 to 140 °F 1-20 to 60°C) | |
| Storage Temperature | -4 to 140 °F 1-20 to 60°C) | |
| Compliance | ||
| Conception | 4S1P | |
| Shipping Classification | UN 3480 I Class 9 1 MSDS | |
| Cell Type | Prismatic Cell (UL1973 Standard) iFePO4 3.2V 100Ah Grade A | Prismatic Cell 1UL1973 Standard) LiFePO4 3.2V 206Ah Grade A |
