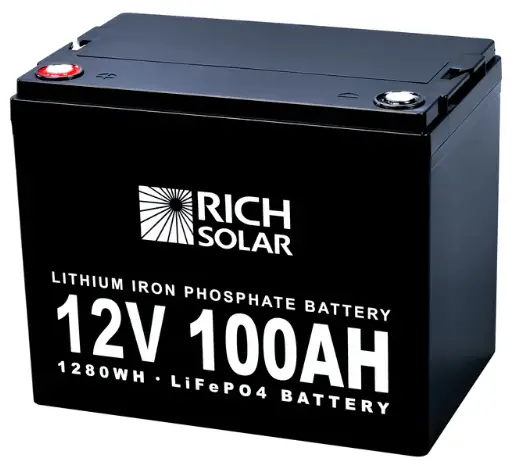

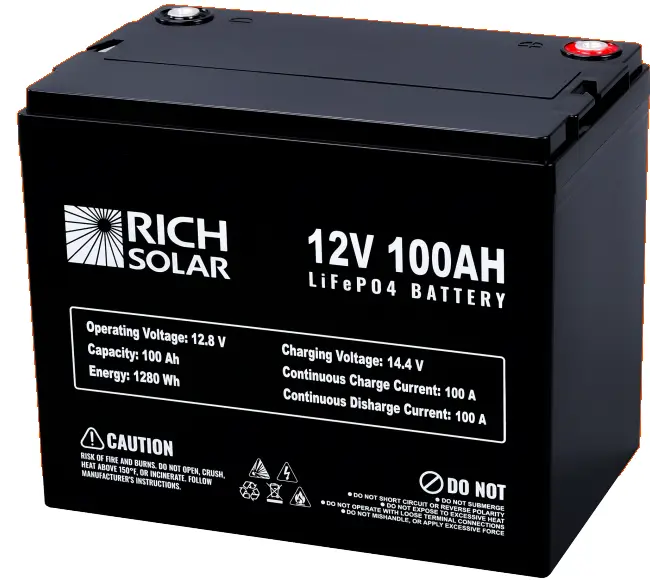

100AH Lithium Battery
Rechargeable Lithium Iron Phosphate Battery
12V 100AH – LiFePO4
BATTERY FEATURES
- Super safe lithium iron phosphate (LiFePO4) chemistry reducing the risk of explosion or combustion due to high impact, over-charging or short circuit situation
- Battery Management System (BMS) controls the parameters of the battery to provide optimum safety by protecting against over-charging and over-discharging
- BMS enhanced design balances the battery cells, optimizing battery performance
- Higher capacity or voltage capability through parallel or serial connections
- Delivers twice the power of lead acid batteries, even at high discharge rates, while maintaining constant power
- Faster charging and lower self-discharge
- Up to 10 times more cycles than lead acid batteries
- Compact and only 40% of the weight of comparable lead acid batteries
- Rugged impact resistant ABS case\

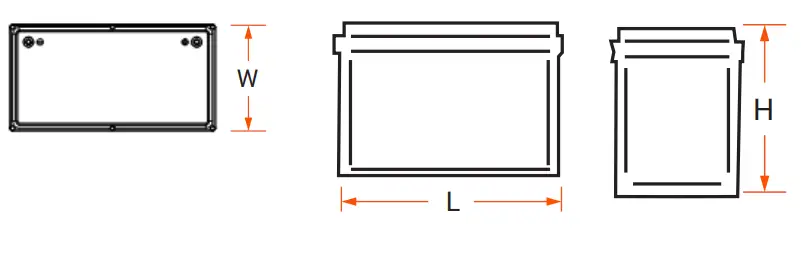

DIMENSIONS: inch (mm)
L: 12.8
W: 6.6
H: 8.5
GLOBAL HEADQUARTERS
(USA AND INTERNATIONAL EXCLUDING EMEA)
RICH SOLAR
5550 Jurupa St.
Ontario, CA 91761
T: 1-800-831-9889
E: [email protected]
APPLICATIONS
- Medical
- Solar
- Wind
- Mobility
- Data Center
- Transport
- Sports &
- Recreation
- Utility
BATTERY MANAGEMENT SYSTEM
The 100AH comes with an battery management system which monitors current and voltages during charge and discharge. This protects the battery from over-charge and over-discharge.
The BMS embeds smart balancing algorithms that control all cell voltages in the battery, making sure they are constantly at the same voltage level, optimizing battery capacity.
PERFORMANCE SPECIFICATIONS
| Nominal Voltage | 12.8 V |
| Rated Capacity | 100 AH |
| Stored Energy | 1280 Wh |
| Cycle Life (@DOD80%) | 3000 Cycles |
| Approximate Weight | 21.8 lbs |
| Internal Resistance | ≤30.0 mΩ |
| Max Charge Current | 100 AH |
| Max Discharge Current | 100 AH |
| Charging Voltage | 14.4-14.6V |
| Recommended Discharge CutOff Voltage | 11 V |
| Series & Parallel Connection | 4 in series or 4 in parallel |
| Operating Temperature Range Charge Discharge Recommended | 32 °F ~ 140 °F -4 °F ~ 140 °F 59°F (15°C) to 95°F (35°C) |
| Self-Discharge Rate | ≤3%/month |
| Long Term Storage | Charge every 6 months or as soon as OCV is 12.8V |
| Power Sonic Chargers | Contact us for information on a suitable charge. |
| Life Expectancy (years) | 5 years at one cycle per day |
| Short Circuit Protection | Automatically recover after removal of short |
| Dimensional Tolerances Terminal Type | L 12.8 x W 6.6 x H 8.5 M8 |
DISCHARGE CURVE AT 25°C

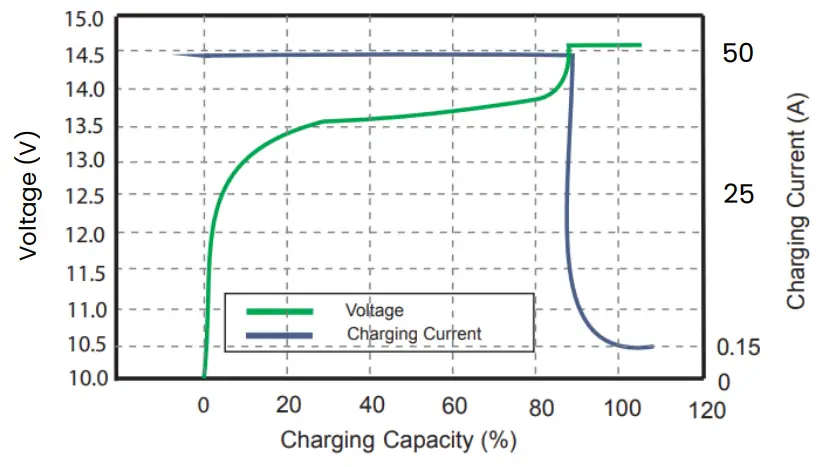

CHARGING CHARACTERISTICS AT 0.5C

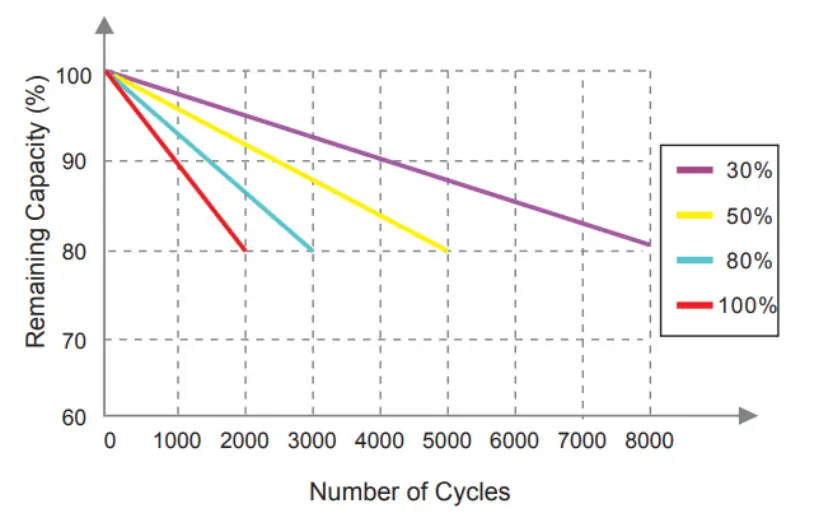

DEPTH OF DISCHARGE VS NUMBER OF CYCLES
BENEFITS OF LITHIUM
Lithium offers several performance benefits versus it’s sealed lead acid (SLA) equivalent. A lithium battery’s capacity is independent from the discharge rate and provides constant power throughout it’s discharge. The degradation of a lithium battery at a high temperature is significantly reduced in comparison to SLA. Lithium has ten times the cycle life as SLA at room temperature. Even at an elevated temperature, lithium still has increased cycle life over SLA at room temperature. Lastly, Lithium charging follows a similar charging profile as SLA, Constant Current Constant Voltage (CC/CV). However, lithium can be charged faster, without the need for a maintenance float charge.
BMS TECHNICAL SPECIFICATIONS
Over charge
| Over-charge protection for each cell | 3.90 V |
| Over-charge release for each cell | 3.60 V |
| Over-charge release method | Protection releases when all cell voltages drop below the over-charge release voltage |
| Over discharge | |
| Over-discharge protection for each cell | 2.00 V |
| Over-discharge release for each cell | 2.50 V |
| Over-discharge release method | Protection releases when all cell voltages rise above the over-discharge release voltage |
| Over current | |
| Discharge over-current protection | 290-310 A |
| Protection delay time | 31 ms |
| Over-current release method | Remove load for the over-current protection to release |
| Battery temperature | |
| Over-temperature protection | 65° C |
| Release temperature | 55° C |
| Short circuit protection | |
| Function condition | External short circuit |
| Short circuit delay time | 250-500 ms |
| Release condition | Remove load for the short circuit protection to release |
FURTHER INFORMATION
Please refer to our website www.richsolar.com or email us at
[email protected]
richsolar.com
