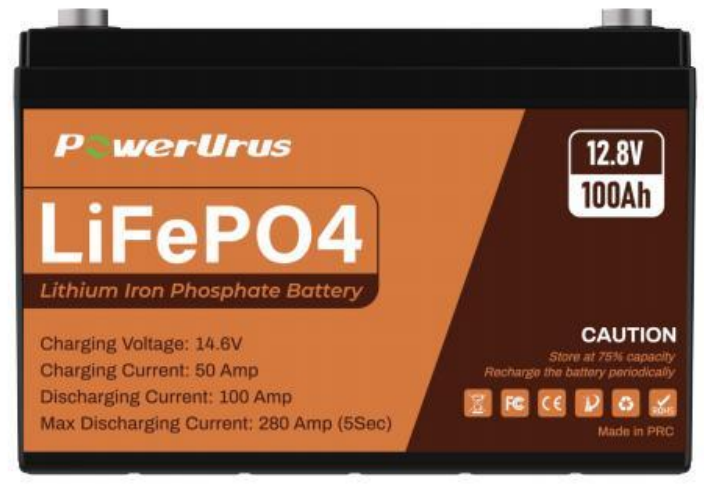

S12100 12V LiFePO4 Battery

Due to the transportation restrictions , the Power Urus battery will be charged to about 30% SOC before delivery. Recharge it fully before the first time use.
To preserve battery lifespan, use and recharge at least once every 3 months!
The lithium battery charger is highly recommended, although the universal SLA battery charger is also applicable.

Specifications

#	Item	Parameter
1	Nominal Output Voltage	12.8V
2	Nominal Capacity	100Ah @ 0.5C
3	Actual Capacity	>100Ah @ 1C
4	Internal Resistance	=20mQ
5	Charging Voltage	14.6V
6	Max Charging Voltage	14.6V
7	Discharge Cut-off Voltage	9.2V
8	Self Discharge Rate (Per Month)	<3% (25°C)
9	Continuous Charge Current	50A
10	Continuous Discharge Current	100A
11	Charging Protection Temperature	0°C(+5°C)/32°F(+9°F)
12	Operating Temperature	Charge Discharge
13	Storage Temperature	1Month 1 Year\|
14	S i z e (MM/IN)	330 x 173 x215MM /13 x 6.8 x 8.461N
15	Weight (KG / LB)	12.5KG / 27.5LB

Applications


Motorhome	Travel Trailer	Trolling Motor

Houseboat	House	Dump Trailer

Suggest charging the Power Urus battery periodically to the regular battery storage voltage (12.8V~13.24V, 30 ~ 50% SOC) to avoid over-discharge.

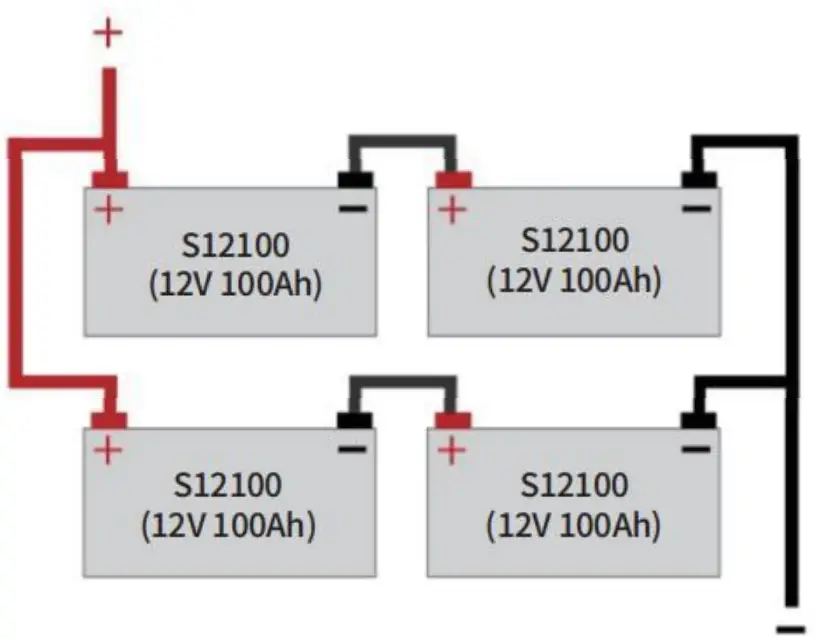

Wiring Diagram ( Series & Parallel )

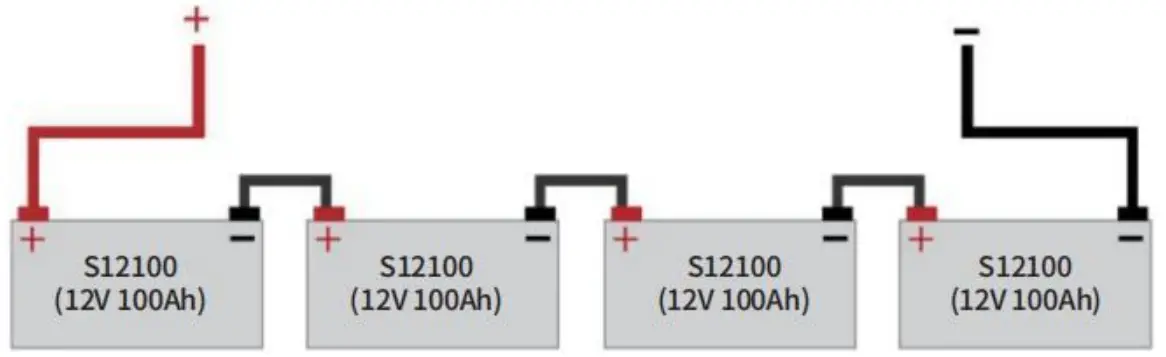

Series Connection (48V 100Ah)

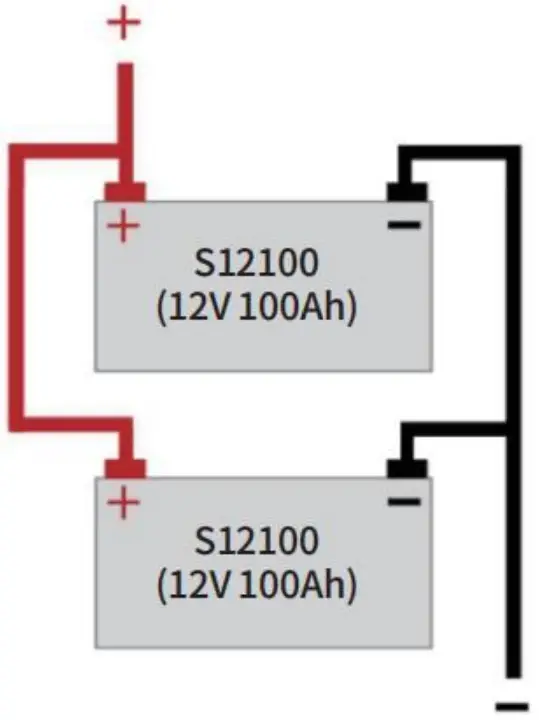

Parallel Connection (12V 200Ah)
Series & Parallel Connection (24V 200Ah)

All Power Urus batteries must be separately recharged fully before being connected i n series or parallel.
If connected in both of series and parallel, make sure connect the Power Urus S12100 batteries in parallel first, then connect the parallel Power Urus S12100 batteries in series.
Power Urus S12100
For series connection, all batteries must be charged or discharged a t the same time for proper functionality.
Do not connect more than four Power Urus S12100 i n series.
Do not recommend connecting more than two Power Urus $12100 batteries in parallel.

Power Urus S12100
Power Urus S12100
If connected in both of series and parallel, recommend connecting the maximum four Power Urus S12100 batteries in series and two Power Urus S12100 batteries in parallel (Max 4S2P),.
Power Urus S12100
Do not connect the Power Urus S12100 with the Power Urus batteries i n different models or the batteries from other manufacturers.

Attention

	Use certified lithium battery charger or SLA battery charger to recharge.
	Do not expose t o liquids
	Do not disassemble
	Avoid dropping
	Automatically stop charging under 0°C/32°F (Low-temperature Protection)
	To maximize the life span of the battery cells , suggest using the Power Urus battery within 70%DOD,constant charge and discharge rate should not exceed 0.2C.
