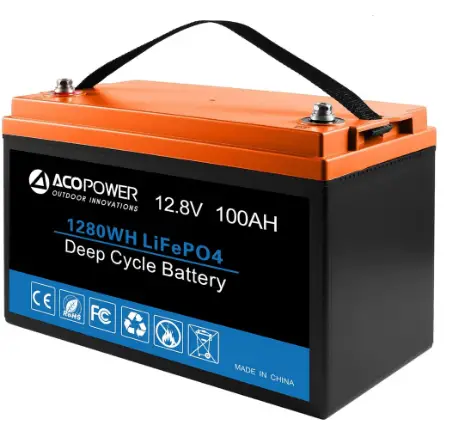

ACOPOWER LAF12100 LiFePO4 Deep Cycle Battery
Features of LiFePO4 Battery
Longer Cycle Life: Offers up to 20 times longer cycle life and five times longer float/calendar life than lead acid battery, helping to minimize replacement cost and reduce total cost of ownership.
Lighter Weight: About 40% of the weight of a comparable lead acid battery. A ‘drop in’ replacement for lead acid batteries.
Higher Power: Delivers twice power of lead acid battery, even high discharge rate, while maintaining high energy capacity.
Wider Temperature Range: -20 C~60 C. Superior Safety: Lithium Iron Phosphate chemistry eliminates the risk of explosion or combustion due to high impact, overcharging or short circuit situation.
| Cell | |
| Type | LiFePO4 Battery |
| Cell Model | LF48174133-100AH |
| Nominal Capacity | 100Ah @0.5C 100%DOD |
| Nominal Voltage | 3.2V |
| Approx. Dimensions | L174xT48.5xH133mm |
| Approx. Weight | 2.2kgs |
| Electrical Characteristics | |
| Nominal Voltage | 12.8V |
| Nominal Capacity | 100Ah |
| Minimum Capacity | 100Ah |
| Energy | 1280Wh |
| Cycle Life | >2000 cycles @0.5C 100%DOD |
| Months Self Discharge | <3% |
| Efficiency of Charge | 100% @0.5C |
| Efficiency of Discharge | 96~99% @0.5C |
| BMS Functions | Over charge, over discharge, over current, short circuit and temperature protection |
| Maximum Modules in Series | 4 pcs |
| Standard Charge and Discharge | |
| Charge Voltage | 14.2-14.6V |
| Charge Mode | 0.2C to 14.6V, then 14.6V,charge current to 0.02C (CC/CV) |
| Charge Current | 20A |
| Max. Charge Current | 100A |
| Max Continuous Discharge Current | 100A |
| Peak Discharge Current | 400A±80A 0.5-1.5S |
| Discharge Cut-off Voltage | 10V±0.5V |
| BMS Charge Voltage Cut- Off | 15.0 V (3.75 ±0.025 vpc) 0.5- 1.5S) |
| BMS Discharge Voltage Cut-Off | 8.8 V (2.2 ±0.05 vpc) (0.5-1.5 S) |
| Environmental | |||||||||||
| Charge Temperature | 0 ℃ to 55 ℃ (32F to 131F) @60± 25% Relative Humidity | ||||||||||
| Discharge Temperature | -20 ℃ to 60 ℃ (-4F to 140F) @60 ±25% Relative Humidity | ||||||||||
| Storage Temperature | 0 ℃ to 45 ℃ (32F to 113F) @60± 25% Relative Humidity | ||||||||||
| IP Class | IP65
| ||||||||||

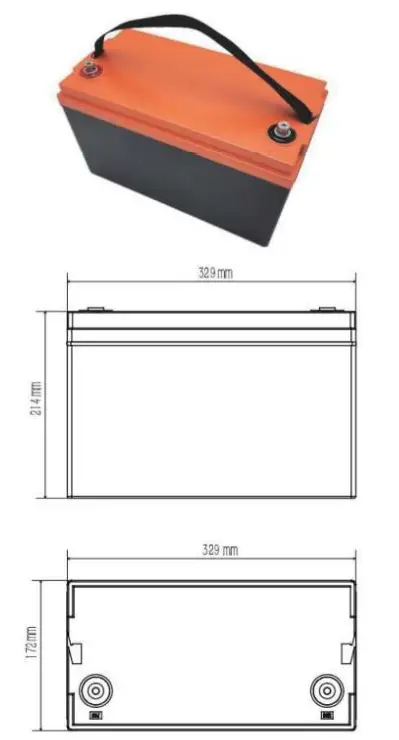

Dimensional Specifications

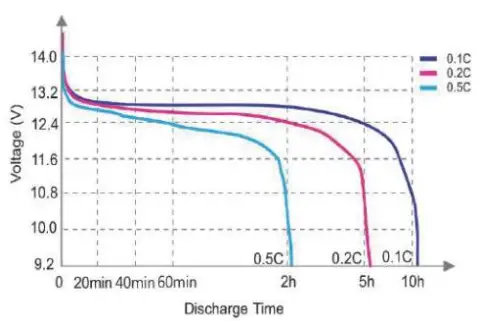

Different Rate Discharge Curve (25℃)

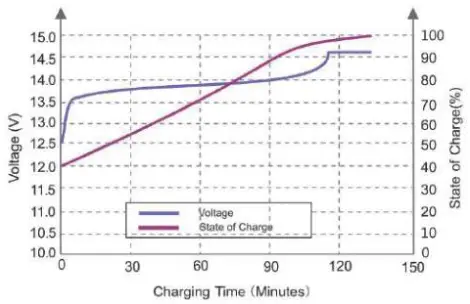

State of Charge Curve (0.5C, 25℃)
Different DOD Discharge Cycle Life Curve (0.5C)
Different Temperature Discharge Curve (0.5C)

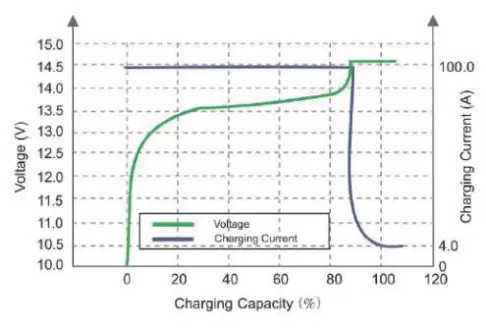

Charging Characteristics (0.5C, 25℃)

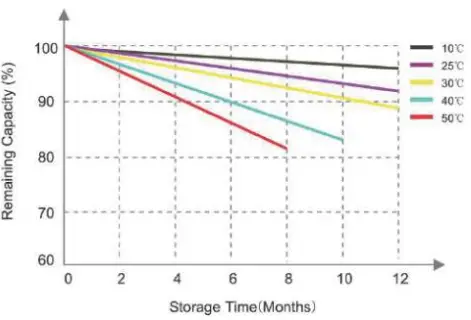

Different Temperature Self Discharge Curve
