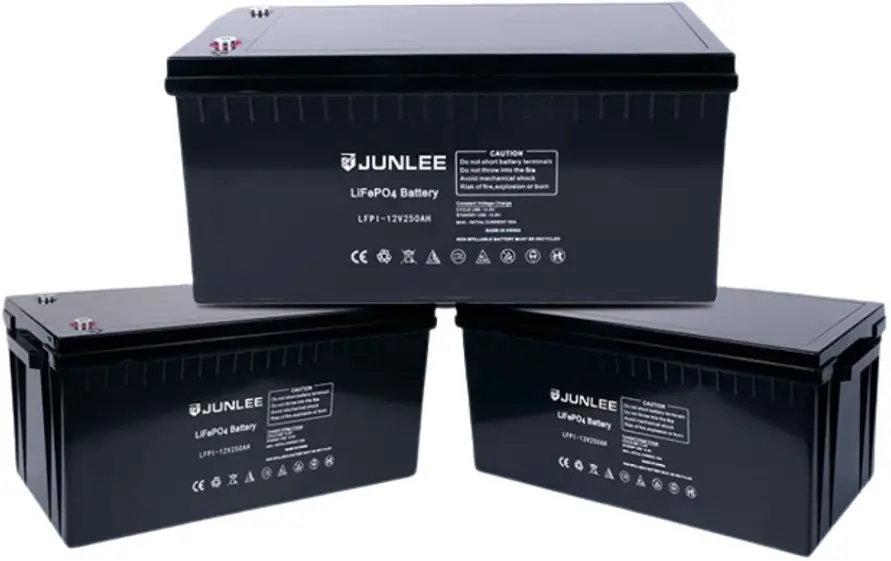

LFPI-12V250AHLFPI LiFePO4 Battery
Owner’s Manual

Contents hide


Perfect Compatible Compatible to Both Residential Single & Three Phase Inverter	Safe & Reliable Lithium Iron Phosphate(LFP) cell CE,ISO9001,UN38.3,FCC	Easy Installation Fast and simple installation

Smart BMS Advanced BMS system control power output smartly and effectively	Flexible Expansion 5kwh modular design, scalable from 5 to 30 kWh	Long Life and safety Ensure more than 5000 cycles with 80% DOD

Specification
Voltage	12.8V
Capacity	300Ah(C5,25℃）
Energy	2.56kWh
Internal Resistance	≤30mΩ
Cycle Life	≥4000 cycles@1C 100% DOD
Communication
Communication	RS485/CAN/RS232(only for parallel operation)
Compatible inverters	Growatt,Deye,Goodwe,Sofar,Sorotec,Pylontech and ect.
General Specification
Months Self Discharge	＜3%
Efficiency of Charge	100% @ 0.2C
Efficiency of Discharge	96-99%@1C
Charge Mode	14.6 ±0.2V
Charge cut-off voltage	0.2C Charge to 14.6V,then 14.6V Charge to 0.02C cut-off
Charge current	50A
Max charge current	100A
Continuous current	200A
Discharge cut-off voltage	10V
Continuous discharge current	100A
Operating temperature	0℃ to 55℃（32F to 131F) @60±25% Relative Humidity
Relative humidity	5%~95%
Cell & Method	Lithium-iron phosphate(LiFePO4) 3.2V 50AH-4S5P
Plastic Case	Iron
Dimensions	522268218 mm
Weight	24 kg
Environment	Indoor/Outdoor
Installation	Floor stand(optional),Wall mount(standard)
Scalability	Max.4 pieces in parallel operation
