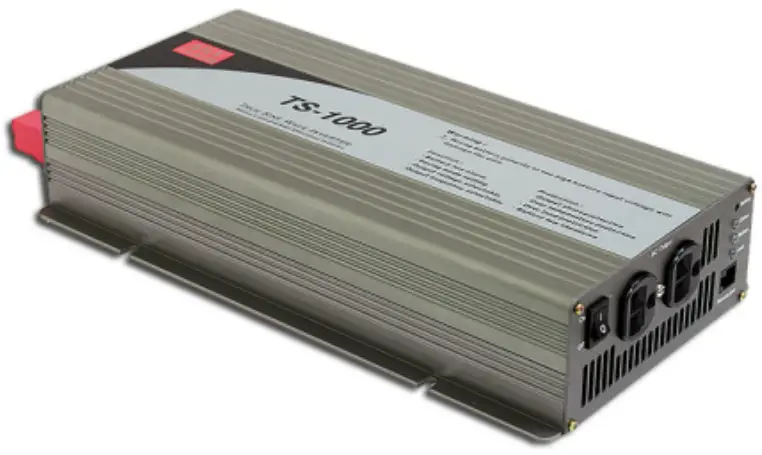

MEAN WELL TS-1000 Series 1000W True Sine Wave DC-AC Power Inverter

Contents hide

1 Features

2 SPECIFICATION

3 AC Output Socket (optional)

4 Mechanical Specification

5 Derating Curve

6 Documents / Resources

6.1 References

7 Related Posts

Features

User’s Manual

True sine wave output (THD<3%)
High surge power up to 2000W
High efficiency up to 92%
Power ON-OFF switch
Standby saving mode can be selected
Front panel indicator for operation status
Built-in fan ON-OFF control function
Protections: Bat. low alarm / Bat. low shutdown / Over voltage / Over temp./ Output short / Input reverse polarity / Overload
Application : Home appliance, power tools, office and portable equipment, vehicle and yacht …etc.
3 years warranty

GTIN CODE

MW Search: https://www.meanwell.com/serviceGTIN.aspx

SPECIFICATION

MODEL NO.		TS-1000-112	TS-1000-124	TS-1000-148	TS-1000-212	TS-1000-224	TS-1000-248
		= A, F			= B, C, D
OUTPUT	RATED POWER (Typ.)	1000W
	MAXIMUM OUTPUT POWER (Typ.)	1150W for 180 sec. / 1500W for 10 sec. / surge power 2000W for 30 cycles
	AC VOLTAGE	Factory setting set at 110VAC			Factory setting set at 230VAC
		100 / 110 / 115 / 120VAC selectable by setting button S.W			200 / 220 / 230 / 240VAC selectable by setting button S.W
	FREQUENCY Note.8	60±0.1Hz 50/60Hz selectable by setting button S.W			50±0.1Hz 50/60Hz selectable by setting button S.W
	WAVEFORM Note.6	True sine wave (THD<3%)
	AC REGULATION (Typ.)	±3.0%
	SAVING MODE (Typ.)	Default disabled. Load≦5W will be changed to standby mode
	FRONT PANEL INDICATOR	Battery voltage level, output load level, saving mode, fault and operation status
INPUT	BAT. VOLTAGE	12V	24V	48V	12V	24V	48V
	VOLTAGE RANGE (Typ.)Note.4,6	10.5 ~ 15VDC	21 ~ 30VDC	42 ~ 60VDC	10.5 ~ 15VDC	21 ~ 30VDC	42 ~ 60VDC
	DC CURRENT (Typ.)	100A	50A	25A	100A	50A	25A
	NO LOAD DISSIPATION (Typ.)	≦6W @ standby saving mode
	OFF MODE CURRENT DRAW	≦1mA
	EFFICIENCY (Typ.) Note.1	88%	89%	90%	90%	91%	92%
	BATTERY TYPES	Open & sealed lead acid
BATTERY INPUT PROTECTION	FUSE	40A*4	40A*2	20A*2	40A*4	40A*2	20A*2
	BAT. LOW ALARM	11.3±4%	22.5±4%	45±4%	11.3±4%	22.5±4%	45±4%
	BAT. LOW SHUTDOWN	10.5±4%	21±4%	42±4%	10.5±4%	21±4%	42±4%
	REVERSE POLARITY	By internal fuse open
OUTPUT PROTECTION	OVER TEMPERATURE	90℃± 5℃			70℃± 5℃
		Protection type : Shut down o/p voltage, re-power on to recover; by internal RTH3 detect on heatsink of power diode
	OUTPUT SHORT	Protection type : Shut down o/p voltage, re-power on to recover
	OVER LOAD (Typ.)	105 ~ 115% load for 180 sec., 115% ~ 150% load for 10 sec.
		Protection type : Shut down o/p voltage, re-power on to recover
	GFCI PROCTECTION	Optional (Only type F)			None
ENVIRONMENT	WORKING TEMP. Note.3	0 ~ +40℃ @ 100% load ; +60℃ @ 50% load
	WORKING HUMIDITY	20% ~ 90% RH non-condensing
	STORAGE TEMP., HUMIDITY	-30 ~ +70℃ / -22 ~ +158oF, 10 ~ 95% RH non-condensing
	VIBRATION	10 ~ 500Hz, 3G 10min./1cycle, 60min. each along X, Y, Z axes
SAFETY & EMC	SAFETY STANDARDS	UL458 (only for “GFCI” receptacle-Type F ), EAC TP TC 004		EAC TP TC 004	IEC62368-1 CB, EAC TP TC 004 approved; Design refer to BS EN/EN62368-1
	WITHSTAND VOLTAGE	Bat I/P – AC O/P:3.0KVAC AC O/P – FG:1.5KVAC
	ISOLATION RESISTANCE	Bat I/P – AC O/P, Bat I/P – FG, AC O/P – FG: 100M ohms / 500VDC / 25℃/ 70% RH
	EMC EMISSION	Compliance to FCC class A, EAC TP TC 020			Compliance to BS EN/EN55032 class A, 72/ 245/ CEE, 95/ 54/ CE, E-Mark, EAC TP TC 020
	EMC IMMUNITY	Compliance to EAC TP TC 020			Compliance to BS EN/EN61000-4-2,3,8, BS EN/EN55035, EAC TP TC 020
OTHERS	MTBF	528.8K hrs min. Telcordia SR-332 (Bellcore) ; 80.7K hrs min. MIL-HDBK-217F (25℃)

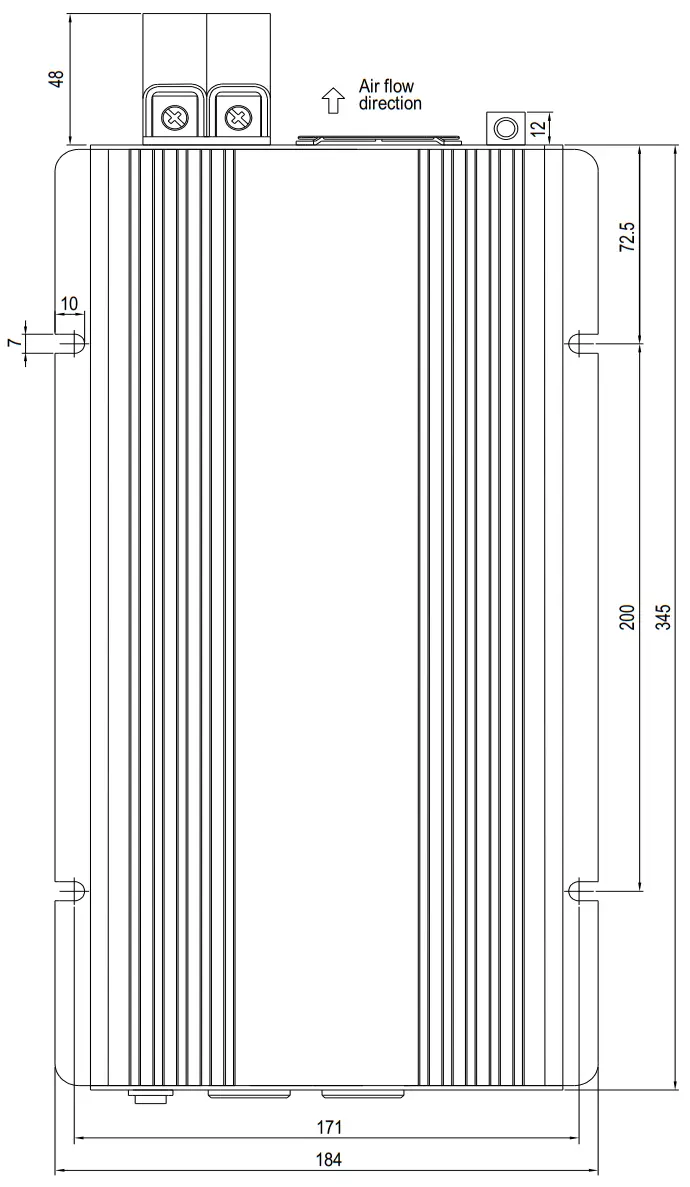

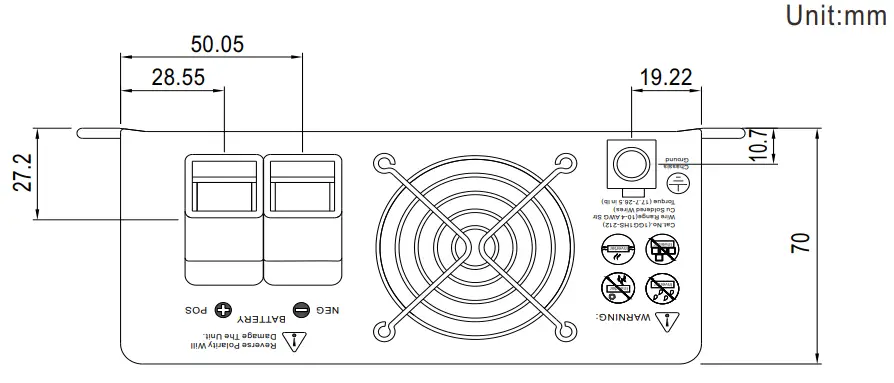

	DIMENSION	34518470mm (LWH)
	PACKING	4.3Kg; 2pcs/9.6Kg/1.16CUFT
	COOLING	Loading controlled cooling fan for GFCI receptacle-type F ; Thermostatically controlled cooling fan for others.

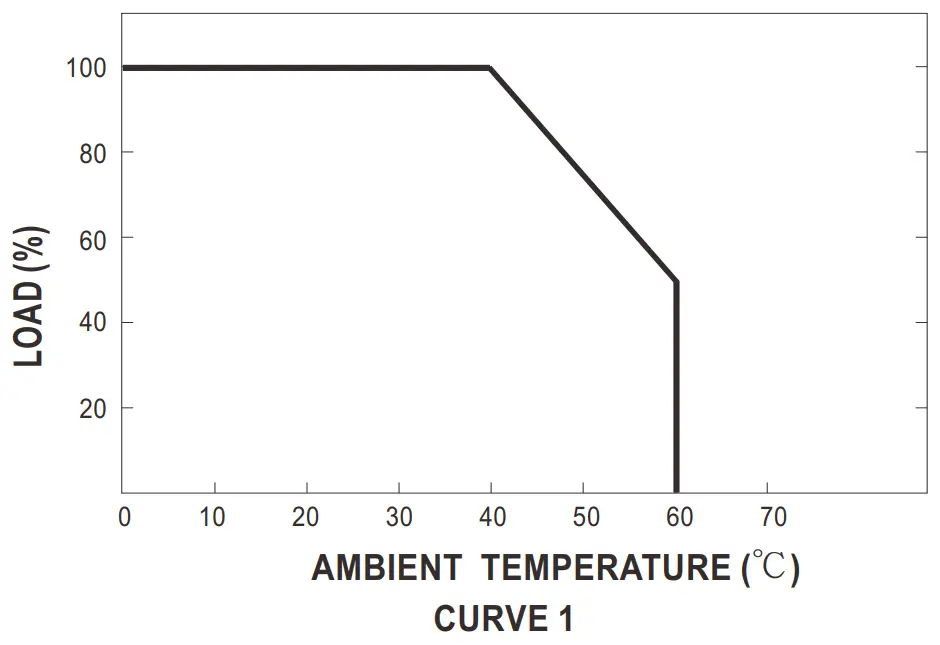

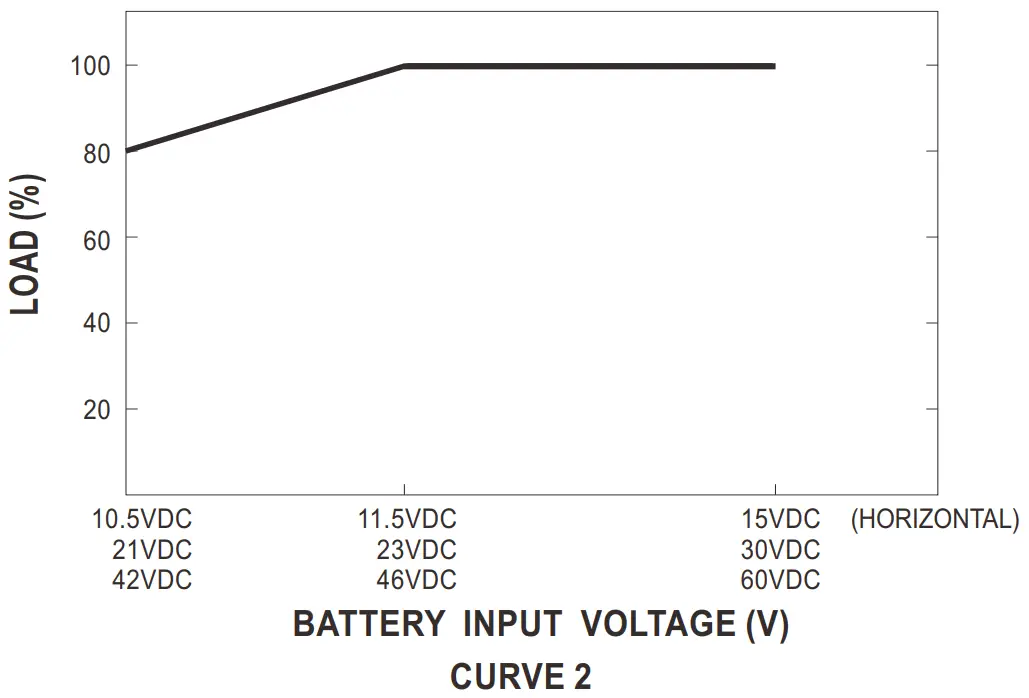

NOTE	Efficiency is tested by 750W, linear load at 13V, 26V, 52V input voltage. All parameters not specified above are measured at rated load, 25℃ of ambient temperature and set to factory setting. Output derating capacity referenced by curve 1. Input derating capacity referenced by curve 2. The tolerance of each voltage value by models is:112/212→±0.5V;124/224→±1V;148/248→±2V THD is tested by 1000W, linear load at 13,26,52V input voltage. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft). Type F for 60Hz only. ※ Product Liability Disclaimer：For detailed information, please refer to https://www.meanwell.com/serviceDisclaimer.aspx

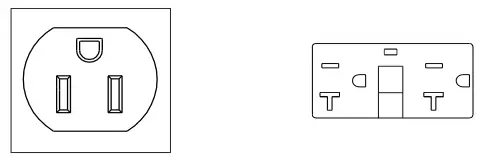

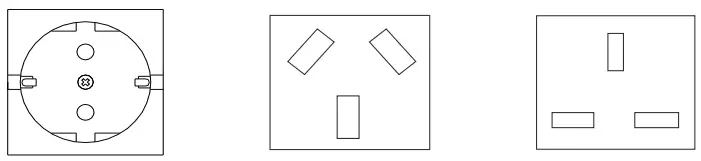

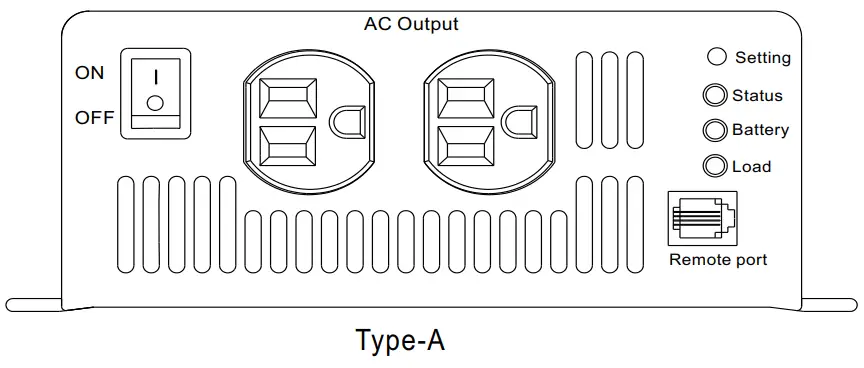

AC Output Socket (optional)

MODEL NO.	TS-1000-112	TS-1000-124		TS-1000-148	TS-1000-212	TS-1000-224	TS-1000-248
Socket type
	TYPE-A		TYPE-F		TYPE-B	TYPE-C	TYPE-D
	Standard		Optional		Standard	Optional	Optional
Country	USA		GFCI (60Hz)		EUROPE	AUSTRALIA	U.K
Certificate
