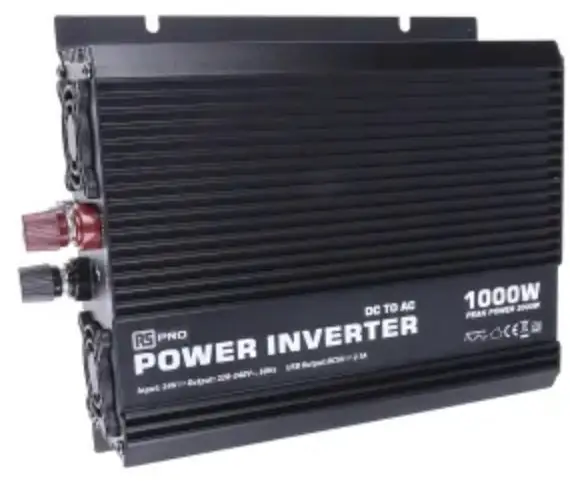

RS PRO 816-0062 Modified Sine Wave 1000W Power Inverter Instructions
FEATURES
- Universal UK/Euro output Socket
- Low voltage alarm & Shutdown
- Auto. Reset after being in protected
- Soft Start
RS Professionally Approved Products bring to you professional quality parts across all product categories. Our product range has been tested by engineers and provides a comparable quality to the leading brands without paying a premium price.
Product Description
Modified sine wave inverters, with universal UK/Euro output socket and USB socket. These modified sine wave inverters come in an anodized aluminium case for durability and maximum heat dissipation. The car power inverter features 2 indicators showing the working and failure state and an ON/OFF switch to control the inverter manually. These modified sine wave inverters come with protections for over voltage, overload, over temperature, short circuit, reverse polarity and low voltage alarm & shutdown
Specifications
General Specifications
| Model | 816-0062 |
| Inverter Directionality | DC to AC |
| Output Connection Type | Universal |
| Reverse Polarity Protection | Yes |
| Soft Start | Yes |
| ON/OFF Switch | Yes |
| Railway Approved | No |
| Applications | Home appliance, Power tools, Office and Portable equipment |
Electrical Specifications
| Output Specifications | |
| AC Voltage | 230V |
| Rated Power | 1000W |
| Surge Power | 2000W |
| Waveform | Modified Sine Wave |
| Frequency Range | 50Hz |
| Input Specifications | |
| DC Voltage | 24V |
| Signal and Control | |
| Remote Control Terminal | No |
Mechanical Specifications
| Housing Material | Anodized aluminium case |
| Dimension | 270.4mm x 208mm x 77mm |
| Length | 270.4mm |
| Width | 208mm |
| Depth | 77mm |
| Weight | 2480g |
Operation Environment Specifications
| Operating Temperature Range | 0°C to 40°C |
Approvals
Compliance/Certifications: RoHS Certificate Of Compliance

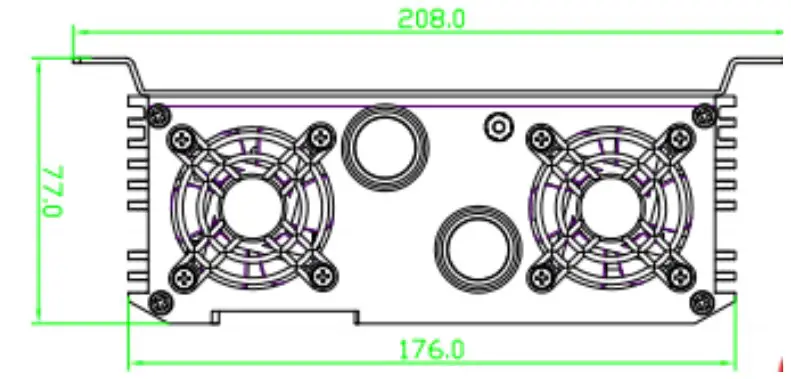

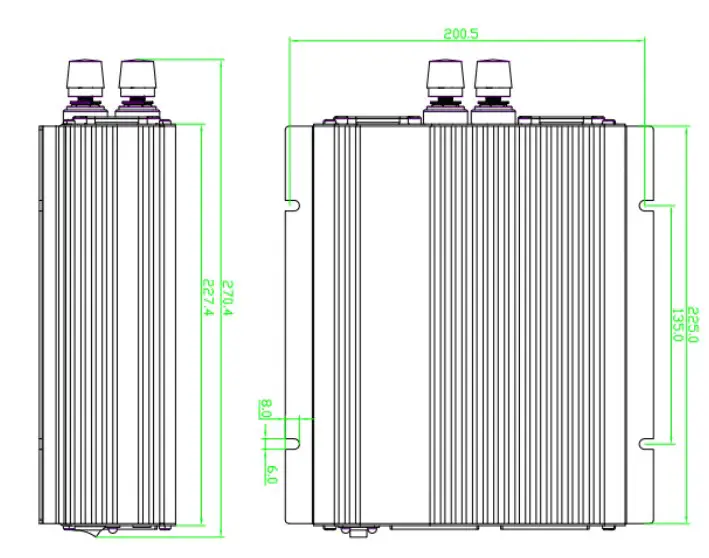

Diminsions
