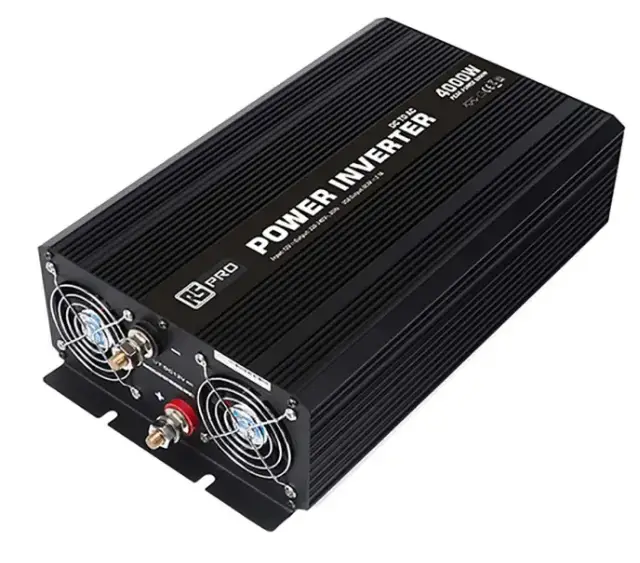

RS PRO 816-0078 Modified Sine Wave Power Inverter

RS-PRO-816-0078-Modified-Sine-Wave-Power-Inverter-prodact-img

FEATURES

  • Universal UK/Euro output Socket
  • Low voltage alarm & Shutdown
  • Auto. Reset after being in protected
  • Soft Start

RS Professionally Approved Products bring to you professional quality parts across all product categories. Our product range has been tested by engineers and provides a comparable quality to the leading brands without paying a premium price.

Product Description

Modified sine wave inverters, with universal UK/Euro output socket and USB socket. These modified sine wave inverters come in an anodized aluminium case for durability and maximum heat dissipation. The car power inverter features 2 indicators showing the working and failure state and an ON/OFF switch to control the inverter manually. These modified sine wave inverters come with protections for over voltage, overload, over temperature, short circuit, reverse polarity and low voltage alarm & shutdown

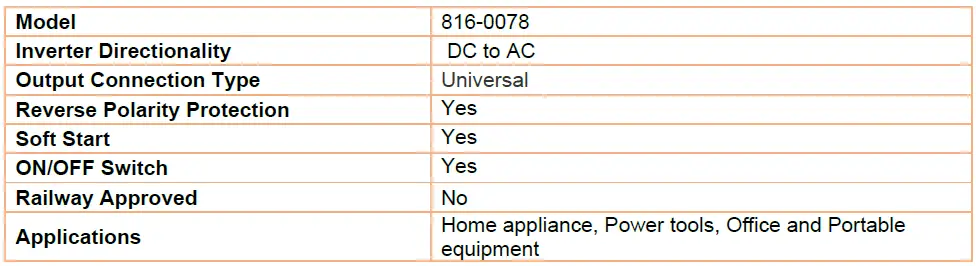

General Specifications

RS-PRO-816-0078-Modified-Sine-Wave-Power-Inverter-fig-1

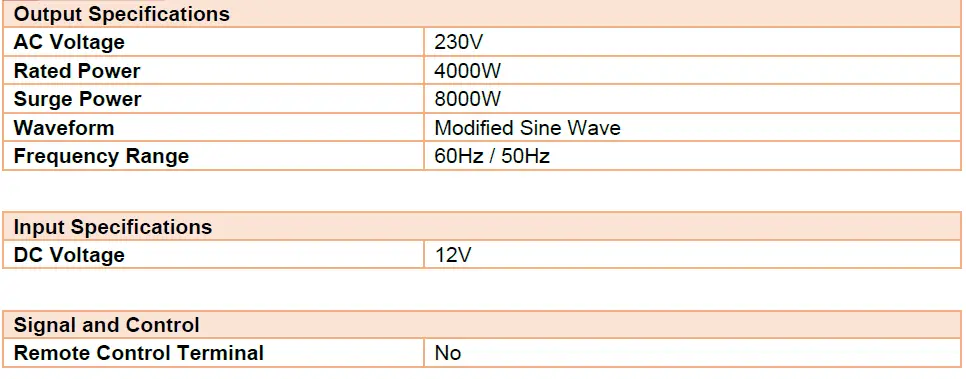

Electrical Specifications

RS-PRO-816-0078-Modified-Sine-Wave-Power-Inverter-fig-2

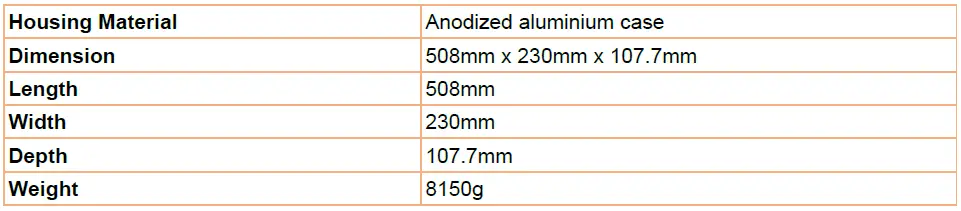

Mechanical Specifications

RS-PRO-816-0078-Modified-Sine-Wave-Power-Inverter-fig-3

Operation Environment Specifications

RS-PRO-816-0078-Modified-Sine-Wave-Power-Inverter-fig-4

Approvals

RS-PRO-816-0078-Modified-Sine-Wave-Power-Inverter-fig-5

RS-PRO-816-0078-Modified-Sine-Wave-Power-Inverter-fig-6RS-PRO-816-0078-Modified-Sine-Wave-Power-Inverter-fig-7RS-PRO-816-0078-Modified-Sine-Wave-Power-Inverter-fig-8
