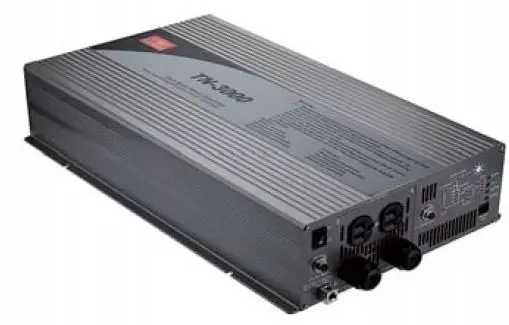

MEAN WELL TN-3000 3000W True Sine Wave DC-AC Inverter
Features
- True sine wave output (THD<3%)
- High surge power up to 6000W
- U.P.S. mode and energy saving mode (selectable)
- High efficiency up to 92%
- Power ON-OFF switch
- Standby saving mode can be selectable
- Front panel indicator for operation status
- Thermostatically controlled cooling fan
- Protections: Bat. low alarm/ Bat. low shutdown/Over voltage/Over temp.
- Output short/ Input polarity reverse/Overload /AC circuit breaker
- Application: Home appliance, power tools, office and portable equipment, vehicle and yacht …etc.
- Built-in solar / AC charger
- Support RS-232 communication (communication cable RJ11-RS232 included) Note.7
SPECIFICATION
| MODEL NO. | TN-3000-112 | TN-3000-124 | TN-3000-148 | TN-3000-212 | TN-3000-224 | TN-3000-248 | |
| = A, F, G | = B, C, D, G | ||||||
|
OUTPUT | RATED POWER (Typ.) | 3000W | |||||
| MAXIMUM OUTPUT POWER (Typ.) | 3450W for 180 sec. / 4500W for 10 sec. / surge power 6000W for 30 cycles | ||||||
| AC VOLTAGE | Factory setting set at 110VAC | Factory setting set at 230VAC | |||||
| 100 / 110 / 115 / 120VAC selectable by setting button S.W | 200 / 220 / 230 / 240VAC selectable by setting button S.W | ||||||
| FREQUENCY Note.11 | 60±0.1Hz 50/60Hz selectable by setting button S.W | 50±0.1Hz 50/60Hz selectable by setting button S.W | |||||
| WAVEFORM Note.8 | True sine wave (THD<3%) | ||||||
| AC REGULATION (Typ.) | ±3% | ||||||
| TRANSFER TIME (Typ.) | 10ms inverter by pass | ||||||
| SAVING MODE (Typ.) | Default disabled. Load≦5W will be changed to standby mode | ||||||
| FRONT PANEL INDICATOR | Battery voltage level, output load level, saving mode, fault and operation status | ||||||
|
INPUT | BAT. VOLTAGE | 12V | 24V | 48V | 12V | 24V | 48V |
| VOLTAGE RANGE (Typ.) Note.3,6 | 10.5 ~ 15VDC | 21 ~ 30VDC | 42 ~ 60VDC | 10.5 ~ 15VDC | 21 ~ 30VDC | 42 ~ 60VDC | |
| DC CURRENT (Typ.) Note.4 | 300A | 150A | 75A | 300A | 150A | 75A | |
| NO LOAD DISSIPATION (Typ.) | ≦10W @ standby saving mode | ||||||
| OFF MODE CURRENT DRAW (Typ.) | ≦1mA | ||||||
| EFFICIENCY (Typ.) Note.1 | 88% | 90% | 91% | 89% | 91% | 92% | |
| BATTERY TYPES | Open & sealed lead acid battery | ||||||
| BATTERY INPUT PROTECTION | FUSE | 40A*12 | 40A*6 | 20A*6 | 40A*12 | 40A*6 | 20A*6 |
| BAT. LOW ALARM Note.6 | 11.3V | 22.5V | 45V | 11.3V | 22.5V | 45V | |
| BAT. LOW SHUTDOWN Note.6 | 10.5V | 21V | 42V | 10.5V | 21V | 42V | |
| REVERSE POLARITY | By internal fuse open | ||||||
|
OUTPUT PROTECTION | OVER TEMPERATURE | 90℃± 5℃ | 85℃± 5℃ | 85℃± 5℃ | 80℃± 5℃ | 75℃± 5℃ | 75℃± 5℃ |
| Protection type : Shut down o/p voltage, re-power on to recover | |||||||
| OUTPUT SHORT | Protection type : Shut down o/p voltage, re-power on to recover | ||||||
| OVER LOAD (Typ.) | 105 ~ 115% load for 180 sec., 115% ~ 150% load for 10 sec. | ||||||
| Protection type : Shut down o/p voltage, re-power on to recover | |||||||
| CIRCUIT BREAKER | AC output: 40A, AC receptacle:15A | AC output: 20A, AC receptacle: 15A | |||||
| GFCI PROCTECTION | Optional (Only type F) | None | |||||
|
ENVIRONMENT | WORKING TEMP. Note.2 | 0 ~ +40℃ @ 100% load ; 60℃ @ 50% load | |||||
| WORKING HUMIDITY | 20% ~ 90% RH non-condensing | ||||||
| STORAGE TEMP., HUMIDITY | -30 ~ +70℃ / -22 ~ +158oF, 10 ~ 95% RH non-condensing | ||||||
| VIBRATION | 10 ~ 500Hz, 3G 10min./1cycle, 60min. each along X, Y, Z axes | ||||||
|
SAFETY & EMC | SAFETY STANDARDS | UL458 (only for Type G ), EAC TP TC 004 | EAC TP TC 004 | IEC62368-1 CB, EAC TP TC 004 approved; Design refer to BS EN/EN62368-1 | |||
| WITHSTAND VOLTAGE | Bat I/P – AC I/P:3.0KVAC Bat I/P – AC O/P:3.0KVAC AC O/P – FG:1.5KVAC | ||||||
| ISOLATION RESISTANCE | Bat I/P – AC O/P, Bat I/P – FG, AC O/P – FG: 100M ohms / 500VDC / 25℃/ 70% RH | ||||||
| EMC EMISSION | Compliance to FCC class A, EAC TP TC 020 | Compliance to BS EN/EN55032 class A, 72/ 245/ CEE, 95/ 54/ CE, E-Mark, EAC TP TC 020 | |||||
| EMC IMMUNITY | Compliance to EAC TP TC 020 | Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, EAC TP TC 020 | |||||
| AC CHARGER | CHARGE CURRENT (Typ.) | 25A | 12A | 6A | 25A | 12A | 6A |
| CHARGE VOLTAGE Note.6 | 14.3V | 28.5V | 57V | 14.3V | 28.5V | 57V | |
| SOLAR PANEL | MAX OPEN CIRCUIT VOLTAGE | 25V | 45V | 75V | 25V | 45V | 75V |
| SHORT CIRCUIT CURRENT (max.) | 30A | ||||||
| OTHERS | CONTROL WIRING Note.7 | RJ11 -RS232 | |||||
| DIMENSION | 466.8*283.5*100mm (L*W*H) | ||||||
| PACKING | 12.9Kg; 1pcs/14Kg/1.49CUFT | ||||||

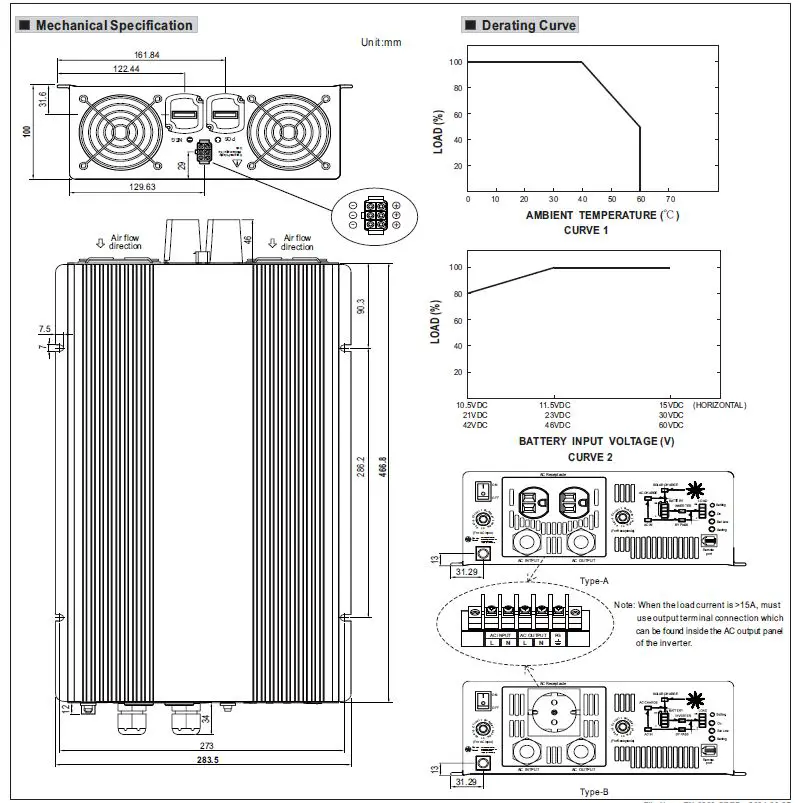

| NOTE | 1.Efficiency is tested by 2100W, linear load at 13V, 26V, 52V input voltage. 2.Output derating capacity referenced by curve 1. 3. Input derating capacity referenced by curve 2. 4. DC current is tested by 3000W, linear load at 12V, 24V, 48V input voltage. 5. All parameters not specified above are measured at rated load, 25℃ of ambient temperature and set to factory setting. 6.The tolerance of each voltage value by models is:112/212→±0.5V;124/224→±1V;148/248→±2V. ?.The cable is enclosed for the connection between TN-3000 and computer for software monitoring. 8.THD is tested by 3000W, linear load at 13,26,52V input voltage. 9. Please do not turn on the inverter before start the engine if inverter connects to vehicle’s battery directly. 10. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft). 11. Type F for 60Hz only. ※ Product Liability Disclaimer：For detailed information, please refer to https://www.meanwell.com/serviceDisclaimer.aspx | ||||||
Instructions for TN-3000 monitoring software
- The monitoring software can be downloaded from the product section (with TN-3000 specification) on MEAN WELL’s official website, http://www.meanwell.com/productsoftware.aspx
- The monitoring software can run on Windows 7 English version, Windows 7 Chinese (Traditional, Taiwan) version, Windows 8 English version and Windows 8 Chinese (Traditional, Taiwan) version
- Installation of TN-3000 unit and PC
Explanation of Monitoring Manu
Main Page
- Setting: Adjustment for output voltage, charging-related voltage, frequency, and operation mode. Please refer to Figure 3 for details.
- Statistics: Calculate for the percentage of operating period for each operation mode. Please refer to Figure 4 for details.
- R.C. Power off: Power can be turned ON or OFF at the remote location.
- Pause: Stop refreshing the page of monitoring software.
- Status of unit: Indicating current operating status of TN-3000.
- Signals that display current condition of the unit.

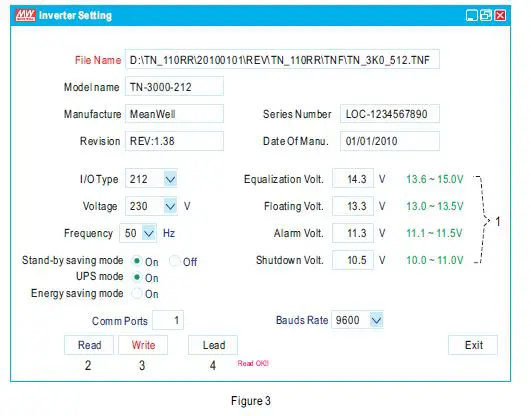

Setting Page
- User can adjust the settings based on the characteristics of batteries been used: Equalization Voltage, Floating Voltage, Alarm Voltage,
and Shut-down Voltage. UPS Mode / Energy Saving Mode selection and AC output voltage and frequency can also be set in this page. - Read: Read current setings of the unit.
- Write: Write the revised setting into the unit.
- Load: Load in factory default settings.

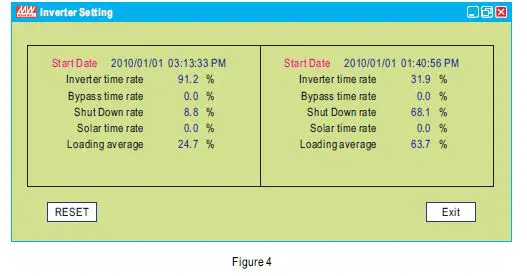

Statistic Page
- Start Date: Date that installing the monitoring software.
- Reset Date: Date that resetting the statistics. The Start Date will not be influenced by resetting the statistics or turning off the unit.
- Inverter time rate: Operating period of “Inverter Mode” represents how many percent of the whole operating period.
- Bypass time rate: Operating period of “Bypass Mode” (energy provides directly by the utility) represents how many percent of the whole operating period.
- Shut down rate: Percentage of time period that the unit is under the condition of shut down. Inverter time rate + Bypass time rate+Shut down rate = 100%
- Solar time rate: Percentage of time period that the solar charger is functioning after turning on the TN-3000 unit.
- Loading average: Average loading after turning on the TN-3000 unit.

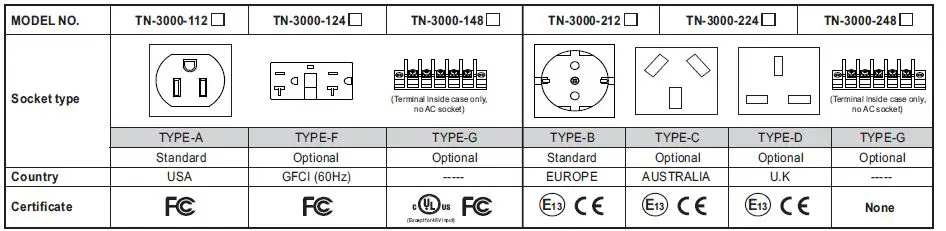

AC Output Socket (optional)
