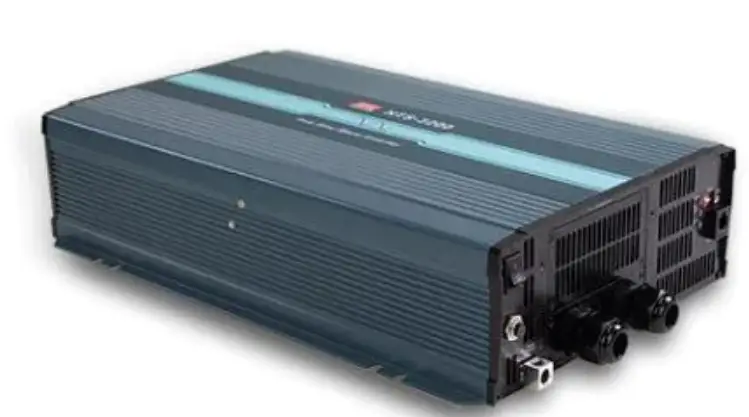

MW NTU-1700 Series 1700W High Reliable True Sine Wave with UPS DC-AC Power Inverter

OVERVIEW

Features

Built-in UPs function (AC by-pass)
True sine wave output (THD<3%)
High surge power up to 3400WN
Temperature-controlled cooling fan
AC output voltage and frequency selectable by DIP S.W
-25C~+7o’C wide operating temperature
Power ON-OFF remote control
Front panel indicator for operation status
Protections
Input Reverse polarity/ DC low alarm / DC low shutdown/Over voltage
Output: Short circuit/Overload/Over temp.
Battery over-discharge protection (low voltage disconnect)
Suitable for lead-acid or li-ion batteries
Remote controller
(IRC1, IRC2, and IRC3 accessories are sold separately, please refer to: https://www.meanwell.com/webapp/product/search.aspx?prod=IRC1)
Support RS-232 communication(Communication cable order No.: DS-RJ11-RS232, sold separately)

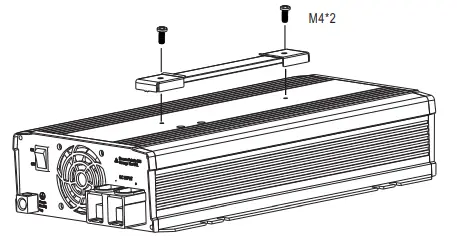

Carry handle accessory available(Order NO.: DS-Carry handle, sold separately)
Conformal coating
3 years warranty

Applications

Home and office appliance
Power tools
Portable equipment

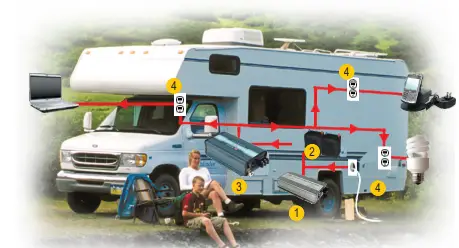

Vehicle

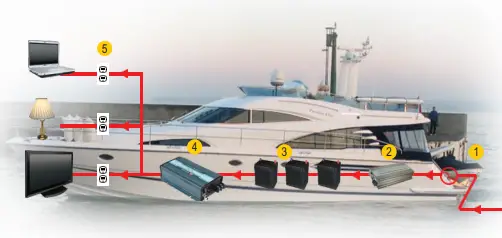

Yacht
Off-grid solar power system
Wireless network
Telecom or datacom system

Description

NTU-1700 is a 1700W highly reliable off-grid true sine wave DC-AC power inverter with built-in UPS function(AC by-pass). Its key features include: digital design with MCU control, streamlined control circuitry that quickly responds to environmental changes and improves reliability, high quality fan with low acoustic noise, 3400W peak power, adjustable AC output voltage and frequency, -25+70C wide operating temperature range, complete protection features, and etc. Combined with batteries, the NTU-1700 is suitable for use in residential, commercial, marine, automobile, mine, construction site, and remote areas with no access to utility power, and the output can be used to power fans, TV, radio, phone charger, PC/laptop, lighting, induction stove, air conditioner, electromechanical tool, communication equipment, power distribution cabinet, outdoor camping equipment, marine AC power, factory equipment. and etc.

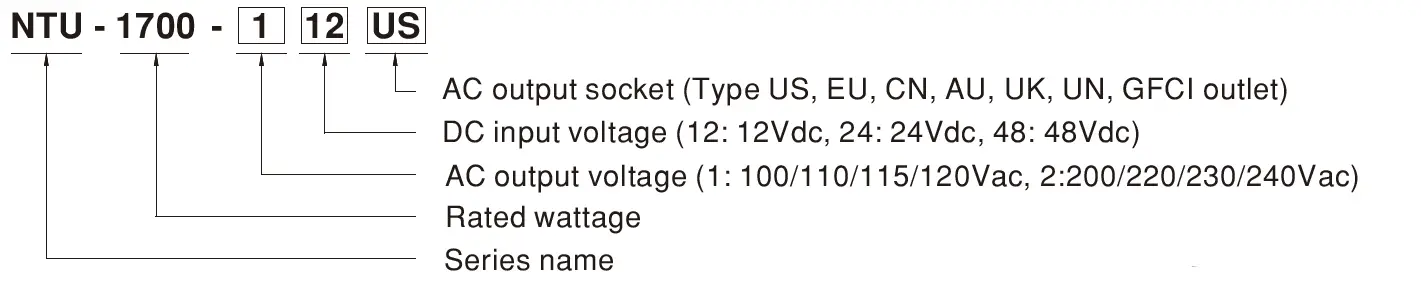

Model Encoding

SPECIFICATION

MODEL NO.

NTU-1700-112

NTU-1700-124

NTU-1700-148

NTU-1700-212

NTU-1700-224

NTU-1700-248

= US, GFCI, UN

= EU, CN, AU, UK, UN

AC OUTPUT

RATED POWER(Continuous)

1500W

1700W

OVER RATED POWER(3 Min.)

1750W

2000W

PEAK POWER(10 Sec.)

2250W

2550W

SURGE POWER(30 Cycles)

3000W

3400W

AC VOLTAGE

Default setting set at 110VAC

Default setting set at 230VAC

100 / 110 / 115 / 120Vac selectable by DIP S.W

200 / 220 / 230 / 240Vac selectable by DIP S.W

FREQUENCY

Default setting set at 60±0.1Hz

Default setting set at 50±0.1Hz

50/60Hz selectable by DIP S.W

WAVEFORM Note.1

True sine wave (THD<3%)

AC REGULATION

±3.0% at rated input voltage

FRONT PANEL LED

Please see page 5

DC INPUT

DC VOLTAGE

12Vdc

24Vdc

48Vdc

12Vdc

24Vdc

48Vdc

VOLTAGE RANGE (Typ.)

10 ~ 16.5Vdc

20 ~ 33Vdc

40 ~ 66Vdc

10 ~ 16.5Vdc

20 ~ 33Vdc

40 ~ 66Vdc

DC CURRENT (Typ.)

150A

75A

37.5A

170A

85A

42.5A

NO LOAD DISSPATION (SAVING MODE)(Typ.) Note.2

Default disable, auto detect AC output load≦10W will be changed to saving mode

<8W

OFF MODE CURRENT DRAW

≦1mA

EFFICIENCY (Typ.) Note.1

89%

90%

91%

89%

92%

93%

BATTERY TYPES

Lead Acid or li-ion

PROTECTION

DC INPUT

FUSE (INTERNAL)

40A*6

40A*3

25A*3

40A*6

40A*3

25A*3

LOW

ALARM

11±0.3Vdc

22±0.5Vdc

44±1Vdc

11±0.3Vdc

22±0.5Vdc

44±1Vdc

SHUTDOWN

10±0.3Vdc

20±0.5Vdc

40±1Vdc

10±0.3Vdc

20±0.5Vdc

40±1Vdc

RESTART

12.5±0.3Vdc

25±0.5Vdc

50±1Vdc

12.5±0.3Vdc

25±0.5Vdc

50±1Vdc

HIGH

ALARM

15.5±0.3Vdc

31±0.5Vdc

62±1Vdc

15.5±0.3Vdc

31±0.5Vdc

62±1Vdc

SHUTDOWN

16.5±0.3Vdc

33±0.5Vdc

66±1Vdc

16.5±0.3Vdc

33±0.5Vdc

66±1Vdc

RESTART

15±0.3Vdc

30±0.5Vdc

60±1Vdc

15±0.3Vdc

30±0.5Vdc

60±1Vdc

BAT. POLARITY

By internal fuse open

AC OUTPUT

OVER TEMPERATURE

Protection type : Shut down o/p voltage, re-power on to recover

OUTPUT SHORT

Protection type : Shut down o/p voltage, re-power on to recover

OVER LOAD (Typ.)

105 ~ 115% load for 180 sec., 115% ~ 150% load for 10 sec.

Protection type : Shut down o/p voltage, re-power on to recover

CIRCUIT BREAKER

15A

10A

GFCI PROCTECTION

UL458 (Only for “GFCI” AC socket, by request)

None

FUNCTION

REMOTE CONTROL

CONNECTOR

Power ON-OFF remote control by front panel dry contact connector(by RELAY), Open : Normal work ; Short : Remote off

ACCESSORY

Remote controller sold separately, Order No.: IRC1,IRC2,IRC3

RS-232 COMMUNICATION

RS-232 ~ RJ11 Type connector (Please refer to page 4 for more details)

AC UPS MODE

AC INPUT RANGE

100/110/115/120Vac±16%, recover±13%

200/220/230/240Vac±16%, recover±13%

FREQUENCY RANGE

45 ~ 65Hz

TRASFER TIME(Typ.)

10ms inverter AC by pass

ENVIRONMENT

WORKING TEMP.

-25 ~ +70℃(Refer to “Derating curve”)

WORKING HUMIDITY

20% ~ 90% RH non-condensing

STORAGE TEMP., HUMIDITY

-30 ~ +70℃ / -22 ~ +158oF, 10 ~ 95% RH non-condensing

VIBRATION

10 ~ 500Hz, 3G 10min./1cycle, 60min. each along X, Y, Z axes

SAFETY

& EMC

(Note.5)

SAFETY STANDARDS

CB IEC62368-1,Dekra BS EN/EN62368-1,UL458, E13,EAC TP TC 004,AS/NZS 62368.1 approved

(Please refer to next page“AC output socket” table for more details)

WITHSTAND VOLTAGE

DC I/P – AC I/P:3.0KVac DC I/P – AC O/P:3.0KVac AC O/P – FG:1.5KVac

EMC EMISSION

Parameter

Standard

Test Level / Note

Radiated

FCC for 112,124,148 only(expect for Type-UN)

Class A

BS EN/EN55032(CISPR32) for 212,224,248 only(expect for Type-UN)

Class A

Conducted

FCC for 112,124,148 only(expect for Type-UN)

Class A

BS EN/EN55032(CISPR32) for 212,224,248 only(expect for Type-UN)

Class A

Harmonic Current

BS EN/EN61000-3-2

Class A

Voltage Flicker

BS EN/EN61000-3-3

—–

EMC IMMUNITY

BS EN/EN55024, BS EN/EN55035

Parameter

Standard

Test Level / Note

ESD

BS EN/EN61000-4-2

Level 3, 8KV air ; Level 2, 4KV contact

Radiated

BS EN/EN61000-4-3

Level 2

EFT / Burst

BS EN/EN61000-4-4

Level 2, 1KV

Surge

BS EN/EN61000-4-5

Level 3, 1KV/Line-Line 2KV/Line-Earth

Conducted

BS EN/EN61000-4-6

Level 2

Magnetic Field

BS EN/EN61000-4-8

Level 1

Voltage Dips and Interruptions

BS EN/EN61000-4-11

>95% dip 0.5 periods, 30% dip 25 periods,

>95% interruptions 250 periods

OTHERS

MTBF

421.9K hrs min. Telcordia TR/SR-332 (Bellcore) ; 45.3K hrs min. MIL-HDBK-217F (25℃)

DIMENSION

400*184*70mm (L*W*H)

PACKING

4.63Kg; 2pcs/ 12Kg/ 1.76CUFT

NOTE

Efficiency, AC regulation and THD are tested by 1350W load, linear load at 12.5Vdc/25Vdc/50Vdc input voltage
No load disspation at non-saving mode(Typ.): 112/124/148 for 16W, 212/224/248 for 29W.
All parameters not specified above are measured at rated load, 25C of ambient temperature and set to factory setting.
Internal pre-start circuit, the setup time is 8s.
The power supply is considered as an independent unit, but the final equipment still need to re-confirm that the whole system complies with the EMC directives. For guidance on how to perform these EMC tests, please refer to “EMI testing of component power supplies.” (as available on http://www.meanwell.com)
Product Liability Disclaimer: For detailed information, please refer to https://www.meanwell.com/serviceDisclaimeraspx

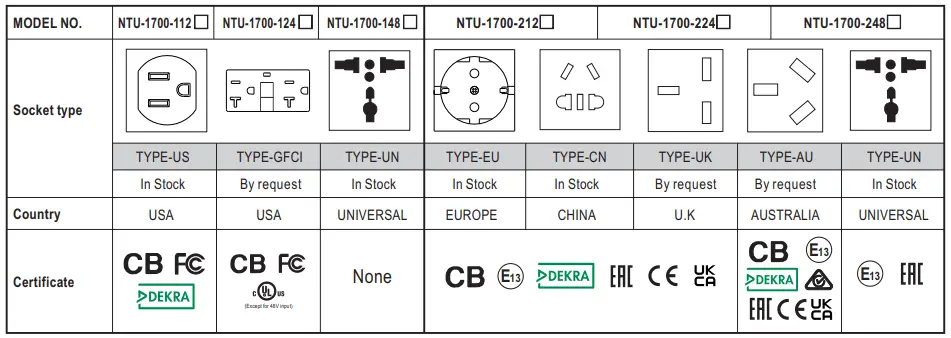

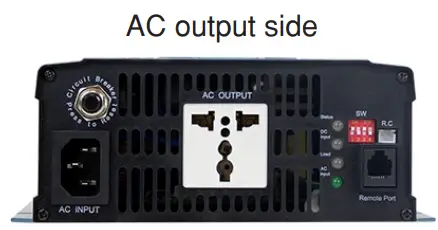

AC Output Socket

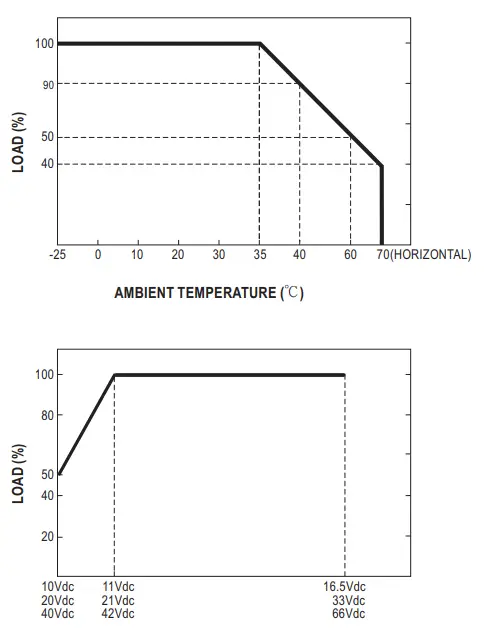

DERATING CURVE

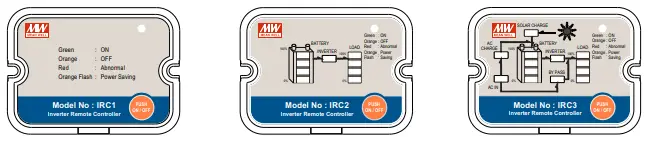

IRC1/2/3 Remote Controller (Accessory sold separately)

IRC1/IRC2/IRC3 is the monitoring and control unit.
IRC1/IRC2/IRC3 can decode the RS-232 signals sent by the inverter series and display through digital meters.
Note: Part of the control signals will not function properly due to different compliance of each model.
Please refer to for more detail: https://www.meanwell.com/webapp/product/search.aspx?prod=IRC1

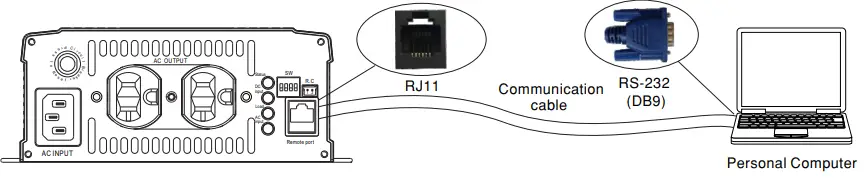

Support RS-232 Communication

The internal data of single NTU-1700 can read through RS-232.
Please refer to for more detail: http://www.meanwell.com/manual.html
RJ11-RS232 Communication cable should be ordered separately, Order No.: DS-RJ11-R$232

Remote ON-OFF Control (Built-in)

Remote ON-OFF	AC Output Status
Open	power inverter ON
Short	power inverter OFFC

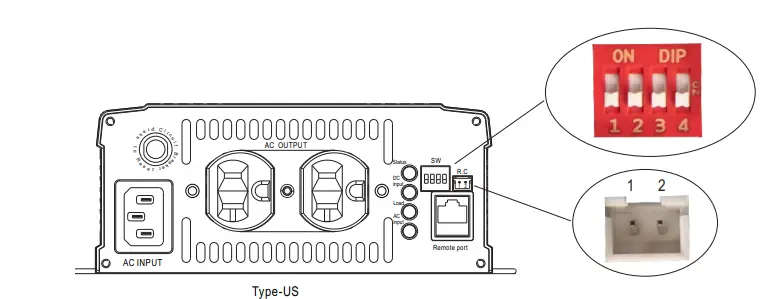

AC Output Voltage. Frequency, Power saving mode selectable by DIP SW

Output voltage and frequency setting factory settings are either 110Vac/60Hz or 230Vac/50 Hz, users are able to adjust the voltage and frequency, through the DIP switch of position 1,2,3,4 on the panel.

AC Output Voltage、 Frequency、Power saving mode selectable by DIP SW
SW1	SW2		SW3	SW4
OFF	OFF :	100Vac or 200Vac	ON: 50Hz	ON: Saving mode
OFF	ON :	110Vac or 220Vac	ON: 50Hz	ON: Saving mode
ON	OFF :	115Vac or 230Vac	OFF: 60Hz	OFF: Non-Saving mode
ON	ON :	120Vac or 240Vac	OFF: 60Hz	OFF: Non-Saving mode

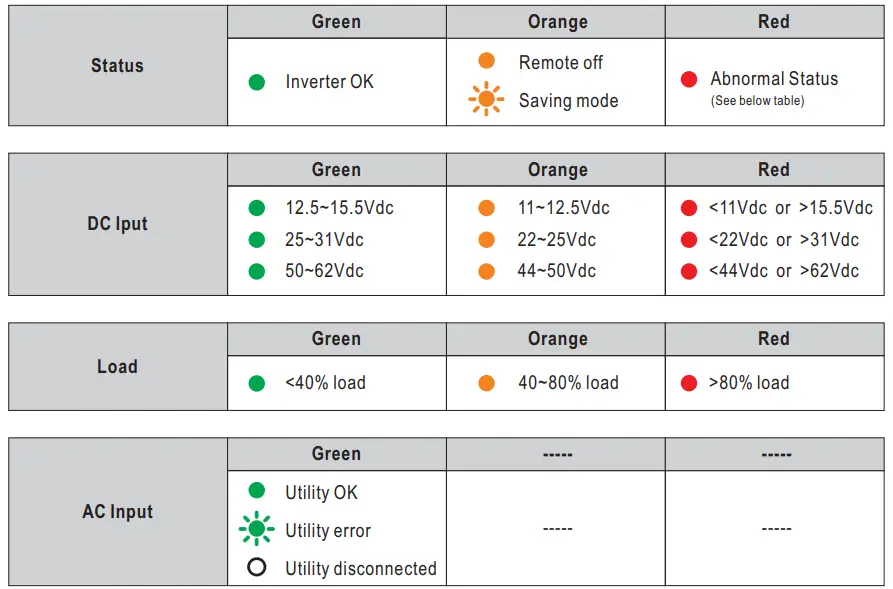

LED STATUS

Normal work

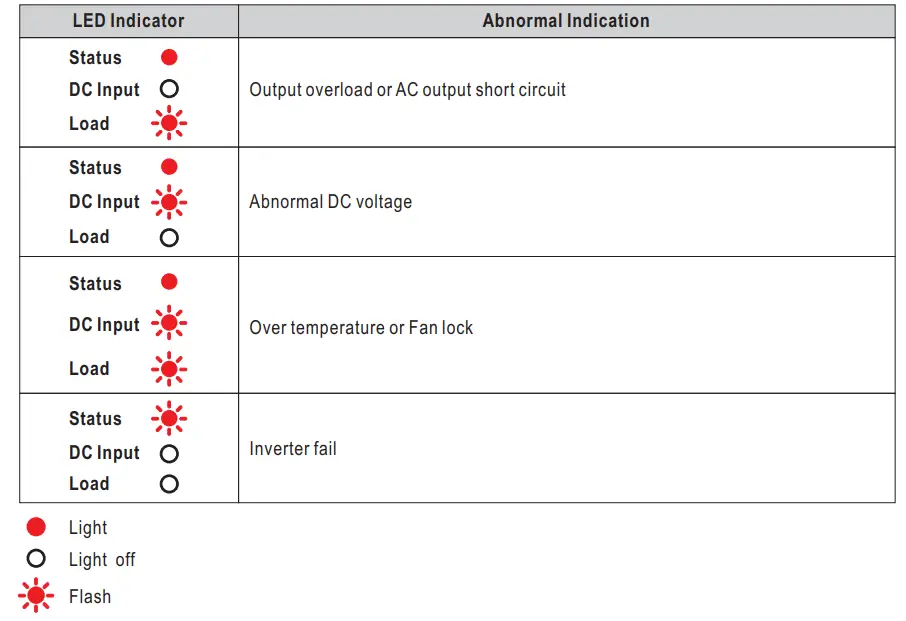

Abnormal status

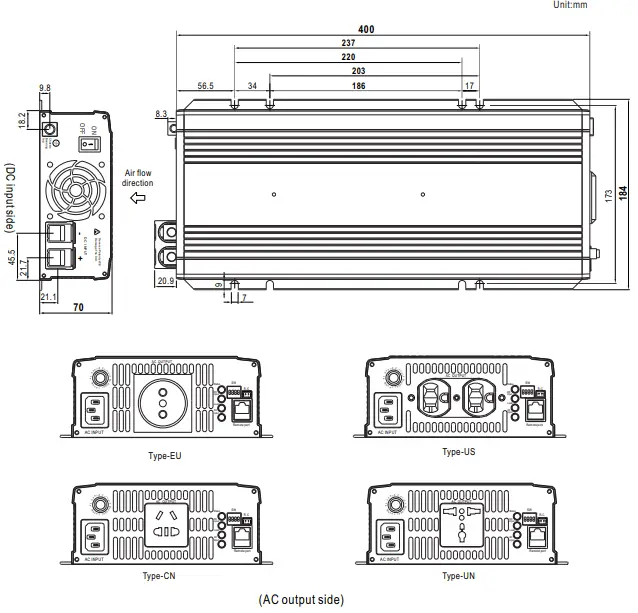

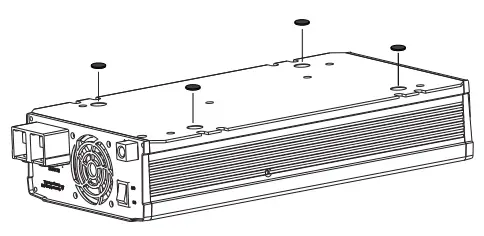

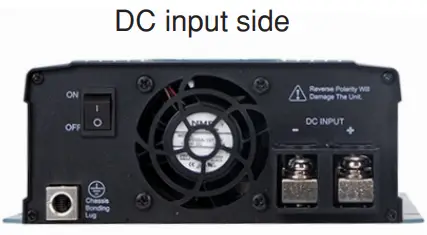

MECHANICAL SPECIFICATION

R.C Connector: JST B-XH or equivalent

Remote Control	Mating Housing	Terminal
Pin 1,2 Open: Normal work	JST XHP or equivalent	JST SXH-001T or equivalent
Pin 1,2 Short: Remote off	JST XHP or equivalent	JST SXH-001T or equivalent

Remote port connector (RJ11)
