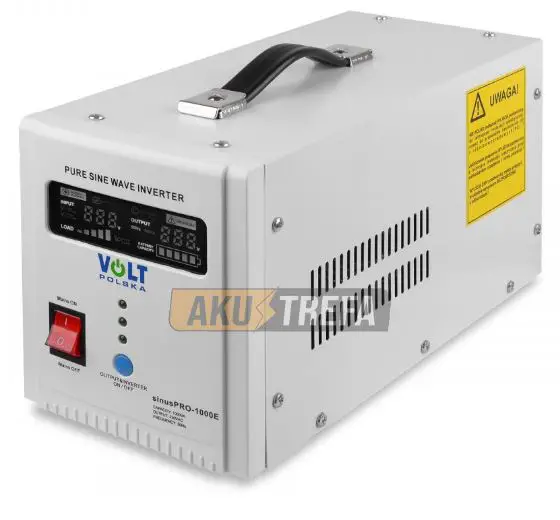

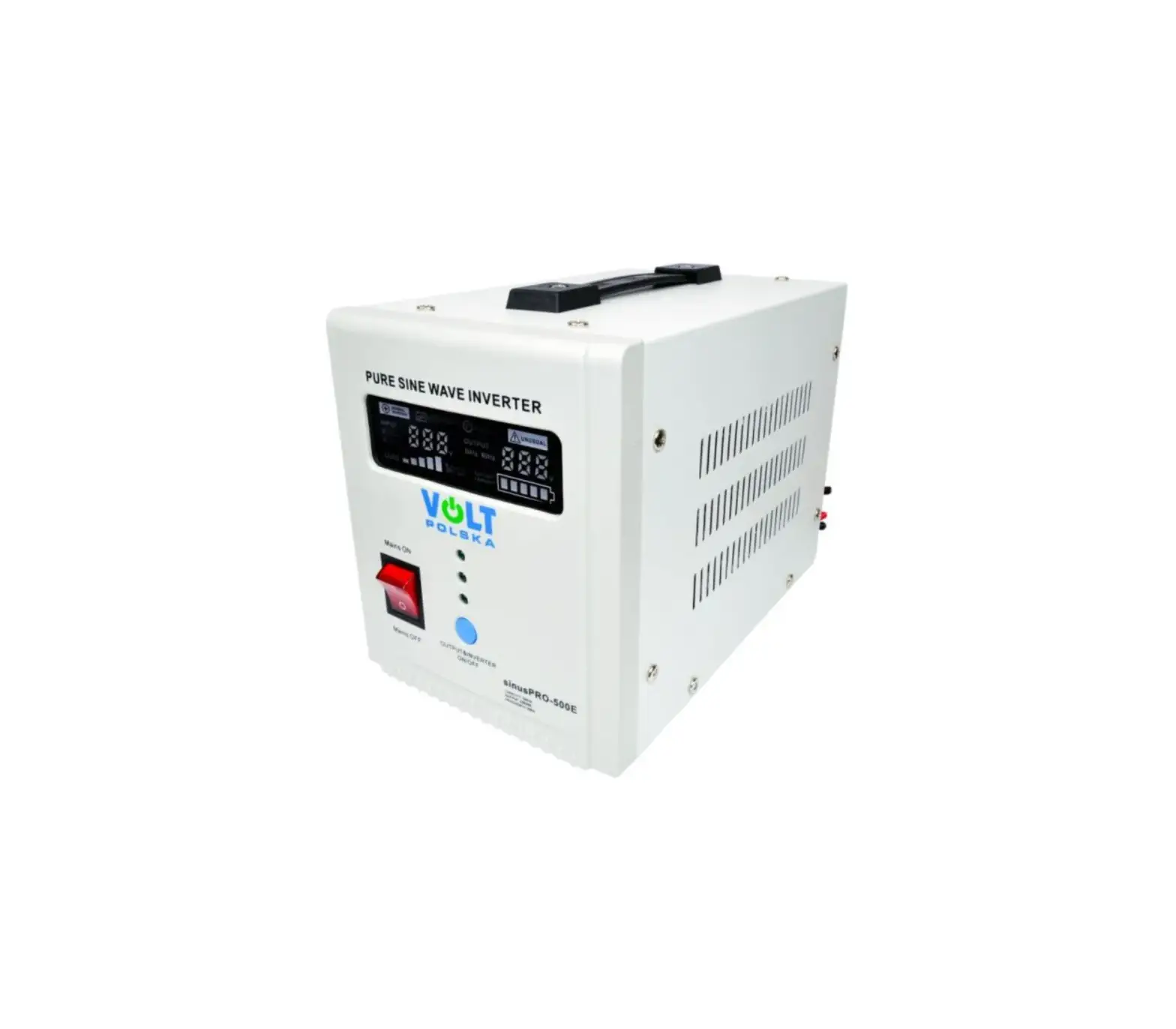

VOLT POLSKA sinusPRO W Pure Sine Wave Inverter-UPS

Product Information

• The product is a pure sine wave inverter/UPS with a model name of sinusPRO W.
• The product is manufactured by VOLT POLSKA Sp. z o.o. and the product manual version is 1.2022.12.23.
• The device has a maximum power capacity ranging from 500W to 5000W depending on the model.
• The device has various built-in protections against overload, temperature, over and under voltage, battery discharge, short circuit, and overcharging.
• The device has a switch for battery mode/mains mode and an AC charger button for turning on/off the built-in battery charger.
• The device has a buzzer that beeps to indicate working status and any abnormalities in battery voltage, output overload, protection, or output abnormality.
• The device comes with a warranty card with fields for date of purchase, shipping address, signature/stamp, damage description, and service comments.
• The full regulations of service repairs can be found on the manufacturer’s website www.voltpolska.pl

Product Usage Instructions

• Before using the device, read the product manual carefully and store it in an easily accessible place.
• Avoid overloading the device and do not use it beyond its maximum power capacity to prevent danger of high voltage even if all switches are turned off.
• Any operation to move or open the device should be performed by authorized professional staff.
• In case of fire, use a dry powder type fire extinguisher and do not use a liquid type fire extinguisher.
• If the device works unusually, switch off both power sources of battery and city power.
• To switch between battery mode and mains mode, use the button for battery mode/mains mode.
• To turn on/off the built-in battery charger, use the AC charger button.
• The device has a buzzer that beeps to indicate working status and any abnormalities in battery voltage, output overload, protection, or output abnormality.
• Properly dispose of the product as waste electrical and electronic equipment.

PREFACE

Welcome to use the inverter sinusPRO W. Please read carefully this manual before operation.

Product features

• With inverter, UPS, AVR and charger function.
• Toroidal transformer design, high efficiency low static loss, much more energy-saving than old square transformer type design.
• 32-bit high speed CPU controlled, swift response speed, more accurate detection.
• LED colorful humanistic and friendly operation interface, displays clearly device’s working status (input&output voltage, loading status, battery status. źPure sine wave output, suitable for almost all of appliance.
• High charging current.
• Short switchover time, guarantees the connected appliances uninterruptible usage.
• Vantilation fan intelligent controlled, fan working based on the setting temperature and working status.

SAFETY PRECAUTIONS

The manual is the integral part of the sinus PROW series devices. Do not throw it out, store it an easily accessible place and read the content before using device.

• Avoid overloading, don’t use the device beyond its maximum power capacity.
• It will be a danger of high voltage in the device even all the switches are turned off, any operation to move or open the device should be performed by authorized professional staff. źIn case of fire, use the dry powder type fire extinguisher, don’t use liqiud type fire extinguisher.
• If the device works unusually, please switch off both power sources of battery and city power immediately, any power source exist in such case will cause danger; and please report to the distributor for professional advices.
• IMPORTANT! Don’t input voltage from poor-quality generators that don’t produce sinusoidal
  voltage, because the device will not work.
• IMPORTANT! We recommend using dedicated AGM/GEL lead-acid batteries that are suitable for buffer/cyclic work and deep discharge. Connecting to the converter car batteries that are not adapted for such work may result in damage to the converter/battery. Also, do not connect LiFePO4 batteries, due to different charging/discharging characteristics than those offered by the Sinus PRO E, W, S. To work with LiFePO4 batteries, we recommend using the Sinus PRO ULTRA series by VOLT Polska.

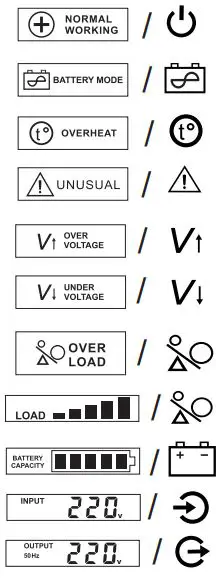

DISPLAY, CONTROLL AND WARNING DETAILS

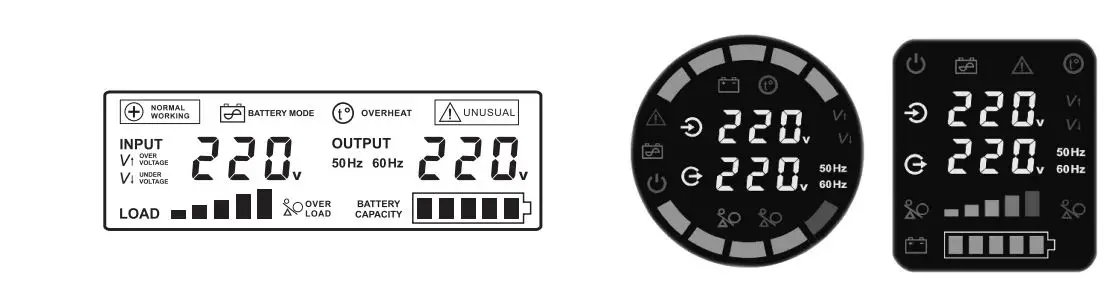

• normal working interface
• detail display

city power input normal, device through AVR supplies output

city power input abnormal, battery through inverter supplies AC output

temperature is too high, device cuts off output

battery over voltage,short circuit, high MOSFET’s temperature

city power input is over voltage

city power input is low voltage

loading exceeds device’s rated power

loading bar showing the loading situation

battery bar showing the battery capacity, when in charging, the bar will be flashing

input voltage indication

output voltage indication and frequency indication

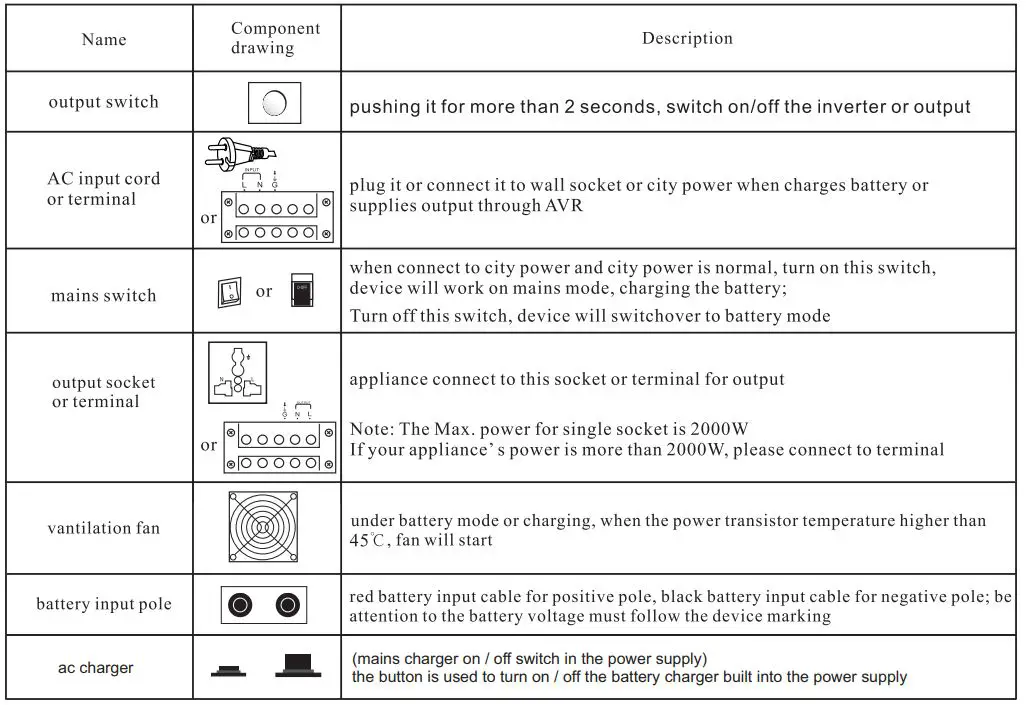

OPERATIONAL DESCRIPTION

BUZZER WORKING STATUS

Working status

• when city power abnormal swithover to battery mode – beeping one time
• battery working low volte or output overload – beeping every second
• protection or output abnormal – beeping hurrily
  Installation
• If you find any damage upon package opening, please contact distribution immediately.
• Don’t install the device up-side-down; not expose to direct sunlight or heat source; away from children, away from water, moisture, oil or grease and any flammable substance.
• For better ventilation, fan outles and device ventilation should have at least 10cm distance from the wall or other adjacent not heat producing equipment.
• Make sure the city power voltage and frequencey matches the device rated.
• The device should be placed in the well grounded condition to ensure the safety.
• Battery connection: connect the red cable to battery „+” pole and connect the black cable to battery “” pole, device cannot work under wrong connection.

TECHNICAL PARAMETERS

WARRANTY CARD

DATE OF PURCHASE
SHIPPING ADDRESS
SIGNATURE / STAMP
DAMAGE DESCRIPTION
SERVICE COMMENTS

FILL IN IF NEEDEED
(*) Cross incorrect
I agree to pay the cost of inverter repair due to:
* expiration of the warranty period / * warranty void
Before proceeding with the repair, service will inform by phone about the exact costs of the repair.
Please attach a copy of the purchase document (receipt or invoice) to the complaint.
The full regulations of service repairs can be found on our website www.voltpolska.pl

Proper disposal of the product
(waste electrical and electronic equipment)
The marking placed on the product or in the texts related to it indicates that it should not be disposed of with other household waste at the end of its useful life. To avoid harmful effects to the environment and human health from uncontrolled disposal, please separate this product from other types of waste and recycle responsibly to promote the reuse of material resources as a continuing practice. For information on where and how to recycle this product in an environmentally safe manner, residential users should contact the retailer where they purchased the product, or their local government authority. Business users should contact their supplier and check the terms and conditions of their purchase contract. The product should not be disposed of with other commercial waste.

VOLT POLSKA Sp. z o.o.
ul. Swiemirowska 3
81-877 Sopot
www.voltpolska.pl

[email protected]
[email protected]
