P3 Pole Mount Fixation Ceiling Fixation
Instruction Manual
OMNIFLOOD

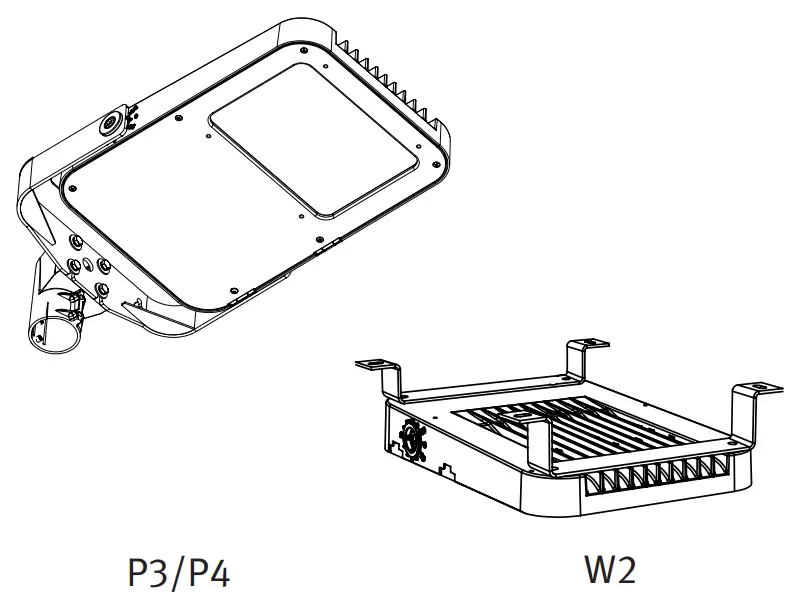

Pole mount fixation Ceiling fixation
INSTALLATION INSTRUCTIONS

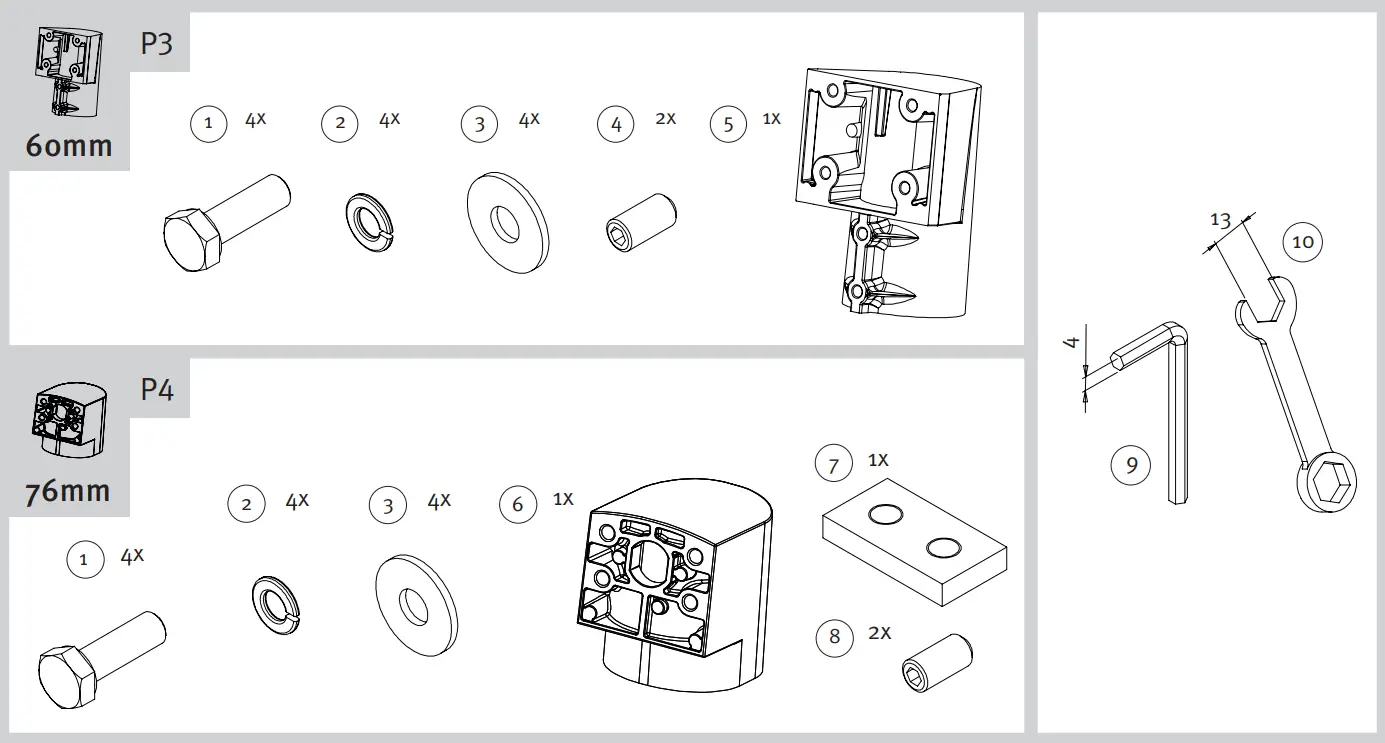

P3 Pole Mount Fixation Ceiling Fixation

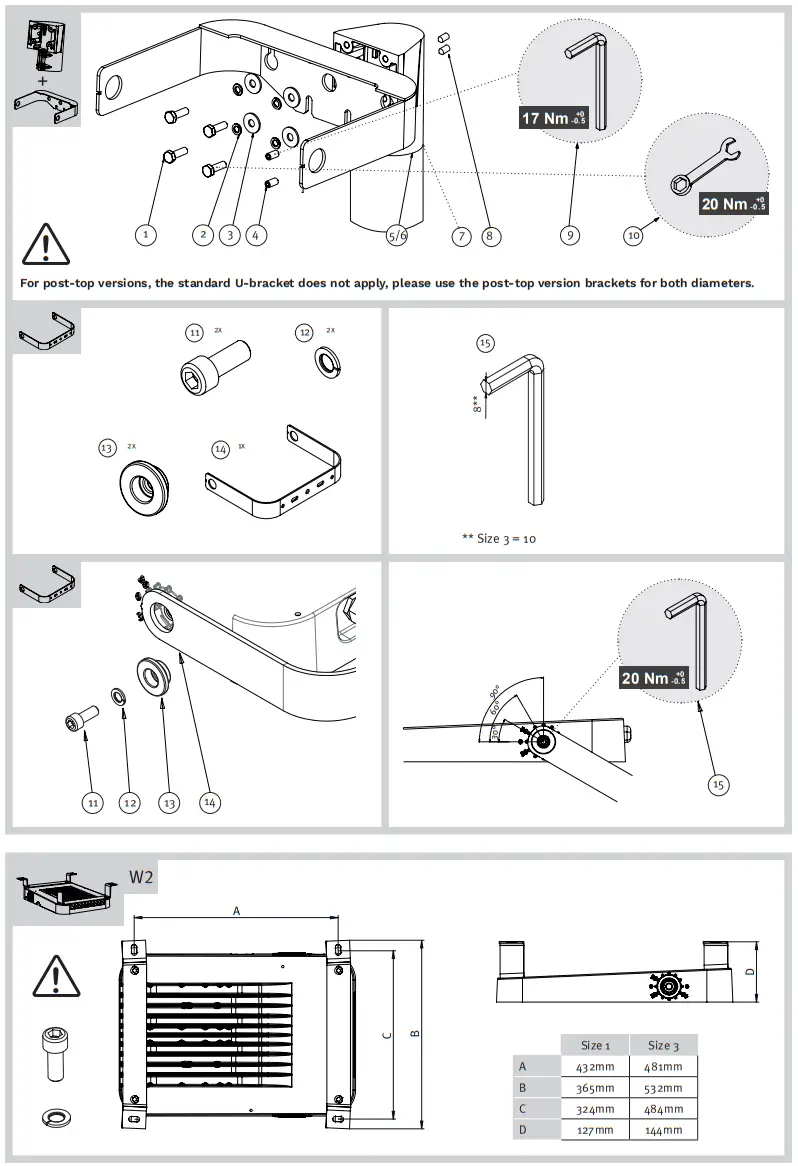

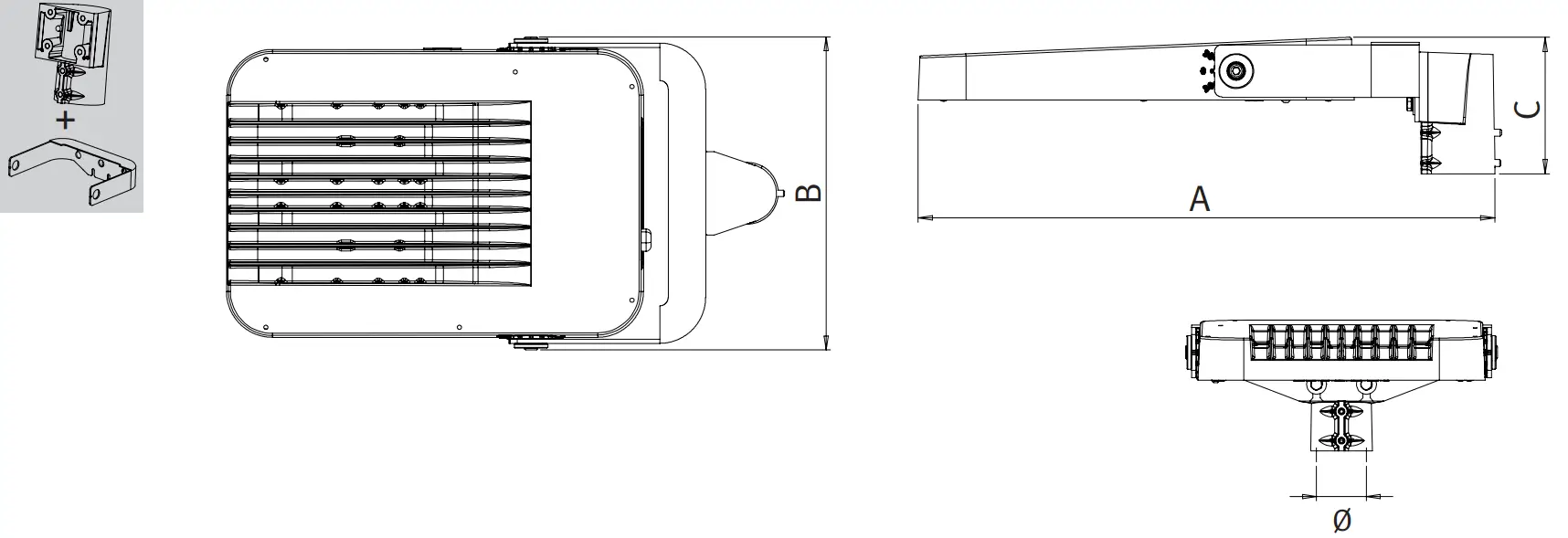

| 60mm | Size 1 | Size 3 |
| A | 661mm | 712mm |
| B | 335mm | 506mm |
| C | 157mm | 167mm |
| Ø | 60mm | 60mm |
| 76mm | Size 1 | Size 3 |
| A | 690mm | 743mm |
| B | 335mm | 506mm |
| C | 121mm | 131mm |
| Ø | 76mm | 76mm |
