MKE 400
Sennheiser electronic GmbH & Co. KG
Am Labor 1, 30900 Wedemark, Germany
www.sennheiser.com
Quick Guide
In the box

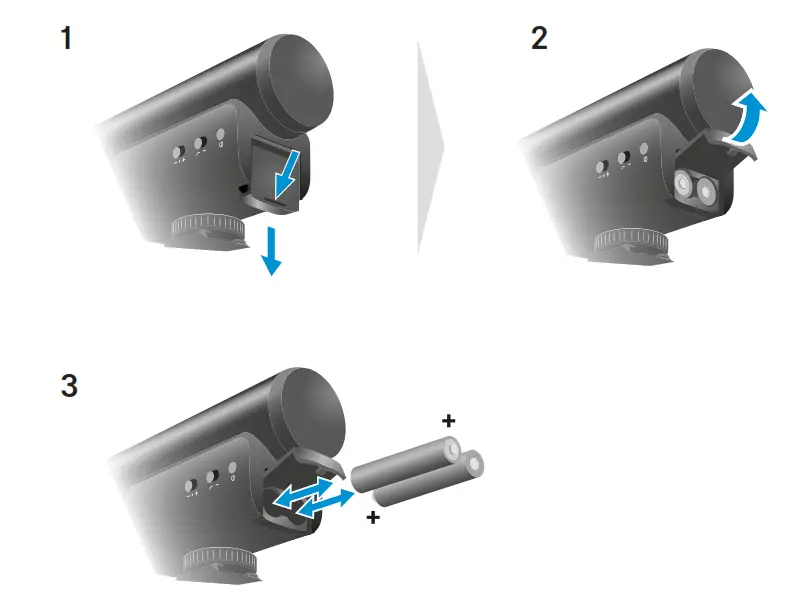

Battery

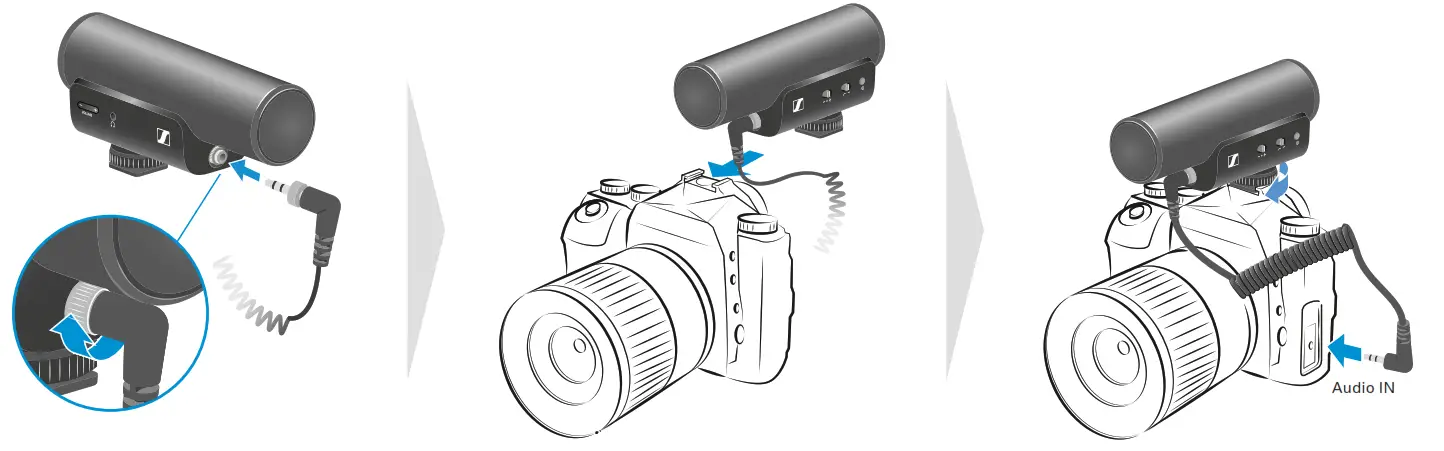

Setup

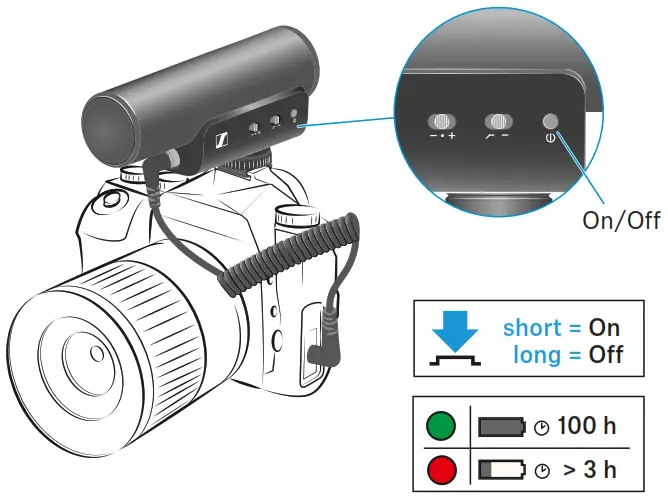

On/Off

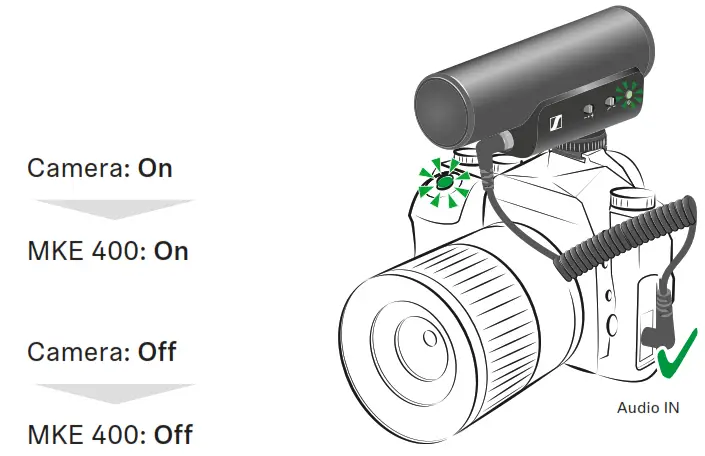

Auto On/Off
Connect MKE 400 to the camera for automatic On/Off

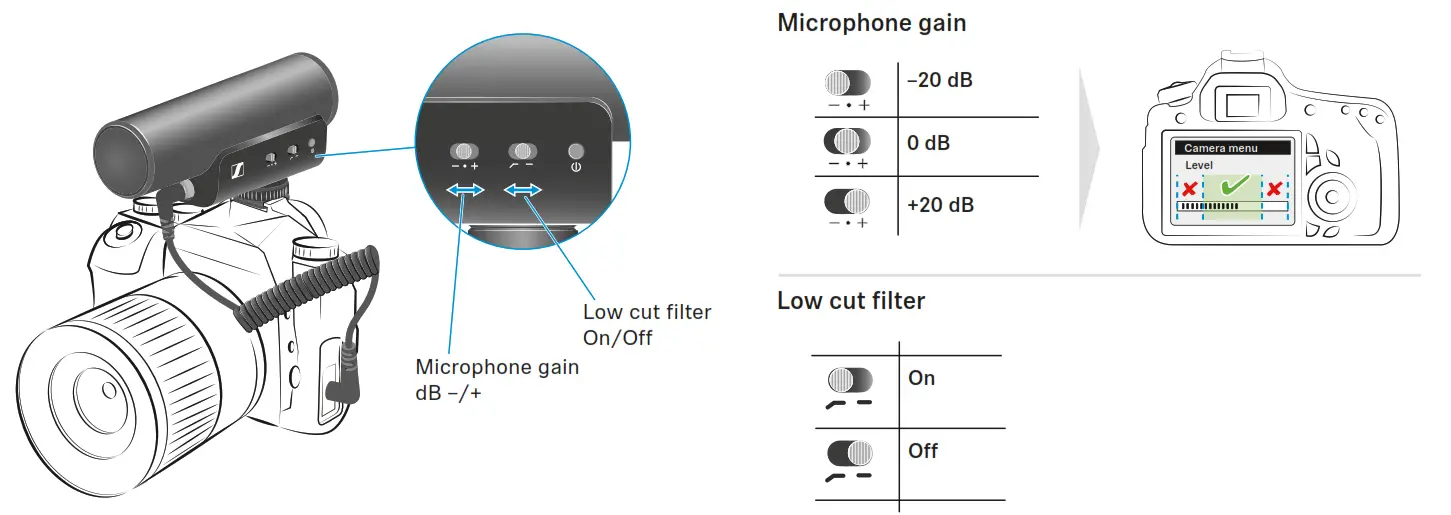

Low cut / Microphone gain
Specifications
Microphone
| Transducer principle | pre-polarized condenser |
| Pick-up pattern | super cardioid |
| Frequency response | 50 to 20,000 Hz |
| Sensitivity at 1 kHz | -23 / -42 / -63 dB V/Pa |
| Max. SPL at 1 kHz | 132 dB SPL |
| Power supply | battery (2x AAA / LR03 size, 1.5 V) |
| Auto power function | plug-in power required (2 – 10 V) |
| Operating time | >100 h* |
| Low battery indicator | >3 h of remaining operating time |
| Microphone output | 3.5 mm jack, screwable |
| Dimensions | 126 x 67 x 37 mm |
| Weight | 93.5 g |
* less when headphone is connected
Headphone output
| Headphone output | 3.5 mm jack |
| Min. headphone impedance | 16 Ω |
| Output power at 1 kHz | 105 mW (Headphone impedance 16 Ω ) 70 mW (Headphone impedance 32 Ω) |
| Total harmonic distortion | <1% at 50 mW |
| Digital volume control | 8 steps á 6 dB |

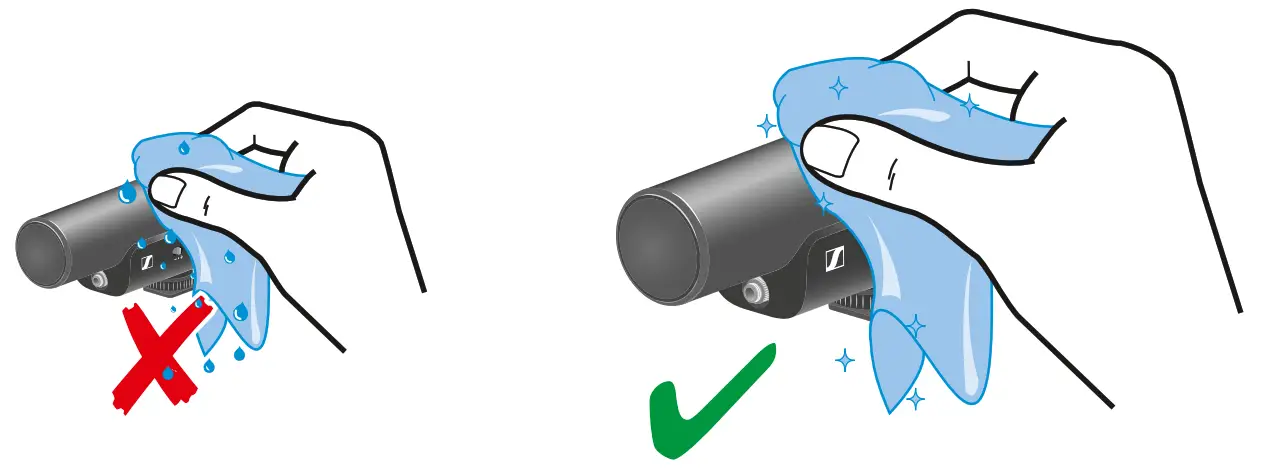

Cleaning
Headphone
Accessory
Smartphone

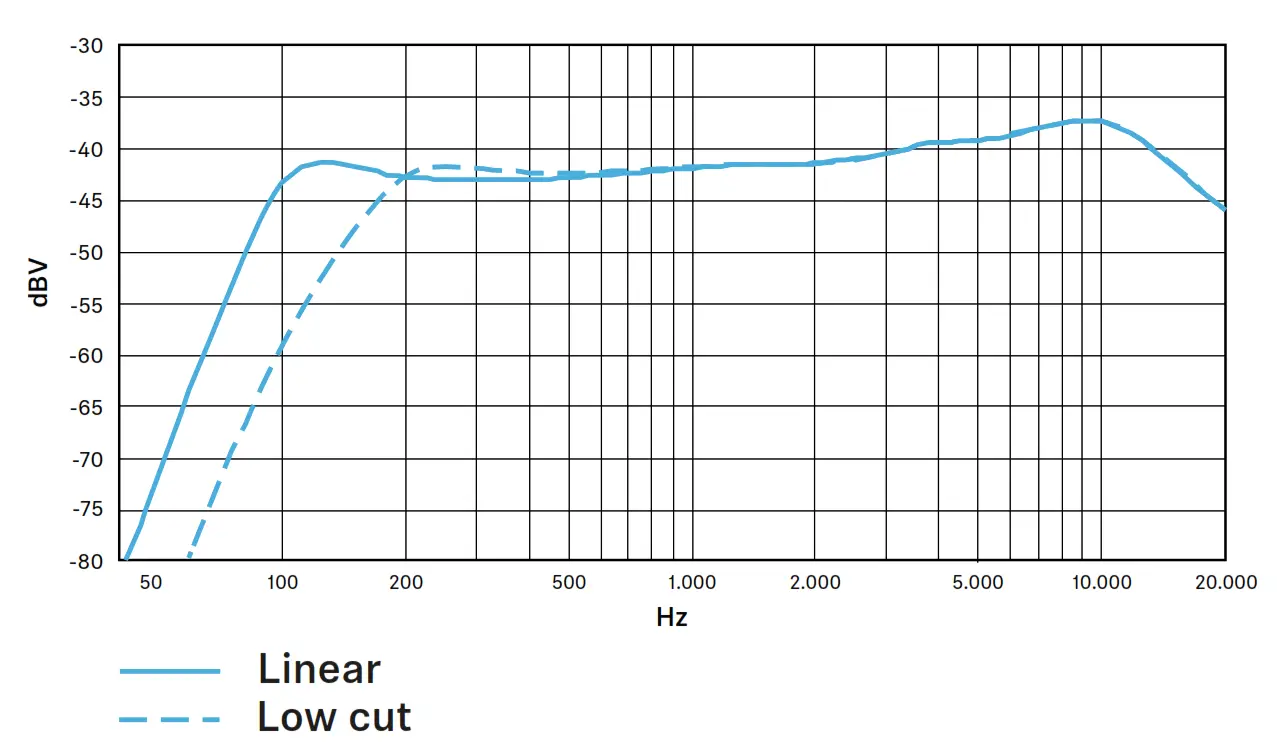

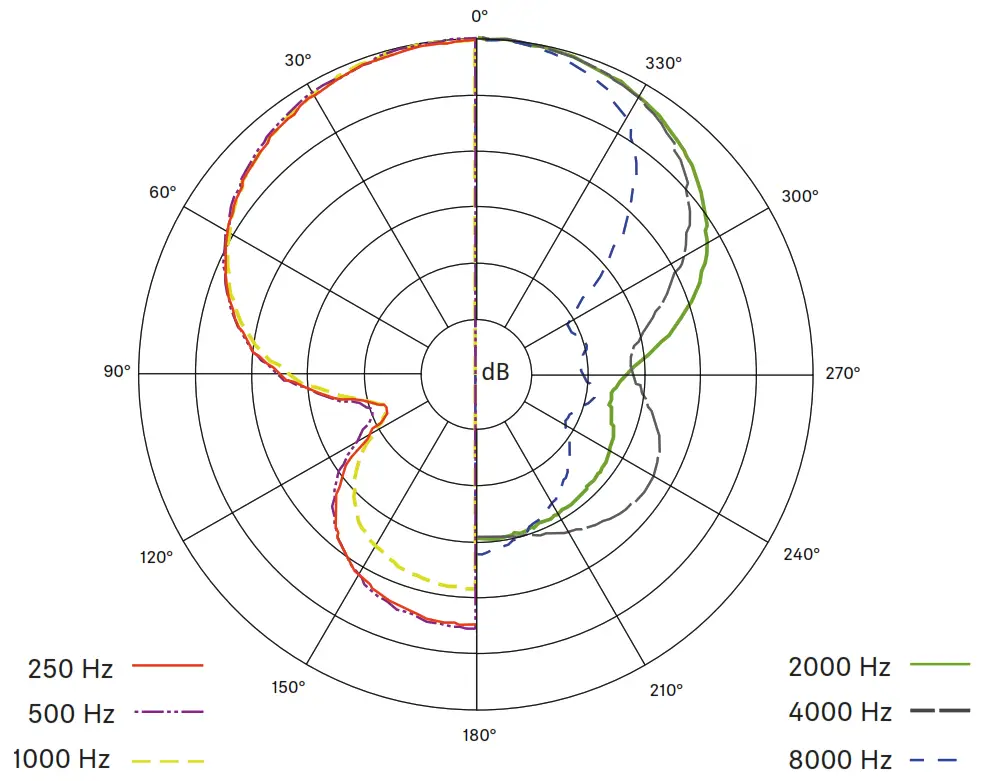

Polar pattern / Frequency response
