Sharkoon Tg7m Rgb Slider Atx Pc Case Instruction Manual (+ PDF)

Front Panel: 3x 120 mm Addressable RGB LED PWM Fan (Pre-Installed) or Radiator* (Optional)
Rear Panel: 1x 120 mm Addressable RGB LED PWM Fan (Pre-Installed)
Top Panel: 3x 120 mm or 2x 140 mm Fan or Radiator* (Optional)

Compatibility:

Mainboard: Mini-ITX, Micro-ATX, ATX, E-ATX
Max. Length Graphics Cards: 38.0 cm
Max. Height CPU Cooler: 17.2 cm
Max. Length Power Supply: 22.0 cm
Height of Radiator incl. Fan
Front: Max. 6.0 cm
Top: 5.0 cm – 20.0 cm**

Package Contents:

TG7M RGB,
Accessory Set, Manual

* 360 mm radiator installation can be either on top or front panel
** Depending on mainboard size and height of RAM

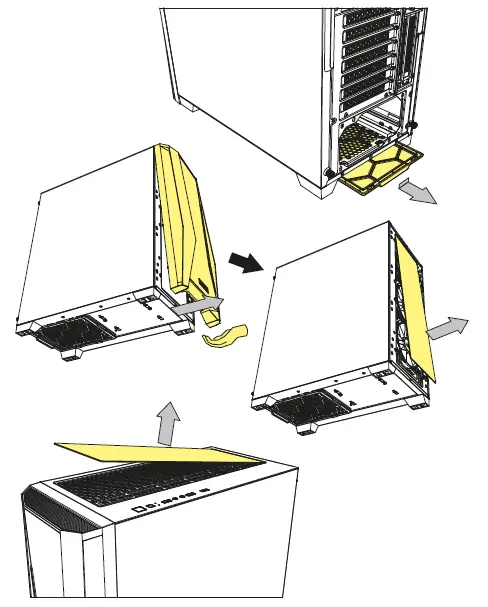

Dust Filters

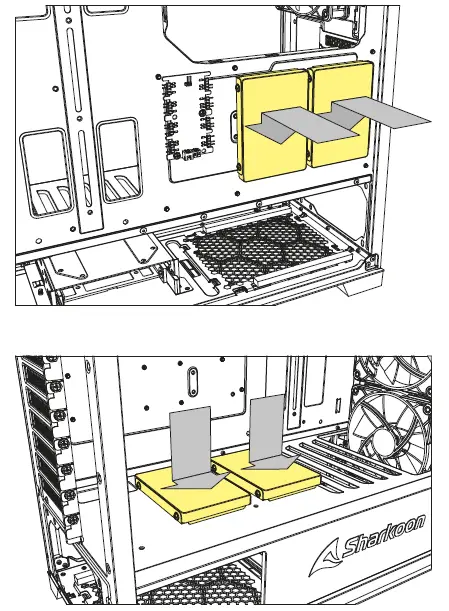

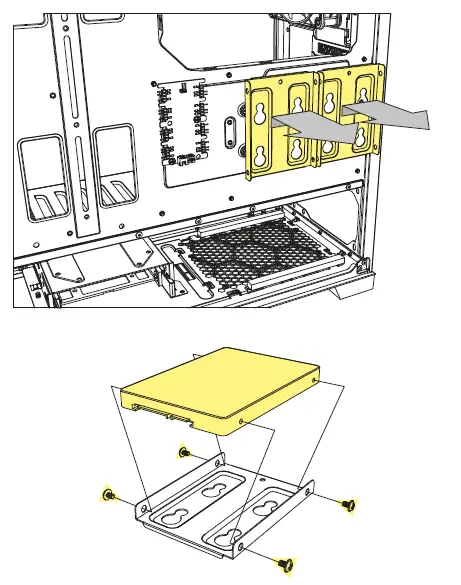

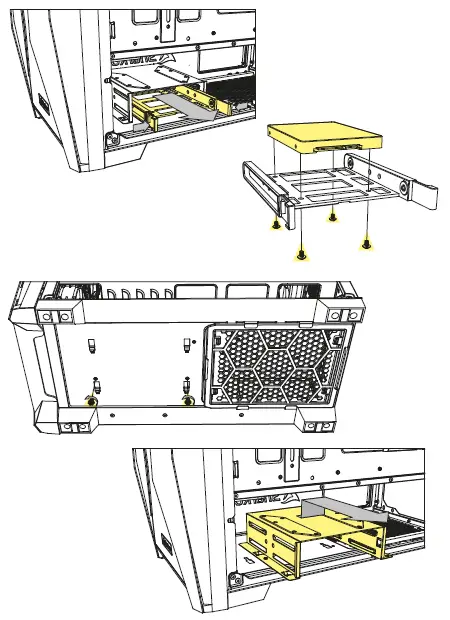

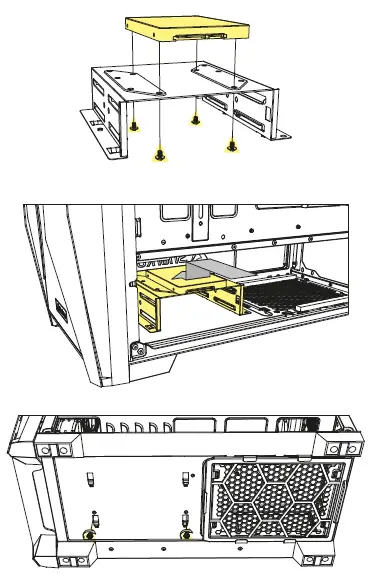

2.5″ HDD/SSD Installation

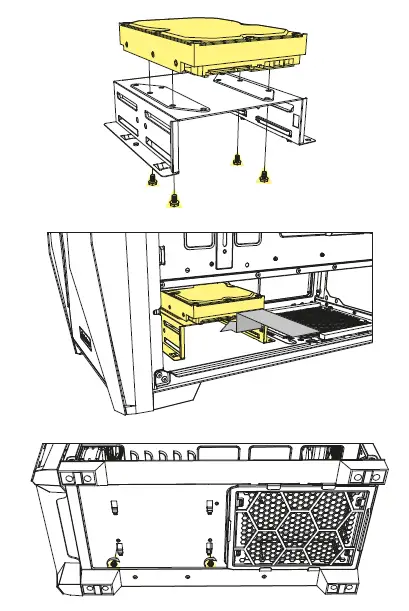

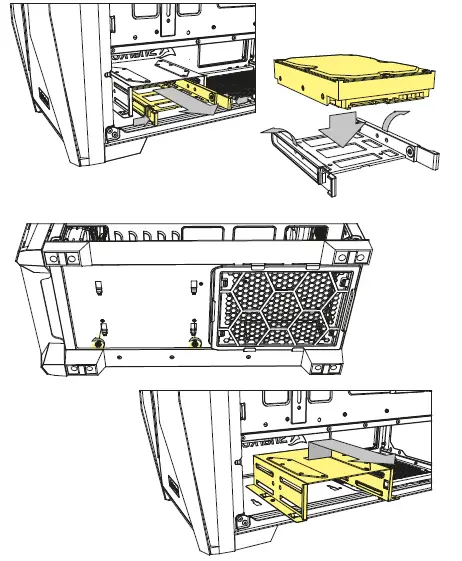

3.5″ HDD Installation

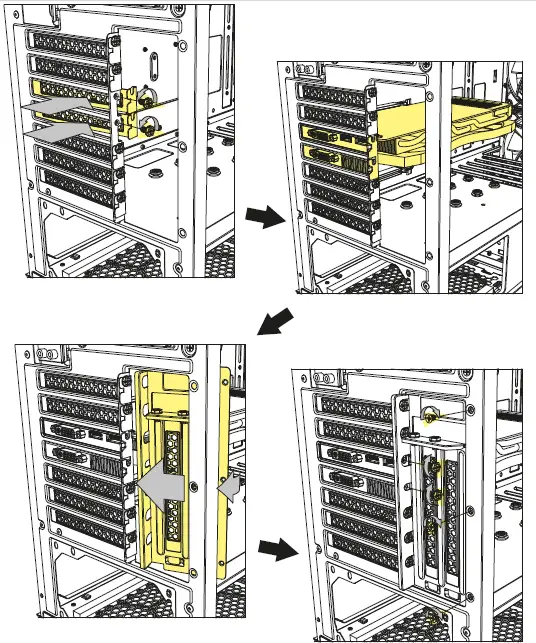

Add-On Cards Installation

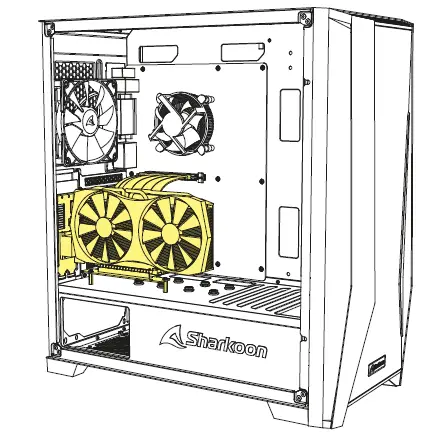

Optional Vertical Graphics Card Kit

Please check with your local dealer to purchase this kit, if needed.

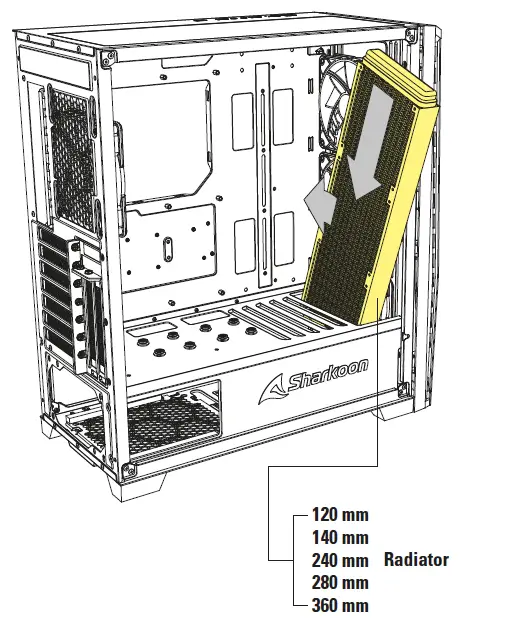

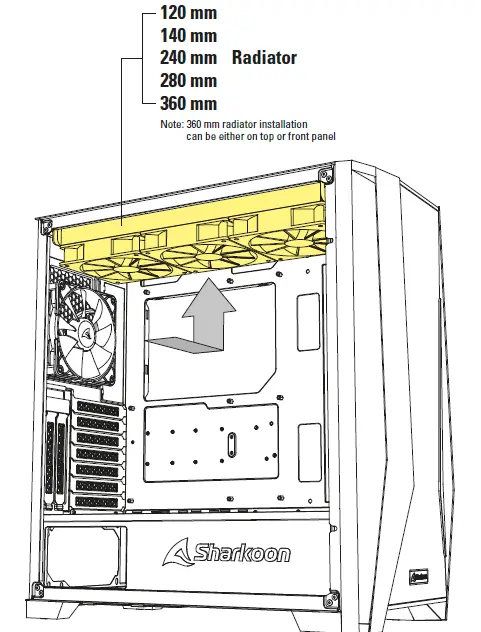

Front Panel Radiator Installation

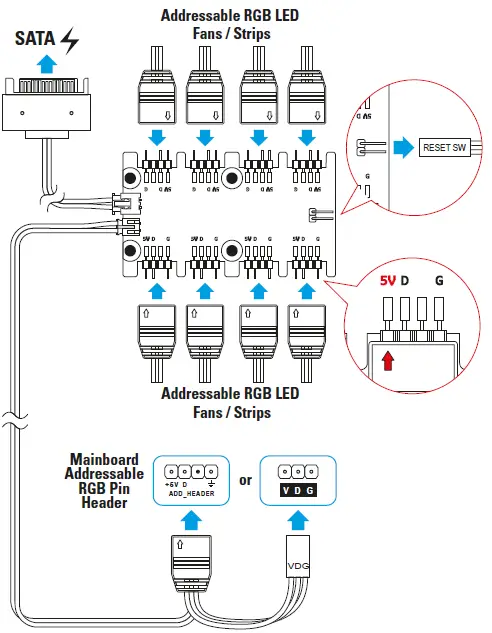

Addressable RGB Control Through Mainboard

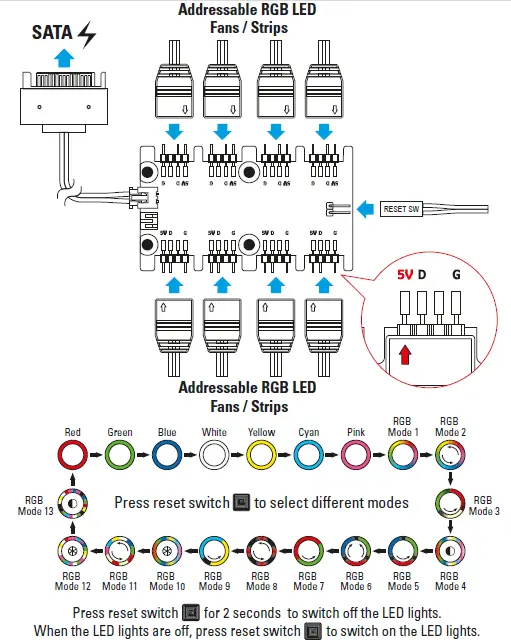

Manual Addressable RGB Control

Note

Legal Disclaimer
For potential loss of data, especially due to inappropriate handling, Sharkoon assumes no
liability. All named products and descriptions are trademarks and/or registered trademarks of
the respective manufacturers and are accepted as protected. As a continuing policy of product
improvement at Sharkoon, the design and specifications are subject to change without prior
notice. National product specifications may vary. All rights reserved, especially (also in
extracts) for translation, reprinting, reproduction by copying or other technical means.
Infringements will lead to compensation. All rights reserved especially in case of assignation of
patent or utility patent. Means of delivery and technical modifications reserved.

Disposal of your old products

Your product is designed and manufactured with high quality materials and components, which
can be recycled and reused.

When this crossed-out wheeled bin symbol is attached to a product, it means the
product is covered by the European Directive 2012/19/EU.
Please be informed about the local separate collection system for electrical and
electronic products. Please act according to your local rules and do not dispose of your old
products with your normal household waste. The correct disposal of your old product will help
prevent potential negative consequences to the environment and human health.
