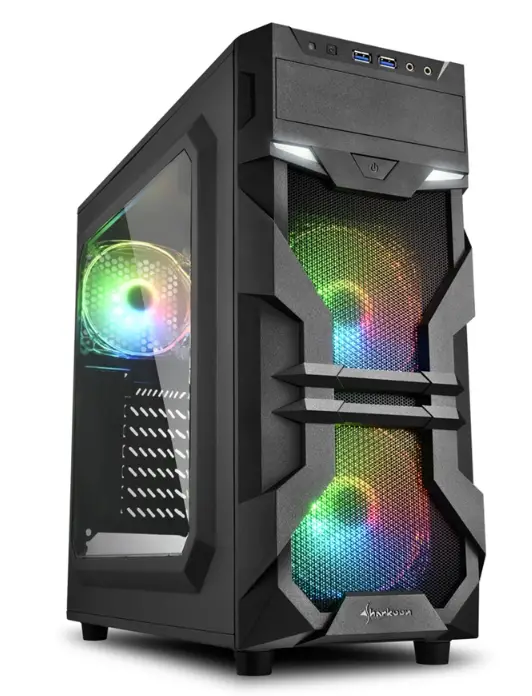

Sharkoon VG7 Green PC Case
Specifications
| General: | Red/ Green/ Blue | RGB |
| n Form Factor | ATX | ATX |
| n Expansion Slots | 6 | 6 |
| n Interior Painting | ü | ü |
| n Cable Management System | ü | ü |
| n Side Panel | Acrylic | Acrylic |
| n Chassis Color | Black | Black |
| n Dimensions (L x W x H) | 45.9 x 20.0 x 43.0 cm | 45.9 x 20.0 x 43.0 cm |
| I/O: | ||
| n USB 3.0 (Front) | 2 | 2 |
| n Audio (Front) | ü | ü |
| Max. Drive Bays: | ||
| n 5.25″ | 1 | 1 |
| n 3.5″ | 3 | 3 |
| n 2.5″ | 4 | 4 |
| Fan Configuration: | ||
| n Front Panel | 2x 120 mm LED Fans | 2x 120 mm Addressable RGB LED Fans |
| n Rear Panel | 1x 120 mm LED Fan | 1x 120 mm Addressable RGB LED Fan |
| Compatibility: | ||
| n Mainboard | Mini-ITX, Micro-ATX, ATX | Mini-ITX, Micro-ATX, ATX |
| n Max. Length Graphics Cards | 37.5 cm | 37.5 cm |
| n Max. Height CPU Cooler | 16.5 cm | 16.5 cm |
| n Max. Length Power Supply | 26.5 cm | 26.5 cm |
| Package Contents: | VG7-W, Accessory Set, Manual, Addressable RGB Hub (RGB Version) |

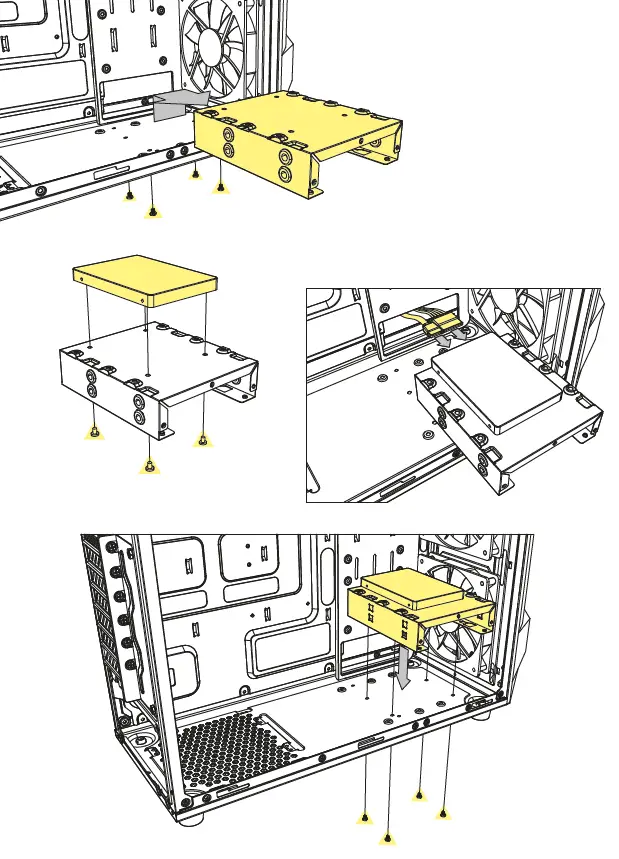

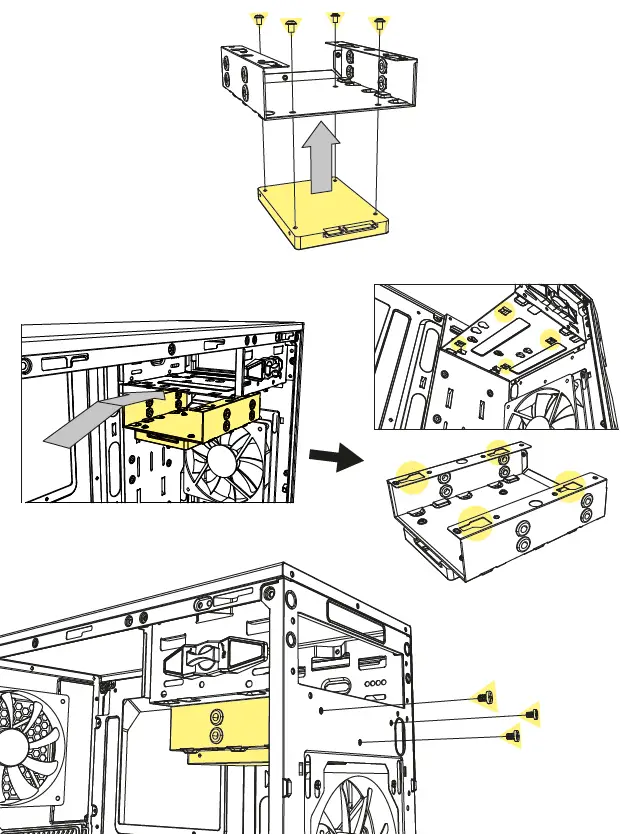

2.5″ HDD/SSD Installation

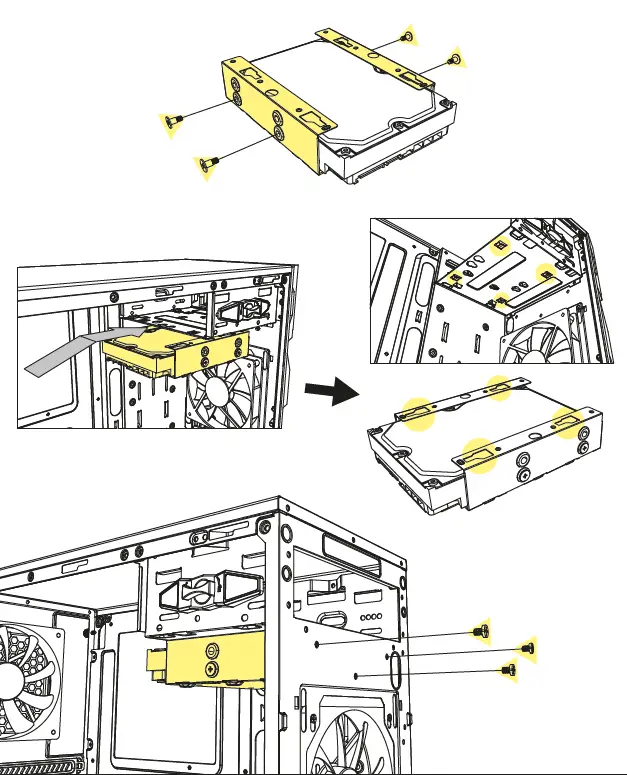

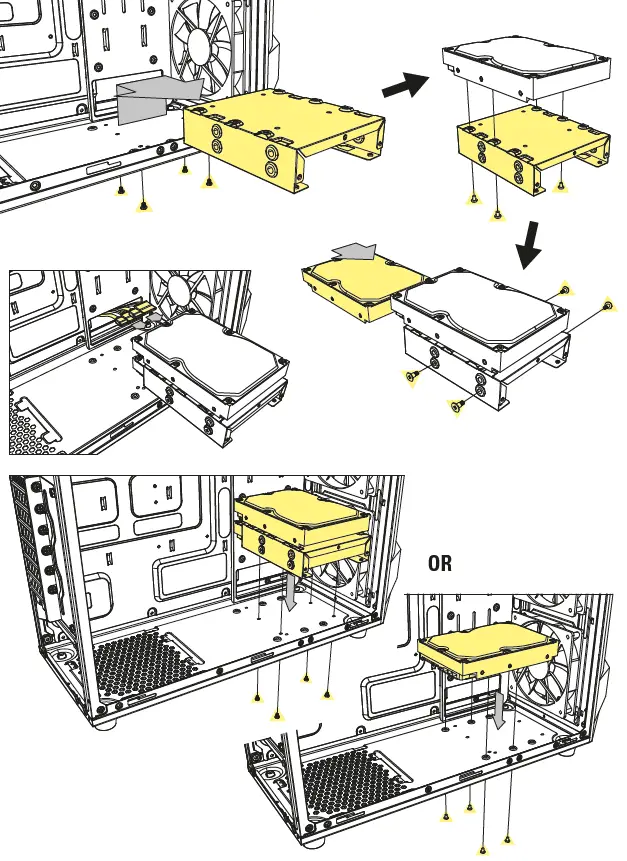

3.5″ HDD Installation

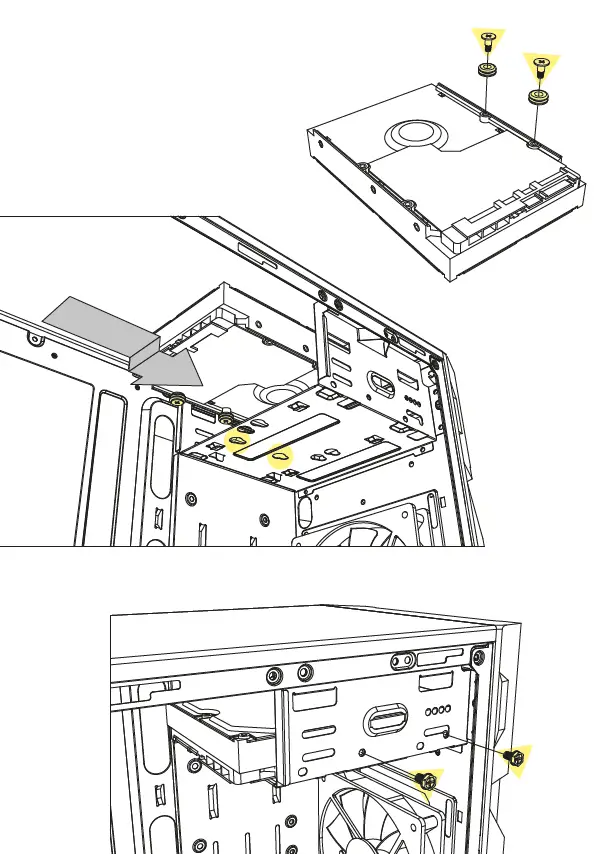

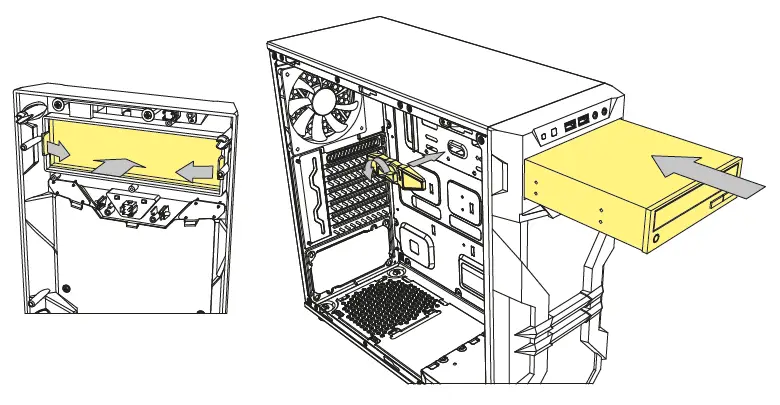

5.25″ Device Installation

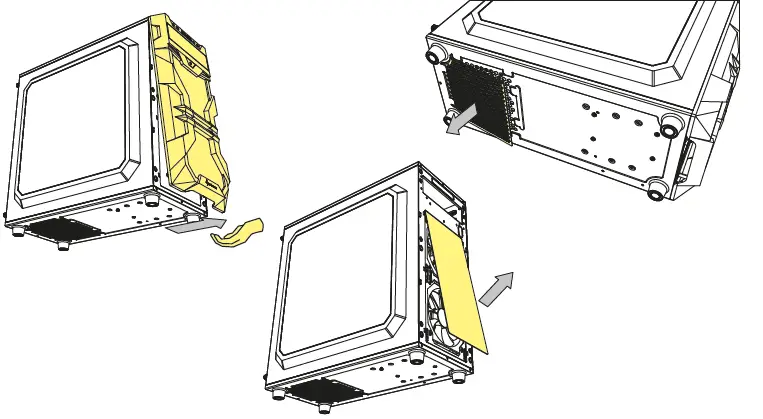

Detachable Dust Filter

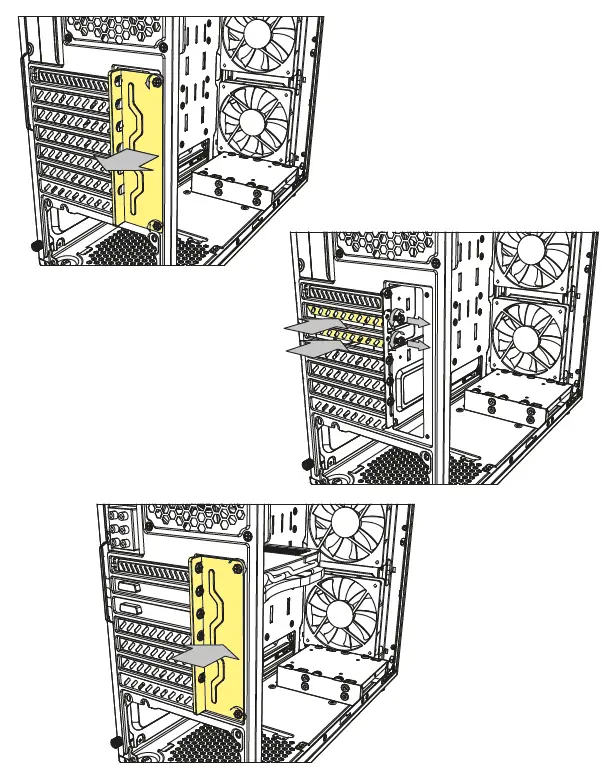

Add-On Cards Installation
Additional Information
Legal Disclaimer
For potential loss of data, especially due to inappropriate handling, Sharkoon assumes no liability.
All named products and descriptions are trademarks and/or registered trademarks of the respective manufacturers and are accepted as protected. As a continuing policy of product improvement at Sharkoon, the design and specifications are subject to change without prior notice. National product specifications may vary. All rights reserved especially (also in extracts) for translation, reprinting, reproduction by copying or other technical means. Infringements will lead to compensation. All rights reserved especially in case of assignation of patent or utility patent. Means of delivery and technical modifications reserved.
Disposal of your old products
Your product is designed and manufactured with high-quality materials and components, which can be recycled and reused.
When this crossed-out wheeled bin symbol is attached to a product, it means the product is covered by the European Directive 2012/19/EU. Please be informed about the local separate collection system for electrical and electronic products. Please act according to your local rules and do not dispose of your old products with your normal household waste. The correct disposal of your old product will help prevent potential negative consequences to the environment and human health.
