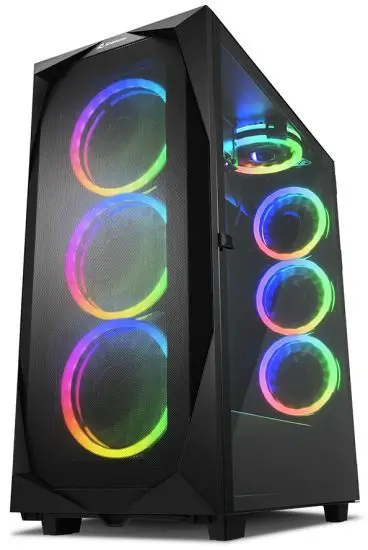

Sharkoon REV300 AT PC Case User Guide
Specifications
General:
- Form Factor: ATX, E-ATX
- Expansion Slots: 8
- Interior Painting: √
- Cable Management System: √
- Side Panel: Tempered Glass with Hinge
- Dimensions (L x W x H): 50.1 x 23.8 x 55.0 cm
RGB Compatibility:
- Type: Addressable
- Ports: 8
- Manual Control: 20 Modes
- RGB Pinout: 5V-D-G & 5V-D-coded-G
I/O:
- Type-C (USB 3.2 Gen 2) (Top): 1
- USB 3.0 (Top): 2
- USB 2.0 (Top): 2
- Audio (Top): √
Max. Drive Bays:
- 3.5″: 4
- 2.5″: 5
Fan Configuration:
- Front Panel: 3x 140 mm Addressable RGB LED PWM Fans (Pre-Installed) or Radiator (Optional)
- Rear Panel: 3x 120 mm Addressable RGB LED PWM Fans (Pre-Installed) or Radiator (Optional)
- Top Panel: 1x 120 mm Addressable RGB LED PWM Fan (Pre-Installed)
Compatibility:
- Mainboard: Mini-ITX, Micro-ATX, ATX, E-ATX
- Max. Length Graphics Cards: 34.5 / 33.3 cm*
- Max. Height CPU Cooler: 17.7 cm
- Max. Length Power Supply: 27.0 cm
- Max. Height Radiator incl. Fan (Front): 7.4 cm / 5.7 cm**
- Max. Height Radiator incl. Fan (Rear): 6.5 cm
Package Contents:
REV300, Accessory Set, Manual
Using the optional Angled Graphics Card Kit
Using a 420 mm radiator

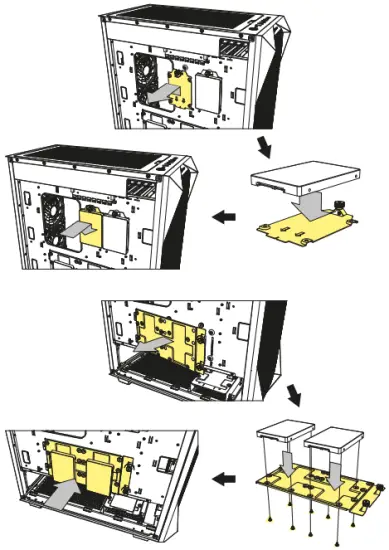

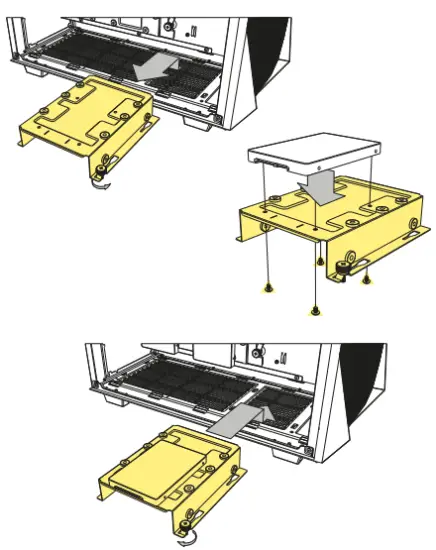

2.5″ HDD/SSD Installation

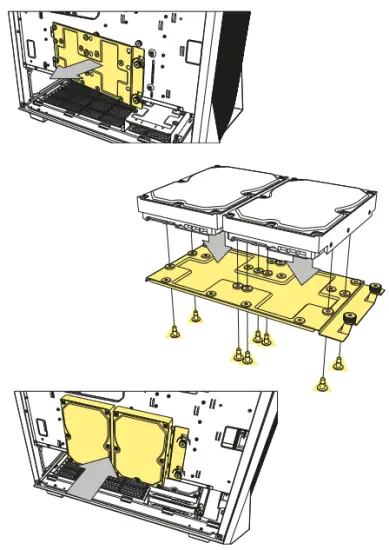

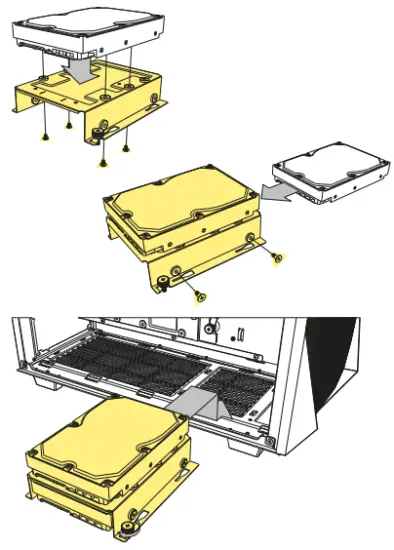

3.5″ HDD Installation

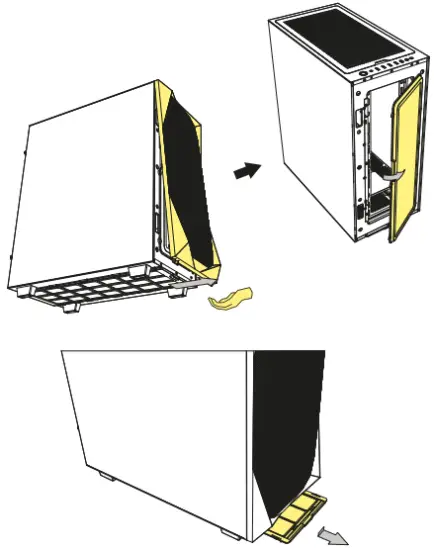

Detachable Dust Filters

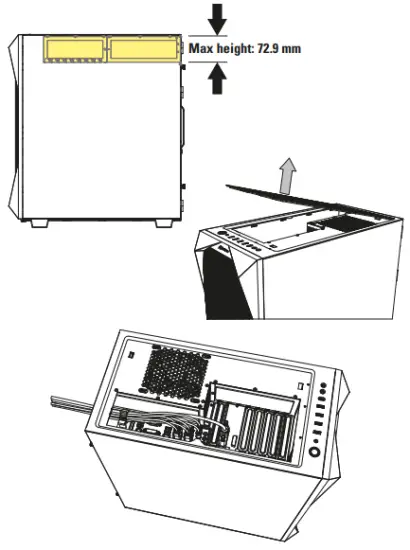

Cable Compartment

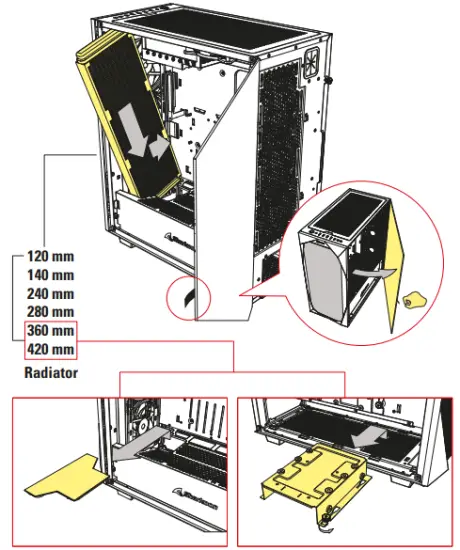

Front Panel Radiator Installation

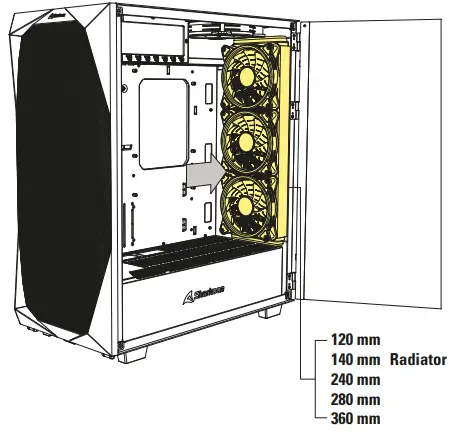

Rear Panel Radiator Installation

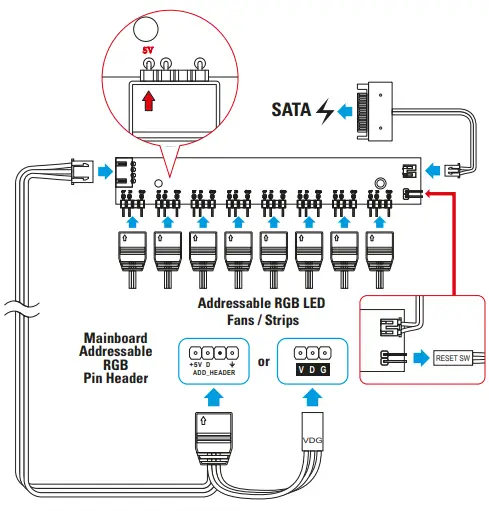

Addressable RGB Control Through Mainboard

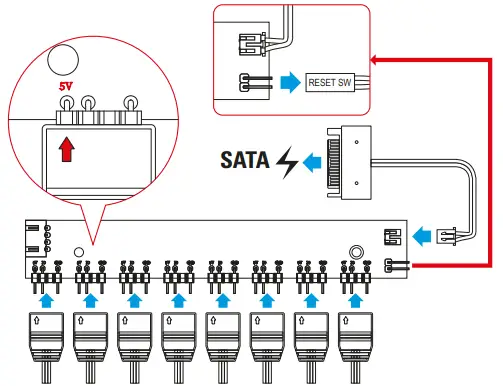

Manual Addressable RGB Control

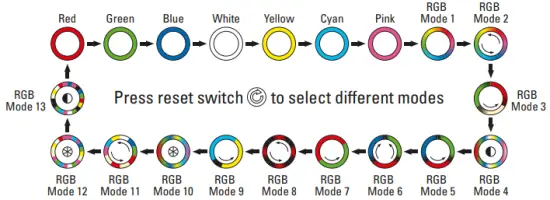

Addressable RGB LED Fans / Strips
Press reset switch
for 2 seconds to switch off the LED lights.
When the LED lights are off, press reset switch to switch on the LED lights.

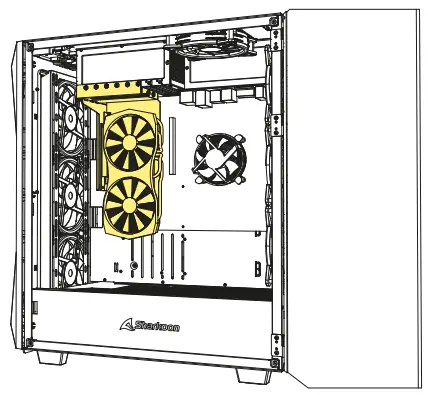

Optional Angled Graphics Card Kit
Please check with your local dealer to purchase this kit, if needed.
