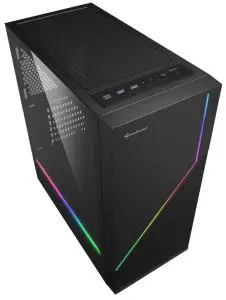

Sharkoon RGB FLOW PC Case User Guide
Specifications
General | RGB FLOW |
Form Factor | ATX |
Expansion Slots | 7 |
Internal Painting |  |
Tool-free Devices Installation | |
Cable Management System | |
Side Panel | Tempered Glass |
Dimensions (L x W x H) | 42.4 x 20.6 x 48.1 cm |
RGB Compatibility | |
Type | Addressable |
Port | 4-Port |
Manual Control | 14 Modes |
RGB Pinout | 5V-D-G & 5V-D-coded-G |
I/O | |
USB 3.0 (Top) | 2 |
USB 2.0 (Top) | 1 |
Audio (Top) | |
Max. Drive Bays | |
3.5″ | 2 |
2.5″ | 6 |
Fan Configuration | |
Front Panel | 1x 120 mm Fan (Pre-Installed), 2x 120 mm Fan or Radiator (Optional) |
Rear Panel | 1x 120 mm Fan (Optional) |
Top Panel | 2x 120 mm Fan or 2x 140 mm Fan or Radiator (Optional) |
Compatibility | |
Mainboard | Mini-ITX, Micro-ATX, ATX |
Max. Length Graphics Cards | 35.0 cm |
Max. Height CPU Cooler | 16.5 cm |
Max. Length Power Supply | 21.5 cm |
Max. Height Radiator incl. Fan (Front) | 6.4 cm |
Max. Height Radiator incl. Fan (Top) | 5.5 cm |
Package Contents | |
| RGB FLOW, Accessory Set, Manual | – |

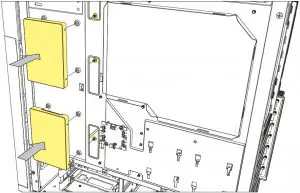

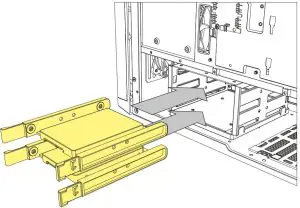

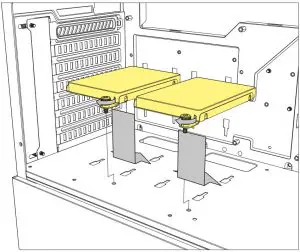

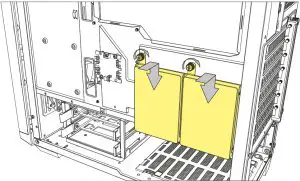

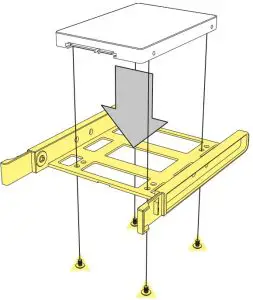

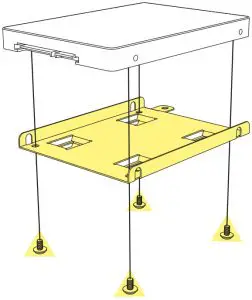

2.5″ HDD/SSD Installation
OR

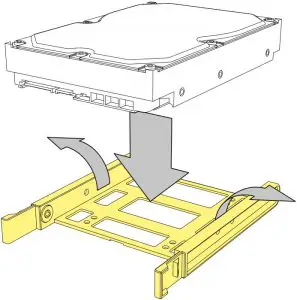

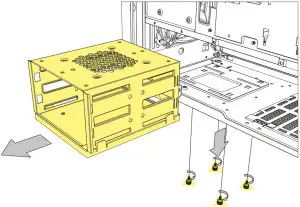

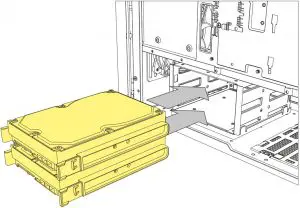

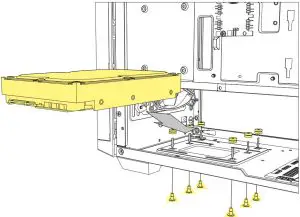

3.5″ HDD Installation

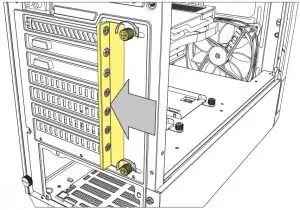

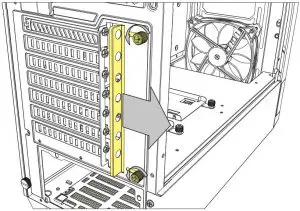

Add-On Cards Installation

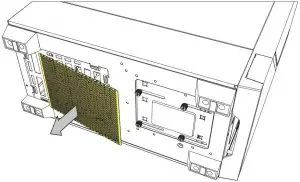

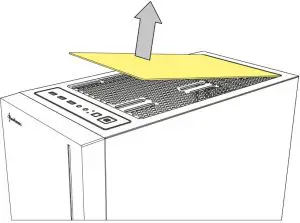

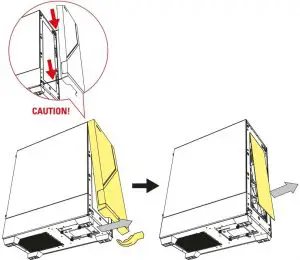

Detachable Dust Filters

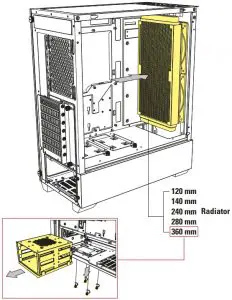

Front Panel Radiator Installation

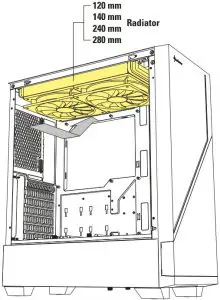

Top Panel Radiator Installation

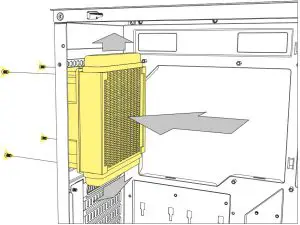

Rear Panel Radiator Installation
120 mm Radiator

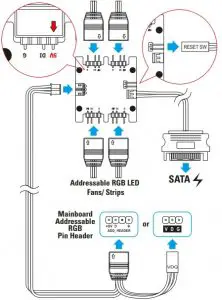

Mainboard Addressable RGB Control

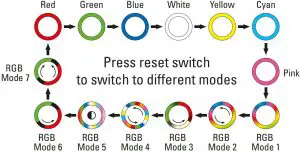

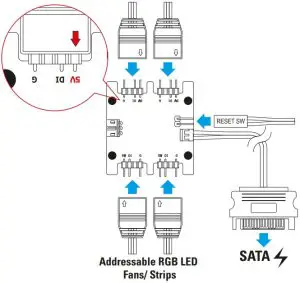

Manual Addressable RGB Control
Press reset switch for 2 seconds to switch off the LED lights. When the LED lights are off, press reset switch to switch on the LED lights.
Additional Information
Legal Disclaimer
For potential loss of data, especially due to inappropriate handling, SHARKOON assumes no liability. All named products and descriptions are trademarks and/or registered trademarks of the respective manufacturers and are accepted as protected. As a continuing policy of product improvement at SHARKOON, the design and specifications are subject to change without prior notice. National product specifications may vary. All rights reserved especially (also in extracts) for translation, reprinting, reproduction by copying or other technical means. Infringements will lead to compensation. All rights reserved especially in case of assignation of patent or utility patent. Means of delivery and technical modifications reserved.
Disposal of your old products
Your product is designed and manufactured with high quality materials and components, which can be recycled and reused.
When this crossed-out wheeled bin symbol is attached to a product, it means the product is covered by the European Directive 2012/19/EU. Please be informed about the local separate collection system for electrical and electronic products. Please act according to your local rules and do not dispose of your old products with your normal household waste. The correct disposal of your old product will help prevent potential negative consequences to the environment and human health.
