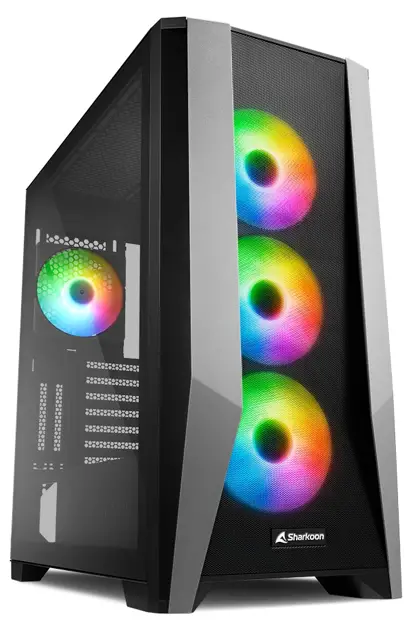

TG7M RGB
TG7M-RGB Slider Case
The TG7M RGB is a true all-rounder that meets almost any requirement:To enable the best possible cooling performance, the case has four pre-installed 120 mm RGB PWM fans and the option of installing a radiator up to 360 mm in length. This can be placed behind the mesh front panel or under the top panel. There is also the possibility of installing graphics cards vertically using an optional kit and connecting devices using a USB Type-C port.
Features
AMAZING COOLING OPTIONS
Four PWM fans with RGB effects and 120 mm in size are already pre- installed. Under the top panel, three more 120 mm fans can be installed or, alternatively, two fans measuring 140 mm.
LOOK OF ELEGANCE

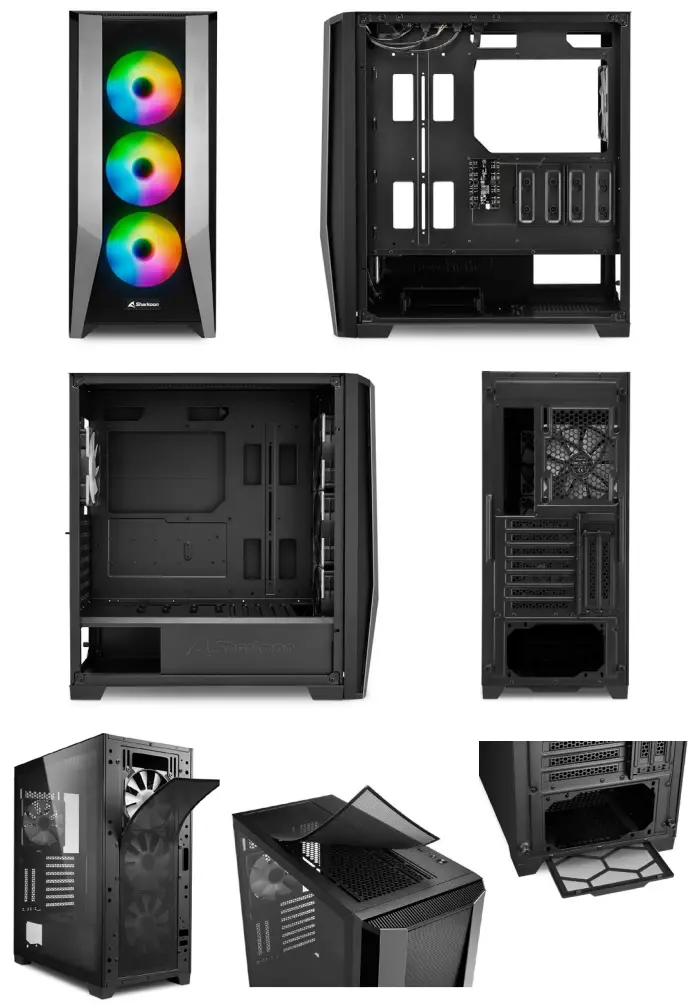

With its classically formed contours, the TG7M will always cut a fine figure. The mesh front panel is framed on its left and right by a metal trim, giving the case its elegant finish. Because the screws for the tempered glass side panel are positioned on the rear of the case, the TG7M RGB is able to make a particularly flawless appearance.
ADDITIVE COOLNESS
In addition to the fans, a radiator with a length of up to 360 mm can be installed under the top panel or behind the mesh front panel to provide for ample water cooling. Depending on the size of the mainboard and the height of the RAM, the radiator and the fans under the top panel can have a height from 5 cm to 20 cm.
HUGE AMOUNT FOR ROOM FOR HARDWARE
The spacious interior of the TG7M RGB offers plenty of space for large components. A power supply unit with a length of up to 22 cm can easily be installed on the bottom panel at the rear of the case. There is also space for a graphics card of up to 38 cm. This can also be mounted vertically with the help of the optional Vertical Graphics Card Kit.
A LOT TO SEE
Thanks to a window on the bottom left of the case, the power supply unit will stay in view. Moreover, the whole of the tempered glass side panel itself offers a wide view of the interior of the case. Above all, RGB lit components will come into their own.
Specifications
| Product Name | TG7M RGB |
| Form Factor | ATX, E-ATX |
| Expansion Slots | 7 |
| Interior Painting | √ |
| Tool-Free Devices Installation | √ |
| Cable Management System | √ |
| Side Panel | Tempered Glass |
| Weight | 7.8 kg |
| Dimensions (L x W x H) | 48.5 x 22.0 x 48.8 cm |
| RGB Compatibility | |
| Type | Addressable |
| Ports | 8 |
| Manual Control | 20 Modes |
| Mainboard Compatibility | MSI Mystic Light Sync, ASUS Aura Sync, Gigabyte RGB Fusion Ready, ASRock Polychrome Sync |
| RGB Pinout | 5V-D-G & 5V-D-coded-G |
| Max. Drive Bays | |
| 2 x 3.5“ | 4 x 2.5“ | |
| I/O | |
| Type-C (USB 3.2 Gen 2) (Top): 1 | USB 3.0 (Top): 2 | Audio (Top): √ | |
Fan Configuration
| Front Panel | 3x 120 mm Addressable RGB LED PWM Fan (Pre-Installed) or Radiator* (Optional) |
| Rear Panel | 1x 120 mm Addressable RGB LED PWM Fan (Pre-Installed) |
| Top Panel | 3x 120 mm or 2x 140 mm Fan or Radiator* (Optional) |
Compatibility
| Mainboard | Mini-ITX, Micro-ATX, ATX, EATX |
| Max. Length Graphics Cards | 38.0 cm |
| Max. Height CPU Cooler | 17.2 cm |
| Max. Length Power Supply | 22.0 cm |
| Height of Radiator incl. Fan | Front: Max. 6.0 cm Top: 5.0 cm – 20.0 cm** |
| Radiators (Optional) | Up to 360 mm (Front Panel)* Up to 360 mm (Top Panel)* |
Package Contents
TG7M RGB, Accessory Set, Manual
EAN Code
| TG7M RGB | 4.04495E+12 |
* 360 mm radiator installation can be either on top or front panel
** Depending on mainboard size and height of RAM
