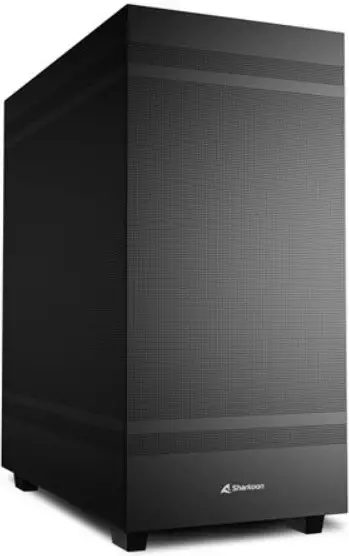

Sharkoon Rebel C50 Atx Pc Case User Manual (+ PDF)

Front Panel: Rebel C50 RGB: 3x 120 mm Addressable RGB LED PWM Fan (Pre-Installed) or 3x 140 mm Fan (Optional) Rebel C50: 1x 120 mm PWM Fan (Pre-Installed) + 2x 120 mm Fan (Optional) or 3x 140 mm Fan (Optional)
Rear Panel: Rebel C50 RGB:1x 120 mm Addressable RGB LED PWM Fan (Pre-Installed) Rebel C50: 1x 120 mm PWM Fan (Pre-Installed)
Top Panel: 3x 120 mm or 2x 140 mm Fan (Optional) or Radiator (Optional)
Side Panel: *4x 120 mm Fan (Optional) or Radiator (Optional)

Compatibility:

Mainboard: Mini-ITX, Micro-ATX, ATX
Max. Length Graphics Cards: 40.0 cm
Max. Height CPU Cooler:
Rebel C50 RGB: 16.5 cm
Rebel C50: 16.8 cm
Max. Length PSU: 27.0 cm
Height of Radiator incl. Fan Top: 6.0 cm

Package Contents:

Rebel C50/Rebel C50 RGB, Accessory Set, Manual
*1x 120 mm fan has same installation space for 1x HDD

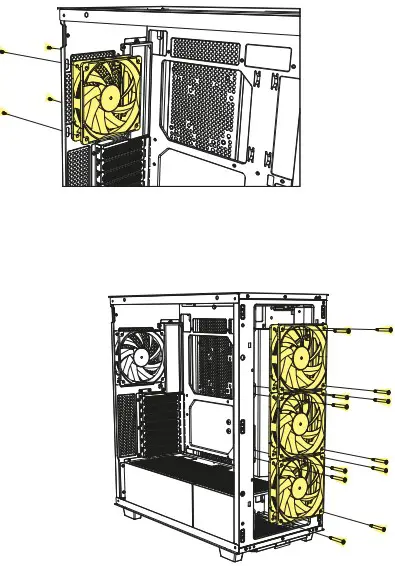

Install Fans

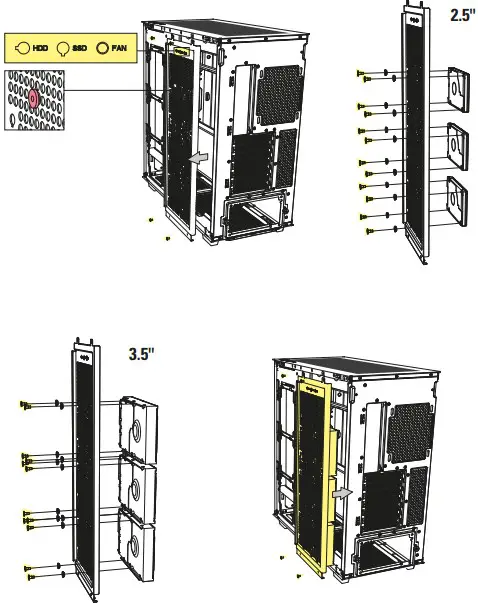

Install HDDs/SSDs

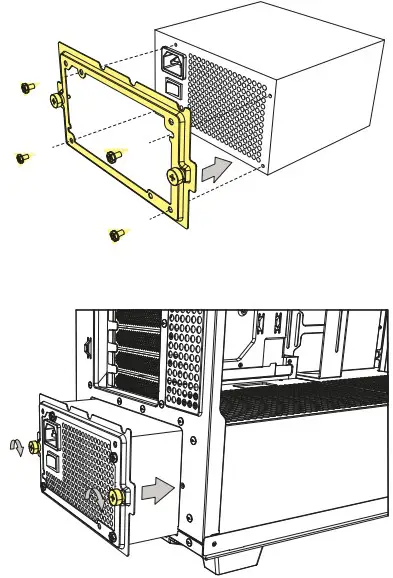

Install PSU

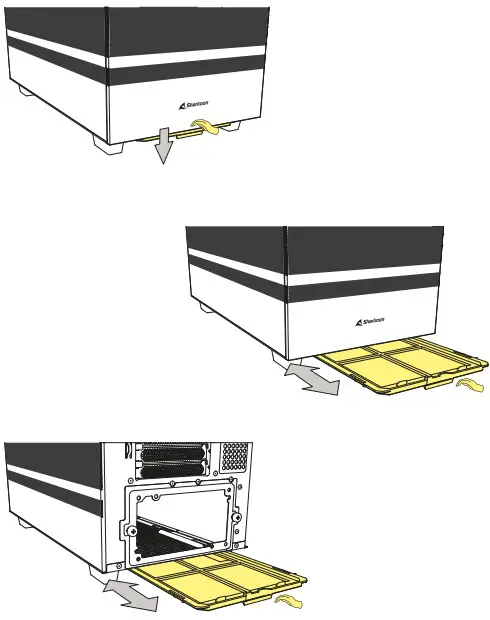

Detachable Dust Filters

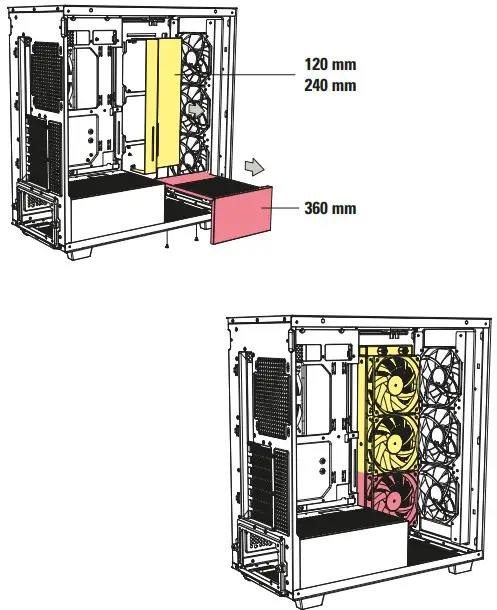

Install Radiator on Side Panel

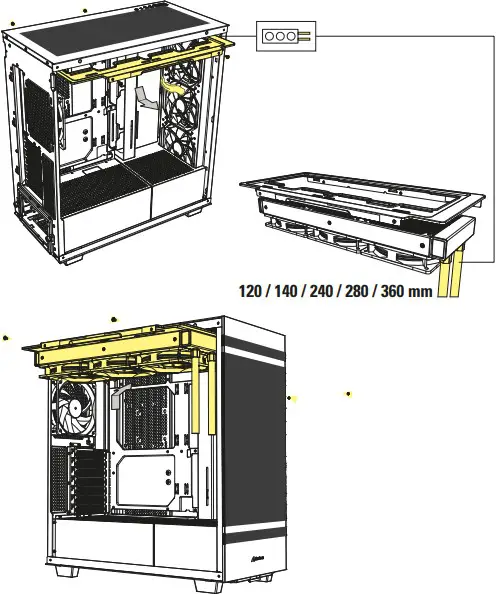

Install Radiator under Top Panel

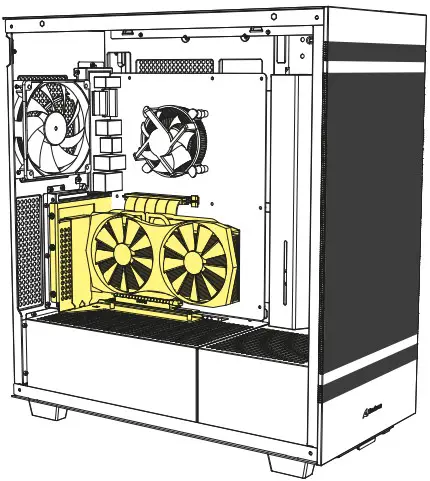

Optional Vertical Graphics Card Kit

Please check with your local dealer to purchase this kit, if needed.

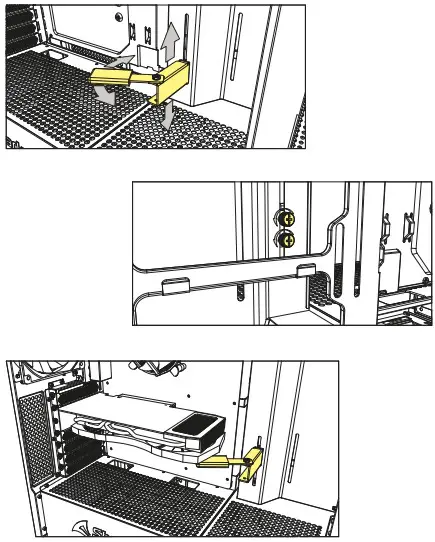

Extra Graphics Card Holder

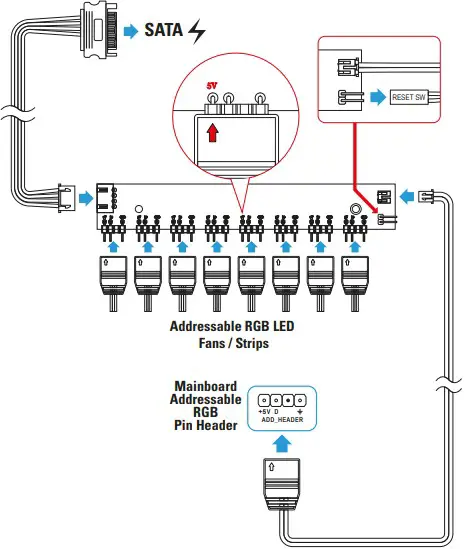

Control Addressable RGB through Mainboard

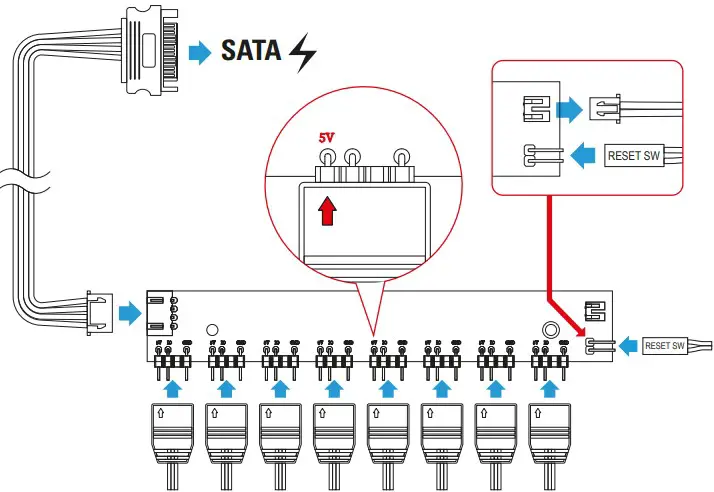

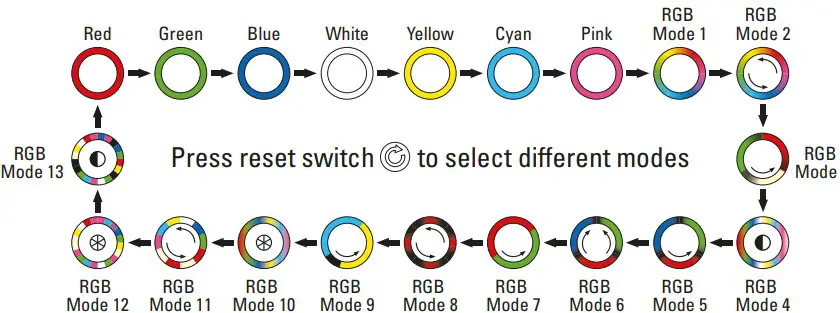

Manually Control Addressable RGB

Addressable RGB LED Fans / Strips

Press reset switch for 2 seconds to switch off the LED lights. When the LED lights are off, press reset switch to switch on the LED lights.
