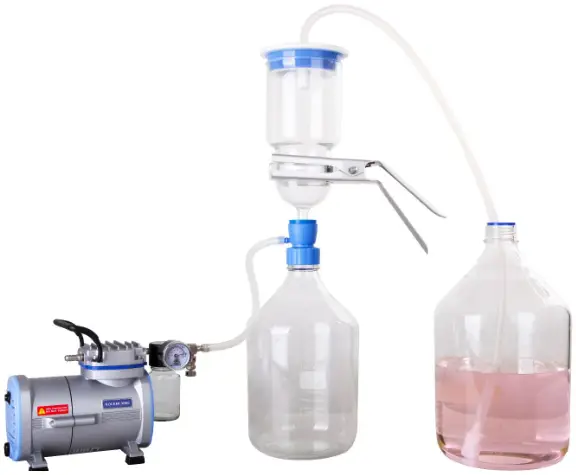

ROCKER Stream Continuous Filtration System User Manual
Features
Continuous Filtration
- Ensure an unceasing process of large capacity solution.
- Anchor design allows the maximum suction to the last bit of liquid.
Effort-Saving & User-Friendly
- No need of transferring or pouring solution manually.
- Completes large volume filtration in one set, no more redundant work.
Chemical Resistance
- Glass and PTFE construction ensures highly chemical resistance.
- Autoclavable components avoid the possibility of contamination.
Applications
- Solvent purification
- Large volume filtration
STREAM
Continuous Filter Holder includes:
- Continuous Filtration Kit
- 300 ml or 1000 ml Filter Holder
- GL45 Filtration Adaptor
Specification
| Model | Stream 3 | Stream 10 |
| Funnel capacity | 300 ml | 1000 ml |
| Filter diameter | 47 mm | 90 mm |
| Effective filtration area | 13.2 cm2 | 45.5 cm2 |
| Hose barb | ID4 ~ ID8 | ID4 ~ ID8 |
| Part | Materia | Materia |
| Continuous filtration kit | PTFE, silicone | PTFE, silicone |
| Funnel | Borosilicate glass | Borosilicate glass |
| Support base | Borosilicate glass | Borosilicate glass |
| Membrane support | Sintered glass | Sintered glass |
| Clamp | Aluminum | Aluminum |
| Filtration adaptor | PP (Autoclavable) | PP (Autoclavable) |

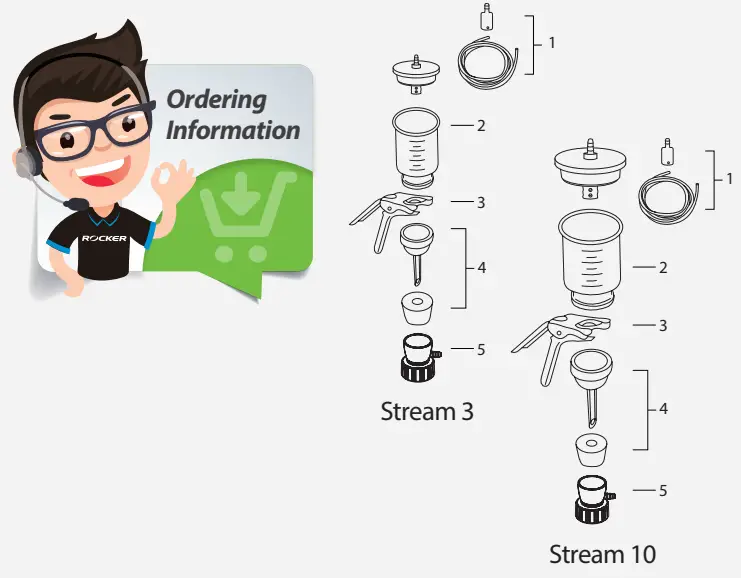

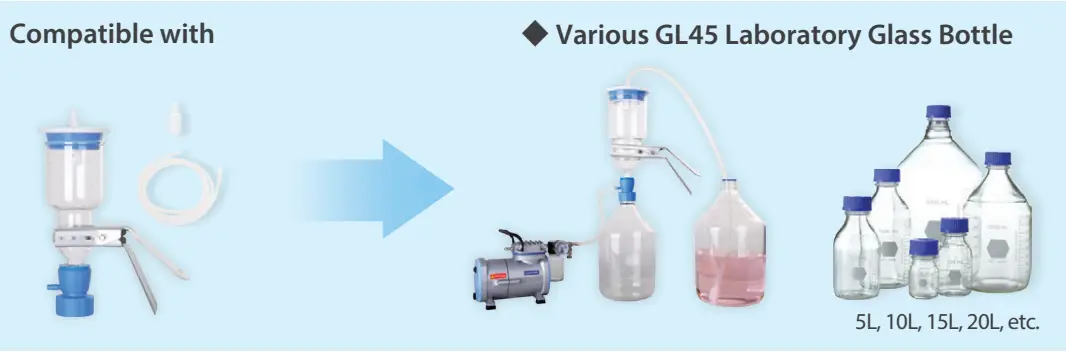

Examples
Stream 3, Continuous Filter Holder (300 ml)/167200-S3
- Continuous filtration kit for 300 ml glass filter holder 167210-36
- Glass funnel, 300 ml 167210-03
- Aluminum clamp, 47 mm 167240-01
- Sintered glass support base, 47 mm (Including No.8 silicone stopper) 167230-03
- GL45 filtration adaptor 197000-65
Stream 10, Continuous Filter Holder (1000 ml)/167200-S10
- Continuous filtration kit for 1000 ml glass filter holder 167210-35
- Glass funnel, 1000 ml 167210-10
- Aluminum clamp, 90 mm 167240-02
- Sintered glass support base, 90 mm (Including No.8 silicone stopper) 167230-11
- GL45 filtration adaptor 197000-65
167300-11(22) Rocker 300, Vacuum Pump, AC110V, 60Hz (AC220V, 50Hz)
167400-11(22) Rocker 400, Vacuum Pump, AC110V, 60Hz (AC220V, 50Hz)
189300-11(22) Rocker 300C, PTFE Coated Chemical Resistant Vacuum Pump, AC110V, 60Hz (AC220V, 50Hz)
189400-11(22) Rocker 400C, PTFE Coated Chemical Resistant Vacuum Pump, AC110V, 60Hz (AC220V, 50Hz)
197000-55 Laboratory Glass Bottle, 5000 ml
