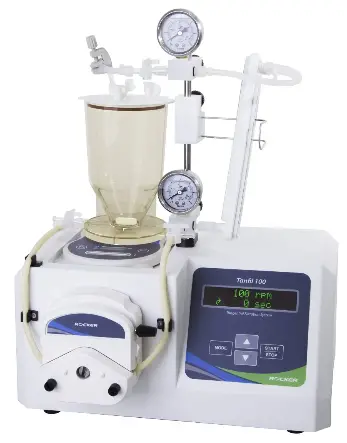

ROCKER Tanfill 100 Flow Filtration System
NEW Life Sciences Tangential Flow Filtration System
Features
- Multi-purpose Tangential flow filtration technique enables concentration and defiltration at same run.
- Less membrane fouling Feed flows parallel to membrane and thus prevents membrane fouling and increases membrane utility.
- Easy scale-up Use same parameters and conditions from trial to mass production.
- Plug & start Integrated with pump, liquid reservoir and pressure gauges. Plug the tube, add samples and start processing.
- International certification CE certification RoHS certification
- One-Year Warranty
Applications
- Concentration and desalting
- Diafiltration and purification
- Buffer exchange and dialysis
Ordering Information
184100-01(02) Tanfil 100, Tangential Flow Filtration System, AC100-240V, 50/60Hz, US plug (EU plug)
Tanfil 100 Specification
| Model | PERFORMANCE DATA |
|---|---|
| Max. inlet pressure | 60 psig |
| Max. gauge pressure | 80 psig |
| Recirculation flow rate | 0~600 mL/min |
| Min. recirculation volume | 7 mL PES Reservoir, 500 mL |
| Noise level | 55 dB |
| Net weight | 7.8 Kg |
| Dimension (LxWxH) | 28 x 33 x 16 cm |
| ELECTRICAL DATA | OTHER DATA |
| Power input | 100-240V |
| Frequency | 50 / 60Hz |
| Max. power | 50W |
| Safety | Motor Overload Protection, Fuse |
| Applicable capsules | |
| Tanfil 100 | |
| * Each unit includes a peristaltic pump, a reservoir, pressure gauges, a magnetic stirrer and tubing. |
Product Usage Instructions
- Make sure the machine is plugged into a power source and switched on.
- Connect the sample tube to the machine’s inlet port.
- Add the desired samples to the liquid reservoir.
- Adjust the recirculation flow rate according to the desired concentration/diafiltration rate.
- Monitor the pressure gauge to ensure that the system is functioning correctly.
- Once the desired concentration/diafiltration is achieved, stop the machine and disconnect the sample tube.
- Clean the machine thoroughly before storing it away.
Tangential Flow Filtration System
Features
Multi-purpose
Tangential flow filtration technique enables concentration and diafiltration at same run.
Less membrane fouling
Feed flows parallel to membrane and thus prevents membrane fouling and increases membrane utility.
Easy scale-up
Use same parameters and conditions from trial to mass production.
Plug & start
Integrated with pump, liquid reservoir and pressure gauges. Plug the tube, add samples and start processing.
International certification
CE certification RoHS certification.
One-Year Warranty
Applications
- Concentration and desalting
- Diafiltration and purification
- Buffer exchange and dialysis
Ordering Information
184100-01(02)
Tanfil 100, Tangential Flow Filtration System, AC100-240V, 50/60Hz, US plug (EU plug)
203100-01
MS 100, Low Profile Magnetic Stirrer with AC100-240V adaptor, US/EU plug
203100-10
PTFE Magnetic Stirring Bar, Ø 3.6 x 25 mm
184100-47
TYGON®, Sani-Tech® Ultra-C Platinum-cured Silicone Tubing, ID 1/8″ x OD 1/4″, 50 ft
184100-48
Pharmed® BPT Tubing, ID 1/8″ x OD 1/4″, 25 ft
Specification
| Model | Tinfoil 100 |
| PERFORMANCE DATA | |
| Max. inlet pressure | 60 psig |
| Max. gauge pressure | 80 sprig |
| Recirculation flow rate | 0~600 mL/min |
| Min. recirculation volume | 7 mL |
| Reservoir | PES Reservoir, 500 mL |
| Noise level | 55 dB |
| Net weight | 7.8 Kg |
| Dimension (LxWxH) | 28 x 33 x 16 cm |
| ELECTRICAL DATA | |
| Power input | 100-240V |
| Frequency | 50 / 60Hz |
| Max. power | 50W |
| Safety | Motor Overload Protection, Fuse |
| OTHER DATA | |
|
Applicable capsules | • Pall, Miniate™ TFF Capsules • Sartorius, Sartocon Slice 50 • Merck, Pellicon® XL 50 Device Contact us for capsule compatibility of others. |
Each unit includes a peristaltic pump, a reservoir, pressure gauges, a magnetic stirrer and tubing.
