Nvent Raychem Jbm-100-l-ep Multiple Entry Power Connection With Junction Box Instructions

JBM-100-E/JBM-100-EP
JBM-100-L-E/JBM-100-L-EP
Multiple Entry Power Connection with Junction Box
Instructions

JBM-100-L-EP Multiple Entry Power Connection with Junction Box

Multiple entry power connection with junction box

JBM-100-E
JBM-100-EP
JBM-100-L-E
JBM-100-L-EP

PTB 20 ATEX 1008 U BAS 21 UKEX 0657 U	II 2 G Ex eb mb IIC Gb II 2 D Ex tb mb IIIC Db
IECEx PTB 20.0014U
	JBM-100-E(P): ТС RU C-BE.МЮ62.В.00054/18 Ex e IIC Gb U Ex tb IIIC Db U Ex e mb IIC Gb U Ex tb mb IIIC Db U Ta –55°C…+56°C IP66 ООО “ТехИмпорт” JBM-100-L-E(P): ТС RU C-BE.МЮ62.В.00054/18 Ex e IIC Gb U Ex tb IIIC Db U Ex e mb IIC Gb U Ex tb mb IIIC Db U Ta –55°C…+40°C IP66 ООО “ТехИмпорт”
	Non lighted versions (1): Ex e IIC Gb Ex tD A21 IP66	Lighted versions (2): Ex e mb IIC Gb Ex tD mbD 21 IP66
	Ex eb IIC T* Gb Ex eb mb IIC T* Gb
BAS 21 UKEX 0657 U	Ex eb mb IIC Gb Ex tb mb IIIC Db
	Non lighted versions (1): CL I ZN 1 AEx eb IIC T* Gb ZN 21 AEx tb IIIC T*°C Db Ex eb IIC T* Gb Ex tb IIIC T*°C Db	Lighted versions (2): CL I ZN 1 AEx eb mb IIC T* Gb ZN 21 AEx mb tb IIIC T*°C Db Ex eb mb IIC T* Gb Ex mb tb IIIC T*°C Db

* For system Temperature Code, see heating cable or design documentation.
** Specific conditions for use may apply for ATEX/UKEX and IECEx.

1. Non lighted versions:
2. Lighted versions:

WARNING: To prevent electrical shock, short circuit or arc ing, this prod uct must be in stalled correctly and water ingress must be avoid ed before and during the installation.
WARNING: The purchaser should make the manufacturer aware of any external effects or aggressive substances that the equipment may be exposed to.

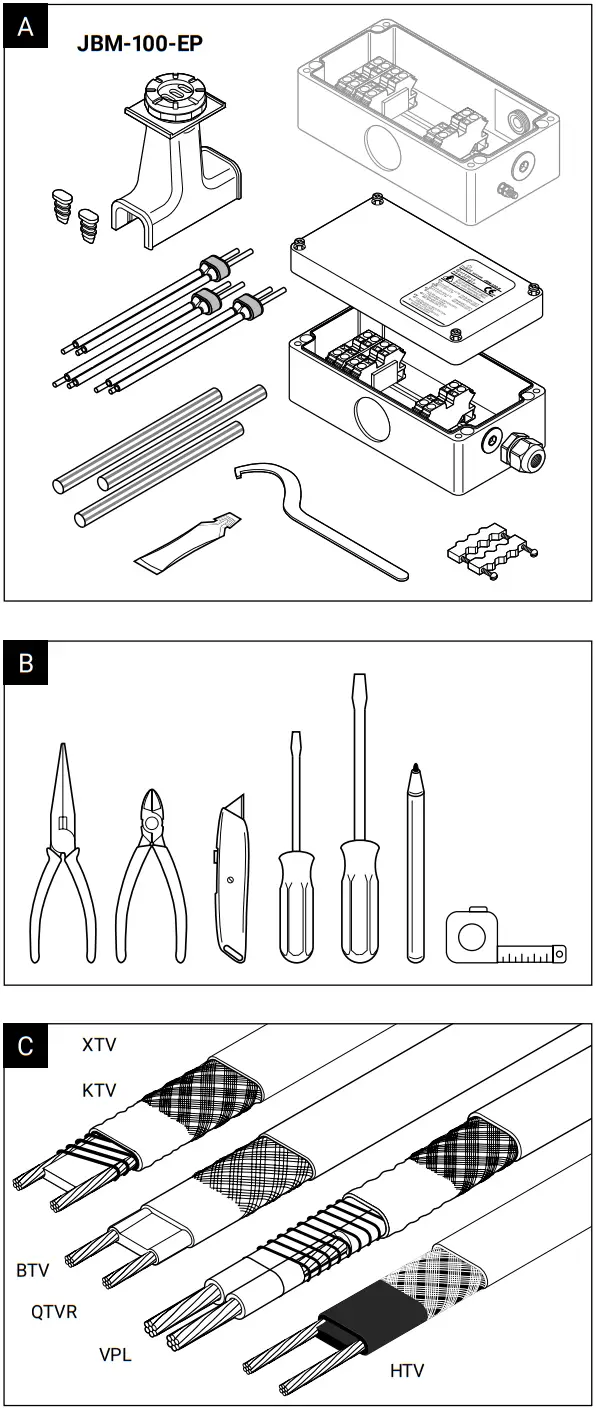

Before installing this product, read the installation instructions completely.
CAUTION: Prolonged or repeated contact with the sealant in the core sealer may cause skin irritation. Wash hands thoroughly. Overheating or burning the sealant will produce fumes that may cause polymer fume fever. Avoid contamination of cigarettes or tobacco. Consult MSDSVEN 0058 for further information.

Maximum pipe temperature:

VPL: maximum pipe temperature in dependence of heat type and voltage

VPL: Maximum pipe temperature in dependence

Specific conditions for use using ATEX/UKEX or IECEx approvals:
For ambient temperatures >+40°C:
Use a power cable with continuous temperature resistance of minimum +90°C
Use a metallic power cable gland approved for use in hazardous areas (for example GL-38-M25-METAL).
For voltages >254 Vac and BTV, QTVR, XTV, KTV or HTV heating cables:
Use a power cable with continuous temperature resistance of minimum +90°C
Use a metallic power cable gland approved for use in hazardous areas (for example GL-38-M25-METAL).
For pipe temperature > 150°C and XTV, KTV or HTV heating cables, the maximum operating current shall be reduced to maximum 20A.

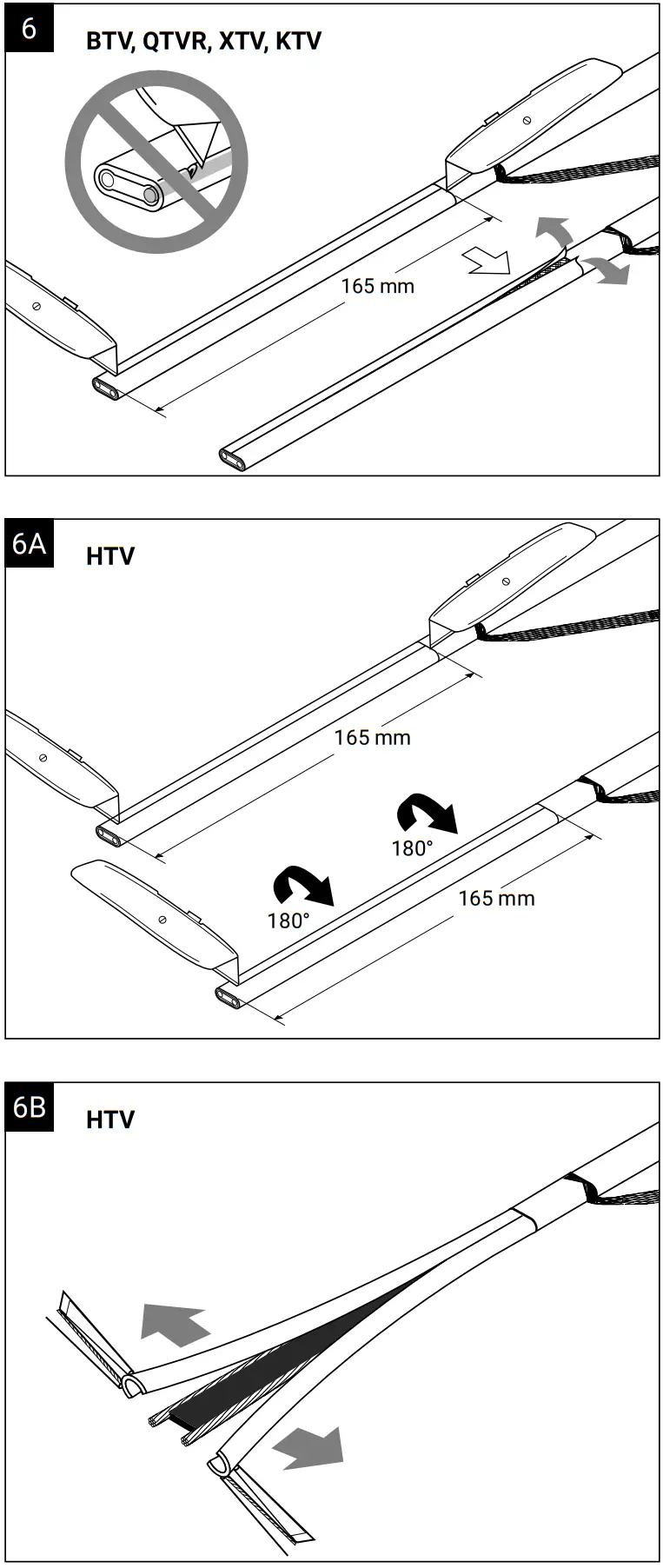

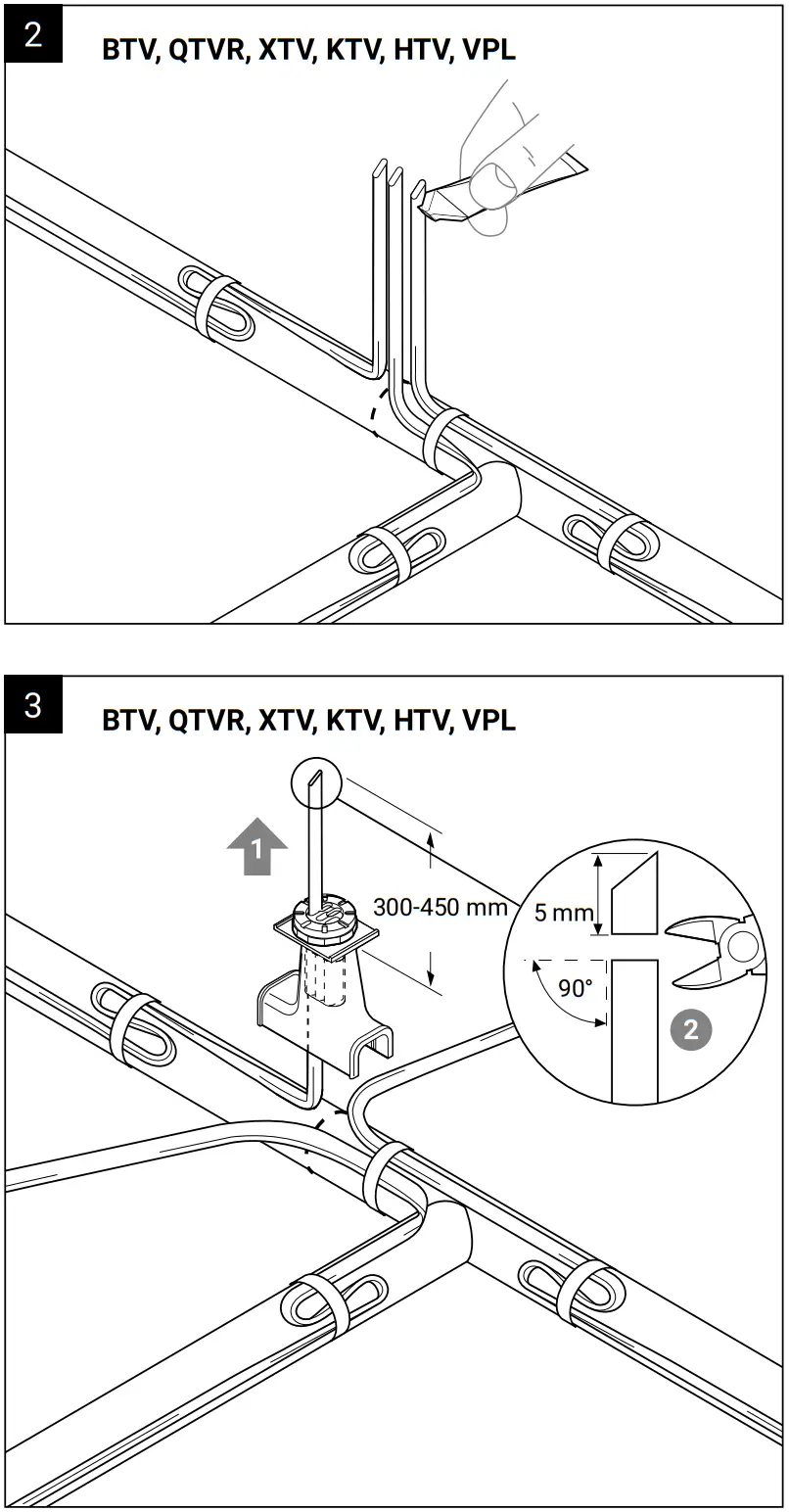

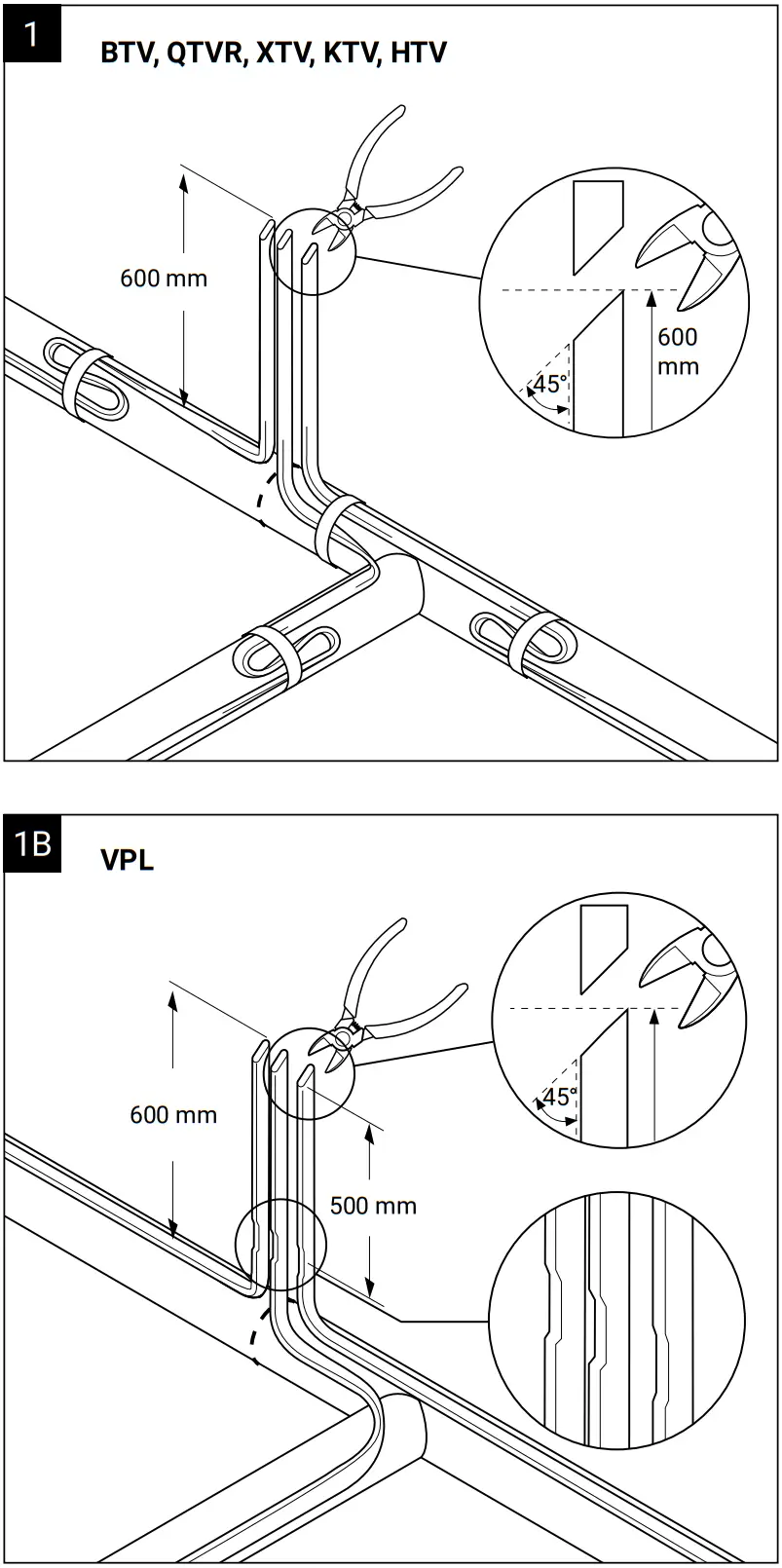

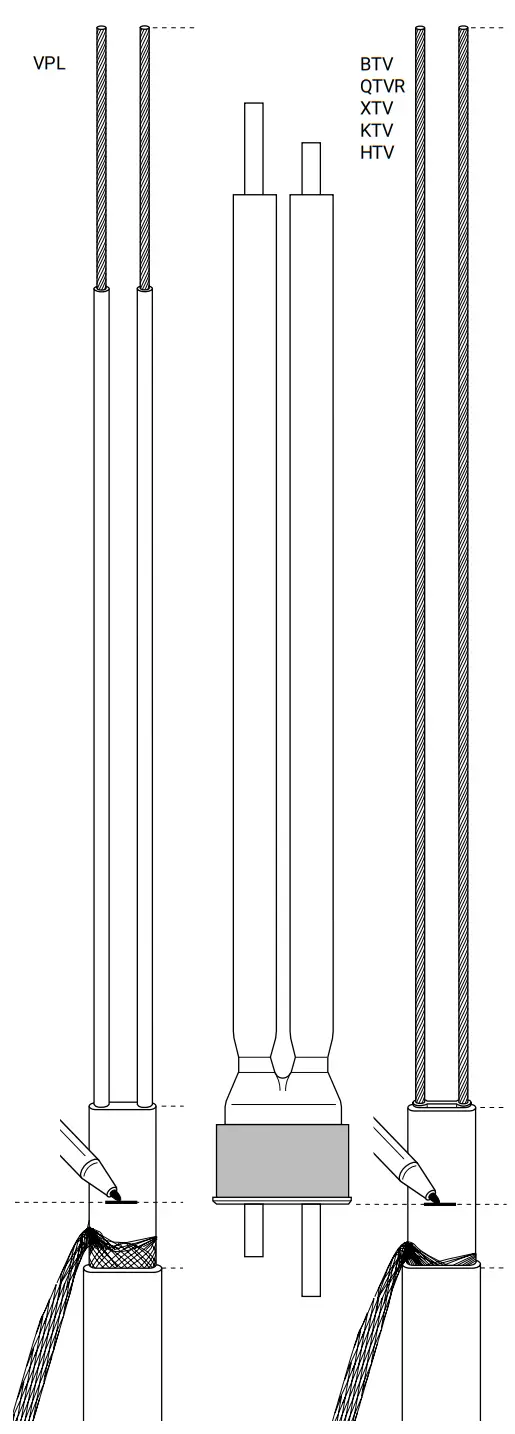

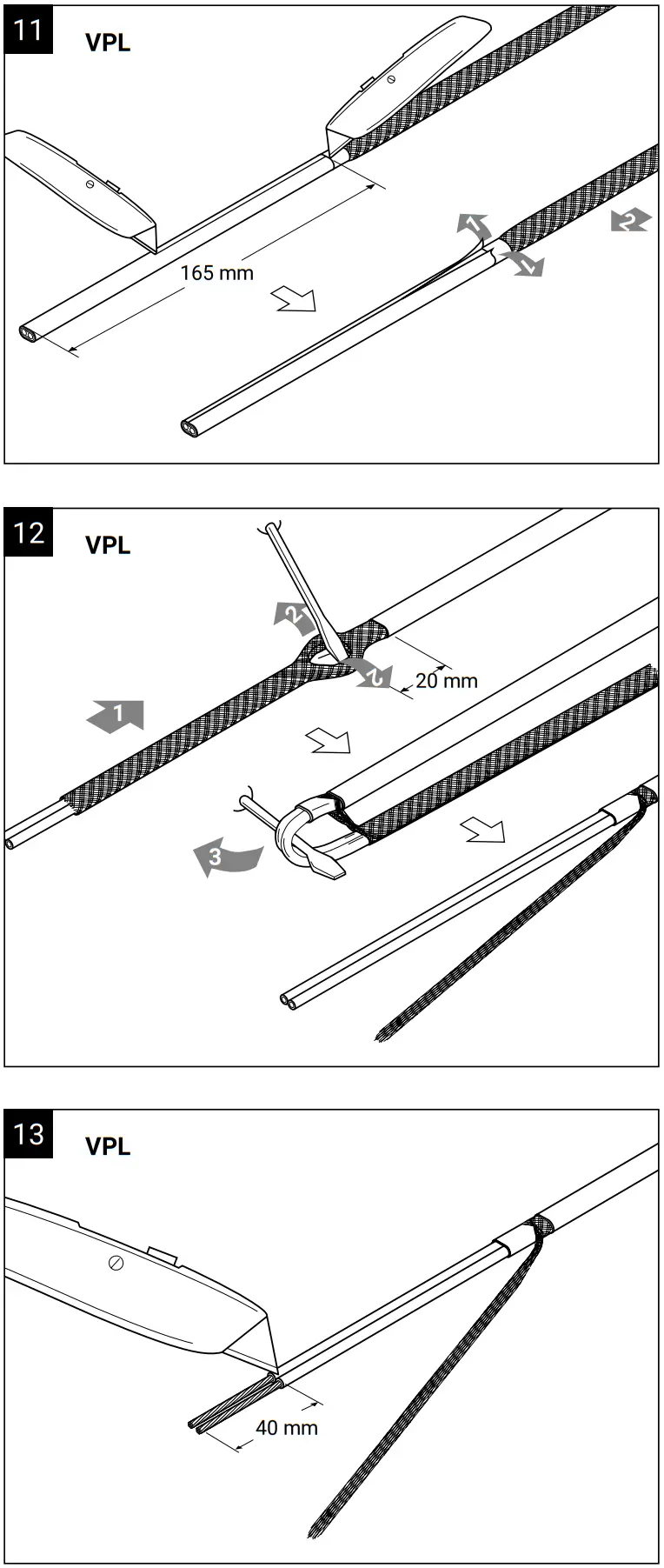

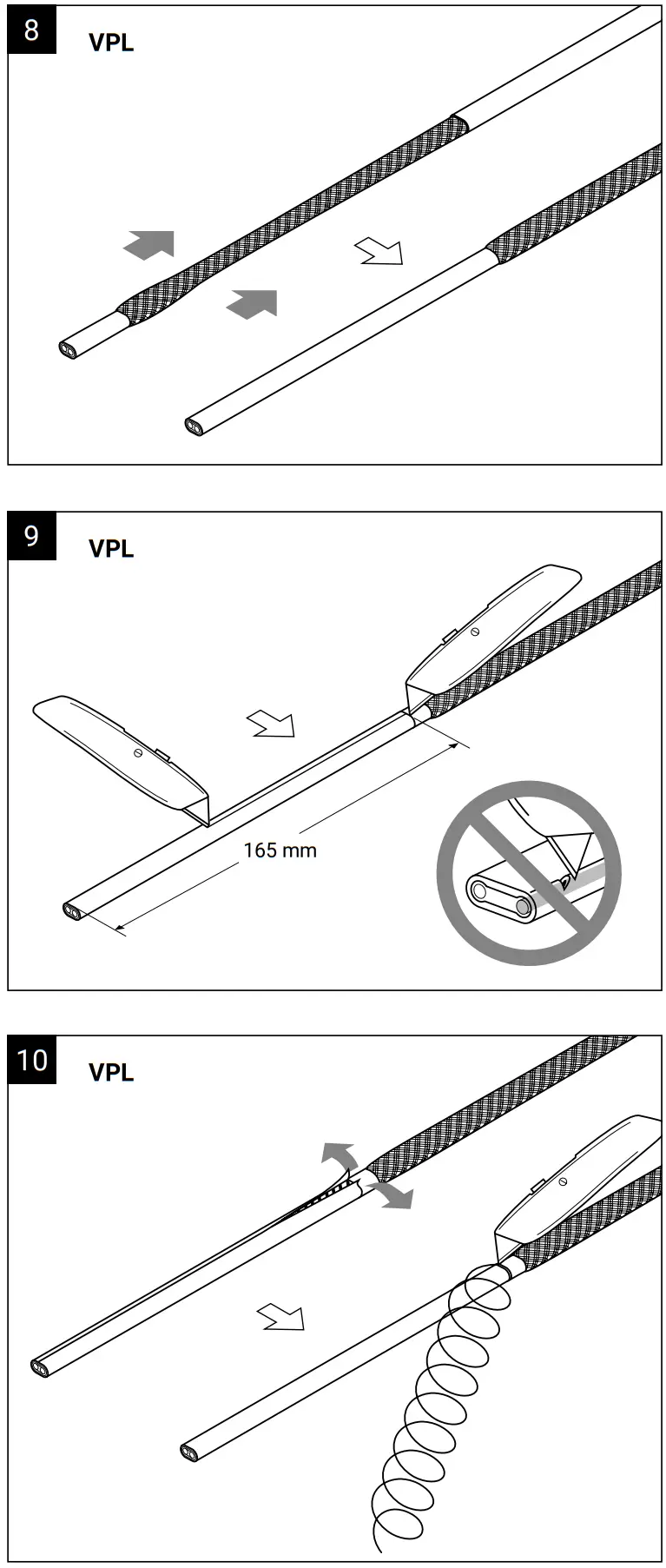

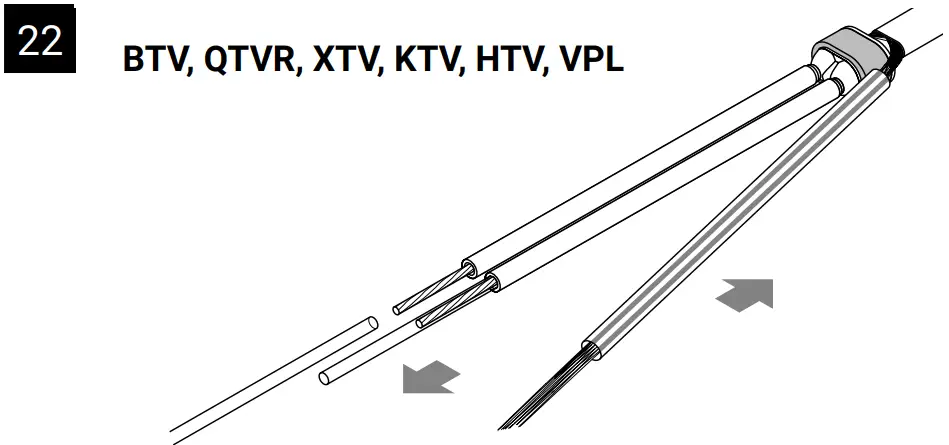

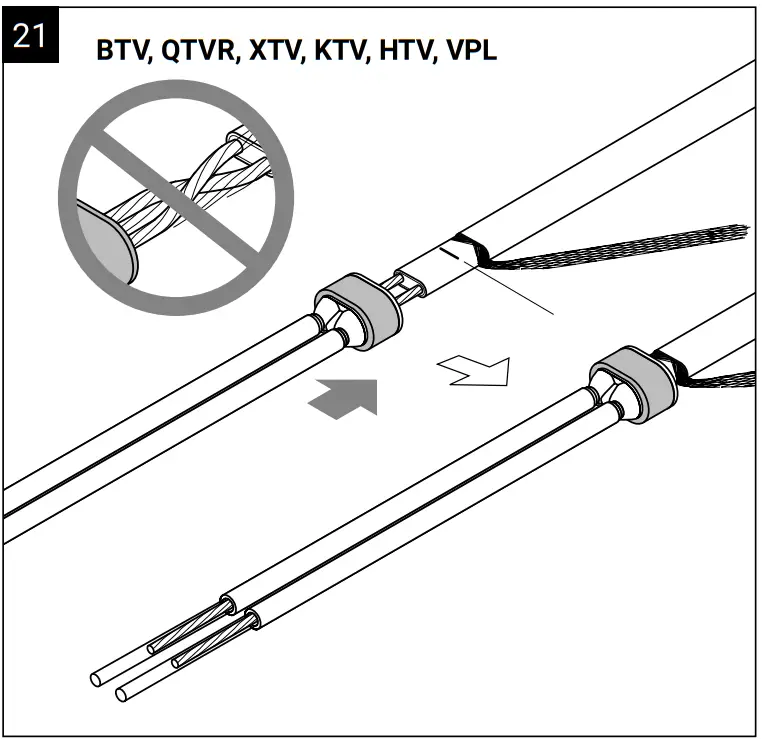

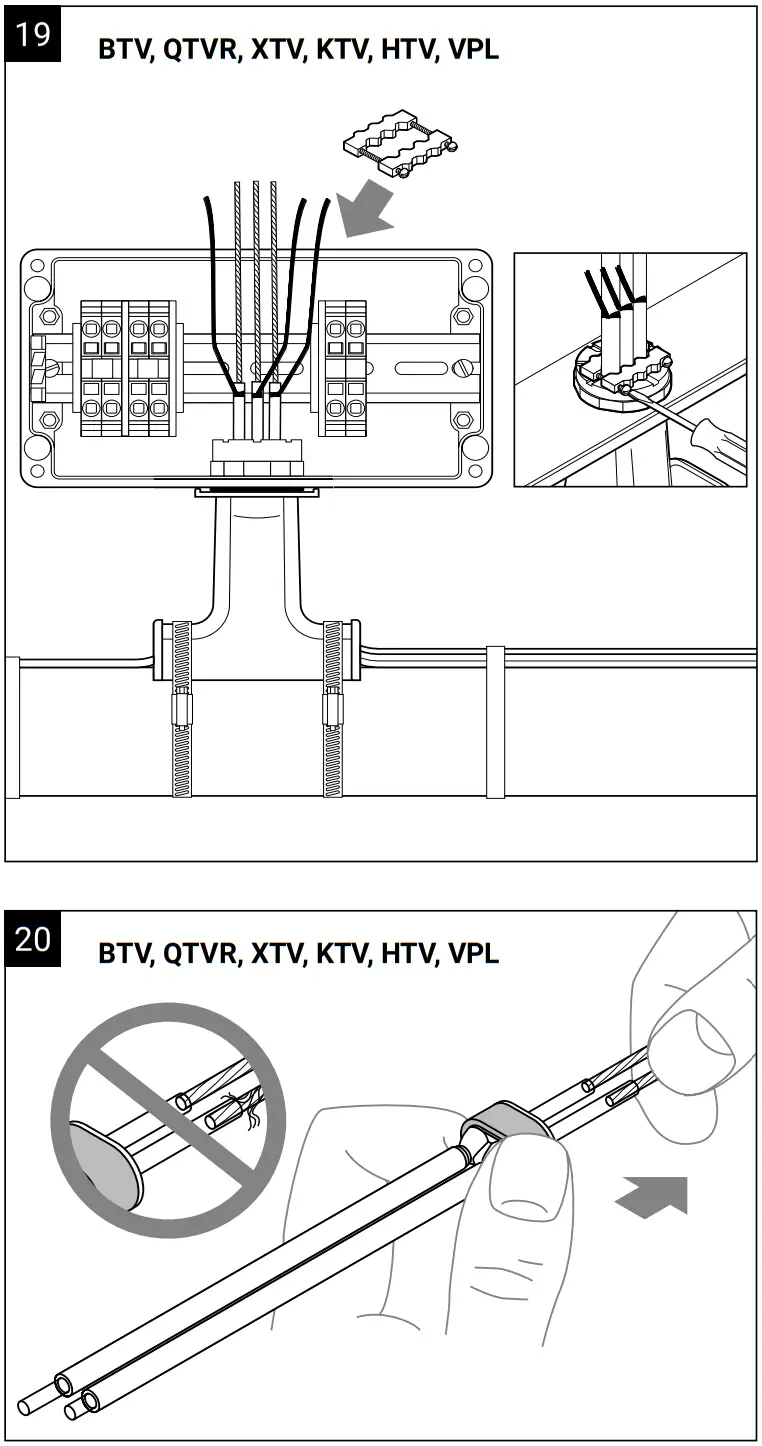

Remove the tubes and dispose of them in the core sealer plastic bag.

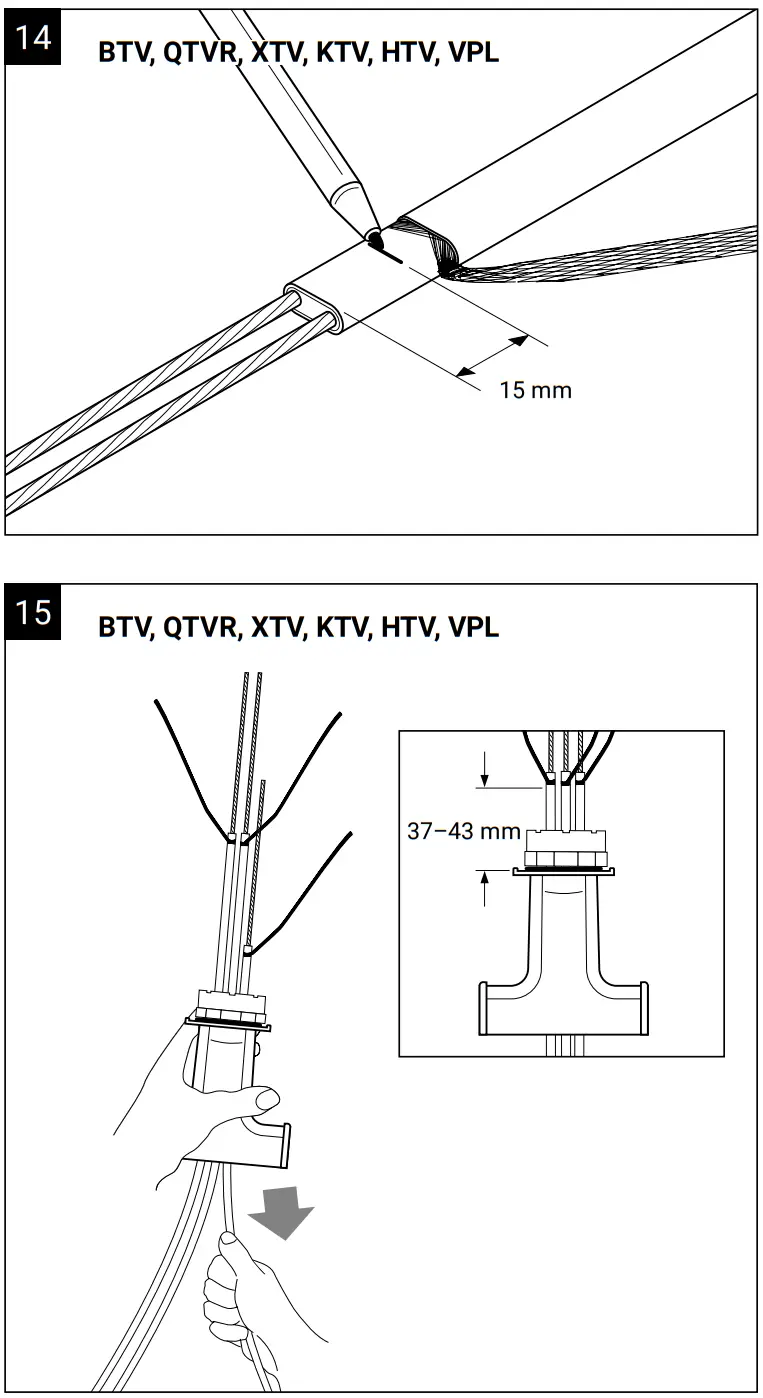

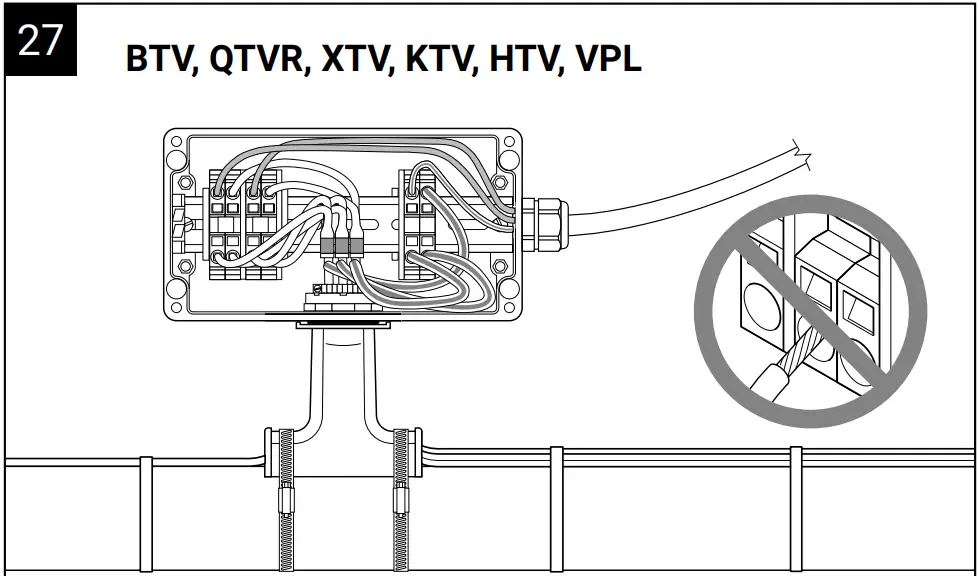

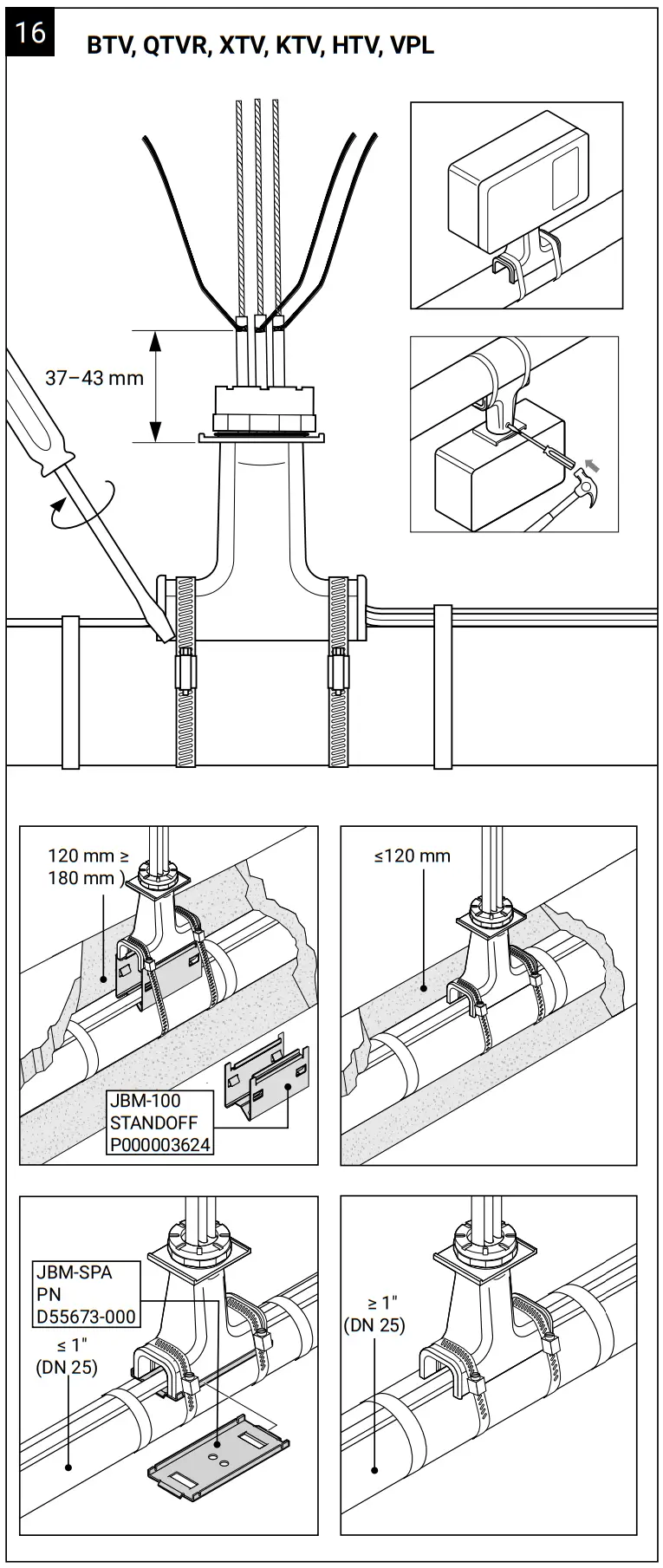

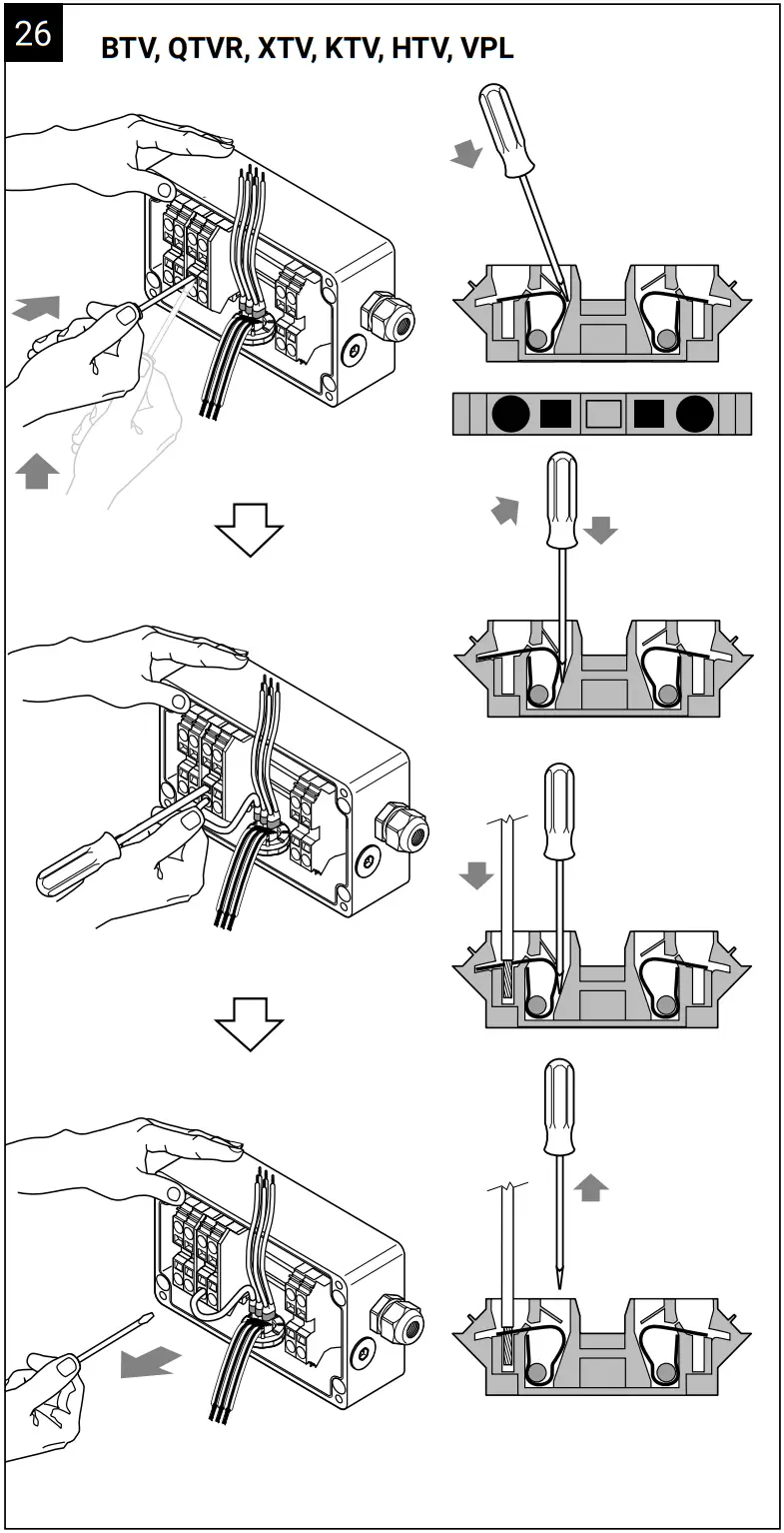

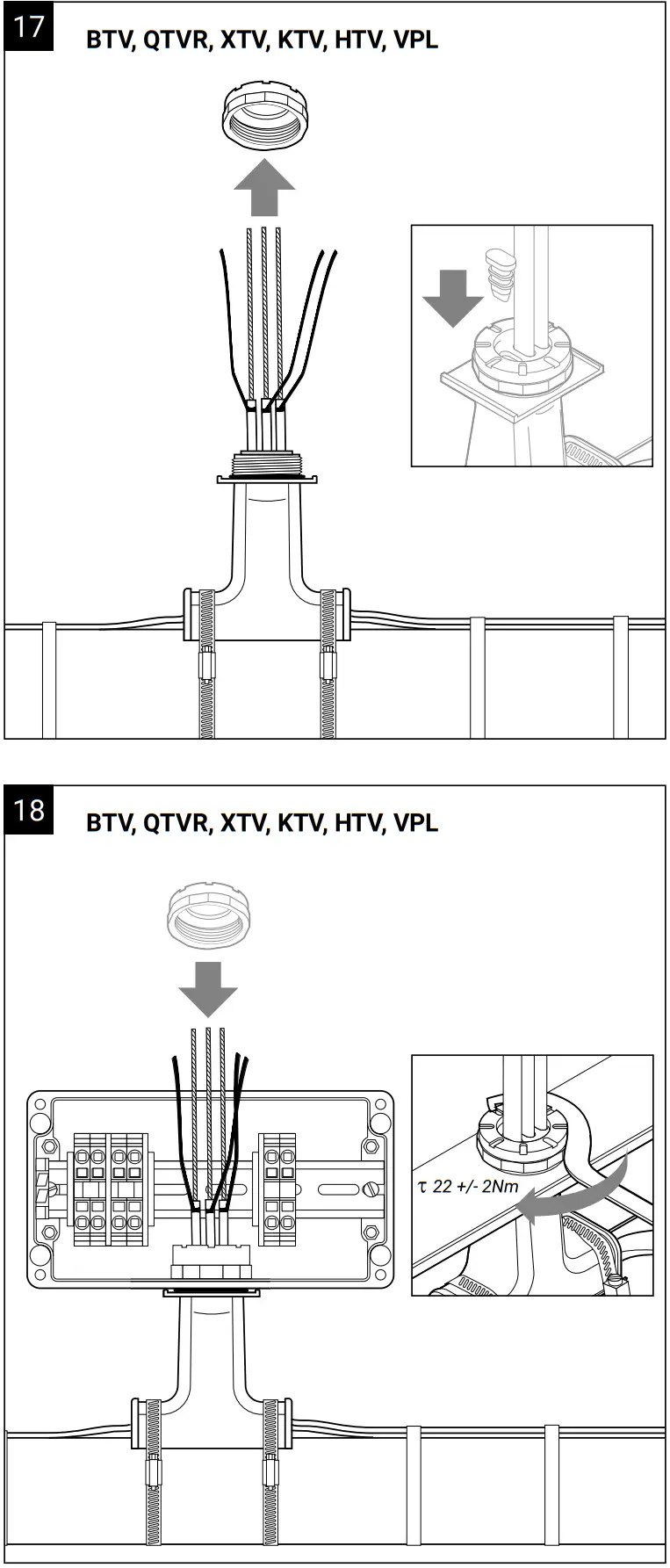

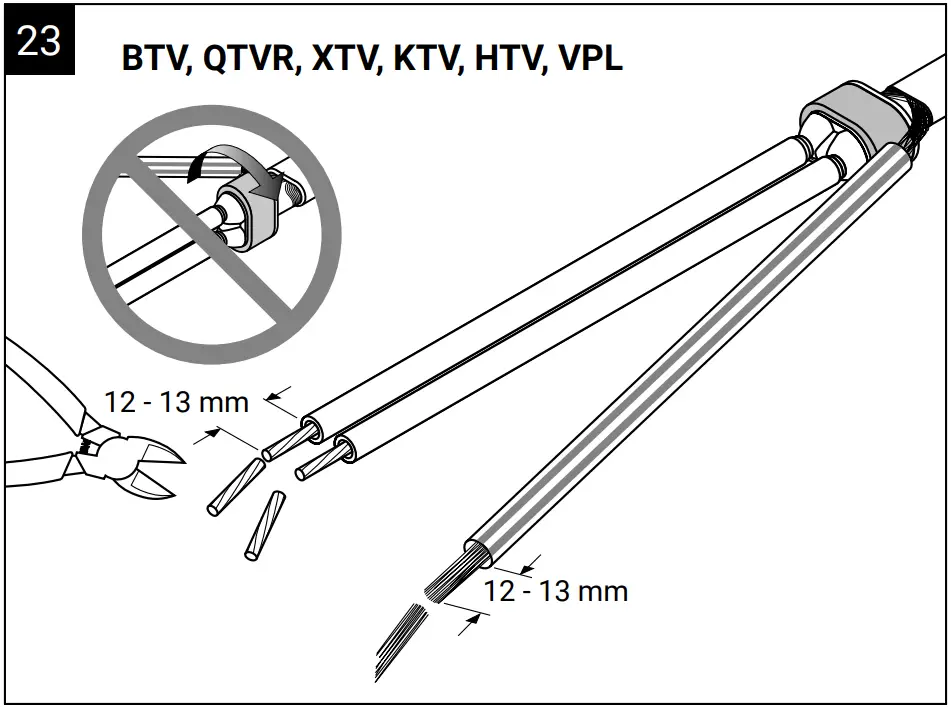

Install power cable and gland. Pull in power and ground wires, strip off 13 mm of insulation and terminate. (For -EP version only: connect earth plate to ground according to local requirements).

Install lid.
τ = 1.02 to 1.47Nm

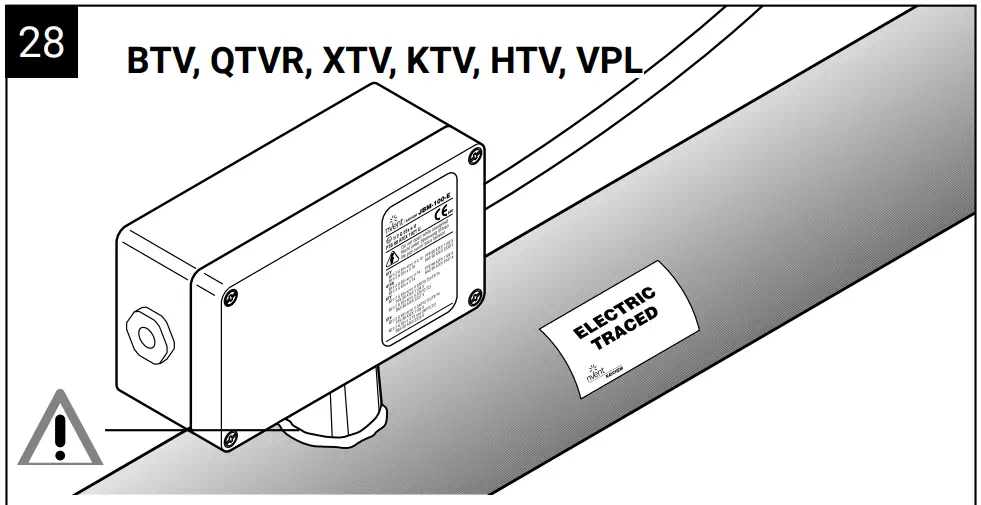

Apply insulation and cladding.
Weather seal the stand entry.
Leave these instructions with the end user for future reference.

nVent.com/RAYCHEM
©2022 nVent. All nVent marks and logos are owned or licensed by nVent Services GmbH or its affiliates.
All other trademarks are the property of their respective owners. nVent reserves the right to change specifications without notice.
RAYCHEM-IM-INSTALL038-JBM100X-ML-2210
