nVent RAYCHEM JBS-100-STB Single Entry Power Connection Instruction Manual
Single Entry Power Connection With Junction Box
Installation Instructions
APPROVALS
Hazardous Locations
* For system Temperature Code, see heating cable or design documentation.
(1) Except VPL, HTV
(2) For HTV-CT only ** Per CE Code Table 18
(3) Except HTV

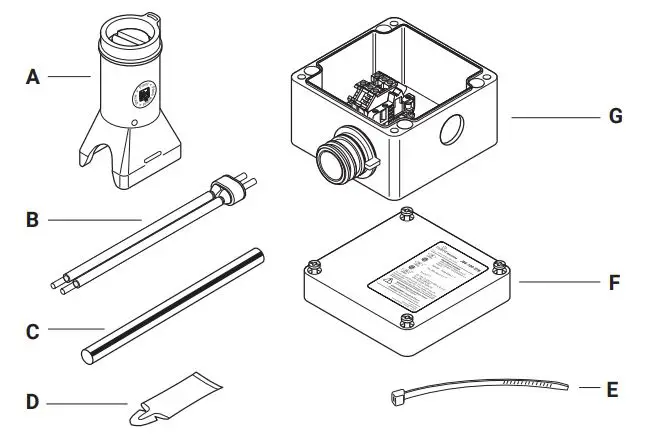

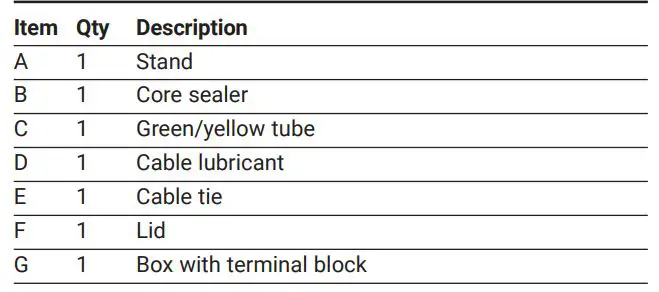

KIT CONTENTS
DESCRIPTION

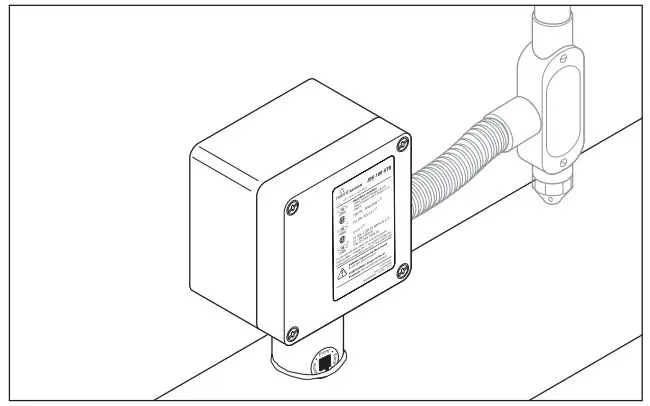

The nVent RAYCHEM JBS-100-STB is a NEMA 4X rated power connection kit. It is designed for use with BTV-CR, BTV-CT, QTVR-CT, XTV-CT, KTV-CT, HTV-CT and VPL-CT industrial parallel heating cables.

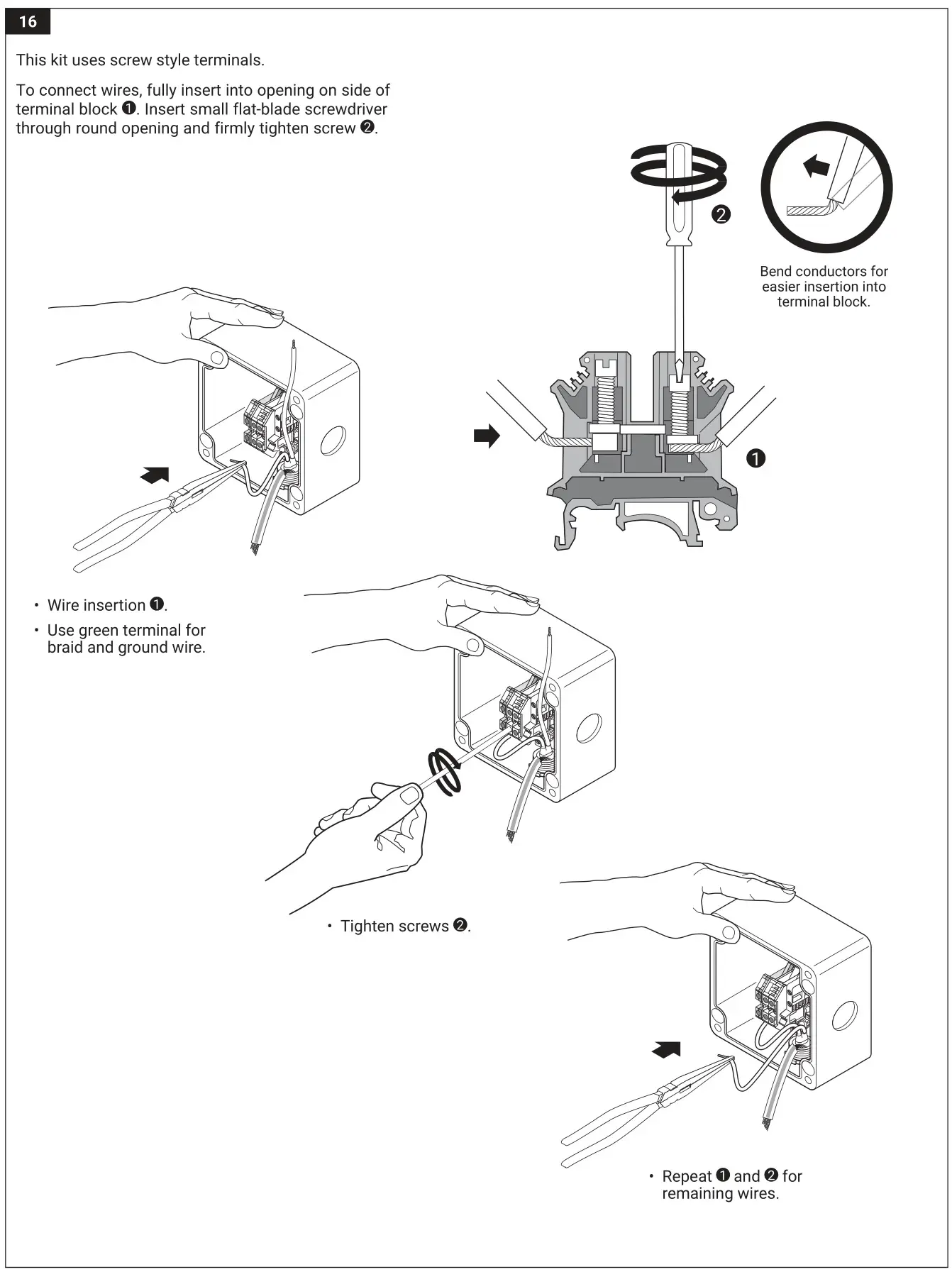

The JBS-100-STB utilizes screw terminal blocks to connect the heating cable to power.
This kit may be installed at temperatures as low as −67°F (−55°C).
For easier installation store above freezing until just before installation.
For technical support call your local nVent representative.
TOOLS REQUIRED
- Wire cutters
- Utility knife
- Large slotted screwdriver
- 1/4 in or smaller flat-blade screwdriver
- Wire stripper (for VPL-CT)
- Pliers or adjustable wrench
- Needle nose pliers
- Marker
ADDITIONAL MATERIALS REQUIRED

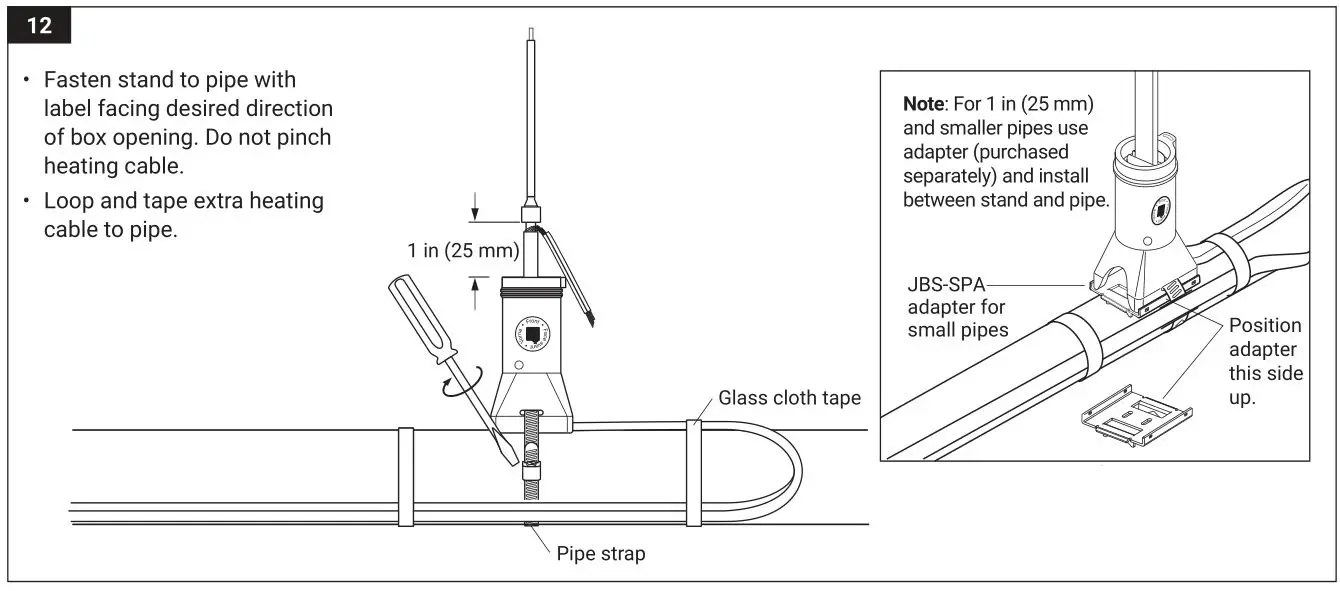

- Pipe strap
- GT-66 or GS-54 glass cloth tape
OPTIONAL MATERIALS

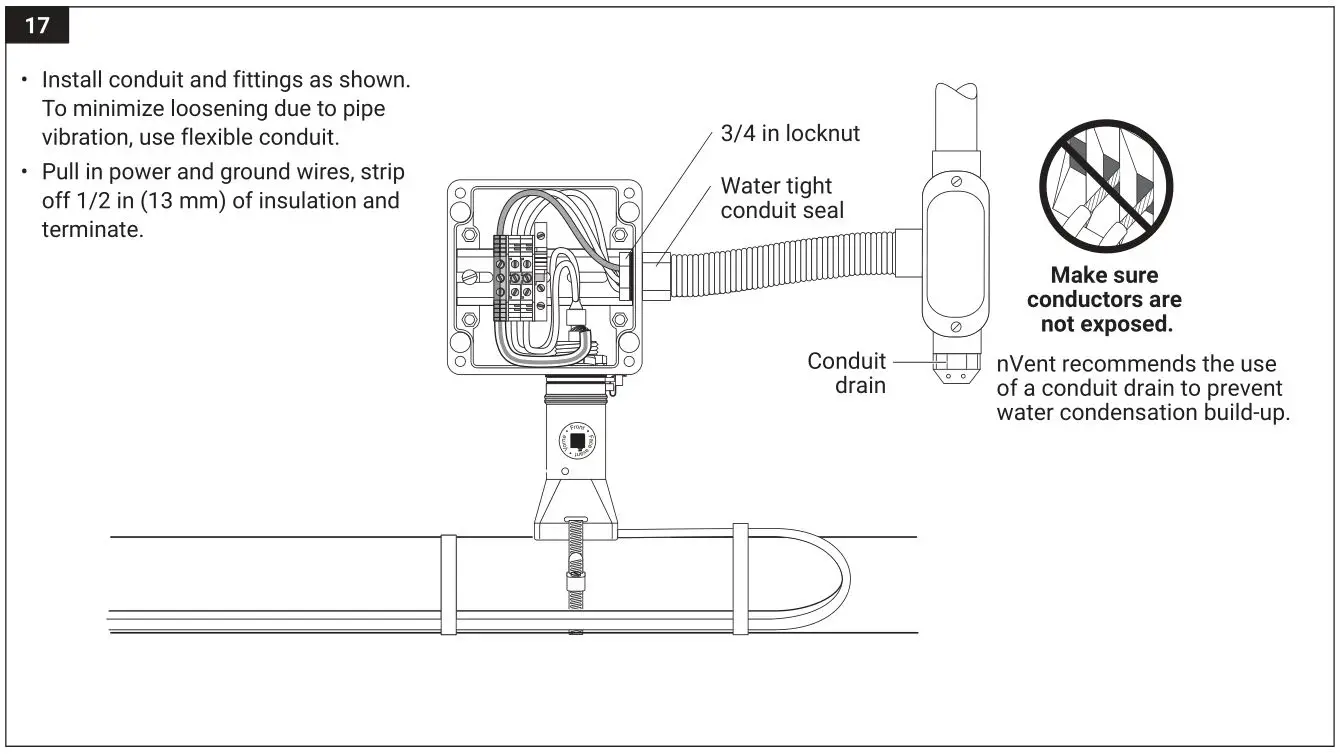

- Recommended conduit drain: JB-DRAIN-PLUG-3/4IN P/N 278621-000
- Small pipe adapter for 1 in (25 mm) and smaller pipes: Catalog number JBS-SPA P/N E90515-000
WARNING:
This component is an electrical device that must be installed correctly to ensure proper operation and to prevent shock or fire. Read these important warnings and carefully follow all of the installation instructions.
- To minimize the danger of fire from sustained electrical arcing if the heating cable is damaged or improperly installed, and to comply with the requirements of nVent, agency certifications, and national electrical codes, ground-fault equipment protection must be used. Arcing may not be stopped by conventional circuit breakers.
- Component approvals and performance are based on the use of nVent-specified parts only. Do not use substitute parts or vinyl electrical tape.
- The black heating cable core and fibers are conductive and can short. They must be properly insulated and kept dry.
- Damaged bus wires can overheat or short. Do not break bus wire strands when scoring the jacket or core.
- Keep components and heating cable ends dry before and during installation.
- Use only fire-resistant insulation materials, such as fiberglass wrap and flame-retardant foam.
CAUTION:
HEALTH HAZARD: Prolonged or repeated contact with the sealant in the core sealer may cause skin irritation. Wash hands thoroughly. Overheating or burning the sealant will produce fumes that may cause polymer fume fever. Avoid contamination of cigarettes or tobacco. Consult MSDS VEN 0058 for further information.
CHEMTREC 24-hour emergency telephone: (800) 424-9300
Non-emergency health and safety information: (800) 545-6258.

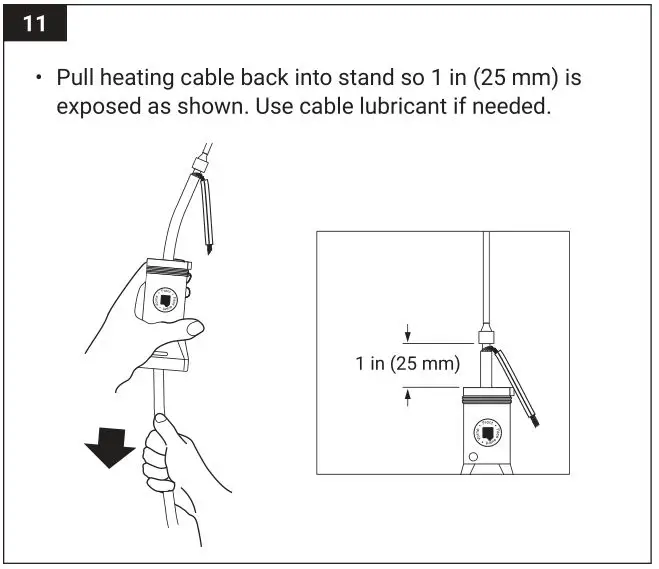

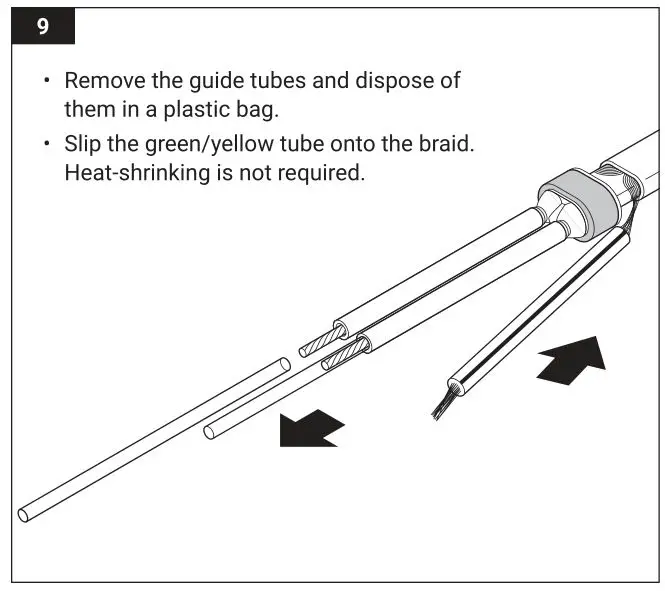

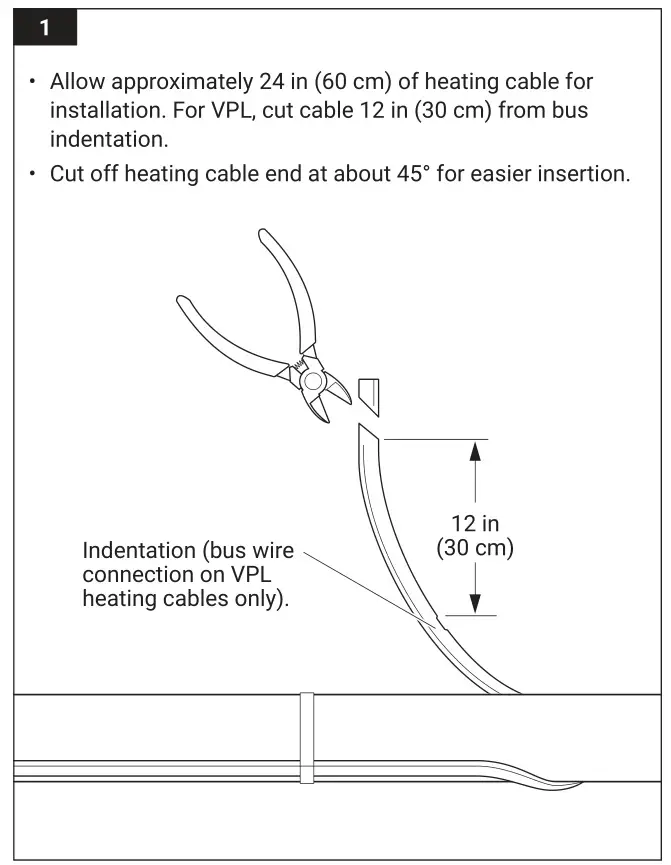

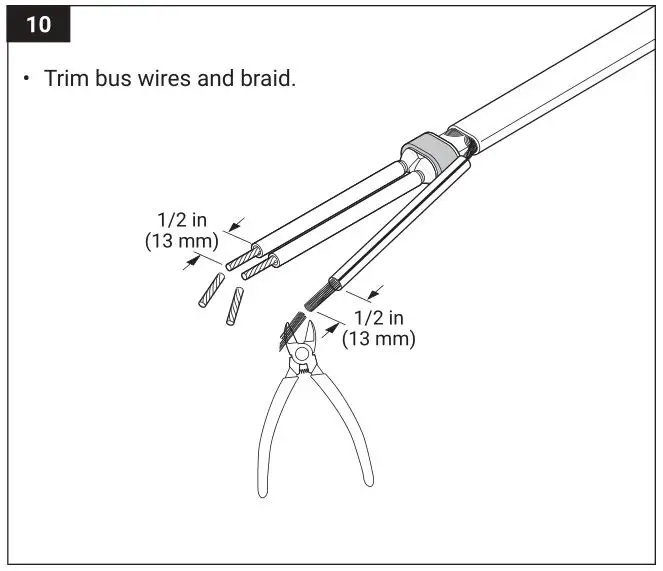

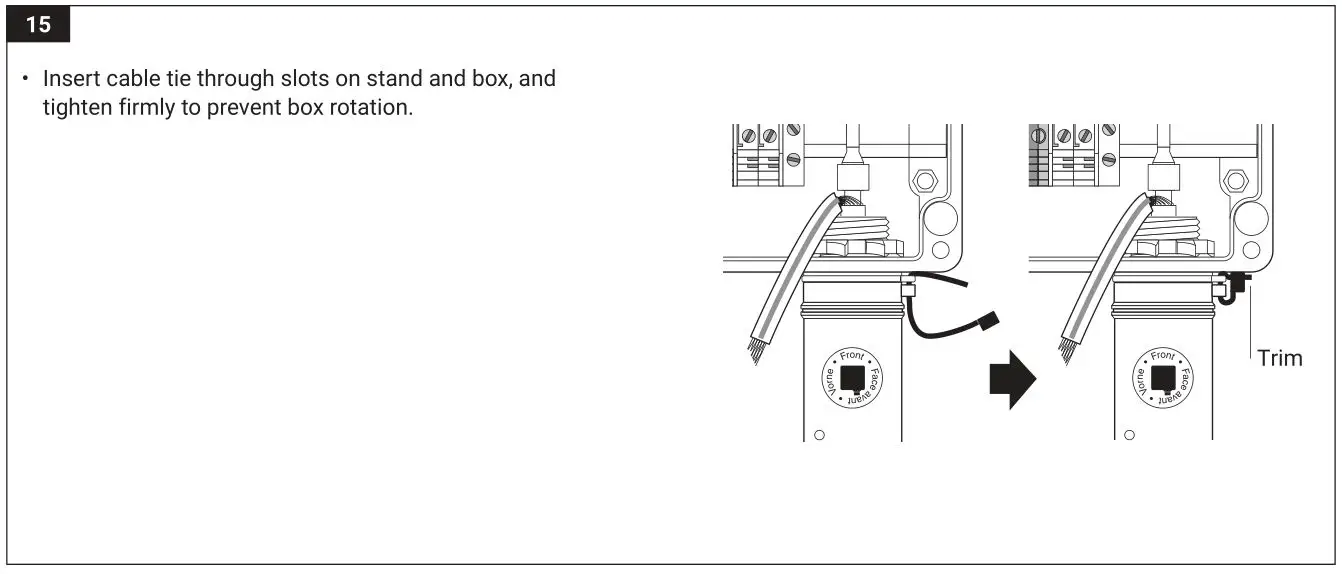

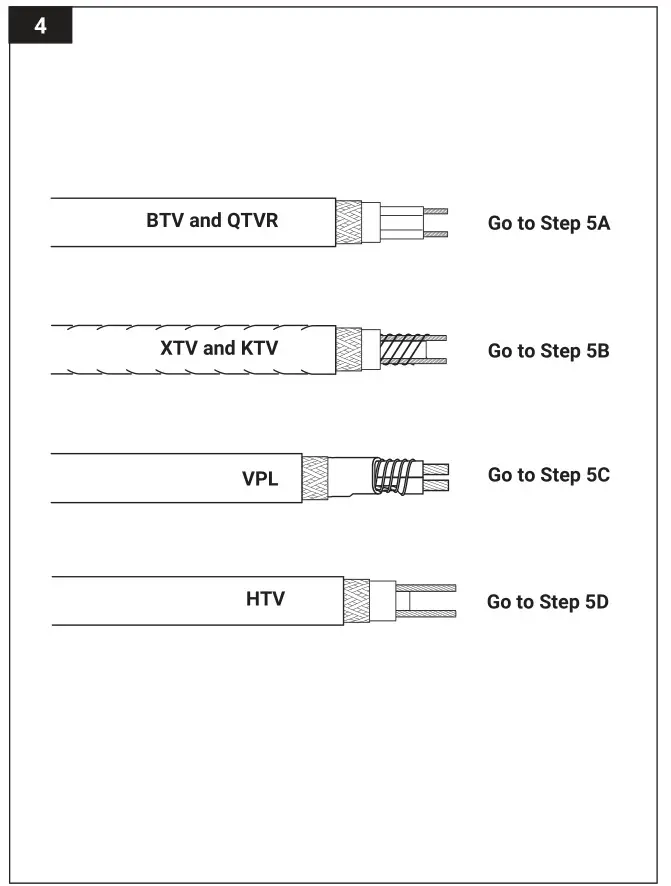

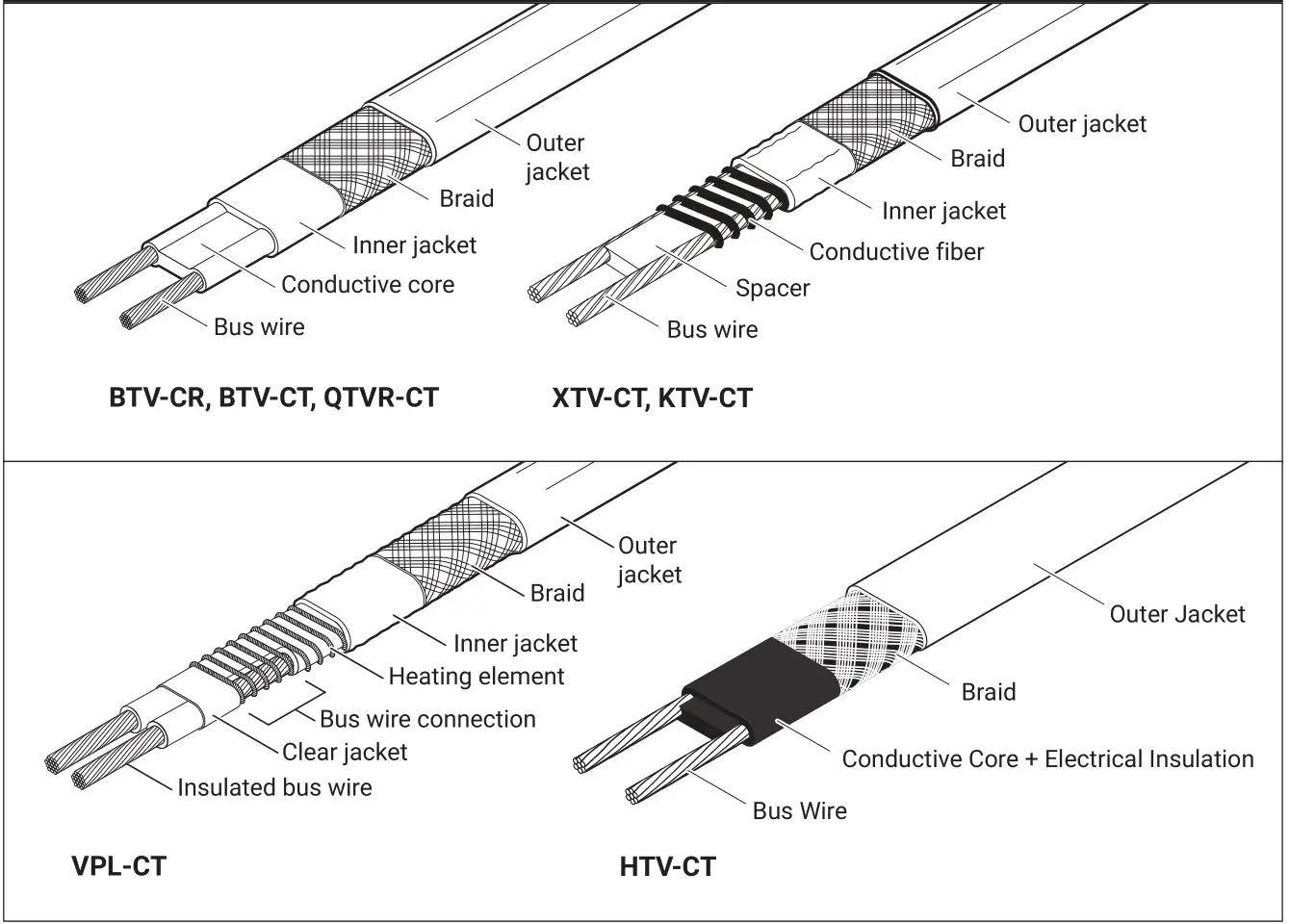

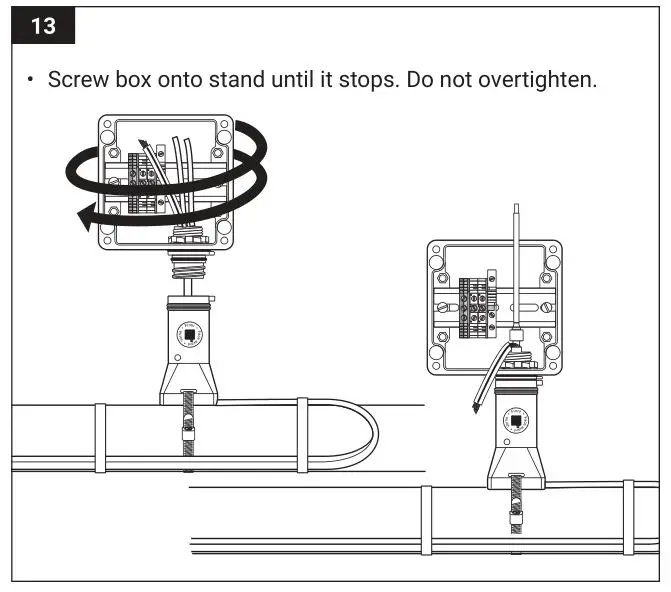

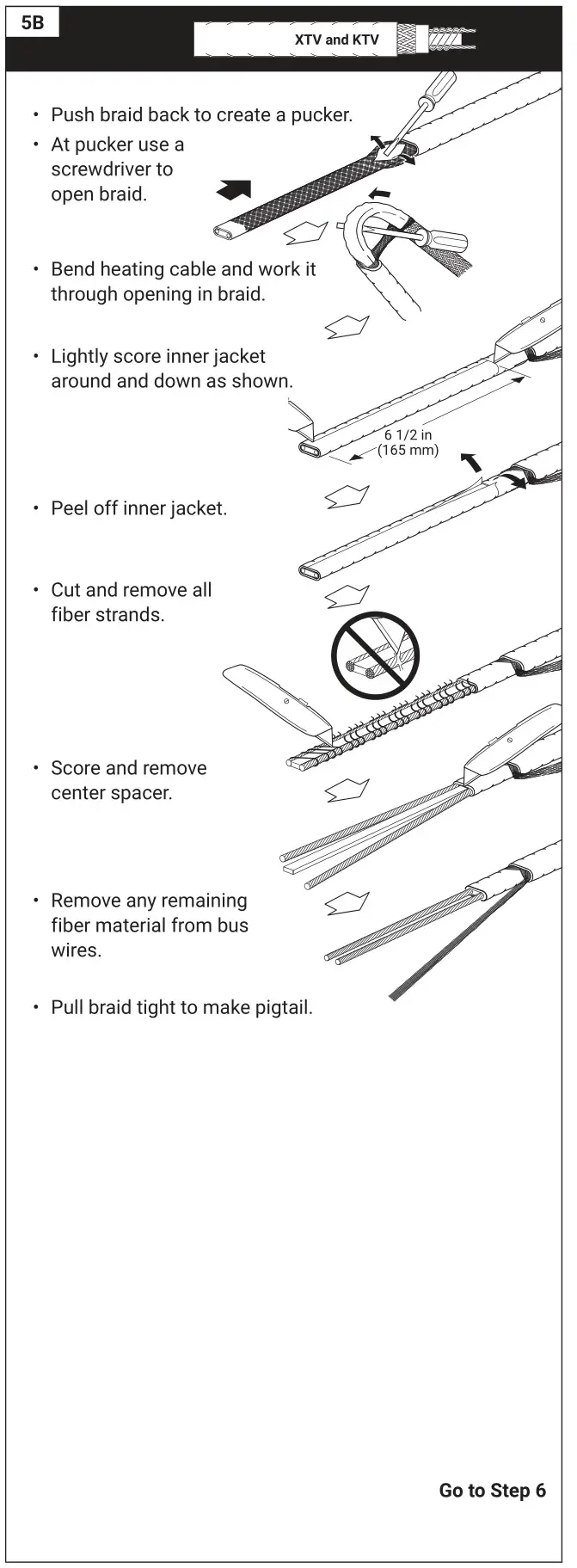

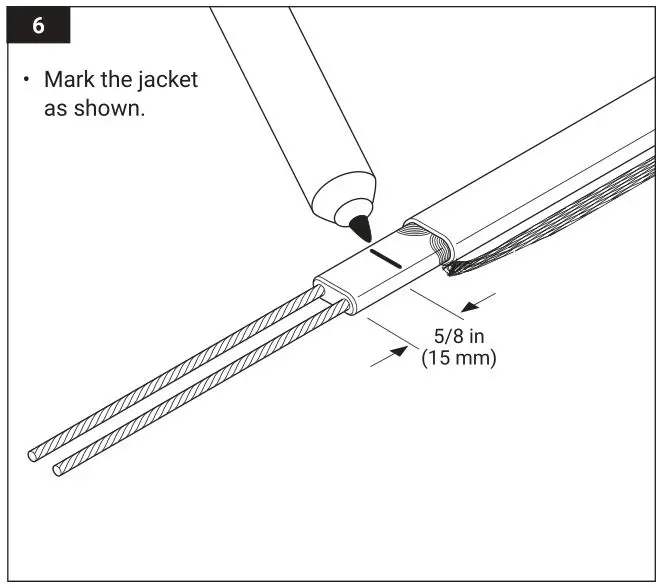

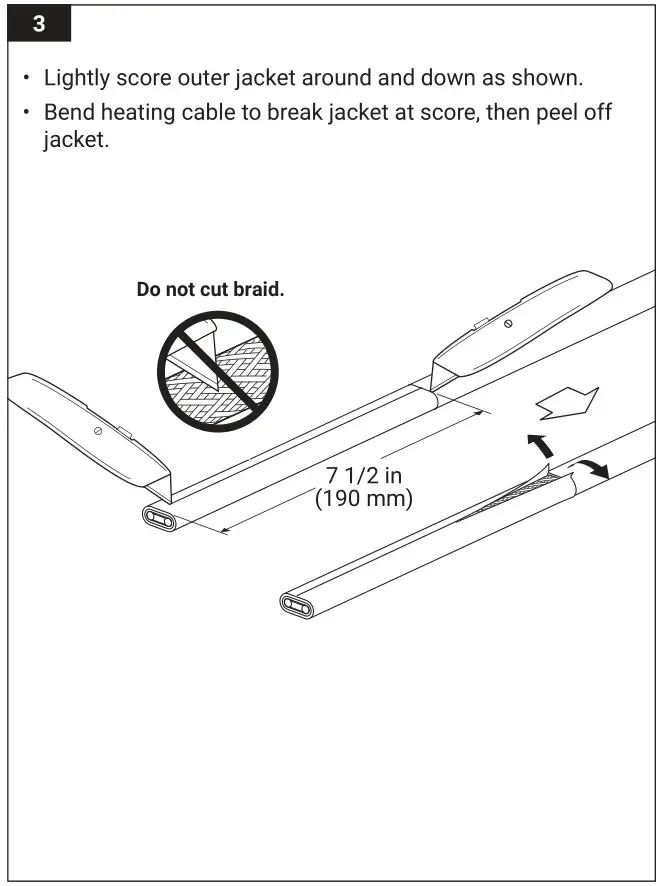

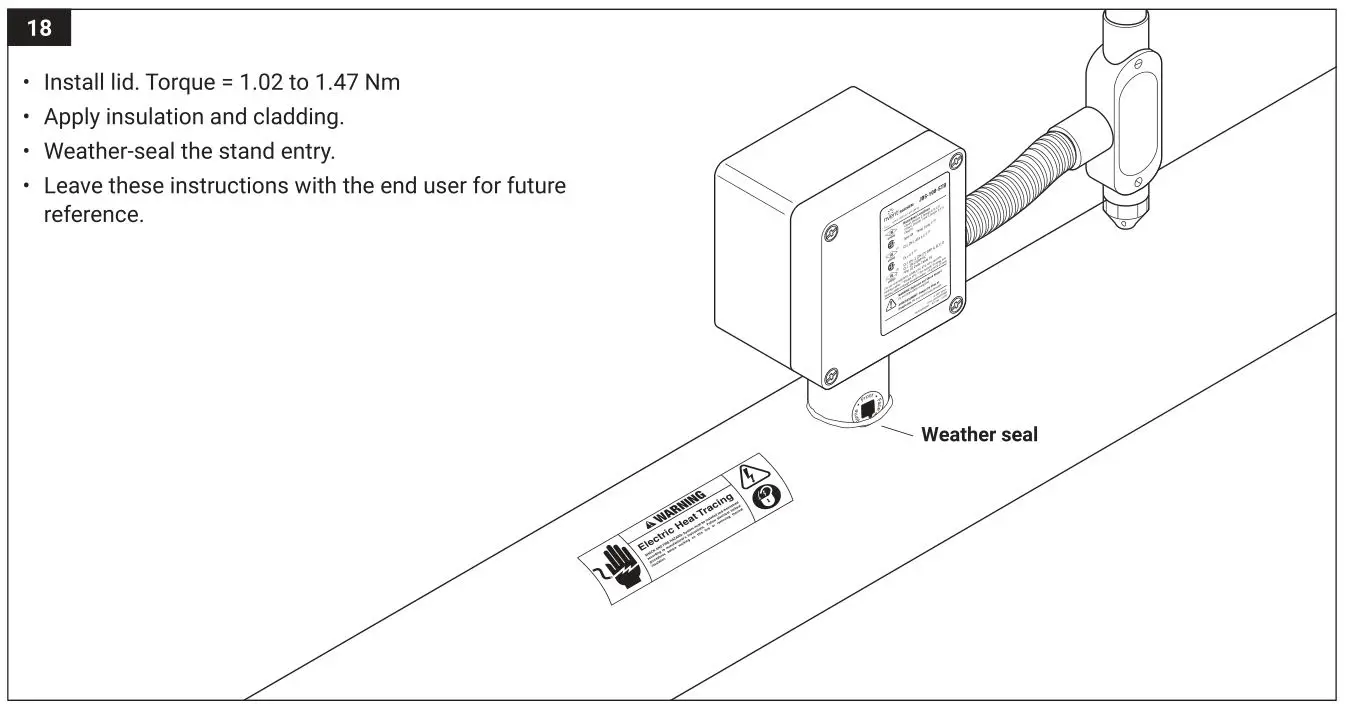

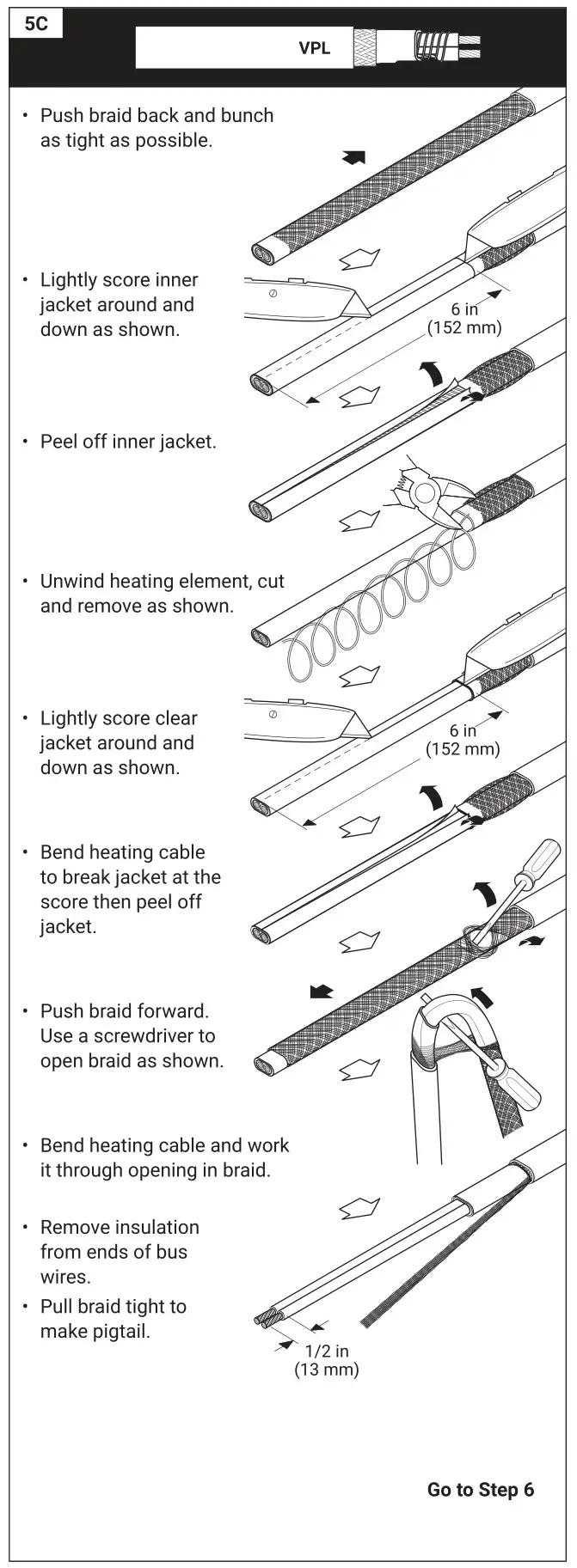

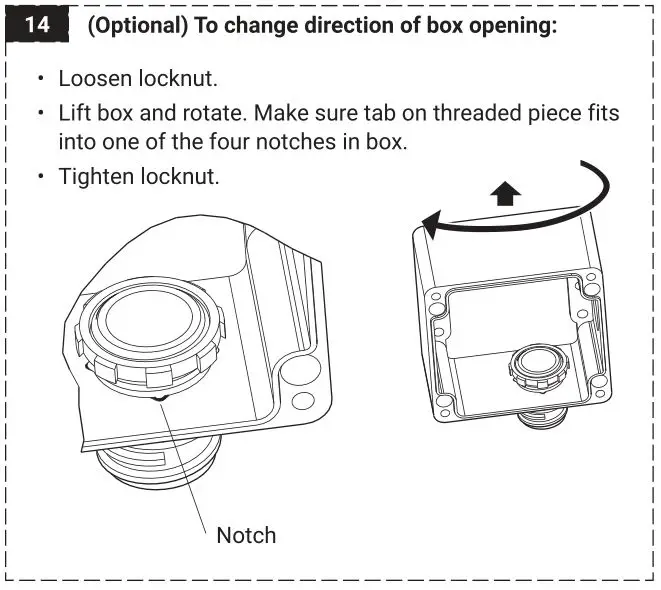

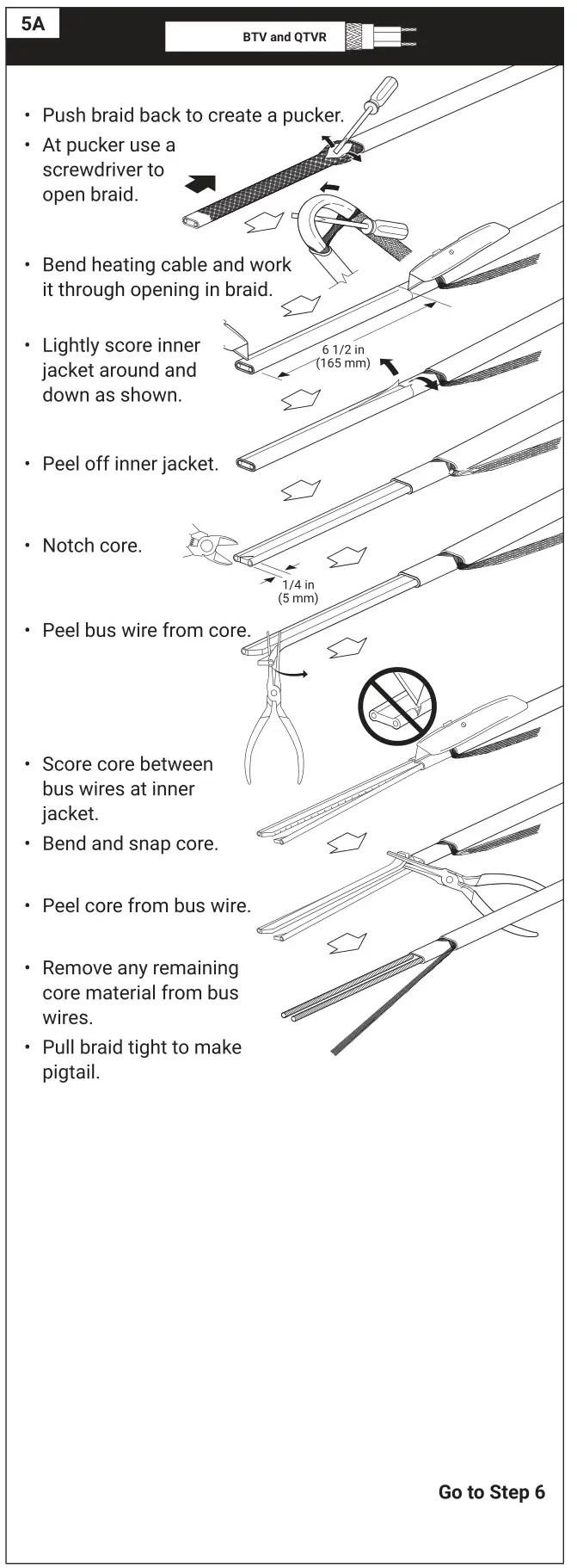

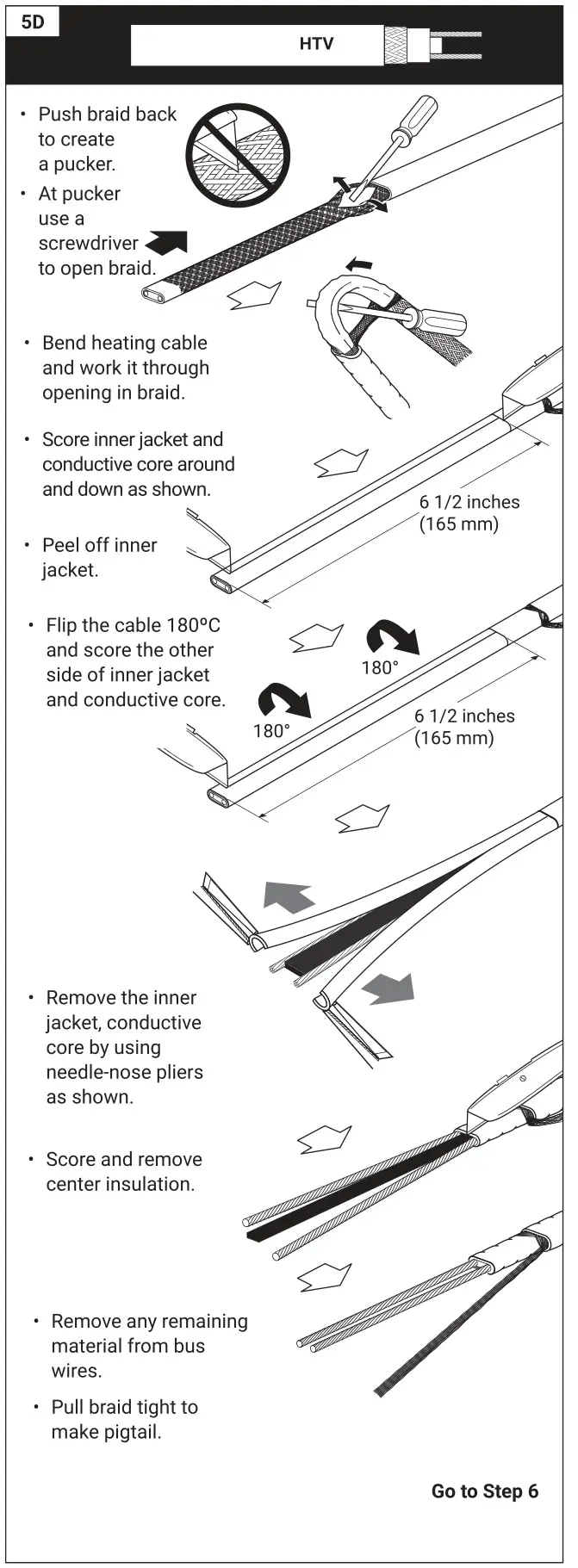

Heating cable types
WARNING: EXPLOSION HAZARD- SUBSTITUTION OF COMPONENTS MAY IMPAIR SUITABLITY FOR CLASS I DIVISION 2 (Zone 2)
WARNING: EXPLOSION HARZARD- DO NOT DISCONNECT EQUIPMENT UNLESS POWER HAS BEEN SWITCHED OFF OR THE AREA IS KNOWN TO BE NONHAZARDOUS.
North America
Tel +1.800.545.6258
Fax +1.800.527.5703
[email protected]
Europe, Middle East, Africa
Tel +32.16.213.511
Fax +32.16.213.604
[email protected]
Asia Pacific
Tel +86.21.2412.1688
Fax +86.21.5426.3167
[email protected]
Latin America
Tel +1.713.868.4800
Fax +1.713.868.2333
[email protected]
©2021 nVent. All nVent marks and logos are owned or licensed by nVent Services GmbH or its affiliates. All other trademarks are the property of their respective owners.
nVent reserves the right to change specifications without notice.
RAYCHEM-IM-H57741-JBS100STB-EN-2111
