Logitech Zone Vibe Wireless Headset User Guide

ZONE VIBE WIRELESS
Setup Guide

KNOW YOUR PRODUCT

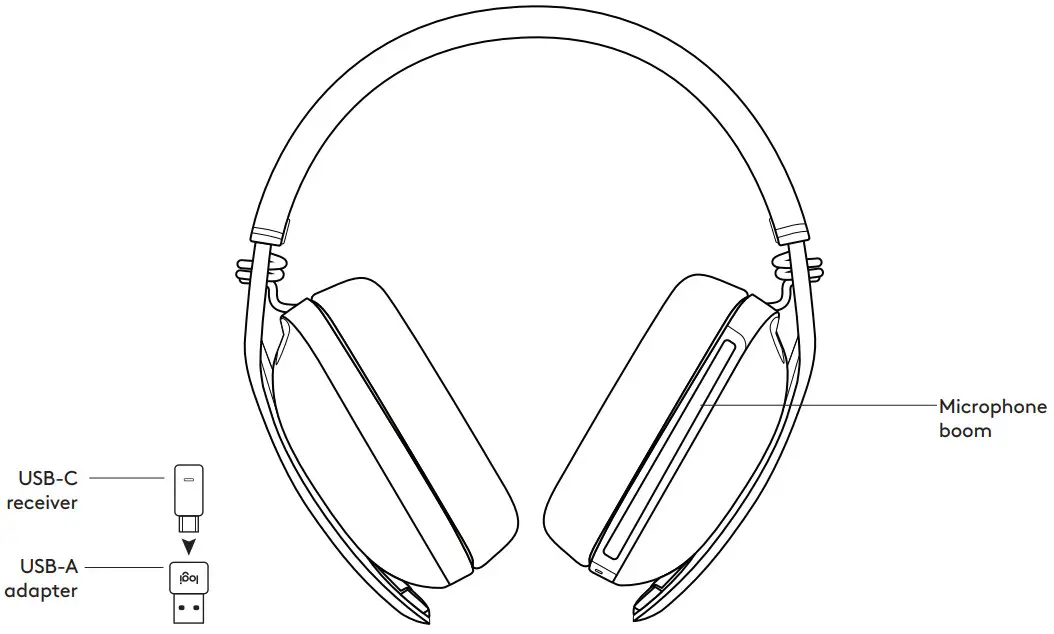

Front view:

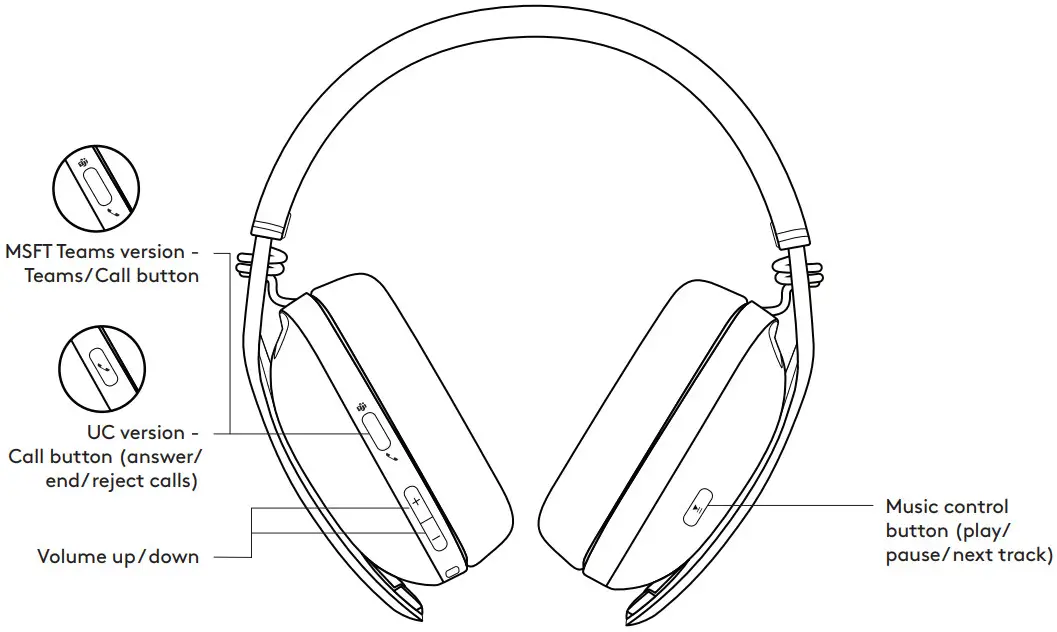

Back view:

Bottom view:

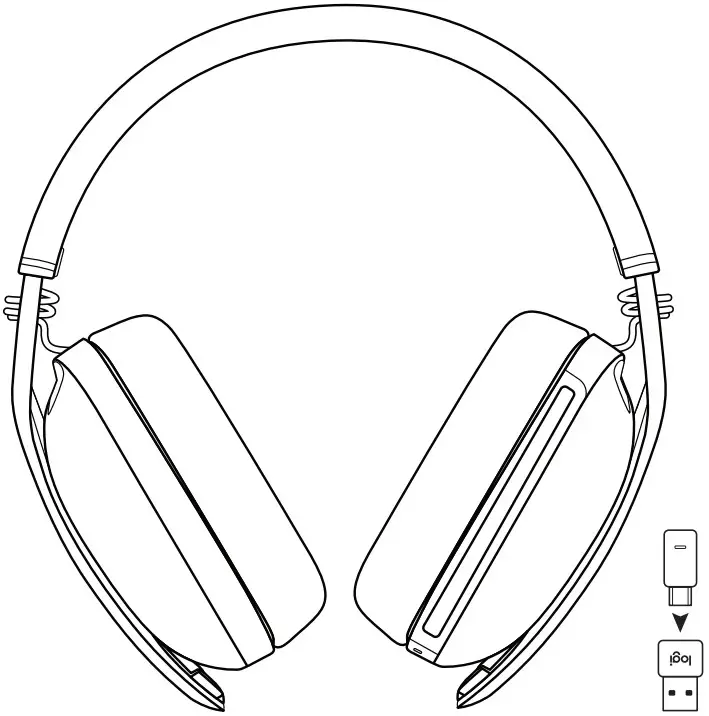

BOX CONTENT

1. Zone Vibe Wireless headphones
2. Charging cable
3. USB-C receiver
4. USB-A adapter
5. Travel bag
6. User documentation

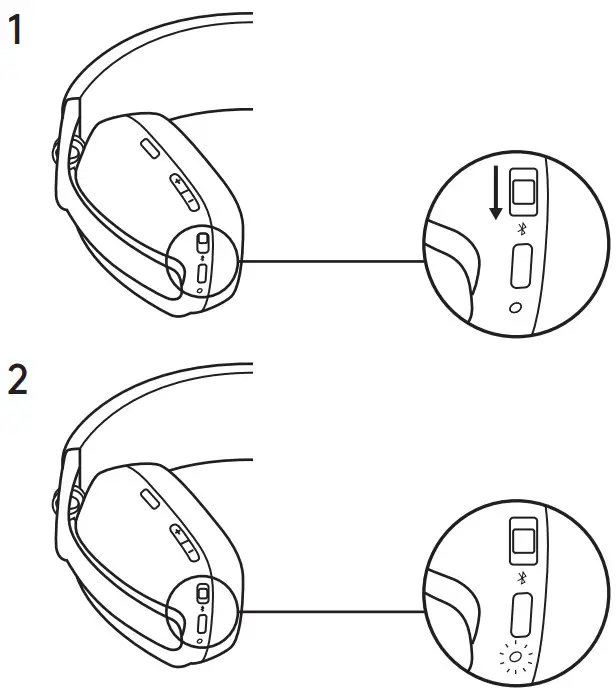

POWER ON / OFF

1. Slide the switch in the arrow’s direction to the middle to power on the headphones
2. Once powered on, the LED light will slightly turn white
3. There will be a voice prompt that tells you the battery status

CONNECT YOUR HEADPHONES

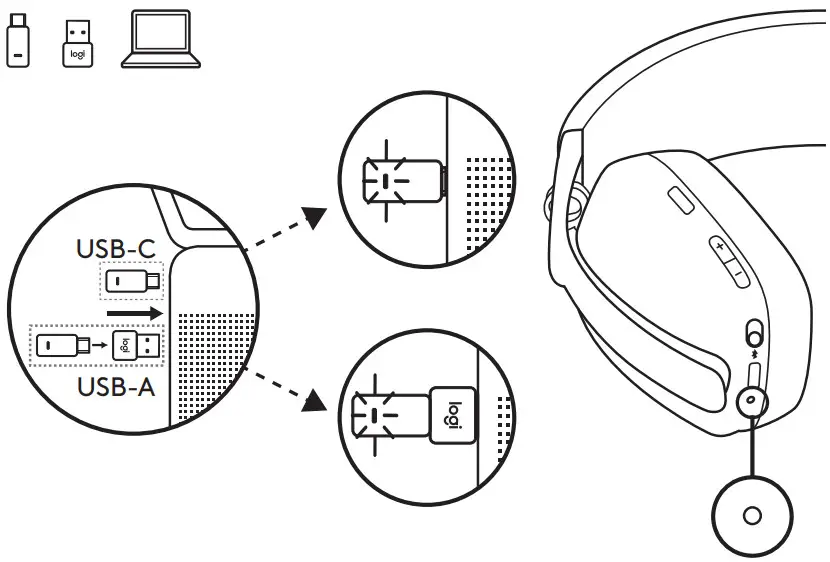

a. Connect via USB-C receiver

1. Insert the receiver into the computer USB-C port Or insert the USB-C receiver with the USB-A adapter to the USB-A port
2. Zone Vibe Wireless is already paired to the receiver it ships with
3. Once successfully paired, the LED light on the receiver will turn solid white then dim

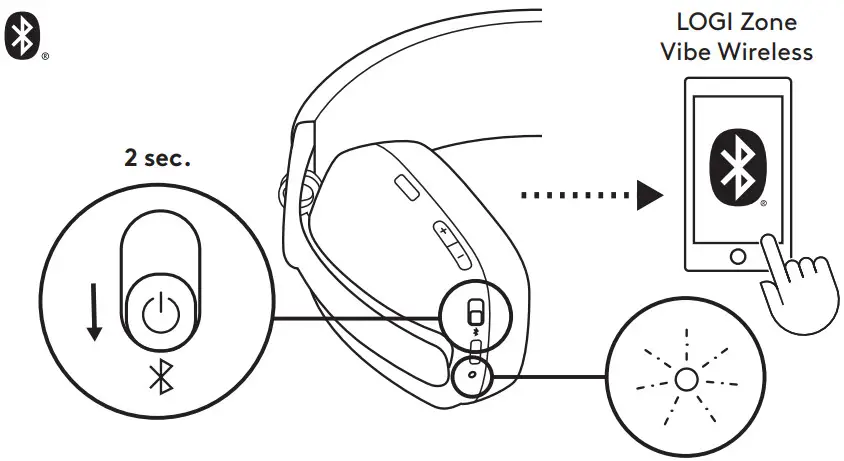

b. Connect via BLUETOOTH®

1. Slide the switch to the bottom in the arrow’s direction for 2 seconds to initiate pairing
2. The LED light will flash white rapidly
3. Open Bluetooth® settings on your device
4. Select Logi Zone Vibe Wireless in discoverable devices
5. Once successfully paired, the LED light will turn solid white

ADJUSTING HEADPHONES

1. Adjust the headphones by sliding earcups up and down the extended part of the headband
2. It may be easier to adjust the headphones on your head Slide the earcups up and down the headband until they sit comfortably on your ears

HEADPHONES CONTROLS

Note:

• Teams activities are only functional when Teams is running on an unlocked computer
• Media control functionality depends on the type of application
• Call activities are always the first priority When two devices are connected, the Bluetooth® connection will be prioritized over the receiver When two Bluetooth devices are connected, the last active device will override the other

Tip: Music EQ controls available on Logi Tune

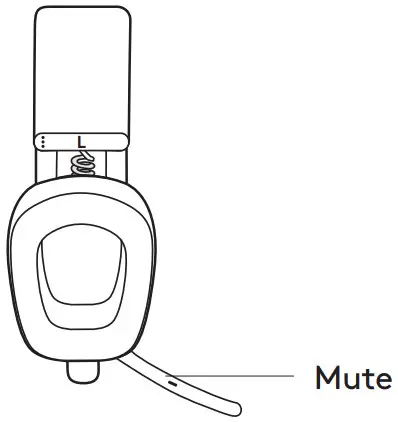

MUTE
There are 2 ways to mute your microphone

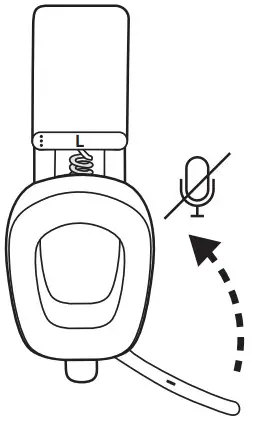

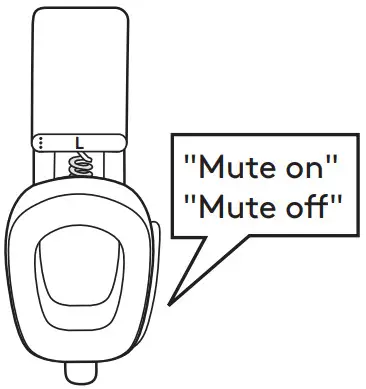

Press the button to mute	Flip up or down the mic boom to mute or unmute	Voice notifications indicate when the microphone is on / off mute

HEADPHONES LIGHT INDICATOR

Note:

• User-triggered behaviors, such as Bluetooth pairing or link lost, will be prioritized then revert back to its previous status once the behavior is completed

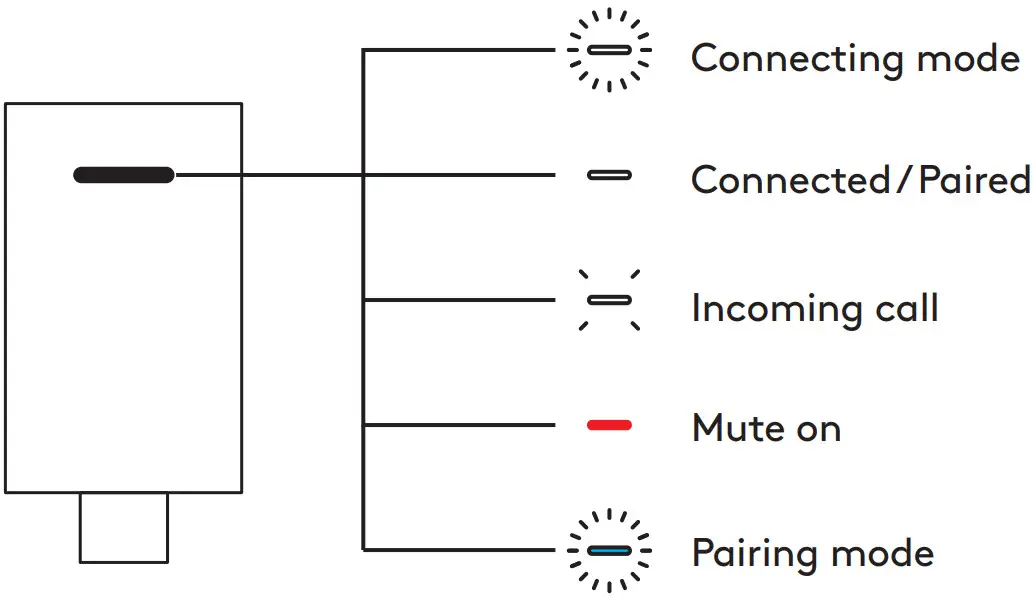

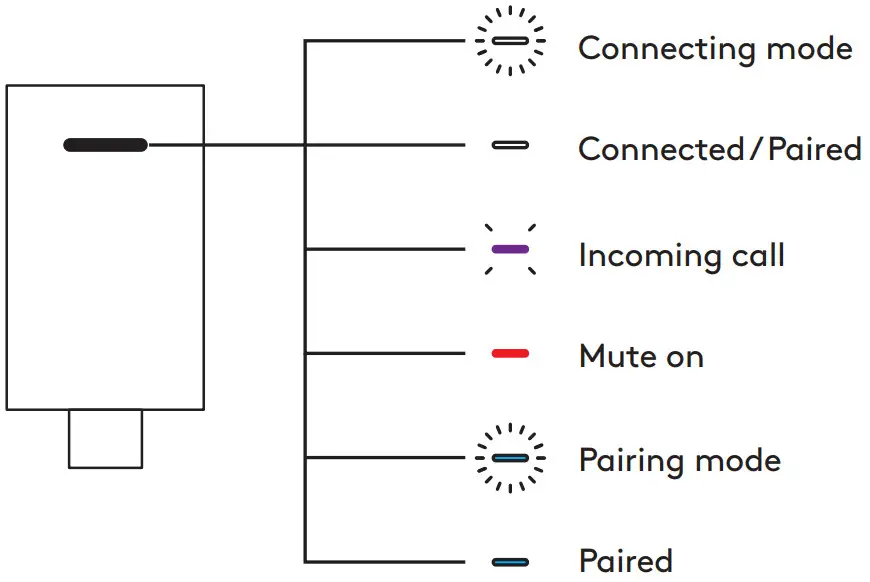

RECEIVER LIGHT INDICATOR

CHARGING

To conserve battery life, headphones automatically power off after 30 minutes without usage.
Sleep timer can be adjusted in Logi Tune.

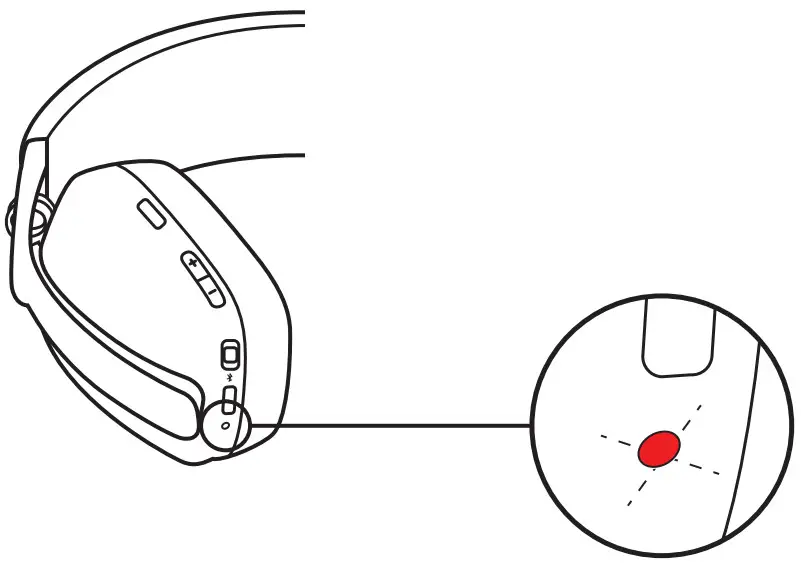

The LED light on the headphones will blink slowly in RED when the battery is lower than 10%.

Charging via USB cable

1. Plug one end of the cable to the USB-C port on the bottom of the earcup and the other end into the USB-C charging port on your computer
2. The LED light will start breathing white when charging
3. The LED light will turn solid white when fully charged
   – 2 hours will fully charge the battery
   – 5 minutes will give you 1 hour of playback
   Note:
   Battery life was measured from fully charged to automatic shut-off, utilizing 50% volume for both talk time and listening time
4. The headphones can be used with the receiver and Bluetooth paired while charging

LOGI TUNE
Logi Tune helps boost your headphones performance with periodic software and firmware updates
It is recommended to update both your headphones and receiver To do so, download Logi Tune from www.logitech.com/tune

www.logitech.com/tune

ADJUSTING SIDETONE
Sidetone lets you hear your own voice during conversations so you are aware of how loud you are talking In Logi Tune, select the sidetone feature, and adjust the dial accordingly

• A higher number means you hear more external sound
• A lower number means you hear less external sound

AUTO SLEEP TIMER
By default, your headphones will automatically power off when not in use for 30 minutes Adjust the sleep timer in Logi Tune To wake up your headphones, try sliding off/on the power switch again

RESET YOUR HEADPHONES

1. Power the headphones on
2. Press and hold the call button and volume ’–’ button for 5 seconds
3. The LED light will quickly blink from red to white for 3 times and then turns off when your headphones are successfully reset
4. The headphones will turn off after reset

DIMENSIONS

Headphones:
Height x Width x Depth: 183 03 x 169 68 x 73 mm
Weight: 0 185 Kg
Earpad:
Height x Width x Depth: 98 6 x 75 44 x 19 3 mm
Receiver:
Height x Width x Depth: 26 8 x 12 4 x 6 2 mm
Adapter:
Height x Width x Depth: 24 5 x 15 4 x 8 7 mm

SYSTEM REQUIREMENTS
Works with common calling applications across almost all platforms and operating systems
Works with Windows®, Mac, or Chrome™ based computer via USB-C, USB-A, Bluetooth® and iOS or Android™ Bluetooth® enabled devices

TECHNICAL SPECIFICATIONS

Microphone Type: Dual omni-directional MEMS mics with directional beamforming and DSP
Frequency response (Speaker): 20-20kHz (music mode), 100-8kHz (talk mode)
Frequency response (Microphone): 100-8kHz
Talk time up to 18 hrs
Battery life was measured from fully charged to automatic shut-off, utilizing 50% volume for both talk time and listening time
Listen time up to 20 hrs
Battery life was measured from fully charged to automatic shut-off, utilizing 50% volume for both talk time and listening time
Bluetooth version (headset): 5 2
Bluetooth version (receiver): 5 2
Wireless range: Up to 30 m / 100 ft (open field line of sight)
Wireless range may vary depending on operating environment and computing setup
Cable length (USB C to C charging cable): 4 9 ft (1 5 m)

© 2022 Logitech Logitech, Logi and the Logitech logo are trademarks or registered trademarks of Logitech Europe S A and/or its aliates in the U S and other countries Apple and the Apple logo are trademarks of Apple Inc , registered in the U S and other countries and regions App Store is a service mark of Apple Inc Google Play and the Google Play logo are trademarks of Google LLC
The Bluetooth® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc and any use of such marks by Logitech is under license Logitech assumes no responsibility for any errors that may appear in this manual Information contained herein is subject to change without notice

WEB-621-002221 002
www.logitech.com/support/zonevibewireless
