Assembly Instructions
CHANDELIER SKU# TH-SF0197
INSTRUCTIONS PERTAINING TO RISK OF FIRE OR INJURY TO PERSONS
READ ALL INSTRUCTIONS IMPORTANT SAFETY INSTRUCTIONS SAVE THESE INSTRUCTIONS
SAFETY PRECAUTIONS:
- TURN OFF ELECTRICAL POWER BEFORE STARTING THE INSTALLATION OF THE LIGHT FIXTURE.
- WIRING SUPPLIES AS REQUIRED BY LOCAL ELECTRICAL CODE.
- THIS PRODUCT MUST BE INSTALLED IN ACCORDANCE WITH THE APPLICABLE INSTALLATION CODE BY A PERSON FAMILIAR WITH THE CONSTRUCTION AND OPERATION OF THE PRODUCT AND THE HAZARDS INVOLVED.
- TO CLEAN THE FIXTURE, TURN OFF THE POWER, WAIT FOR IT TO COOL, AND WIPE THE FIXTURE WITH A CLEAN, SOFT CLOTH. NEVER SPRAY CLEANER DIRECTLY ONTO THE FIXTURE.
NOTE: The product may not look exactly as shown in the figures.
CAUTION: Inspect the wire insulation for any cuts, abrasions, or exposed copper that may have resulted during shipping. If there is a defect in the wire, do not attempt installation.
This fixture has been rated for up to 60-watt maximum TYPE A bulbs or 13-watt compact fluorescent light bulbs or 9-watt LED bulbs.
To avoid the risk of fire, do not exceed the recommended wattage.
This product is safety listed for dry locations.
This product may be dimmed with a standard incandescent dimmer.

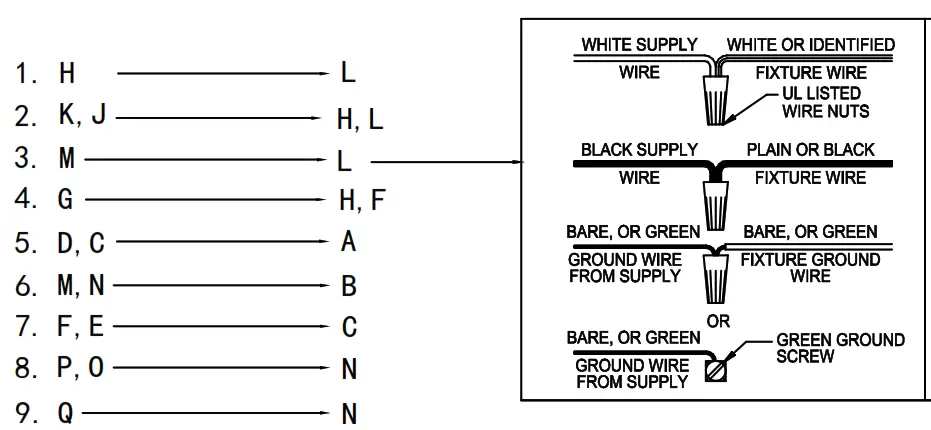

Assembly Steps:
 |  |
| Part Included | ||
| Code | Part description | QTY |
| A | Jncti n Box | 0 |
| C | Single Mounting Bracket | 1 |
| E | Canopy Screws | 2 |
| F | Canopy | 1 |
| G | Chain | 1 |
| H | Loop | 1 |
| J | Crystal Bar short | 12. |
| K | Aluminum needle | 13 |
| L | Fixfure | 1 |
| M | Crystal Bar short | 1 |
| N | Socket | 5 |
| 0 | Glass | 5 |
| P | Socket Ring | 5 |
| Q | Leading Wires | 0 |
| Hardware included | ||
| B | Wire Nuts | 4 |
| D | Bolts | 3 |
Trouble Shooting
| Problem | Possible Cause | Solution |
| The bulb will not light. | The power is OFF. | Ensure the power supply is ON. |
| There is a faulty wire connection. | Check the wiring. | |
| The circuit breaker is OFF. | Ensure the circuit breaker is in the ON position. | |
| The fuse blows or the circuit breaker trips when the light is turned ON. | There are crossed wires or the power wire is grounding out. | Check the wire connections. Contact a qualified electrician. |
