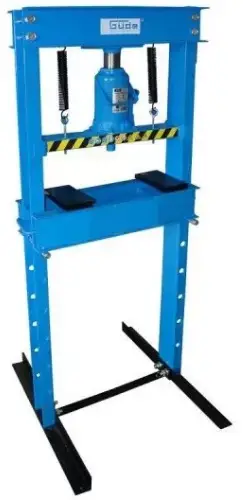

Gude WP 20 T Hydraulic Press Instruction Manual
Machine
Ideal helper for squeezing or pressing to be used in the workshop, garage, terrain, agriculture, forestry, crafts, industry, gardening and landscaping.

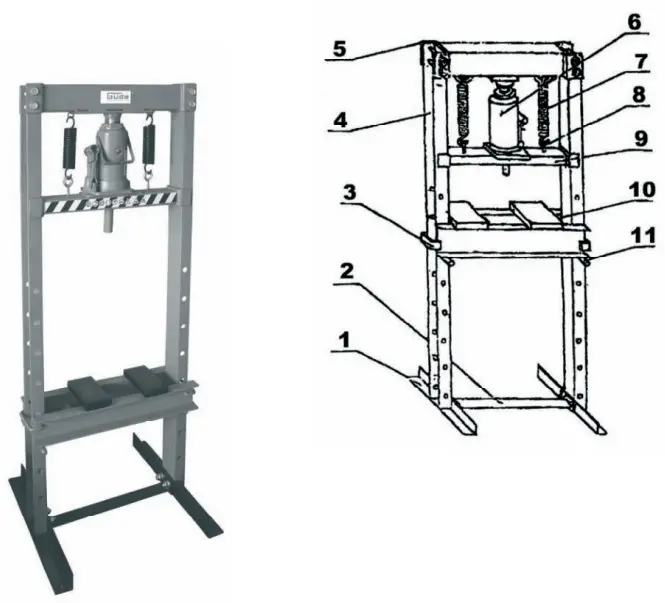

Delivery volume
Fig. 1
| Part number | Description | Amount |
| 1 | Press legs | 2 |
| 2 | Strut | 1 |
| 3 | Work bed | 1 |
| 4 | Posts | 1 |
| 5 | Cross part | 1 |
| 6 | 20 t lift. cylinder | 1 |
| 7 | Spring | 2 |
| 8 | Hook | 2 |
| 9 | Lifting board | 1 |
| 10 | Steel board | 2 |
| 11 | Bar | 2 |
Guarantee
See enclosed guarantee list.
Overall safety instructions
You ought to read the manual prior to first use. If in doubts about plugging and operating the machine, contact the manufacturer (service department).
To ensure high safety level, observe following instructions:
- Check the completeness, function and tightness of the machine!
- Never start up malfunctioning or defective machine. Contact the manufacturer or let the machine to be checked by a qualified mechanic
- Always work cautiously and with necessary carefulness!
- Never use inordinate force!
- Always wear safety gear (goggles, gloves, safety shoes, etc.).
- Steel, metal or other materials can brake while pressing. So take adequate safety measures around.
- Keep children and unconcerned people out of reach.
- Anchor the press firmly into ground, use dowels and screws.
- Never try to stretch or squeeze springs.
- Check all parts for function and tightness before each use.
- Faulty parts need to be replaced with adequate spare ones.
- While transporting the press, there might loose some air in the lifting cylinder. Due these air bubbles, the press might not work properly. To deaerate lifting cylinder do this:
- turn the valve of lifting cylinder anticlockwise maximum twice.
- remove the plug of the lifting cylinder.
- pump up in short intervals with the lever of lifting cylinder.
- repeat this procedure as often as necessary.
- close the lifting cylinder with the plug again.
What to do in emergency
Give adequate first aid needed and seek the qualified medical attendance as soon as possible.
Protect the injured and calm him down
Labels on the machine
Symbols explanation
In his manual and on the machine are used following symbols:
Product safety, restrictions:
 |  |  |
| Product complies with relevant EU standards | Overall restriction (in connection with other symbol) | Do not touch |
Restrictions, warnings, orders:
 |  |  |  |  |  |
| Machine can be operated by single person only | Warning/attention | Warning hand injury | Warning flying objects | Use safety gloves | Read user’s manual before use |
Orders, environmental protection:
 |  |  |  |  | |
| Wear safety goggles | Wear safety shoes | Dispose the waste so you make no environmental damage | Faulty and/or liquidated electric or electronic devices must be disposed to authorized scrap-yards. | Green point – Duales System Deutschland AG |
Wrapping:
 |  |  |  | ||
| Protect from humidity | This face up | Attention – fragile | Weight |
Use in accordance with function
Machine is used for pressing only while following safety instructions.
Not observing the stipulations from overall regulations in force, as well as from this manual, does not make the manufacturer responsible for any damage.
Residual risks and protective measures
Mechanical residual risks
| Danger | Description | Protective measures | Residual danger |
| Winding, holding | Broad clothes or jewelry can be caught up by moving parts. | Wear always skin tight clothes and do not wear jewelry, easy to be winded up |
Neglecting the ergonomic rules
| Danger | Description | Protective measures | Residual danger |
| Careless using of safety gear | Saw chain and other parts on the machine can cause cut or pinch injuries | Therefore wear always safety gloves while operating the machine. | |
| Insufficient local lighting | Insufficient lighting represents high safety risk | Arrange always proper lighting while operating the machine |
Liquidation
Liquidation instructions are coming out of pictograms placed on the machine resp. casing. Description of particular symbols you can find in the chapter “Labels on the machine”.
Operation requirements
Operator must read the manual properly prior to use.
Qualification
Except detailed instruction by an expert, there is no special qualification needed to operate the machine.
Minimum age
Operate the machine can only persons over 16 years.
Exception is using by the youths during professional training under the supervision of an instructor.
Training
Operating the machine requires only corresponding instruction by an expert resp. user’s manual. Special training is not necessary.
Technical data
Pressing power: 20 t
Operating range: 0-730 mm
Oil pressure: 7 adjustment options
Lift height: 160 mm
Basic dimensions (LxWxH): 700 x 660 x 1450 mm
Weight: 81 kg
Transportation and storage
Machine is meant for stationary utilization only.
Machines not in use have to be stored in dry, locked room.
Assembly and first start up
Safety instruction for the first start up
- Pay attention to secure fastening of the machine to the suitable surface.
- Ensure that all fastenings are tight
Procedure
Fasten the machine firmly to the ground
Operation
- By inserting the pin into the frame set the working height needed.
- Close the valve of lifting cylinder
- Pump up with the lever of the lifting cylinder
- By opening the valve, lifting cylinder is coming back to the original position.
Safety instructions for operators
- Use the machine after you have read the manual carefully
- Follow all safety instructions stated in the manual
- Act responsibly towards other persons
Inspections and maintenance
Keep the machine clean and dust free.
Grease all moving parts.
Safety instructions for inspections and maintenance
Only regularly maintained and cared machine can be satisfactory helper. Insufficient maintenance and care can lead into unpredictable faults and accidents.
Inspection and maintenance plan
| Time interval | Description | Other possible details |
| After each use | · Wipe up the machine with clean and dry cloth or blow it by a compressed low pressure air. |
Spare parts
| GB | Do you have any technical questions? Claim? Do you need spare parts or instructions for operation? We are ready to help you quickly and without unnecessary bureaucracy at our site www.guede.com in the part Service. Please help us in helping you. In order to identify your machine in case of a claim we need its serial number, product number and year of production. All the data mentioned can be found at the type plate. Please write them down bellow to have them always handy: Serial number: Product number: Year of production: | ||
| Phone.: +49 (0) 79 04 / 700-360 | Fax: +49 (0) 79 04 / 700-51999 | E-Mail: [email protected] | |
EC Declaration of Conformity
Tímto prohlašujeme my,
We herewith declare,
Güde GmbH & Co. KG
Birkichstraße 6, 74549 Wolpertshausen, Germany
That the following Appliance complies with the appropriate basic safety and health requirements of the EC Directive based on its design and type, as brought into circulation by us.
In a case of alternation of the machine, not agreed upon by us, this declaration will loose its validity.
Machine desciption: – WP 20 T
Article-No.: – 24422
Applicable EC Directives: – EU directive 98/37/EG on machines
Date/Authorized Signature:
23.03.2009
Title of Signatory:
Arnold, executive officer
A.V. 1
Reprints, even partial, need to be approved.
Technical changes reserved.
© Güde GmbH & Co. KG – 2007
